Fractal Design Define XL R2 Tower Black
Couldn't load pickup availability
- High density noise-reducing material for an optimal silent case
- Patented ModuVent design allowing the user to choose between optimal silence or maximum airflow
- With a new internal layout and additional PCI expansion slots, it can harbor the most powerful enthusiast systems

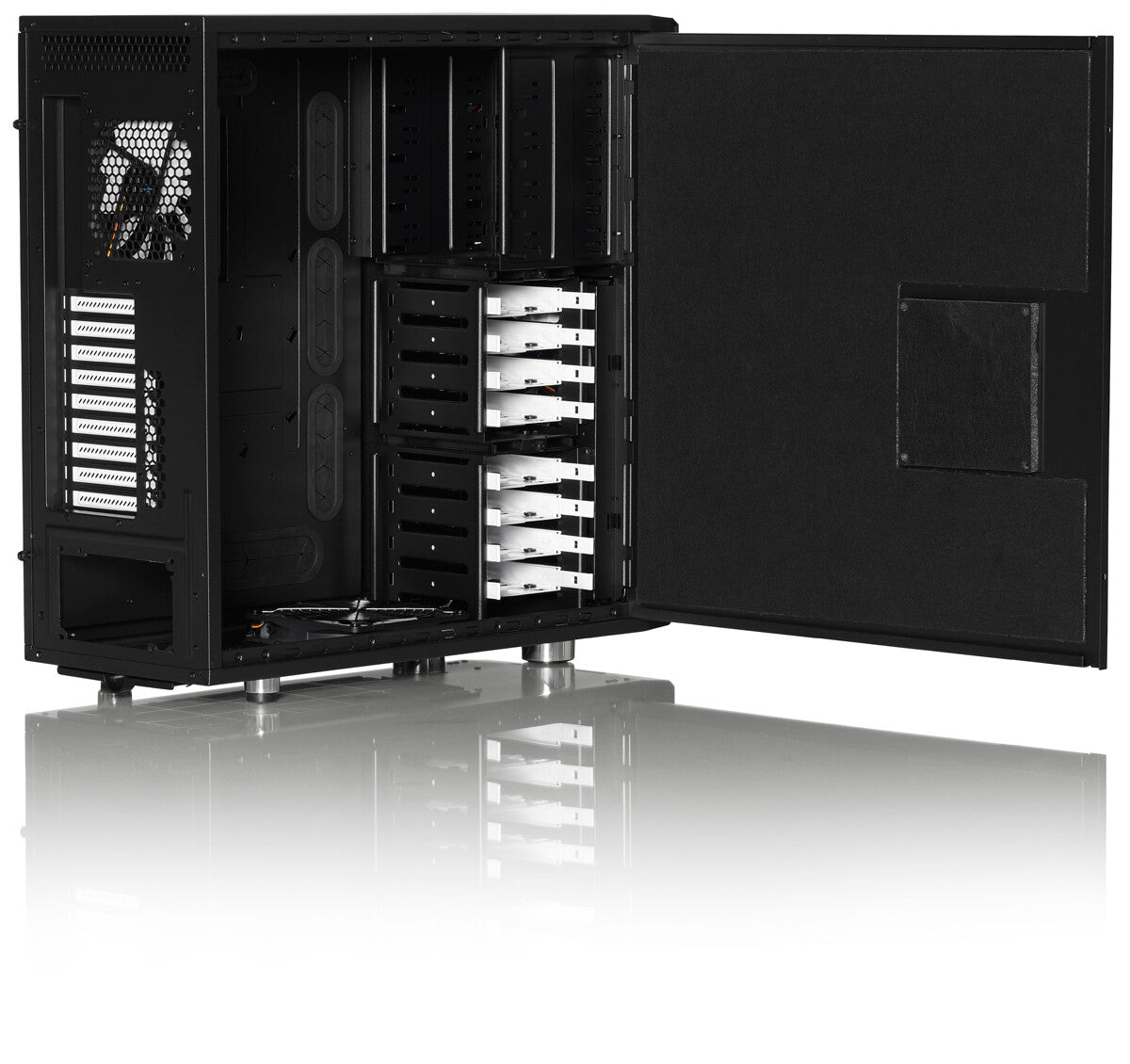

- Both HDD cages can be removed or repositioned - Top HDD cage can be removed or repositioned for increased airflow whereas bottom HDD cage can be repositioned further into the case to allow for front radiator mount
- The case can fit water cooling equipment in the front, top, rear and bottom without major modifications
- Three-speed fan controller is strategically integrated in the front panel and supports up to 3 fans
- Three Silent Series R2 fans are included, featuring hydraulic bearings which contribute to a longer life expectancy – Silent Series R2 retail fans now come standard in all cases
- New tool-less front fan holder makes switching front fans a breeze
Fractal Design builds on the success of its awarding-winning Define XL computer case with the Define XL R2. This updated chassis carries on the family tradition of providing superb cooling and ventilation capabilities with exceptional expandability, in a sleek and stylish Scandinavian form.
The Define XL R2, which includes Fractal Design’s innovative ModuVent™ feature, has an updated internal layout that offers greater expandability, modularity and flexibility, including capacity for 9 PCI cards and two HDD cages that can be repositioned to provide more space for water cooling radiators.
Design | |
---|---|
Maximum PSU length | 19 cm |
Maximum graphics card length | 33 cm |
Maximum CPU cooler height | 17 cm |
LED indicators | Yes |
Reset button | Yes |
Built-in speaker(s) | No |
Anti-dust filter | Yes |
Suitable for | Home/Office |
Side window | No |
Number of expansion slots | 9 |
Number of 3.5" bays | 8 |
Number of 5.25" bays | 4 |
Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX, XL-ATX |
Product colour | Black |
Type | PC |
Form factor | Tower |
Power supply | |
---|---|
Power supply location | Bottom |
Power supply included | No |
Ports & interfaces | |
---|---|
Audio output | Yes |
Audio input | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
USB 2.0 ports quantity | 2 |
Cooling | |
---|---|
Top radiator sizes supported | 240,280 mm |
Rear radiator sizes supported | 120,140 mm |
Front radiator sizes supported | 240 mm |
Liquid cooling capability | Yes |
Bottom fans diameters supported | 120,140 mm |
Number of bottom fans supported (max) | 1 |
Bottom fans installed | 1x 140 mm |
Top fans diameters supported | 120,140 mm |
Number of top fans supported (max) | 2 |
Rear fans diameters supported | 120,140 mm |
Number of rear fans supported (max) | 1 |
Rear fans installed | 1x 140 mm |
Side fans diameters supported | 120,140 mm |
Number of side fans supported (max) | 1 |
Front fans diameters supported | 120,140 mm |
Number of front fans supported (max) | 2 |
Front fans installed | 1x 140 mm |
Storage | |
---|---|
Card reader integrated | No |
Hot-swap | Yes |
Supported HDD sizes | 2.5,3.5" |
Packaging content | |
---|---|
Manual | Yes |
Weight & dimensions | |
---|---|
Weight | 16.5 kg |
Height | 559 mm |
Depth | 560 mm |
Width | 232 mm |
Packaging data | |
---|---|
Package weight | 18.5 kg |
Package height | 637 mm |
Package depth | 655 mm |
Package width | 322 mm |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |
Other features | |
---|---|
Package dimensions (WxDxH) | 322 x 655 x 637 mm |
