Epson WorkForce DS-1660W Power PDF
Couldn't load pickup availability
- Smallest footprint in its class{s1: Making it easy to position in both front or back-office environments.
- Scan a wide range of documents: Including books, bound documents, passports and delicate items
- Intelligent colour and image adjustments: Auto crop, skew correction, blank page and background removal
- One of the fastest in its class: 25ppm scan speed
- Wireless and USB 3.0 connectivity: Choose flexibility and speed

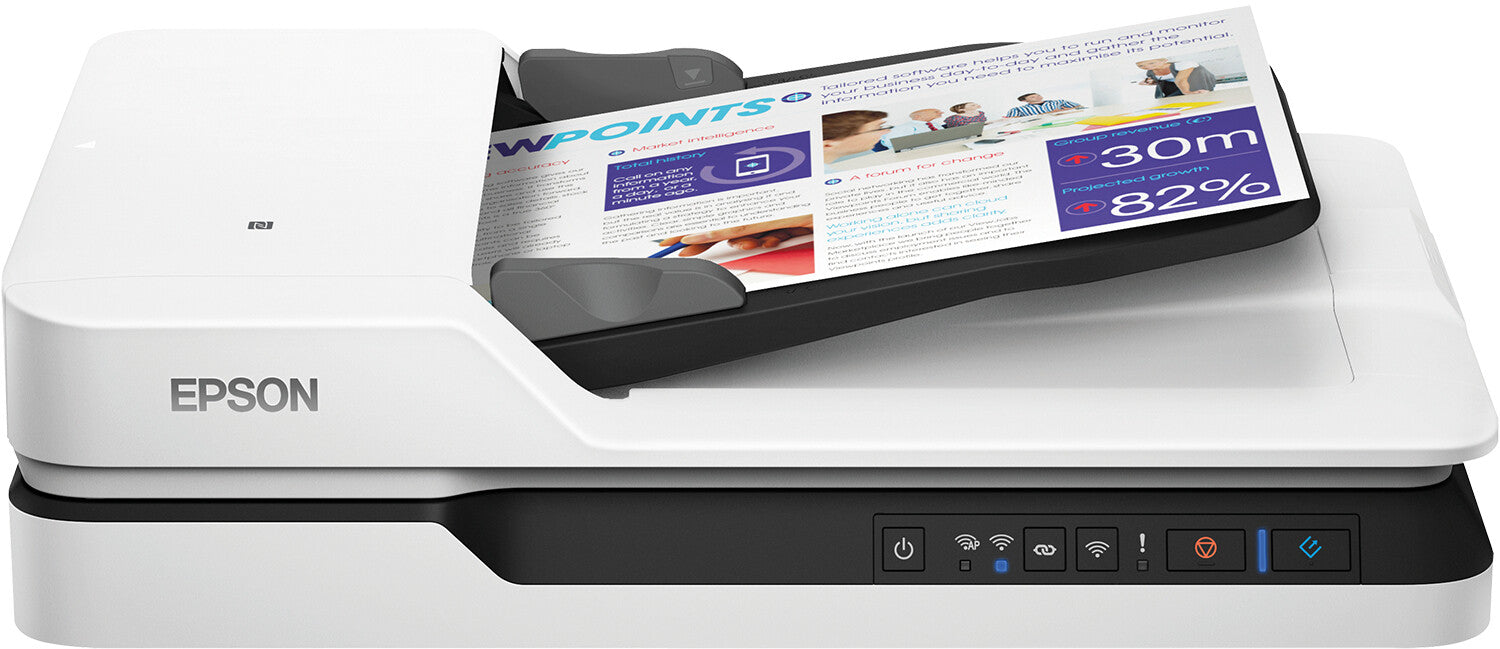

Affordable Wi-Fi flatbed
Combining a flatbed scanner with the convenience of a 50-page ADF makes it possible to scan a wide range of challenging documents, including books, bound documents, passports and delicate items while quickly and simply scanning stacks of office documents. Its small footprint makes it easy to position in front office and customer-facing environments, as well as back office workgroups.
Intelligent features
Smart colour and image adjustments, including auto crop, skew correction, blank page and background removal, with Epson's Image Processing Technology. With long document mode it's possible scan over three metres (3048mm) of paper single sided.
Flexible placement

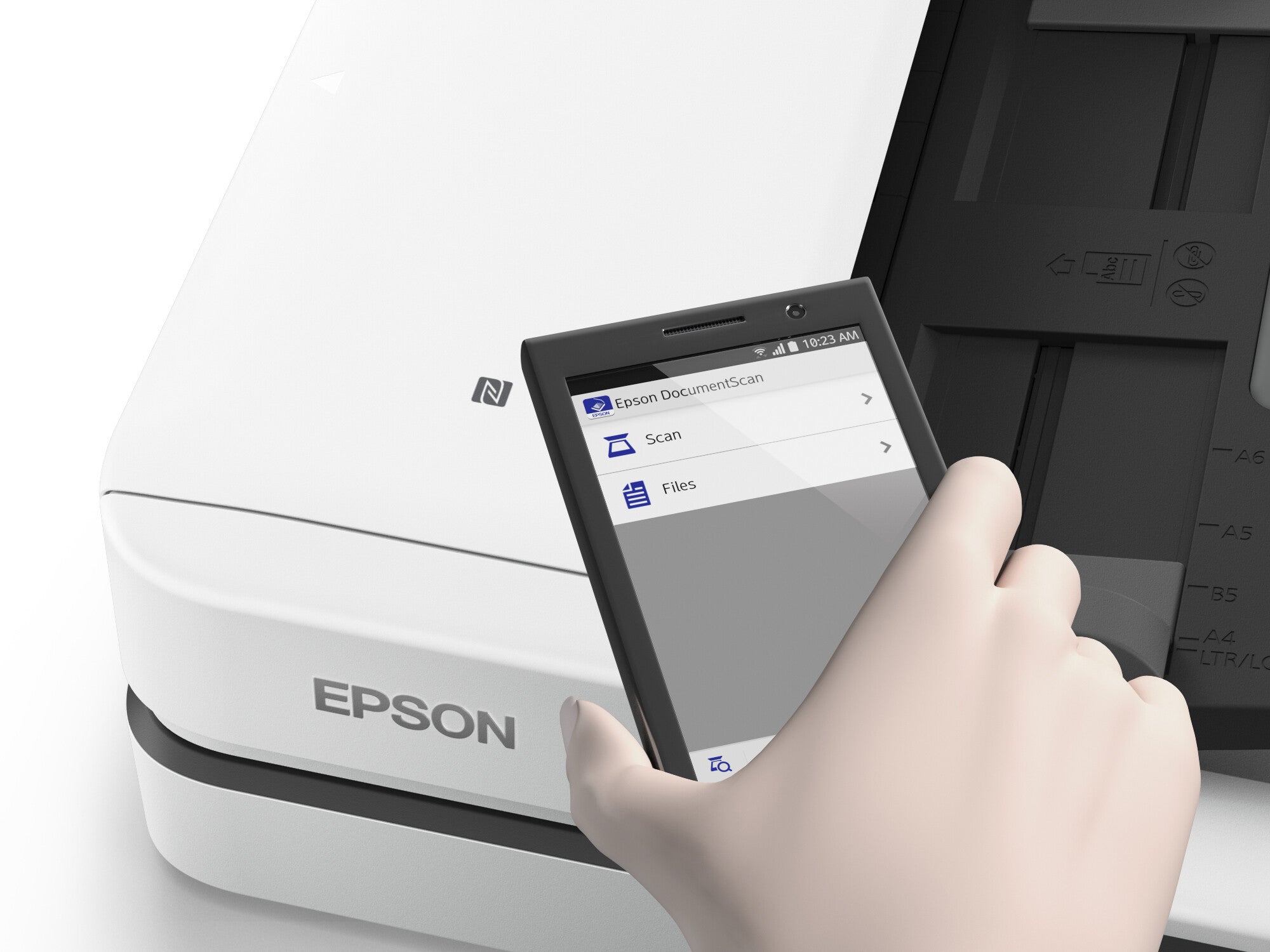

The Wi-Fi and Wi-Fi Direct connectivity on the DS-1660W provide extra convenience to organisations wanting to deploy a dedicated scanning solution that can be accessed easily by many people. With NFC enabled, use the Epson Scan App to take control with your mobile device - then edit and improve digital images before saving and sharing.
Boost your office efficiency
One of the fastest scanners in its class with a 25ppm scan speed. USB 3.0 connectivity means there is no slow down, even when scanning at 300dpi high resolution. Scan both sides of a page with double-sided scanning capability for greater convenience. Create up to 30 jobs with the optional network panel and scan directly to server locations, cloud services and Microsoft SharePoint. Included Epson software enables dual image output; scan once and send to two different destinations. The DS-1660W also encourages easy, one-touch scanning to folders, email, online storage accounts{s2 and more.
| Scanning | |
|---|---|
| Maximum scan size | 210 x 3048 mm |
| Enhanced scan resolution | 1200 x 1200 DPI |
| Optical scanning resolution | 1200 x 1200 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Input colour depth | 30 bit |
| Input greyscale depth | 10 bit |
| Output colour depth | 24 bit |
| Output greyscale depth | 8 bit |
| ADF scan speed (b/w, A4) | 25 ppm |
| ADF scan speed (colour, A4) | 25 ppm |
| Design | |
|---|---|
| Scanner type | Flatbed scanner |
| Built-in display | No |
| Product colour | Black, White |
| Performance | |
|---|---|
| Sensor type | CIS |
| Light source | ReadyScan LED |
| Scan file formats | JPG, PDF, TIFF |
| Daily duty cycle (max) | 1500 pages |
| Password protection | Yes |
| Scan drivers | TWAIN |
| Input capacity | |
|---|---|
| Auto document feeder (ADF) input capacity | 50 sheets |
| Paper handling | |
|---|---|
| Maximum ISO A-series paper size | A4 |
| ISO B-series sizes (B0...B9) | B5 |
| ISO A-series sizes (A0...A9) | A4, A5, A6 |
| Legal | Yes |
| Letter | Yes |
| Auto Document Feeder (ADF) media weight | 50 - 120 g/m² |
| Minimum scan area (ADF) | 89 x 127 mm |
| Maximum scan area (ADF) | 210 x 3048 mm |
| Ports & interfaces | |
|---|---|
| USB port | Yes |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Optional connectivity | Ethernet |
| Network | |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| IPv6 support | Yes |
| Supported network protocols | TCP/IP, DHCP, DNS, SNMP, SLP |
| Power | |
|---|---|
| Power supply type | AC |
| Weight & dimensions | |
|---|---|
| Width | 451 mm |
| Depth | 315 mm |
| Height | 120 mm |
| Weight | 3.9 kg |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 195 mm |
| Package depth | 520 mm |
| Package height | 405 mm |
| Package weight | 4.84 kg |
| Packaging content | |
|---|---|
| Cables included | USB |
| General | |
|---|---|
| Product family | WorkForce |
| System requirements | |
|---|---|
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Windows operating systems supported | Windows 10, Windows 7, Windows 7 x64, Windows 8, Windows 8 x64, Windows 8.1, Windows 8.1 x64, Windows Vista, Windows Vista x64 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 80% |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84716070 |
