£379.99

Stock Available: 0
  • Built-in taken sensor: Automatic next label printing
  • Media flexibility: 40, 58 and 80mm media widths
  • Speed: Print speeds of up to 170mm/sec
  • Paper-saving: Improved paper reduction function
  • Easy installation: Three mounting positions

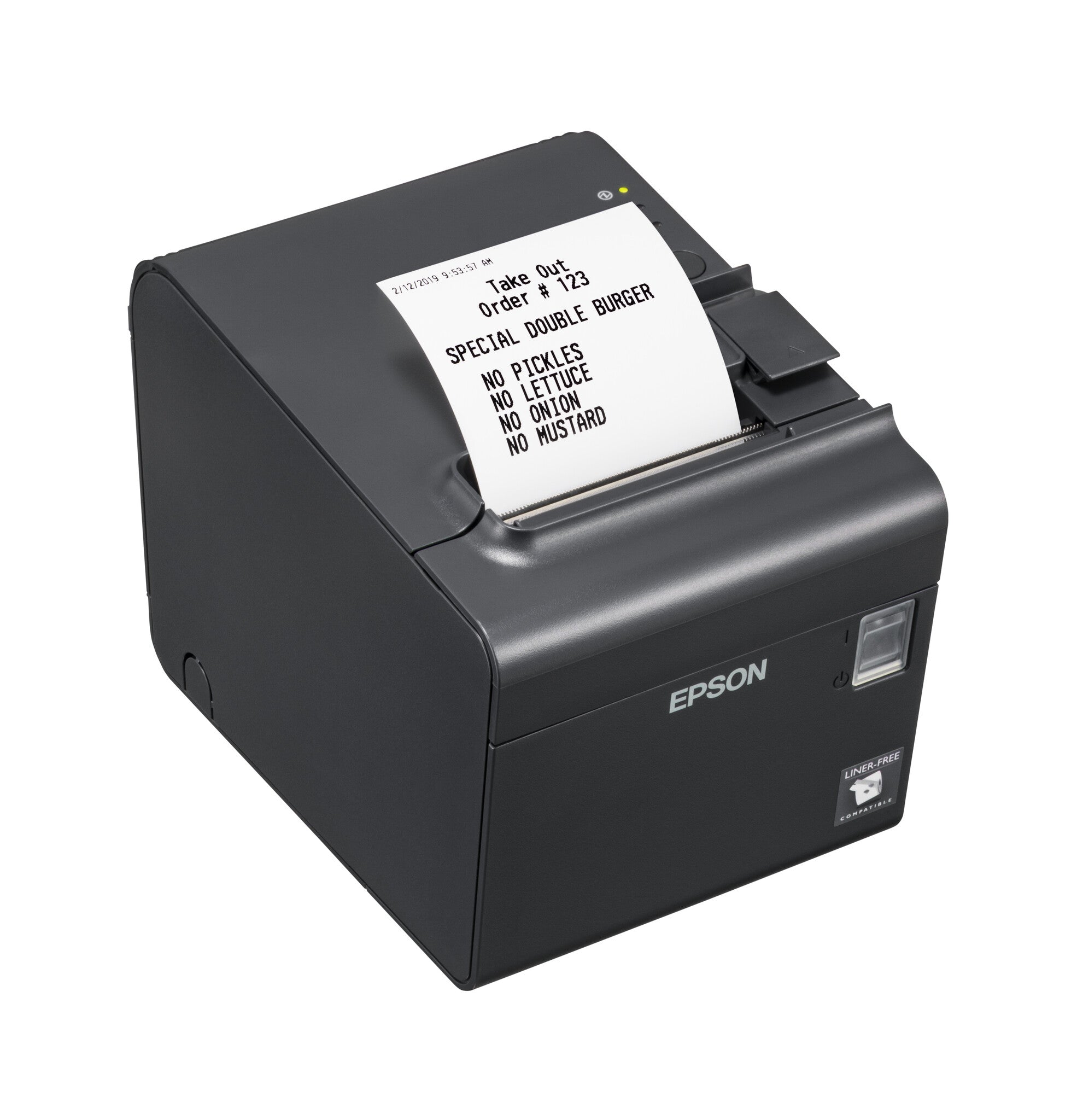

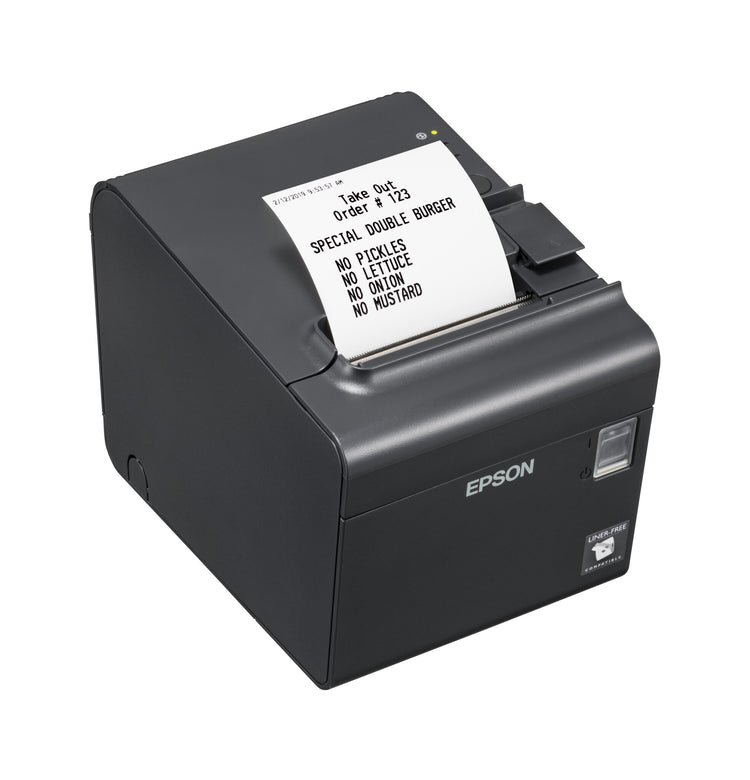

Liner-free thermal label printer
This thermal label printer has been developed for fast-food retail chains, restaurants, food delivery services, and logistics. The TM-L90LF liner-free thermal label printer benefits users by providing cost-effective, fast and reliable technology. It's also compatible with liner-free adhesive media¹.

Cost efficient
As the TM-L90LF prints both liner-free labels and receipts in order to improve the user's operational efficiency and total cost of ownership (TCO). As the printer works with adhesive-backed media, users are able to accurately label food and drink orders - thereby increasing customer satisfaction and user accuracy.

Order processing speed
With print speeds of up to 170mm/sec, the potential benefits to the user are clear: fast order (and checkout) processing, faster drive-through services and improved customer satisfaction.

Built-in taken sensor


The next label prints automatically as the printed one is taken.


Flexible installation
Users can position the printer in the most convenient spot, thanks to a choice of vertical, horizontal or wall-mounted (using optional bracket) installation.

Saves paper
The TM-L90LF features improved paper reduction functionality that includes back feed capability, line feed adjustment and a smaller sized font. It can be set up to cut through adhesive areas, which saves paper. To further reduce paper consumption, the automatic top margin reduction function prints the top of the next receipt before cutting the current one when printing continues after auto cutting. It supports 1.5-inch, 2-inch or 3-inch media widths.

Printing
Print technology Direct thermal
Maximum resolution 203 x 203 DPI
Print speed 90 mm/sec
Printing characters Text, Graphic
Paper handling
Half-cutter Yes
Autocutter durability 1 million cuts
Maximum roll diameter 10.2 cm
Supported paper width 80 mm
Ports & interfaces
Connectivity technology Wired
USB port Yes
Performance
Mean cycles between failures (MCBF) 35000000
Mean time between failures (MTBF) 360000 h
Cutter Yes
Certification VCCI-Class A, CE
Design
Product colour Grey
Power
AC input voltage 24 V
Power consumption 1800 mA
Operational conditions
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -10 - 50 °C
Operating temperature (T-T) 5 - 45 °C
Weight & dimensions
Width 140 mm
Depth 148 mm
Height 203 mm
Weight 1.9 kg
Packaging data
Quantity per pack 1 pc(s)
Package width 195 mm
Package depth 255 mm
Package height 240 mm
Package weight 2.76 kg
Packaging content
Manual Yes
Logistics data
Pallet weight (UK) 0 g
Harmonized System (HS) code 84433210
Products per pallet (UK) 168 pc(s)
Pallet gross weight 0 g
Products per pallet 112 pc(s)
Other features
Buffer size 4 KB
Character sets ANK
Country of origin China
Safety TÜV
