£474.99

Stock Available: 0
  • Versatile: Ideal for label and barcode printing. Supports greyscale printing.
  • Fast print speeds: Thermal printing up to 150mm/sec
  • Easy installation: Mounts horizontally, vertically or with a wall bracket
  • Easy operation: Drop in paper loading and built-in-USB interface
  • Media flexibility: Label and receipt paper, from 38mm to 80mm wide

Label printer

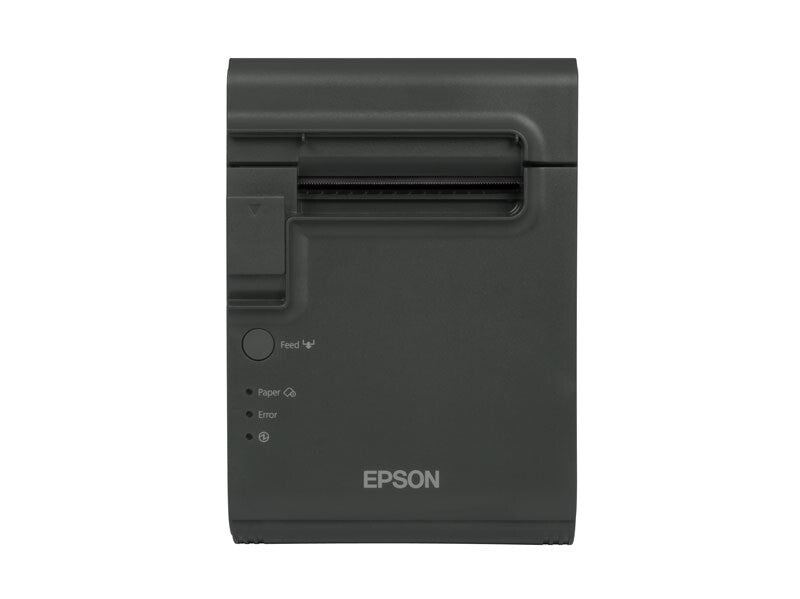

The TM-L90 is Epson's compact thermal label printer that’s also ideal for barcode printing. This model effortlessly increases productivity for post offices, pharmacies, supermarkets and other businesses. You can easily print on different types of label and receipt paper, in a variety of different sizes, thanks to the adjustable cutter.

Label and barcode printing
With fast, thermal printing of up to 150mm/sec, the TM-L90 is a valuable asset to your business. With this model, you'll be able to print out and get on with more important work, rather than waiting around for labels or barcodes.

More connectivity
This printer benefits from high speed serial, Ethernet and parallel connectivity plus a built-in USB interface, which means it can be operated as a network device.

Easy to use
The small footprint and wall bracket mean that you can place it almost anywhere, in any position, for convenient and versatile printing. Practical design features, such as drop-in paper load, selectable auto-cutter and jamproof paper feeding, ensure smooth operation. The easy-to-use operator cover and lifespan of up to 20 million lines enable long-lasting, trouble-free maintenance.

High quality labels
Its greyscale capabilities allow highly customised layouts, and logos and promotional messages can be added with ease.

Larger receipt rolls, wider paper
Altogether, the TM-L90 label printer is one of the most efficient label printers available: it accepts large paper rolls (up to 90mm in diameter) and you can select paper widths between 38 and 80mm to produce labels in different sizes.

Printing
Print technology Direct thermal
Colour No
Maximum resolution 203 x 203 DPI
Print speed 150 mm/sec
Printing characters Barcode
Paper handling
Autocutter Yes
Half-cutter No
Autocutter durability 2 million cuts
Maximum roll diameter 9 cm
Supported paper width 80 mm
Media thickness 0.06 - 0.08 mm
Ports & interfaces
Connectivity technology Wired
Ethernet LAN Yes
USB port Yes
USB 2.0 ports quantity 1
Performance
Tape cutting Automatic
Character pitch 22.6,16.9 cpi
Mean cycles between failures (MCBF) 70000000
Mean time between failures (MTBF) 260000 h
Cutter Yes
Certification VCCI-Class A, FCC-Class A, CE, AS / NZS 3548
Design
Product colour Grey
Power
AC input voltage 24 V
Power consumption 1800 mA
Operational conditions
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -10 - 50 °C
Operating temperature (T-T) 5 - 45 °C
Weight & dimensions
Width 140 mm
Depth 148 mm
Height 203 mm
Weight 1.9 kg
Packaging data
Quantity per pack 1 pc(s)
Package width 193 mm
Package depth 250 mm
Package height 240 mm
Package weight 2.82 kg
Packaging content
Manual Yes
Logistics data
Pallet weight (UK) 0 g
Harmonized System (HS) code 84433210
Pallet height (UK) 2.5 m
Pallet width (UK) 100 cm
Pallet length (UK) 120 cm
Products per pallet (UK) 168 pc(s)
Products per pallet layer (UK) 24 pc(s)
Products per pallet layer 16 pc(s)
Pallet gross width 80 cm
Pallet gross length 120 cm
Pallet gross height 2.5 m
Pallet gross weight 0 g
Products per pallet 112 pc(s)
Other features
Buffer size 4 KB
Character sets ANK
Country of origin China
Safety UL, CSA, TÜV
