Elo Touch Solutions E239980 electric converter
£42.99
Couldn't load pickup availability

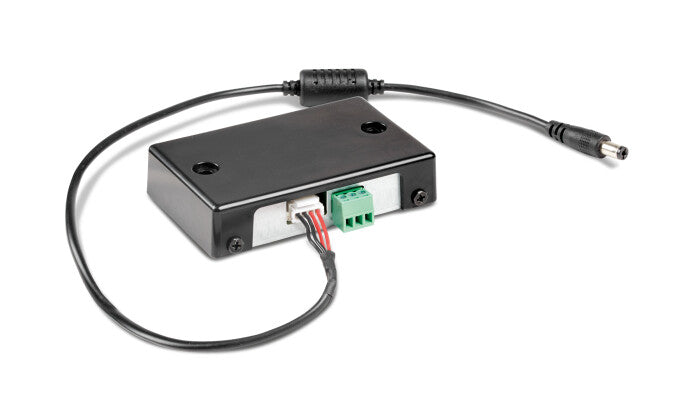

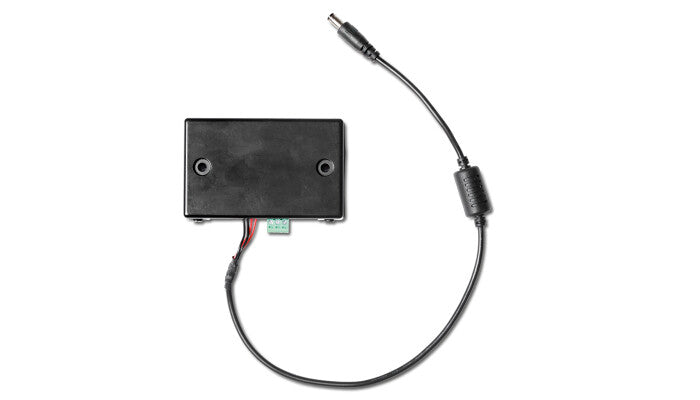

The 24 VDC Converter Kit provides conversion from 24V to 12V, which allows kiosk manufacturers to leverage a common 24V power supply in their kiosk design and have a single AC connection. On the 1598L open frame touchscreen there are mounting features that enable the converter to be mounted on the back of the monitor. The power converter can also be used with other Elo 90-Series open frames via other kiosk mounting options.
| Technical details | |
|---|---|
| Product colour | Black |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 95% |
| Power | |
|---|---|
| DC input voltage | 24 V |
| Output current | 3500 mA |
| Output voltage | 12 V |
| Input current | 1.9 A |
| Weight & dimensions | |
|---|---|
| Width | 90.7 mm |
| Depth | 57.1 mm |
| Height | 20.4 mm |
| Weight | 110 g |
