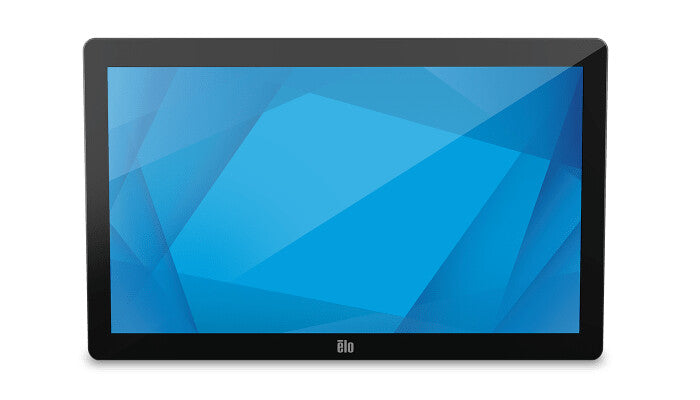

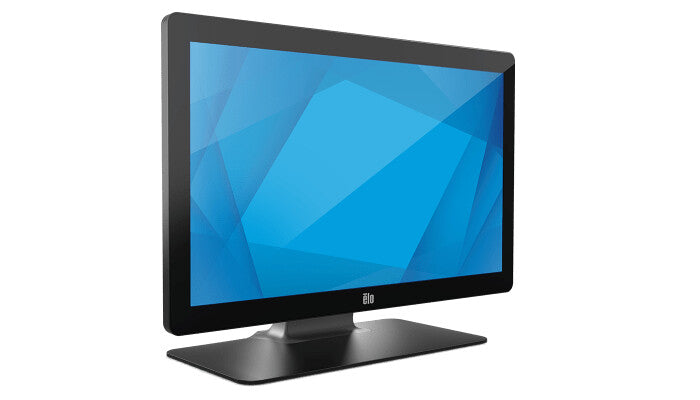

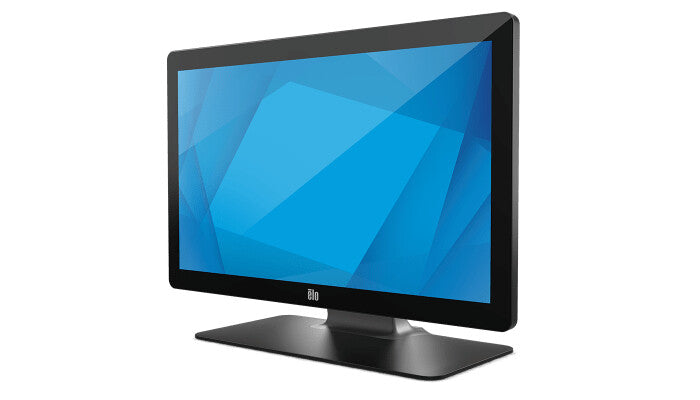

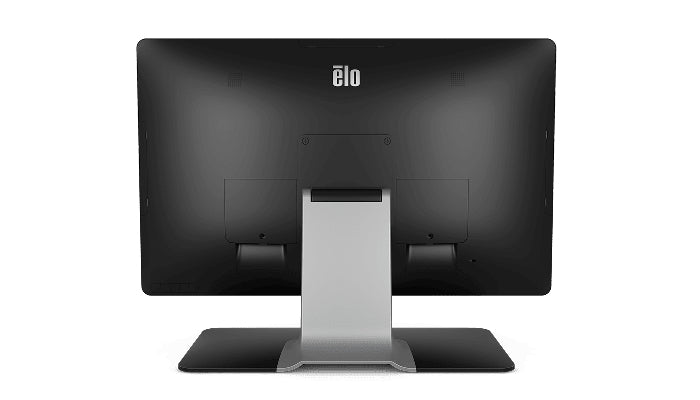

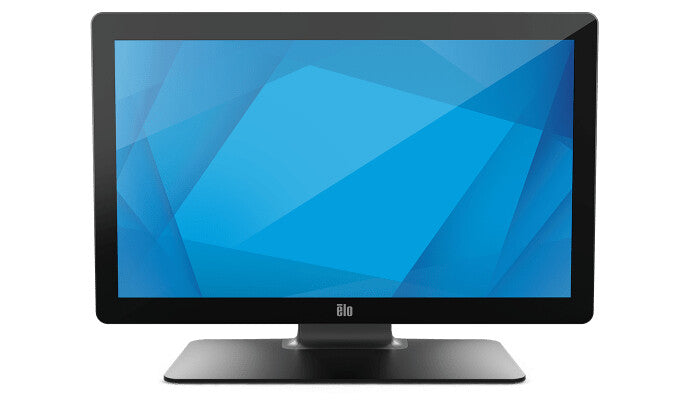

Elo Touch Solutions E159758 computer monitor 54.6 cm (21.5") 1920 x 1080 pixels LED Touchscreen Tabletop Black
Couldn't load pickup availability
- Touchscreen 54.6 cm (21.5") LED
- 1920 x 1080 pixels 16:9
- 60 Hz 14 ms 1000:1
- E 16 kWh 16.78 W
The Elo 02-Series of Touchscreen Monitors designed with seamless style across all sizes includes four options — a 19-inch square aspect ratio display and 22, 24 and 27-inch wide aspect ratio displays. With a compact form factor and clean design for easy integration, the 02-Series monitors are well-suited for point-of-sale, point of information, signage and hospitality applications. And with a variety of peripherals, the monitors can be transformed to meet the demands of your blueprint.
Brilliant Displays from 19 to 27-inches
The brilliant touchscreens with Elo's industry-leading TouchPro® PCAP technology offer wide viewing angles with impeccable image clarity, resolution, and light transmission for accurate touch response and vivid images. With up to 10 touches enabled, the 02-Series Monitors, provide a tablet-like experience.
Well-Suited for...
Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.
Elo Edge Connect™ Lets You do More!
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripheral options. Whether for endless aisle, self-order or collaboration applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!
Fingerprint Scanner
The Biometric Fingerprint Scanner can be attached to provide secure and quick login.
MSR
Elo offers the flexibility of integrating payment devices, including a Magtek 3-track encryptable MSR payment terminal.
Barcode Scanner
Enhance self-service checkout and price-checker applications by coupling a high-performance barcode scanner onto the Elo touchscreen.
NFC
The Near Field Communication (NFC) adapter can be integrated for easy mobile payments with just a touch of the phone.
One for You.
One for Your Customers.Offer your customers a point of interaction by adding a touchscreen for them to review their transactions, participate in loyalty programs or see the latest promotion.
Mount with Flexibility
Customers demand a seamless shopping experience from first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party VESA mounts, the touchscreens can be integrated with ease.
| Display | |
|---|---|
| Vertical scan range | 50 - 75 Hz |
| Horizontal scan range | 30 - 82 kHz |
| Display number of colours | 16.7 million colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (typical) | 1000:1 |
| Aspect ratio | 16:9 |
| Supported graphics resolutions | 640 x 400, 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1366 x 768, 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+) |
| Screen shape | Flat |
| Response time | 14 ms |
| Number of simultaneous touchpoints | 10 |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| Touchscreen type | Tabletop |
| Touchscreen | Yes |
| Display technology | LED |
| Native aspect ratio | 16:9 |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 54.6 cm (21.5") |
| Performance | |
|---|---|
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Multimedia | |
|---|---|
| Built-in camera | No |
| RMS rated power | 20 W |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Product colour | Black |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Audio output | Yes |
| Audio input | Yes |
| HDMI ports quantity | 1 |
| HDMI | Yes |
| VGA (D-Sub) ports quantity | 1 |
| USB Type-C downstream ports quantity | 4 |
| USB upstream port type | USB Type-A, USB Type-B |
| Built-in USB hub | Yes |
| Ergonomics | |
|---|---|
| Number of OSD languages | 10 |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Russian |
| Height adjustment | No |
| Wall mountable | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| Energy efficiency scale | A to G |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (off) | 0.28 W |
| Power consumption (standby) | 0.69 W |
| Power consumption (typical) | 16.78 W |
| Energy consumption (SDR) per 1000 hours | 16 kWh |
| Energy efficiency class (SDR) | E |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 - 95% |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight (without stand) | 6.75 kg |
| Height (without stand) | 526.9 mm |
| Depth (without stand) | 42.7 mm |
| Width (without stand) | 326.9 mm |
| Weight (with stand) | 4.75 kg |
| Height (with stand) | 526.9 mm |
| Depth (with stand) | 193.4 mm |
| Width (with stand) | 383.8 mm |
| Packaging data | |
|---|---|
| Package weight | 10.8 kg |
| Package height | 617 mm |
| Package depth | 260 mm |
| Package width | 477 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Cables included | AC, Audio, HDMI, USB, VGA |
| Other features | |
|---|---|
| Mean time between failures (MTBF) | 50000 h |
