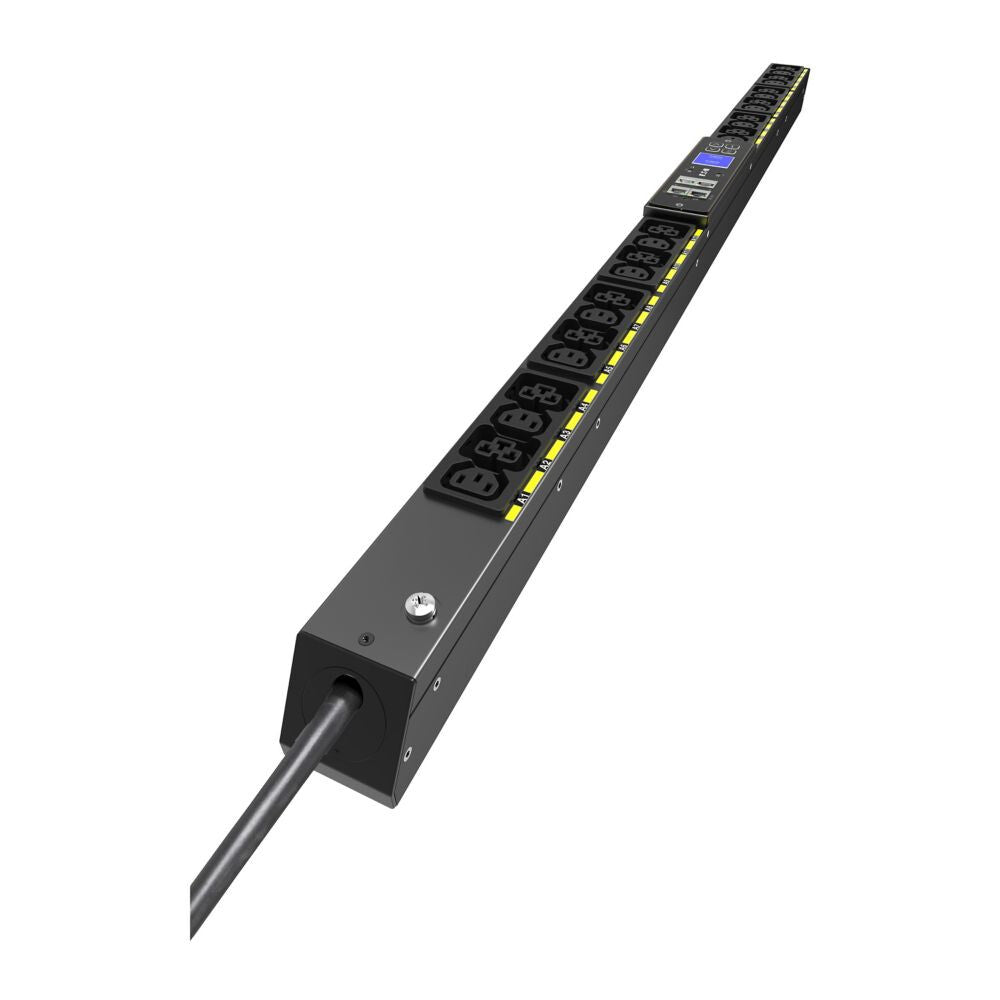

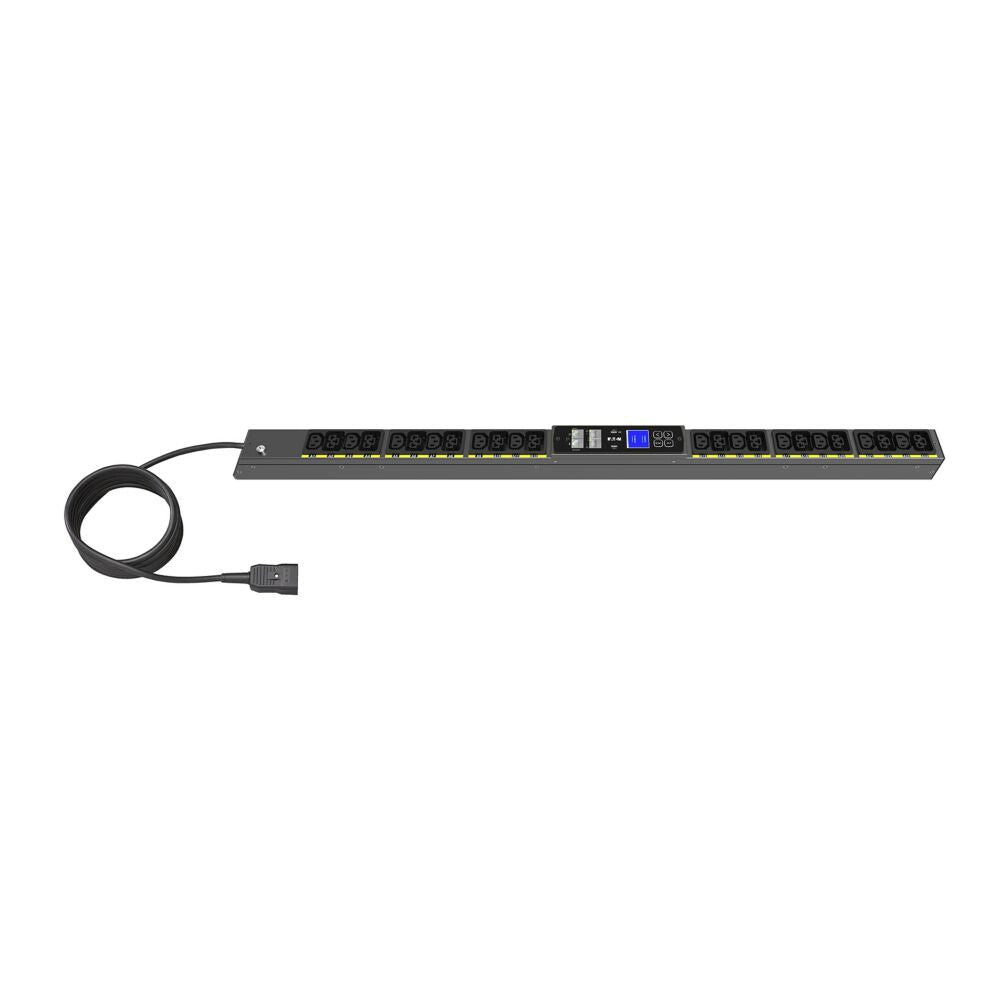

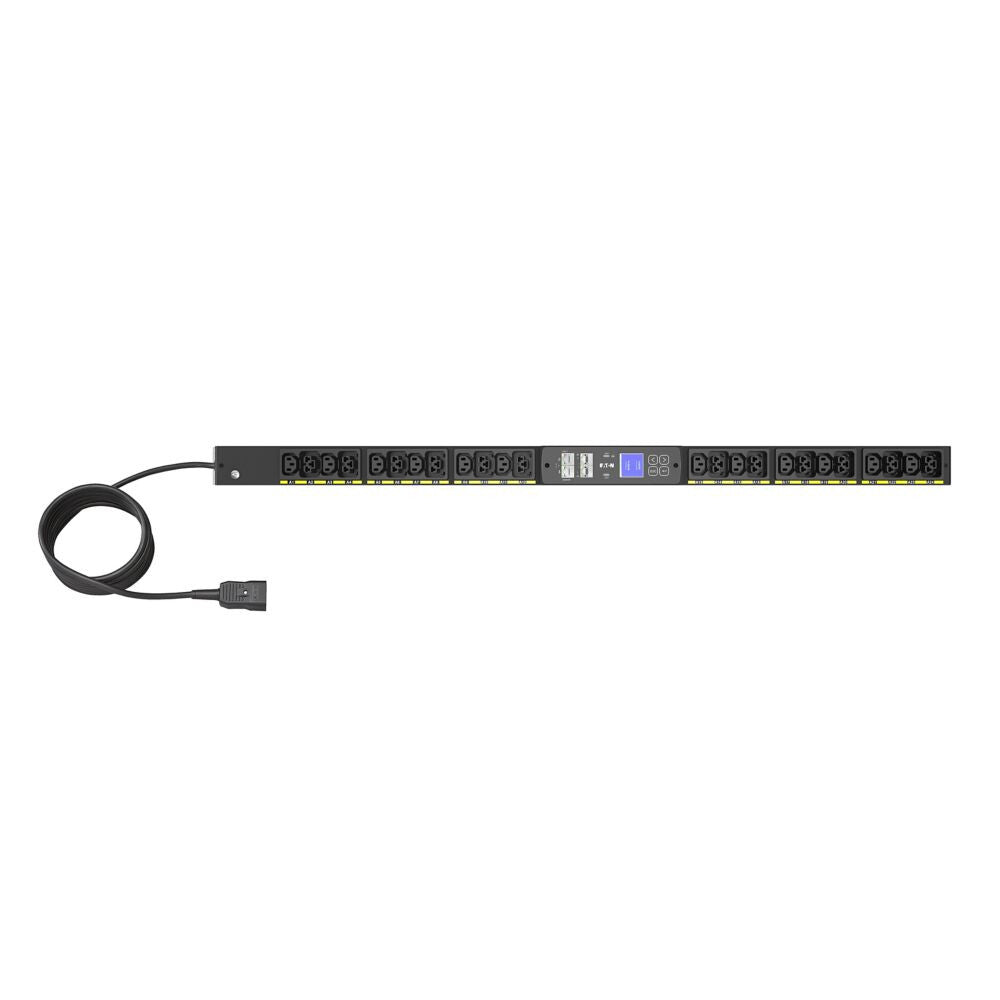

Eaton EVMIFC20A power distribution unit (PDU) 24 AC outlet(s) 22.5U Black
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £221.66 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
Pay in full today. We'll dispatch it for release day and email you tracking as soon as it ships.
Get an email if it's back in stock
If this comes back in stock, we'll send you one email. No spam, and you can stop alerts at any time.
You're on the list
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Remote Site Management
- Versatile C39 outlet supports C14 or C20 power cord plug
- High retention outlets designed to securely fit standard power cords and support P-Lock power cords
- Cybersecurity standards UL 2900-1 and IEC 62443-4-2
- Hot-Swap network control module
- Network Cascading, connect up to 32 PDUs via network loop
- Power sharing between two network modules PDUs ensures constant access to PDU data & sensors
- 1% IEC Class 1 billing grade measurement accurancy
- Gigabit network card with 2x Gb ports
- Support protocols RestAPI, Modbus TCP, SNMP, LDAP, HTTPS
Specifications
Design
| Display | LCD |
|---|---|
| Product colour | Black |
| Housing material | Aluminium |
| Mounting | Vertical |
| Rack capacity | 22.5U |
| Type | Single-phase |
| PDU types | Metered |
Ports & interfaces
| USB ports quantity | 2 |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| AC outlet types | C13 coupler, C39 coupler |
| AC outlets quantity | 24 AC outlet(s) |
Show all 24 specificationsShow fewer specifications
Features
| Security algorithms | SNMP |
|---|---|
| Cable length | 3 m |
| Colour-coded outlets | Yes |
Management features
| Supported network protocols | HTTPS |
|---|
Power
| Maximum power | 3700 W |
|---|---|
| Maximum current | 16 A |
| AC input frequency | 50/60 Hz |
| Nominal input voltage | 200-240 V |
Operational conditions
| Operating temperature (T-T) | 0 - 60 °C |
|---|
Weight & dimensions
| Height | 1000 mm |
|---|---|
| Depth | 53 mm |
| Width | 52 mm |
Packaging content
| Packaging content | Rack PDURack mounting accessoriesQuickstart guideSafety Instructions |
|---|
