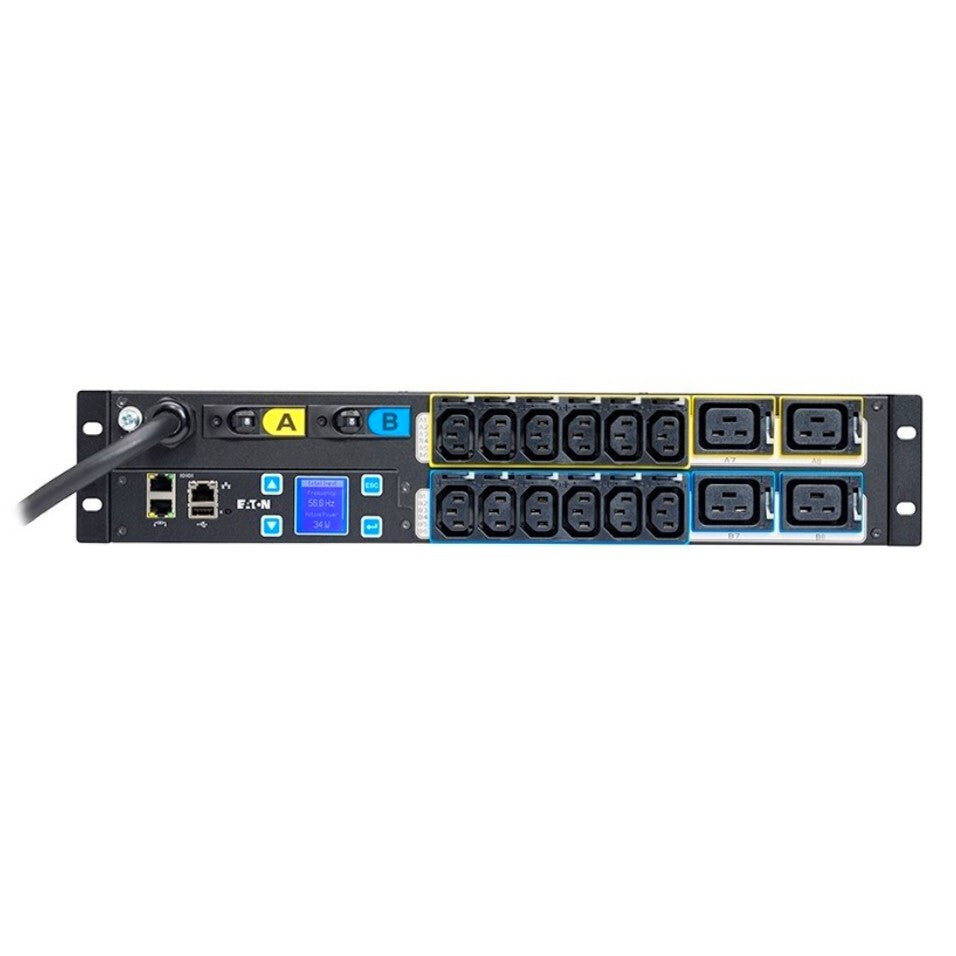

Eaton EMIH06 power distribution unit (PDU) 16 AC outlet(s) 2U Black
£573.99
Couldn't load pickup availability
- Single-phase Metered 2U Black
- 16 AC outlet(s) C13 coupler, C19 coupler
- 7400 W
Button mounting on rear and sides, variable mounting bracket. 1U/2U form factor ePDUs can be mounted horizontaly, vertically, or under a surface.
| Design | |
|---|---|
| Cable colour | Black |
| Product colour | Black |
| Mounting | Horizontal/Vertical |
| Rack capacity | 2U |
| Rack mounting | Yes |
| Form factor | Rackmount |
| Type | Single-phase |
| PDU types | Metered |
| Ports & interfaces | |
|---|---|
| Output connections | 12 x C13 & 4 x C19 |
| Input connection type | IEC-320-C20 |
| Ethernet LAN (RJ-45) ports | 1 |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | IEC 60309 |
| AC outlets quantity | 16 AC outlet(s) |
| Features | |
|---|---|
| Cable length | 3 m |
| Management features | |
|---|---|
| Management protocols | SNMP, Telnet |
| Supported network protocols | HTTP, HTTPS, SSL, Telnet, FTP, SNMP, SMTP, DNS, DHCP, LDAP, RADIUS |
| Firmware upgradeable | Yes |
| Firmware upgradeable via | Network, USB |
| Monitoring | Current |
| Power | |
|---|---|
| Maximum power | 7400 W |
| Maximum input current per phase | 32 A |
| Nominal output voltage | 230 V |
| Maximum current | 32 A |
| AC input frequency | 50 Hz |
| Nominal input voltage | 230 V |
| Certificates | |
|---|---|
| Certification | CB, CE, EN 60950-1:2006/A11:2009/A1:2010/A12:2011 Safety - Part 1: General Requirements, IEC 60950-1(ed.2), IEC 60950-1(ed.2);am1 EN 55022:2010, EN 61000-6-2:2005 Part 6-2, EN 50581 : 2012, REACH, WEEE, PEP, ISO 9001:2008, ISO 14001:2004 |
| Compliance certificates | RoHS |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Weight & dimensions | |
|---|---|
| Height | 127 mm |
| Depth | 482.6 mm |
| Width | 88.9 mm |
| Packaging content | |
|---|---|
| Rack mount kit | Yes |
| Cables included | LAN (RJ-45) |
| Packaging data | |
|---|---|
| Package weight | 4.7 kg |
