Eaton · MPN: EMAH28
£944.99
inc. VAT
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £314.99 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Out of stock

FREE delivery

Express £9.99

Price drop alert

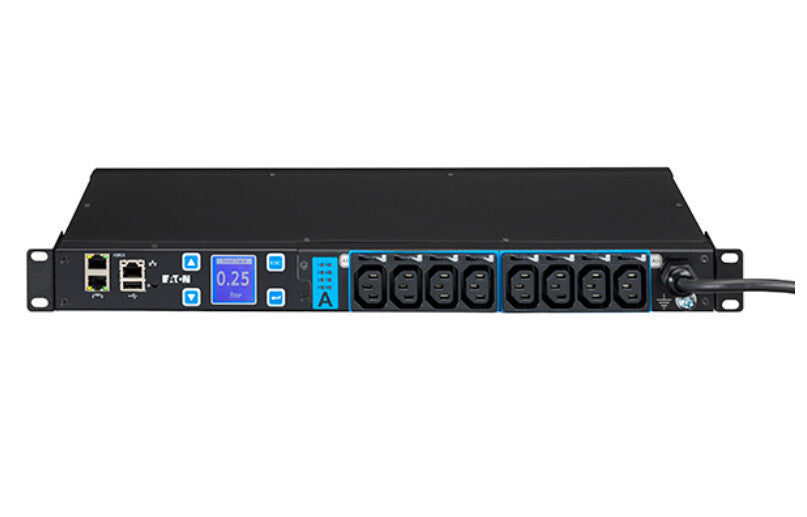

Eaton EMAH28 power distribution unit (PDU) 8 AC outlet(s) 1U Black
Now £944.99

We'll only use your email for this alert unless you tick the box. Unsubscribe any time.

We'll watch the price for 6 months and email you if it drops. Unsubscribe in one click.

Overview

  • Single-phase Managed 1U Black
  • LCD
  • 8 AC outlet(s) C13 coupler
  • 3700 W

Switch and meter outlets & IT equipment across A and B feed: Combines both Switched and Metered Outlet functionality together in 1 ePDU

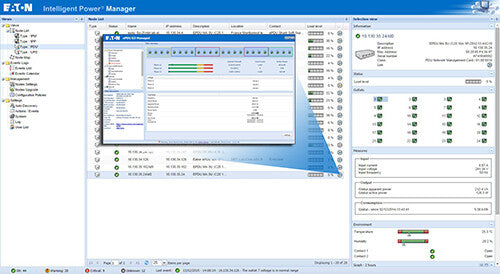

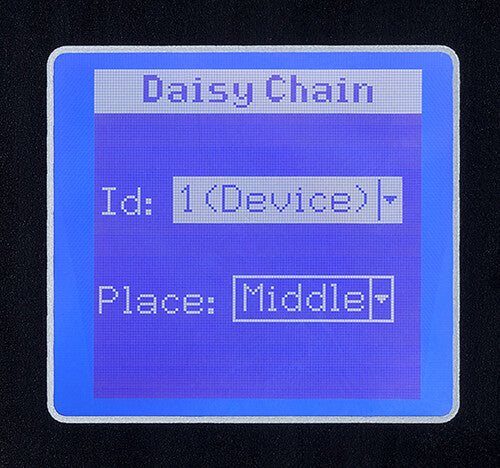

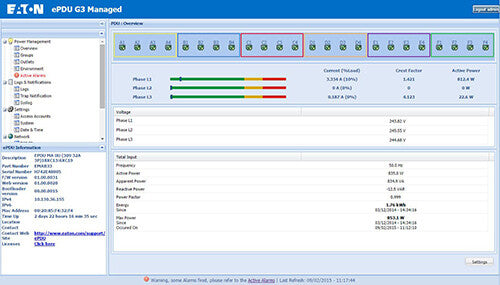

ePDU G3 Managed models allow complete lights-out control and metering of devices including devices powered across multiple ePDUs. They include IEC Class 1 (±1%) billing grade accuracy, an advanced hot-swap meter with LCD pixel display showing V, W, A and kWh, and the ability to daisy chain 8 ePDUs to share the same network connection and IP address.

Specifications

Design

DisplayLCD
Cable colourBlack
Product colourBlack
MountingHorizontal
Rack capacity1U
Rack mountingYes
Form factorRackmount
TypeSingle-phase
PDU typesManaged

Ports & interfaces

Output connections8 x C13
Ethernet LAN (RJ-45) ports1
Serial ports quantity1
AC outlet typesC13 coupler
Power plugC20 coupler
AC outlets quantity8 AC outlet(s)
Show all 37 specificationsShow fewer specifications

Features

Cable length3 m
LED indicatorsYes

Management features

Management protocolsSNMP, Telnet
Supported network protocolsHTTP, HTTPS, SSL, FTP, SMTP, DNS, DHCP, LDAP, RADIUS
Firmware upgradeableYes
Firmware upgradeable viaNetwork, USB
MonitoringVoltage

Power

Maximum power3700 W
Maximum input current per phase16 A
Nominal output voltage230 V
Maximum current16 A
AC input frequency50 Hz
Nominal input voltage230 V

Certificates

CertificationCB, CE, EN 60950-\n1:2006/A11:2009/A1:2010/A12:2011\nEN 61000-6-2:2005\nEN 50581 : 2012, REACH, WEEE\nISO 9001:2008 / ISO 14001:2004
Compliance certificatesRoHS

Operational conditions

Operating temperature (T-T)0 - 60 °C

Weight & dimensions

Weight3.4 kg
Height43 mm
Depth203 mm
Width445 mm

Packaging content

Rack mount kitYes
Cables includedLAN (RJ-45)
