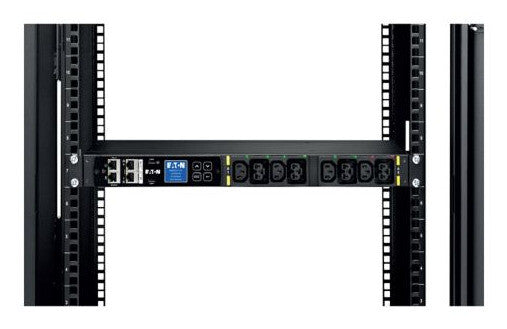

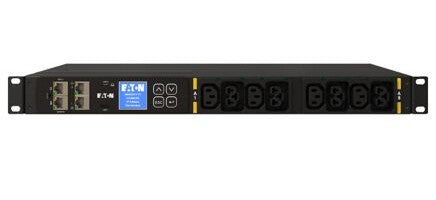

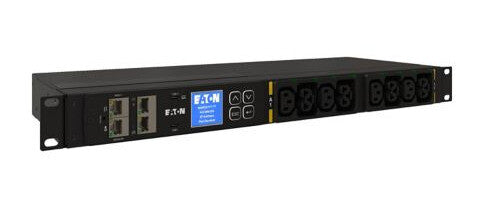

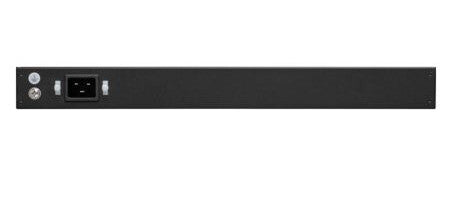

Eaton EHMIFC20G power distribution unit (PDU) 8 AC outlet(s) 1U Black
£545.99
Couldn't load pickup availability
- Single-phase Metered 1U Black
- 8 AC outlet(s) C13 coupler, C19 coupler
- 3700 W
| Design | |
|---|---|
| PDU types | Metered |
| Type | Single-phase |
| Rack capacity | 1U |
| Mounting | Vertical |
| Housing material | Steel, Aluminium |
| Product colour | Black |
| Ports & interfaces | |
|---|---|
| AC outlets quantity | 8 AC outlet(s) |
| Power plug | C20 coupler |
| AC outlet types | C13 coupler, C19 coupler |
| Ethernet LAN (RJ-45) ports | 3 |
| USB ports quantity | 1 |
| Features | |
|---|---|
| Cable length | 3 m |
| Power | |
|---|---|
| Nominal input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Maximum current | 16 A |
| Maximum power | 3700 W |
| Certificates | |
|---|---|
| Certification | UL 62368-1 cTUVus IEC 62368-1 EN IEC 63000 CE EAC Cm Ukr IEC/EN 61000-6-2 IEC/EN 61000-6-4 EN 61000-3-2 EN 61000-3-3 RCM |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
|---|---|
| Width | 444.5 mm |
| Depth | 175 mm |
| Height | 44 mm |
| Weight | 2.43 kg |
