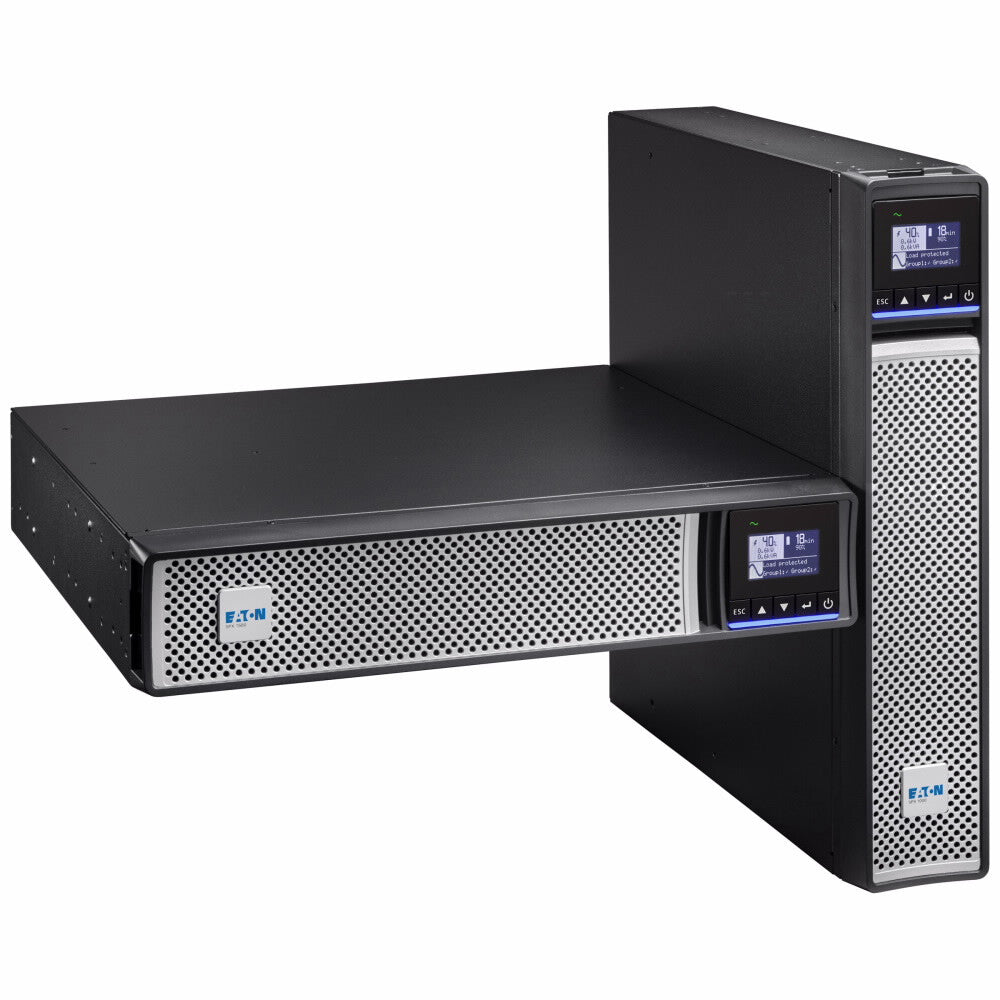

Eaton 5PX3000IRTNG2BS uninterruptible power supply (UPS) 3 kVA 3000 W 10 AC outlet(s)
iFrame
£2,212.99
Couldn't load pickup availability
- 3 kVA 3000 W
- Waveform: Sine
- 10 AC outlet(s)
- Sealed Lead Acid (VRLA) 12 V 9 Ah
- Rackmount/Tower Black, Silver
The new Eaton 5PX Gen2 UPS provides Enterprise Networks and Edge IT equipment with best-in-class line-interactive power protection maximising IT space and Service Continuity. Eaton 5PX Gen 2 offers powerful tools to remotely monitor, integrate with IT architecture and remotely deploy / maintain large installed base of UPSs.
| Features | |
|---|---|
| Power protection features | Overdischarge |
| Noise level | 40 dB |
| Output power factor | 1 |
| Power factor | 1 |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Automatic Voltage Regulation (AVR) | Yes |
| Output operation voltage (max) | 240 V |
| Output operation voltage (min) | 200 V |
| Input frequency | 47/70 Hz |
| Input operation voltage (max) | 294 V |
| Input operation voltage (min) | 150 V |
| Waveform | Sine |
| Output power | 3000 W |
| Output power capacity | 3 kVA |
| Ports & interfaces | |
|---|---|
| Serial ports quantity | 1 |
| Serial interface type | RS-232 |
| Serial interface | Yes |
| USB 2.0 ports quantity | 1 |
| USB port type | USB Type-B |
| USB port | Yes |
| AC outlets quantity | 10 AC outlet(s) |
| Power plug | C20 coupler |
| AC outlet types | C13 coupler, C19 coupler |
| Battery | |
|---|---|
| Automatic battery test | Yes |
| Number of batteries supported | 6 |
| Battery voltage | 12 V |
| Battery capacity | 9 Ah |
| Battery technology | Sealed Lead Acid (VRLA) |
| Design | |
|---|---|
| Display type | LCD |
| Product colour | Black, Silver |
| Form factor | Rackmount/Tower |
| Operational conditions | |
|---|---|
| Operating altitude | 0 - 3000 m |
| Certificates | |
|---|---|
| Certification | IEC/EN 62040-1IEC/EN 62040-2IEC/EN 62040-3UL 1778CSA 22.2cTUVusEACCmUKCAUkrKCC |
| Compliance certificates | CE, REACH, RoHS |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Sustainability certificates | ENERGY STAR |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Cables included | Input power cable, Serial |
| Rack mount kit | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 32.7 kg |
| Height | 240 mm |
| Depth | 770 mm |
| Width | 588 mm |
