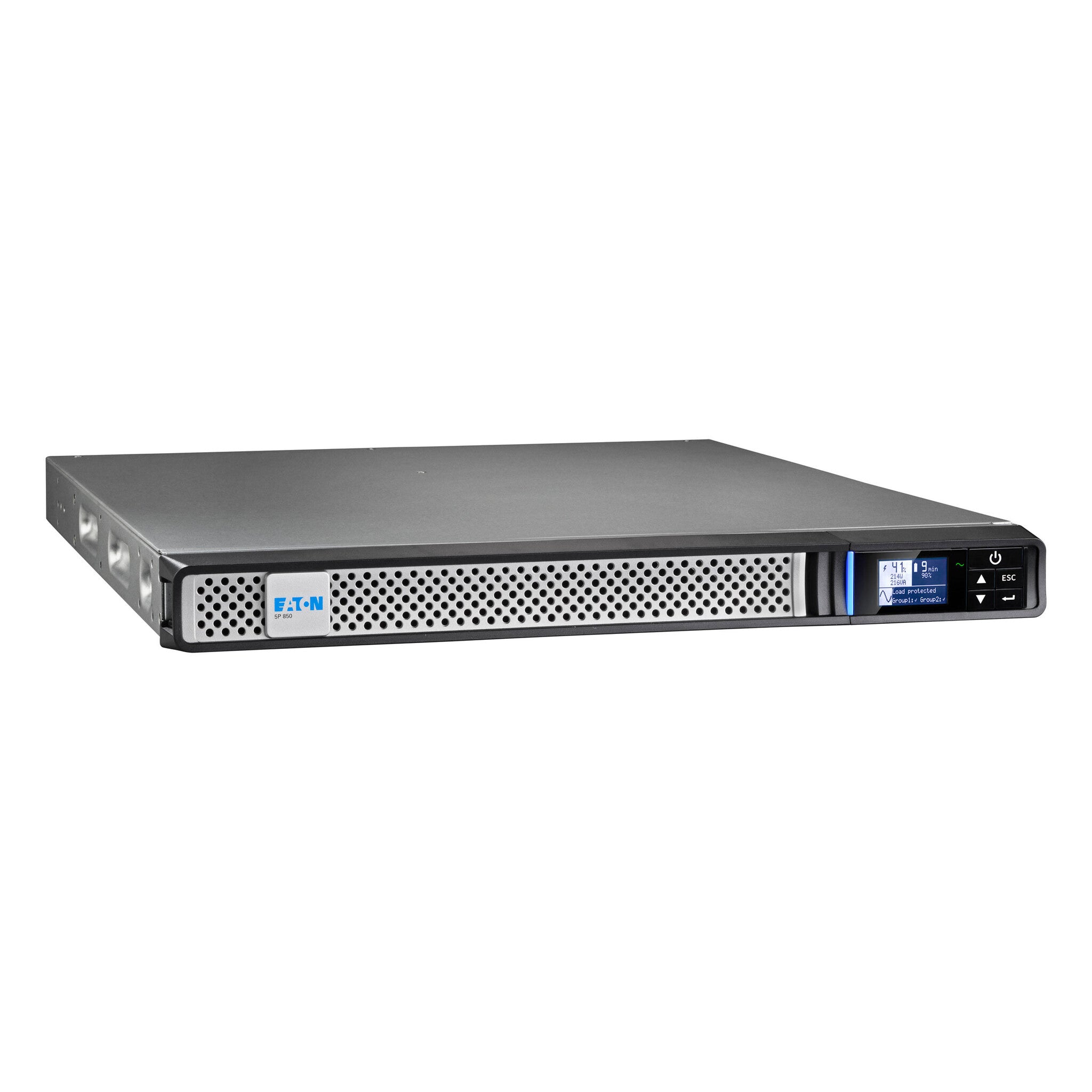

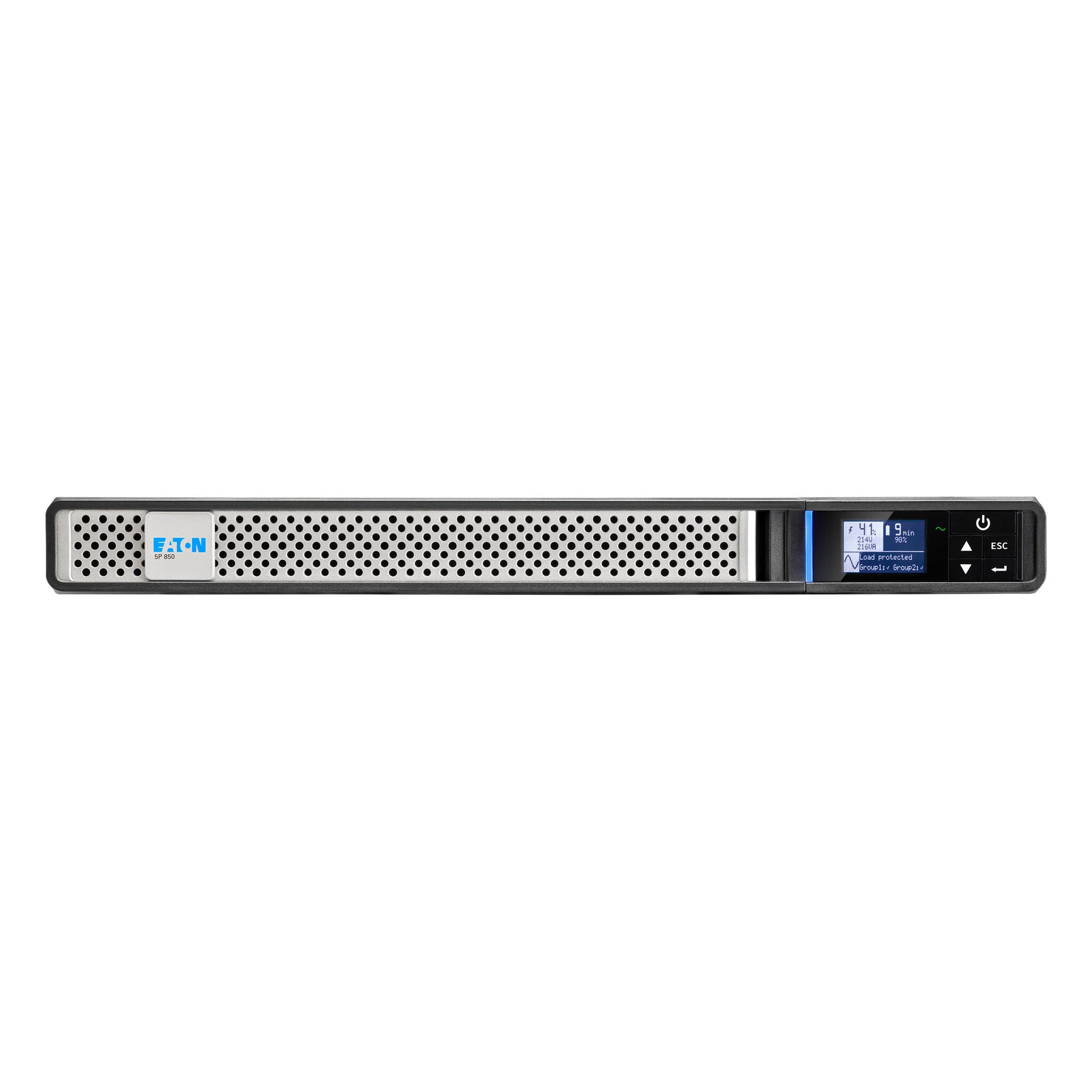

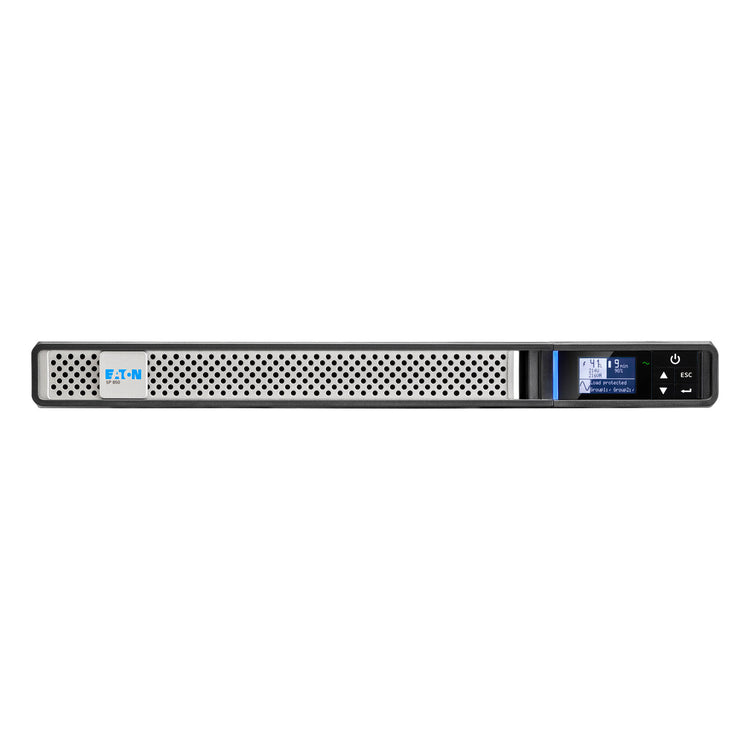

Eaton 5P850IRNG2BS uninterruptible power supply (UPS) Line-Interactive 680 W 4 AC outlet(s)
iFrame
£829.99
Couldn't load pickup availability
- Line-Interactive
- 680 W
- Waveform: Sine
- 4 AC outlet(s)
- Sealed Lead Acid (VRLA) 6 V 7 Ah
- Tower Black, Silver
| Features | |
|---|---|
| Noise level | 35 dB |
| Efficiency | 98% |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Heat dissipation | 307 BTU/h |
| Automatic Voltage Regulation (AVR) | Yes |
| Output frequency | 50/60 Hz |
| Output operation voltage (max) | 240 V |
| Input frequency | 47/70 Hz |
| Input operation voltage (max) | 294 V |
| Input operation voltage (min) | 150 V |
| Waveform | Sine |
| Output power | 680 W |
| UPS topology | Line-Interactive |
| Ports & interfaces | |
|---|---|
| Serial ports quantity | 1 |
| Serial interface type | RS-232 |
| Serial interface | Yes |
| USB port type | USB Type-B |
| USB port | Yes |
| AC outlets quantity | 4 AC outlet(s) |
| Power plug | C14 coupler |
| AC outlet types | C13 coupler |
| Battery | |
|---|---|
| Number of batteries supported | 4 |
| Battery voltage | 6 V |
| Battery capacity | 7 Ah |
| Battery technology | Sealed Lead Acid (VRLA) |
| Design | |
|---|---|
| Display type | LCD |
| Rack capacity | 1U |
| Product colour | Black, Silver |
| Form factor | Tower |
| Operational conditions | |
|---|---|
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Certificates | |
|---|---|
| Certification | IEC/EN 62040-1IEC/EN 62040-2IEC/EN 62040-3UL 1778CSA-C22.2CEUKCACmUkrKCCcTUVusBIS |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Manual | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 14 kg |
| Height | 43.2 mm |
| Depth | 509 mm |
| Width | 438 mm |
