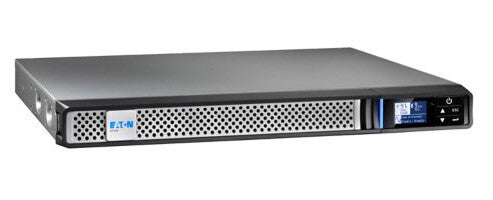

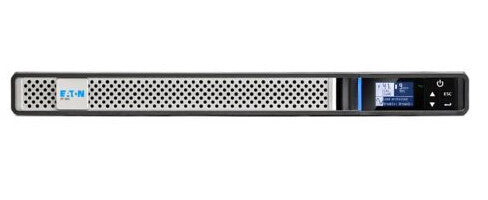

Eaton 5P650IRG2BS uninterruptible power supply (UPS) Line-Interactive 0.65 kVA 520 W 4 AC outlet(s)
iFrame
£444.99
Couldn't load pickup availability
- Line-Interactive
- 0.65 kVA 520 W
- Waveform: Sine
- 4 AC outlet(s)
- Lead-Acid 6 V 9 Ah
- Rackmount Black, Silver
| Features | |
|---|---|
| Noise level | 35 dB |
| Output power factor | 0.8 |
| Efficiency | 97% |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Output operation voltage (max) | 240 V |
| Output operation voltage (min) | 200 V |
| Input frequency | 47/70 Hz |
| Input operation voltage (max) | 294 V |
| Input operation voltage (min) | 160 V |
| Waveform | Sine |
| Output power | 520 W |
| Output power capacity | 0.65 kVA |
| UPS topology | Line-Interactive |
| Ports & interfaces | |
|---|---|
| Serial ports quantity | 1 |
| Serial interface type | RS-232 |
| Serial interface | Yes |
| USB port | Yes |

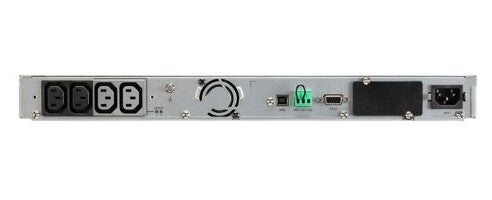

| AC outlets quantity | 4 AC outlet(s) |
| Power plug | C14 coupler |
| AC outlet types | C13 coupler |
| Battery | |
|---|---|
| Automatic battery test | Yes |
| Battery voltage | 6 V |
| Battery capacity | 9 Ah |
| Battery technology | Lead-Acid |
| Design | |
|---|---|
| Display type | LCD |
| Product colour | Black, Silver |
| Form factor | Rackmount |
| Operational conditions | |
|---|---|
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Certificates | |
|---|---|
| Compliance certificates | BIS, CE, Electromagnetic Compatibility (EMC), KCC, Low Voltage Directive (LVD), RoHS, UKCA, WEEE, cTUVus |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Cables included | Input power cable, Serial, USB cable |
| Rack mount kit | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 8.86 kg |
| Height | 43.2 mm |
| Depth | 361 mm |
| Width | 438 mm |
