DrayTek VigorSwitch Q1070x Managed L2 2.5G Ethernet (100/1000/2500) Black
£100.99
Couldn't load pickup availability
- Unlock Multi‑Gigabit Performance with five 2.5GbE ports for higher speeds and greater bandwidth.
- Dual 10Gb Fibre Uplinks with SFP+ ports enable fast connectivity to core networks and storage.
- Silent Fanless Operation delivers reliable networking without distracting noise, ideal for modern workspaces.
- Compact & Flexible Deployment with a wall‑mountable, space‑saving design for easy installation.
- Energy‑Efficient Networking combines low power consumption with dependable business‑class performance.
- Centralised or Standalone Management gives flexibility to manage one switch or multiple locations.

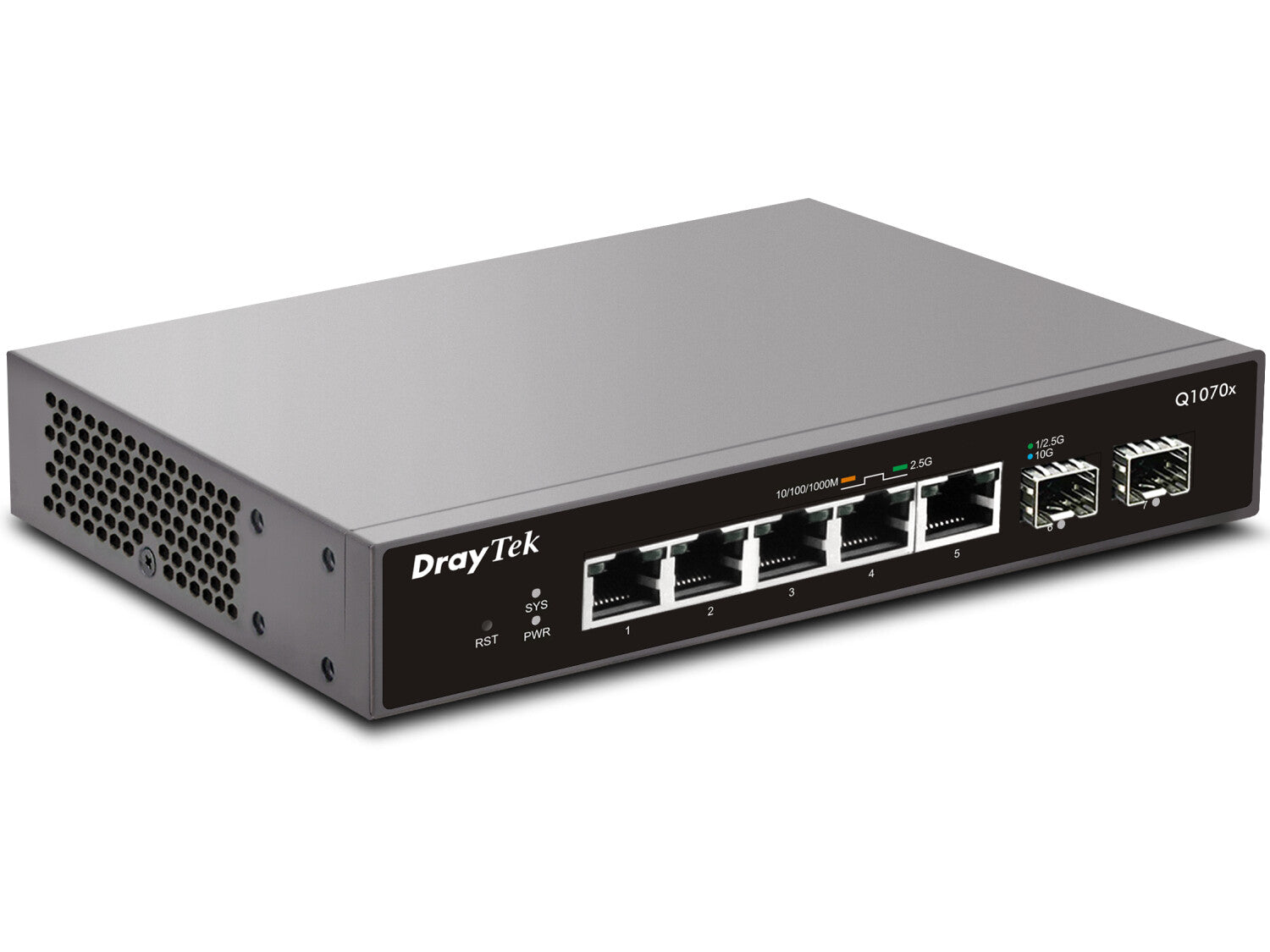

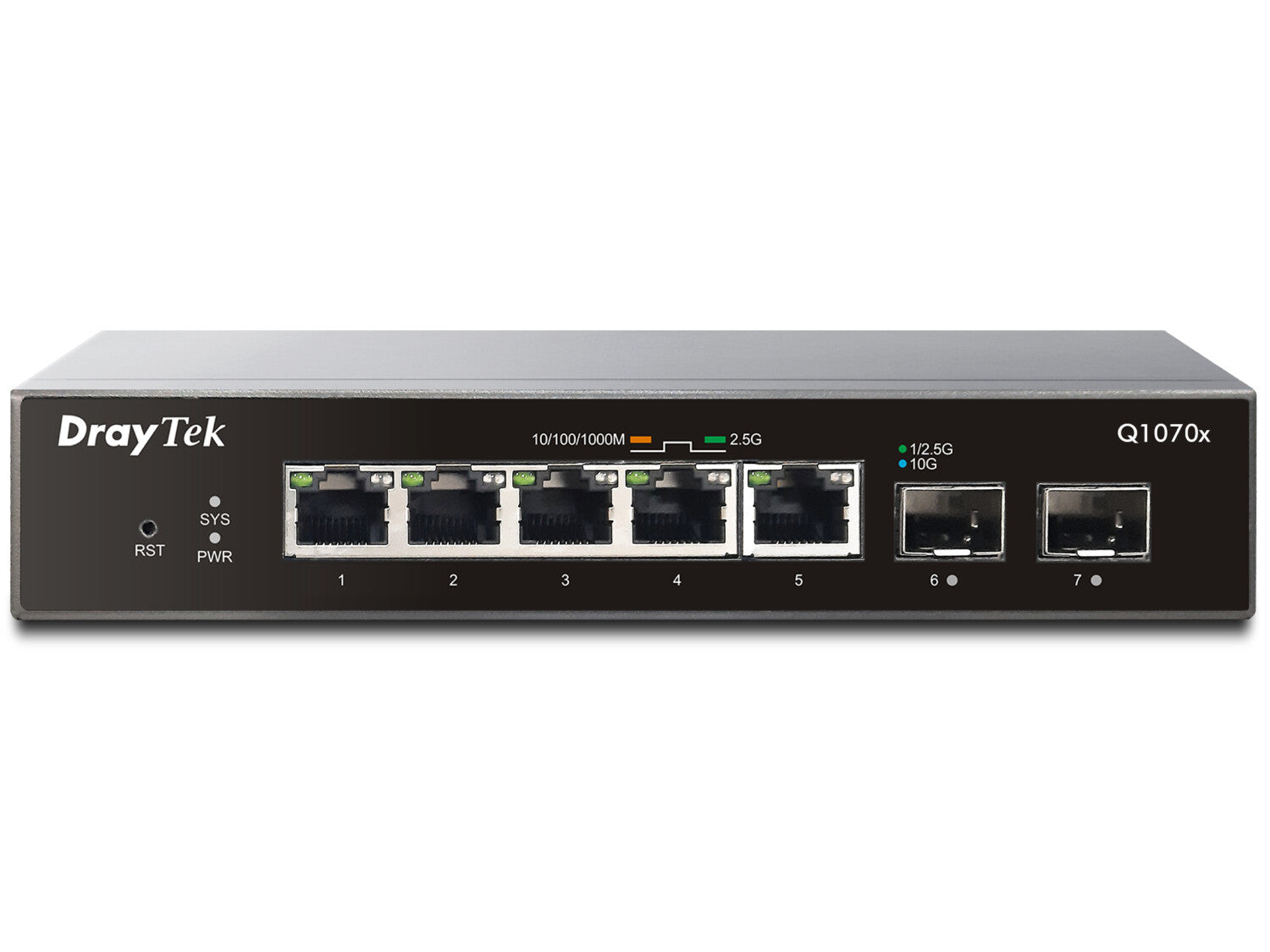

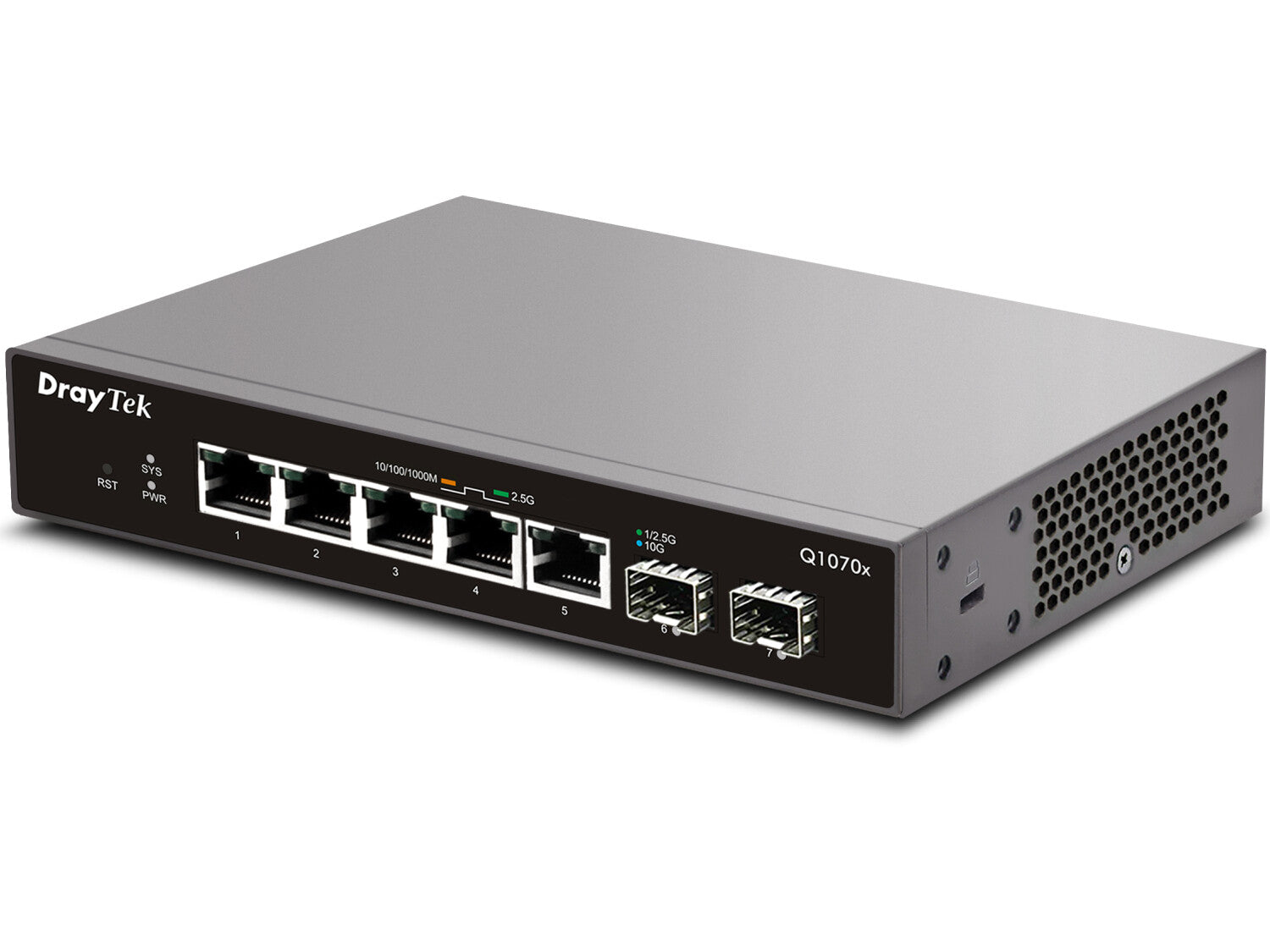

The VigorSwitch Q1070x is a compact, high-performance Smart Lite switch, featuring 5 x 2.5 Gigabit RJ-45 Ethernet ports and 2 x 10 Gigabit SFP+ ports. The 2.5GbE ports provide high-speed connectivity for network-attached storage (NAS), workstations, servers, and other network devices, while the 10Gbps SFP+ ports offer ultra-fast fibre uplinks to routers, switches, and core network infrastructure.
Designed for modern business networks, the VigorSwitch Q1070x delivers multi-gigabit performance in a compact, low-power and fanless design. Its silent operation and wall-mountable metal enclosure make it ideal for small offices, retail environments, meeting rooms, and space-constrained installations.
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Web-based management | Yes |
| System event log | Yes |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| SFP+ module slots quantity | 2 |
| Network | |
|---|---|
| 10G support | Yes |
| Port mirroring | Yes |
| Full duplex | Yes |
| Data transmission | |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 65 Gbit/s |
| Forwarding rate | 48.36 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet buffer memory | 8 MB |
| Security | |
|---|---|
| Loop protection | Yes |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Number of multicast groups filtered | 64 |
| Multicast Listener Discovery (MLD) snooping | v1, v2 |
| Design | |
|---|---|
| Rack mounting | No |
| Stackable | No |
| Product colour | Black |
| Housing material | Metal |
| Reset button | Yes |
| LED indicators | Yes |
| Wall mountable | Yes |
| Performance | |
|---|---|
| Firmware upgradeable | Yes |
| Fanless | Yes |
| Power | |
|---|---|
| Power source | DC |
| Power supply included | Yes |
| Power consumption (max) | 12 W |
| Other features | |
|---|---|
| Warranty period | 2 year(s) |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 175 mm |
| Depth | 114 mm |
| Height | 32 mm |
| Weight | 665 g |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Rack mount kit | Yes |
| Packaging data | |
|---|---|
| Package type | Box |
