DrayTek VigorAP 905 Dual Band 3000 Mbit/s White Power over Ethernet (PoE)
£135.99
inc. VATSpread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £45.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
In stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Overview
- Wi-Fi 6 Mesh Wireless Access Point
- AX3000 – 11ax Dual Band Wireless
- WPA3 Security – Stronger Security with WPA3 Personal & Enterprise
- Power through DC Power Adapter (included)
- Multi-SSID over Mesh – Separate Internal and Guest Networks over Mesh*

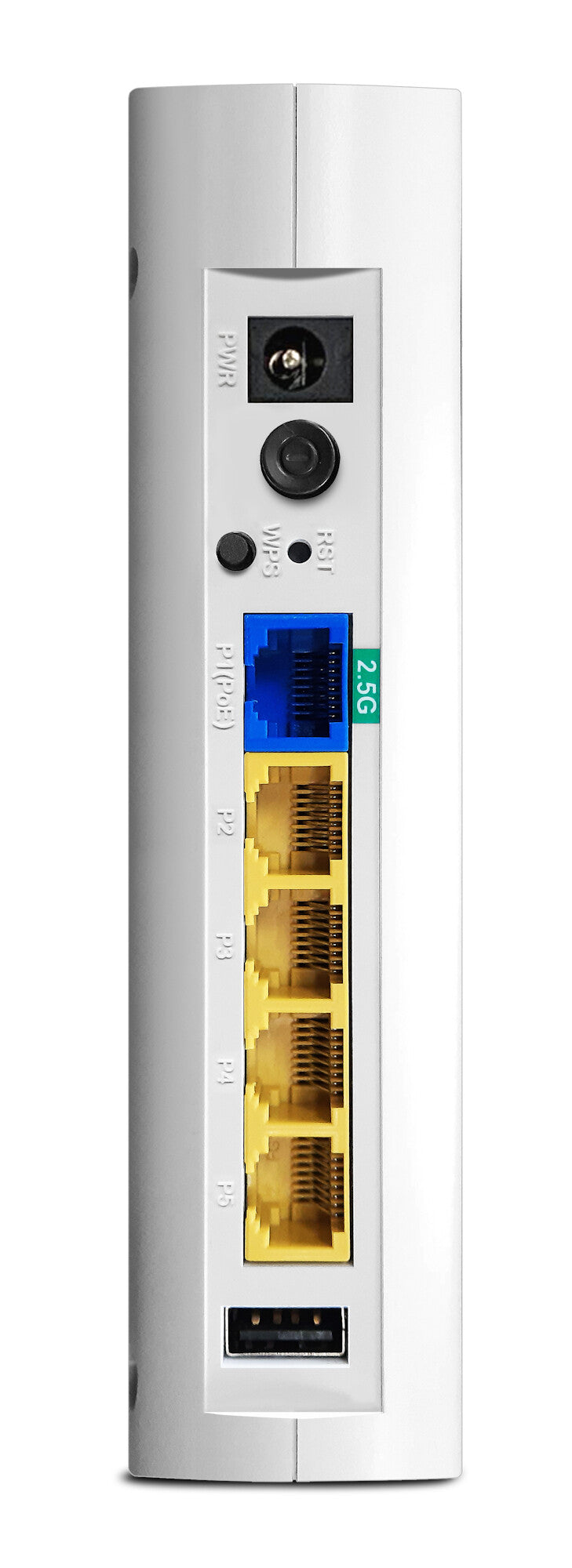

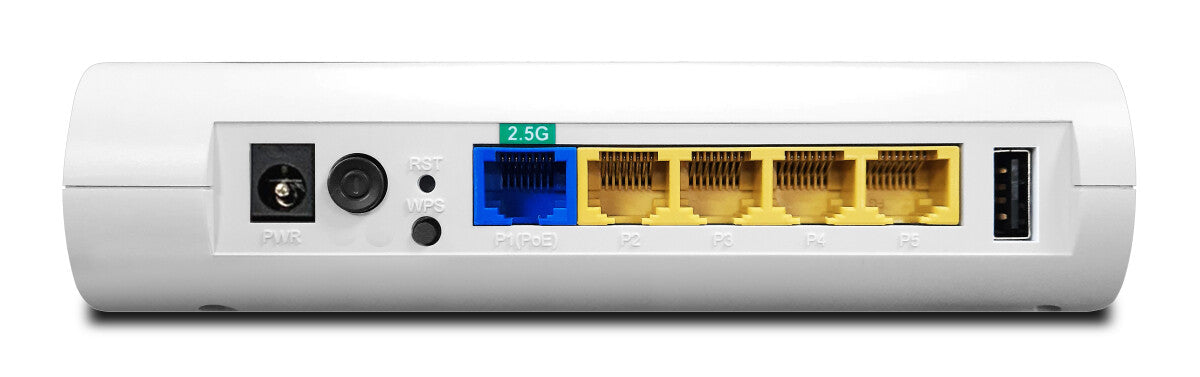

- 2.5Gb Ethernet Uplink & Four Additional GbE Interfaces
- Centrally Managed or Standalone Operation
- Root AP for AP Management

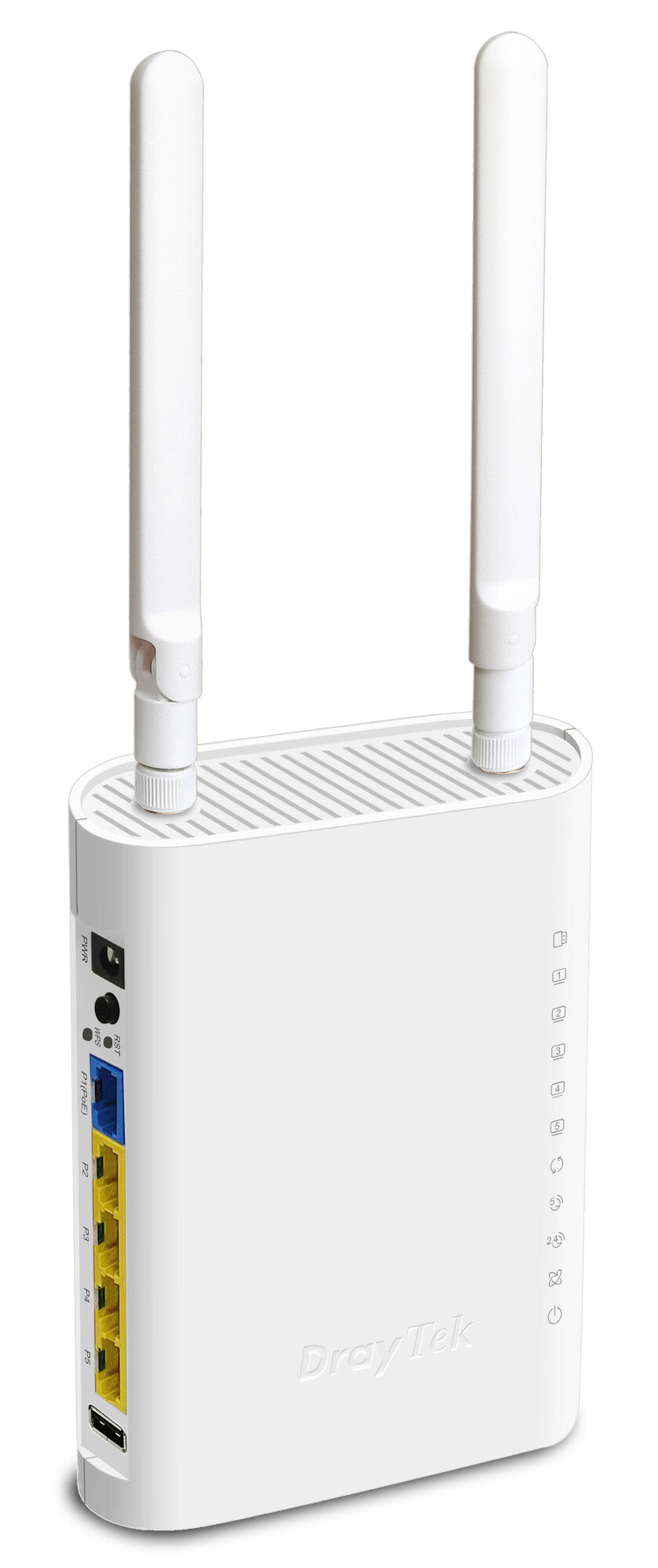

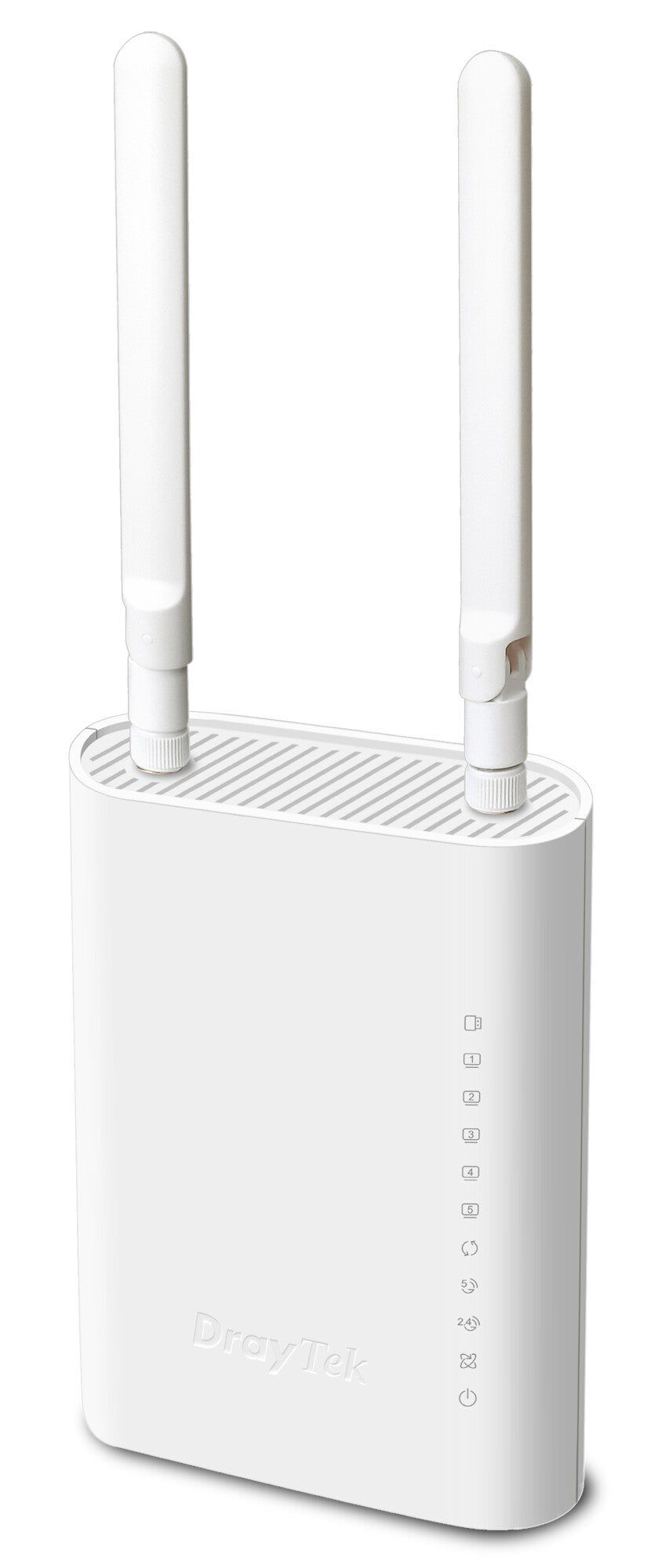

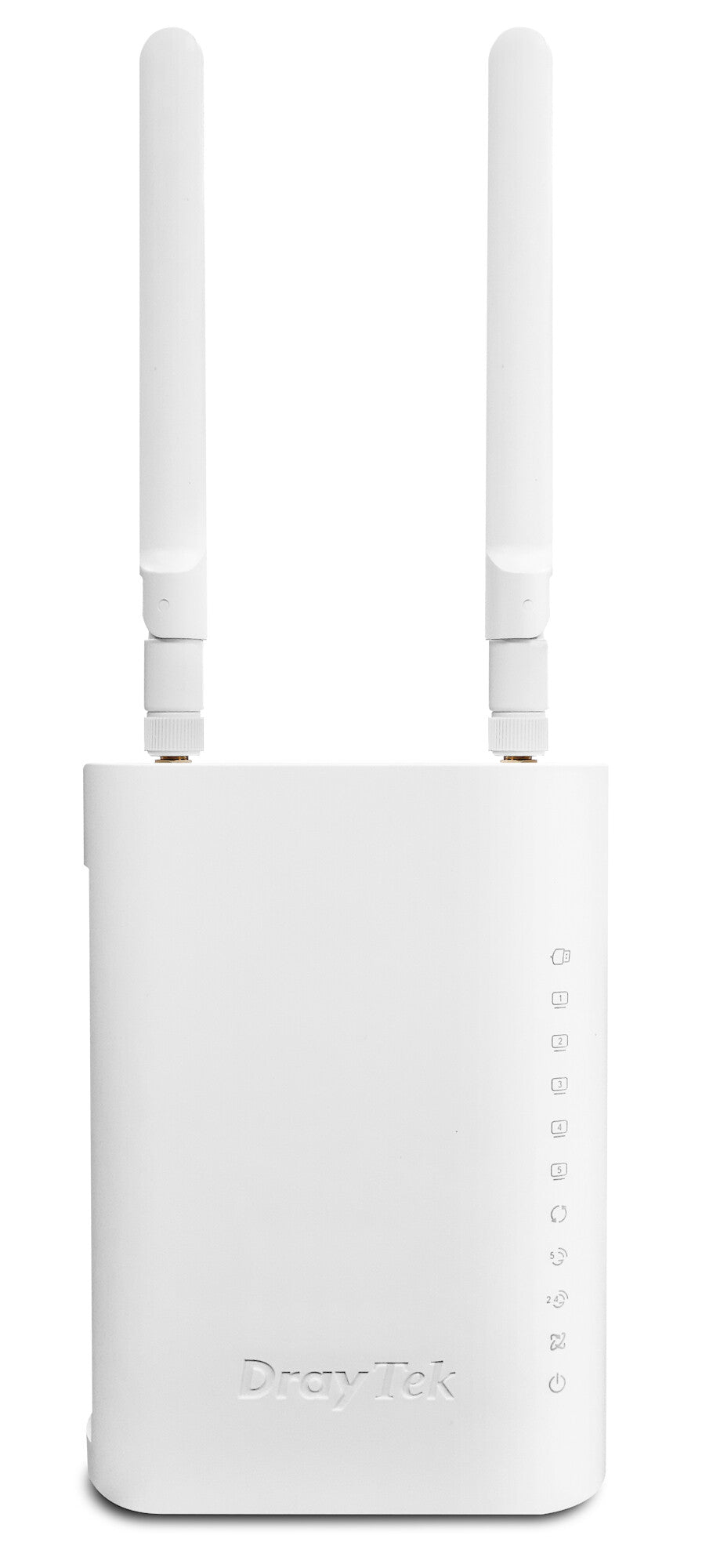

The VigorAP 905 is a high-performance WiFi 6 Mesh Wireless Access Point. It offers up to 3Gbps dual-band wireless performance and up to 2.5Gb Ethernet connectivity. The additional Gigabit Ethernet ports can be used as a mini switch to connect computers or printers. The AP can be mounted on a wall or placed on a desk.
Specifications
Features
| 2.4 GHz | Yes |
|---|---|
| 6 GHz | No |
| 5 GHz | Yes |
| Maximum data transfer rate | 3000 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 600 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2400 Mbit/s |
| Ethernet LAN data rates | 2500,10,100,1000 Mbit/s |
| Number of simultaneously connected devices (max) | 256 |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11r, IEEE 802.11v, IEEE 802.11k |
| Number of users | 256 user(s) |
| MIMO | Yes |
| Spatial streams | 2 |
| MIMO type | Multi User MIMO |
| Fit AP mode features | 802.11k & 802.11v smart roaming, Wireless distribution system (WDS) |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Wi-Fi roaming | Yes |
| Fast roaming | Yes |
| VLAN support | Yes |
| Wireless meshing | Yes |
| Wireless isolation | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Quality of Service (QoS) support | No |
| BeamForming | Yes |
Security
| Security algorithms | 802.1x RADIUS, SNMP, SNMPv2, SNMPv3, WEP, WPA, WPA2, WPA3, WPS |
|---|---|
| MAC address filtering | Yes |
| Service Set Identifier (SSID) features | Hidden SSID, Multiple SSIDs, SSID broadcast, SSID broadcast on/off |
| Number of SSID supported | 16 |
| Auto Wireless Distribution System (WDS) | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Access Control List (ACL) | Yes |
| Blacklist | Yes |
| Whitelist | Yes |
Show all 68 specificationsShow fewer specifications
Protocols
| DHCP server | Yes |
|---|---|
| DHCP client | Yes |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6 |
Management features
| Web-based management | Yes |
|---|---|
| Command-line interface (CLI) | Yes |
| Access point management | Wi-Fi schedule |
| Syslog | Yes |
| Firmware upgradeable | Yes |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 5 |
|---|---|
| Internal RJ-45 ports quantity | 5 |
| USB 2.0 ports quantity | 1 |
| USB connector type | USB Type-B |
| DC-in jack | Yes |
Power
| Power over Ethernet (PoE) type supported | PoE+ |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power consumption (max) | 17 W |
Design
| Placement | Desk, Shelf, Table, Wall |
|---|---|
| Product colour | White |
| Housing material | Plastic |
| On/off switch | Yes |
| Reset button | Yes |
| WPS push button | Yes |
| LED indicators | Power, USB, WLAN, Wi-Fi |
Antenna
| Antenna type | Internal & external |
|---|---|
| Antenna direction type | Omni-directional |
| Antenna features | Detachable antenna |
| Antennas quantity | 3 |
| Antenna gain level (max) | 5.72 dBi |
| Number of connectors | 2 |
Performance
| Operating system installed | DrayOS |
|---|
Packaging content
| AC adapter included | Yes |
|---|---|
| Mounting kit | Yes |
| Quick start guide | Yes |
Operational conditions
| Operating relative humidity (H-H) | 10 - 90% |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
