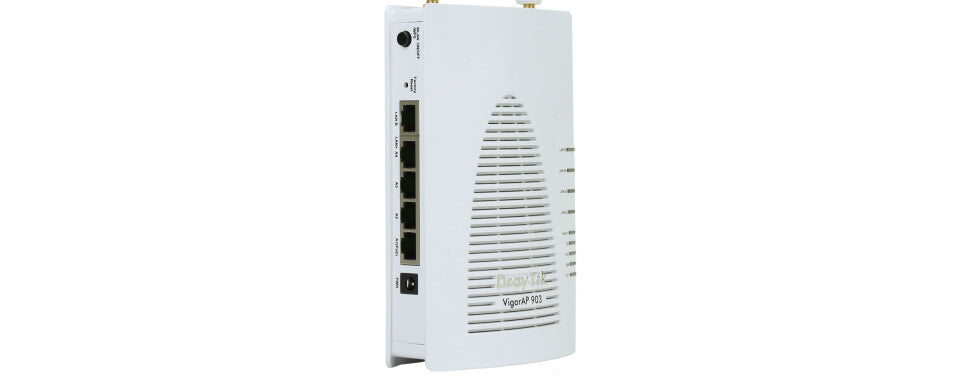

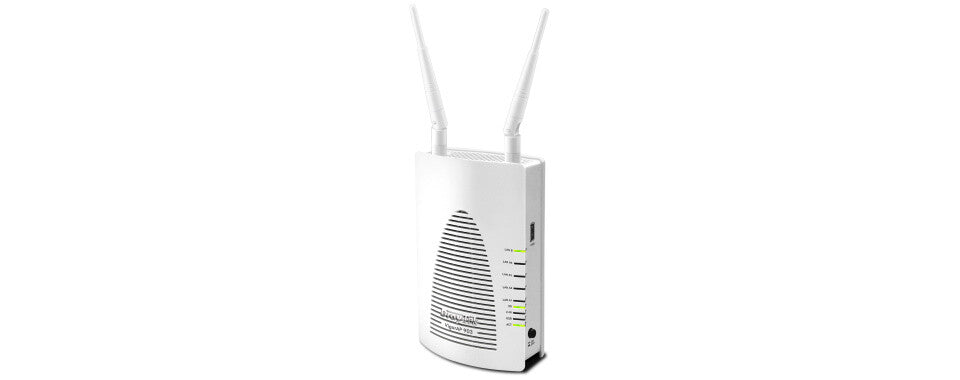

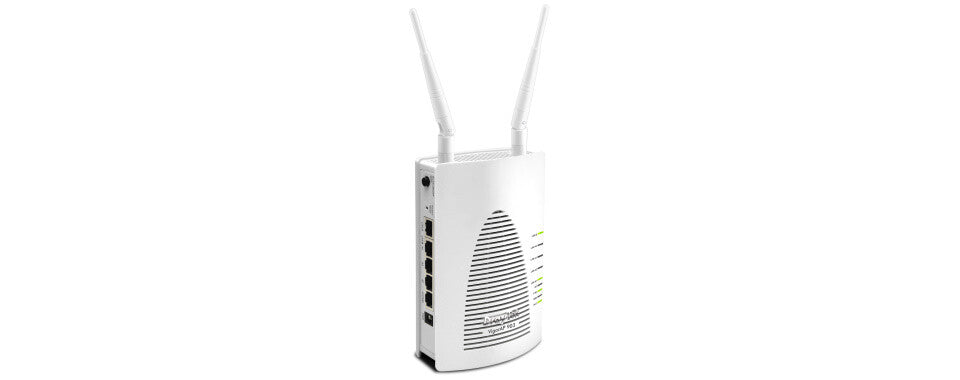

DrayTek VigorAP 903 White Power over Ethernet (PoE)
Spread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £52.99 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- 2.4 GHz 400 Mbit/s
- 5 GHz 866 Mbit/s
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
- EAP-TLS, PEAP
- Power over Ethernet (PoE)
- Antennas quantity: 2 External Detachable antenna
VigorAP 903
Mesh Wireless 802.11ac Range Extender & Access Point
VigorAP 903 is a high-performance Mesh Wireless solution, designed to expand the wireless coverage, eliminate Wi-Fi dead zones and significantly reduce the cost of network deployments. It can also be used as a traditional access point either managed or stand alone so has the flexibility to be used how you need it.
The VigorAP 903 is a dual-band 802.11ac Wave 2 Mesh Wireless solution, designed to eliminate wireless drop outs, stuttering videos, slow download speeds, poor signal and Wi-Fi dead zones. One access point acts as the controller (Mesh root) and in total up to 8 access points create an easy to manage wireless mesh. Extend coverage without running expensive cabling.
Initial setup of the VigorAP 903 is easy with the DrayTek Wireless app, whether it's creating a new Mesh network or being set up in AP and Range Extender modes, the Quick Start Wizard assists throughout.
Manage the VigorAP 903 centrally through the VigorACS central management platform, VigorConnect, Router AP Management, or simply on its own as a stand-alone access point. The VigorAP 903 has the flexibility to be used how you need it.
Specifications
Features
| 2.4 GHz | Yes |
|---|---|
| 5 GHz | Yes |
| Maximum data transfer rate (2.4 GHz) | 400 Mbit/s |
| Maximum data transfer rate (5 GHz) | 866 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Number of users | 64 user(s) |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Wi-Fi roaming | Yes |
| VLAN support | Yes |
| User-based bandwidth limiting | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
Security
| Security algorithms | EAP-TLS, PEAP |
|---|---|
| Service Set Identifier (SSID) features | SSID broadcast on/off |
| Access Control List (ACL) | Yes |
Show all 40 specificationsShow fewer specifications
Protocols
| DHCP server | Yes |
|---|---|
| DHCP client | Yes |
Ports & interfaces
| USB 2.0 ports quantity | 1 |
|---|
Power
| Power over Ethernet (PoE) | Yes |
|---|---|
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 12 W |
Design
| Placement | Table, Wall |
|---|---|
| Product colour | White |
| On/off switch | Yes |
| Reset button | Yes |
| WPS push button | Yes |
Antenna
| Antenna type | External |
|---|---|
| Antenna features | Detachable antenna |
| Antennas quantity | 2 |
| Antenna connector type | SMA |
Certificates
| Certification | ROHS, CE |
|---|
Weight & dimensions
| Width | 107 mm |
|---|---|
| Depth | 45 mm |
| Height | 167 mm |
| Weight | 370 g |
Packaging content
| Quick start guide | Yes |
|---|
Operational conditions
| Operating relative humidity (H-H) | 10 - 90% |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
