• Wireless HDMI signal transmission up to 50 m (unobstructed view)
• Supports resolutions up to 1920x1080p
• Radio channel: IEEE 802.11ac, 5 GHz, 2T2R
• HDMI version: 1.4
• HDCP version: 1.3
• Authentication protocol: WPA2 (WPAS-PSK / WPA2-Enterprise)
• Connections per unit: 1x HDMI plug, 1x micro-USB socket
• Power supply: HDMI socket (0.5A required) or via micro USB (DC 5V/0.5A)
• Connection button with LED status indicator
• Audio: Stereo, 16 bits / 48 KHz
• Latency: approx. 120 ms (transmitter to receiver transmission)
• ABS housing
• Power consumption: 2.5W
• Compression: H.264
• Operating temperature: 0-40°C
• Dimensions (1 unit): L 8.3 x W 3.2 x H 1.3 cm
• Weight (1 unit): 27 g
• Color: black
• The transmission distance with limited visibility cannot be determined across the board and depends on the conditions on site
• Walls, glass, etc. shorten the signal coverage or cause signal loss

Transmits HDMI video and audio signals wirelessly in Full HD over a distance of up to 50 m in clear view

- Wireless HDMI signal transmission up to 50 m (with a clear view)
- Point-to-point connection - 1x transmitter (source) + 1x receiver (output device)
- Supports resolutions up to Full HD (1080p / 60 Hz)
- Simple operation and handling thanks to Plug & Play - plug in and get started
- Power supply via micro USB
- Transmitter & receiver can be supplied with power via the HDMI connection of your device (> 500 mA required)
- AES 128 bit encryption
- WPA2 protocol
- The set is ideal for subsequent, spontaneous or short-term installations in meeting, conference and congress rooms
- Automatic pairing & connection: Automatically establishes a connection via the most advantageous WiFi channel to ensure the best possible WiFi performance

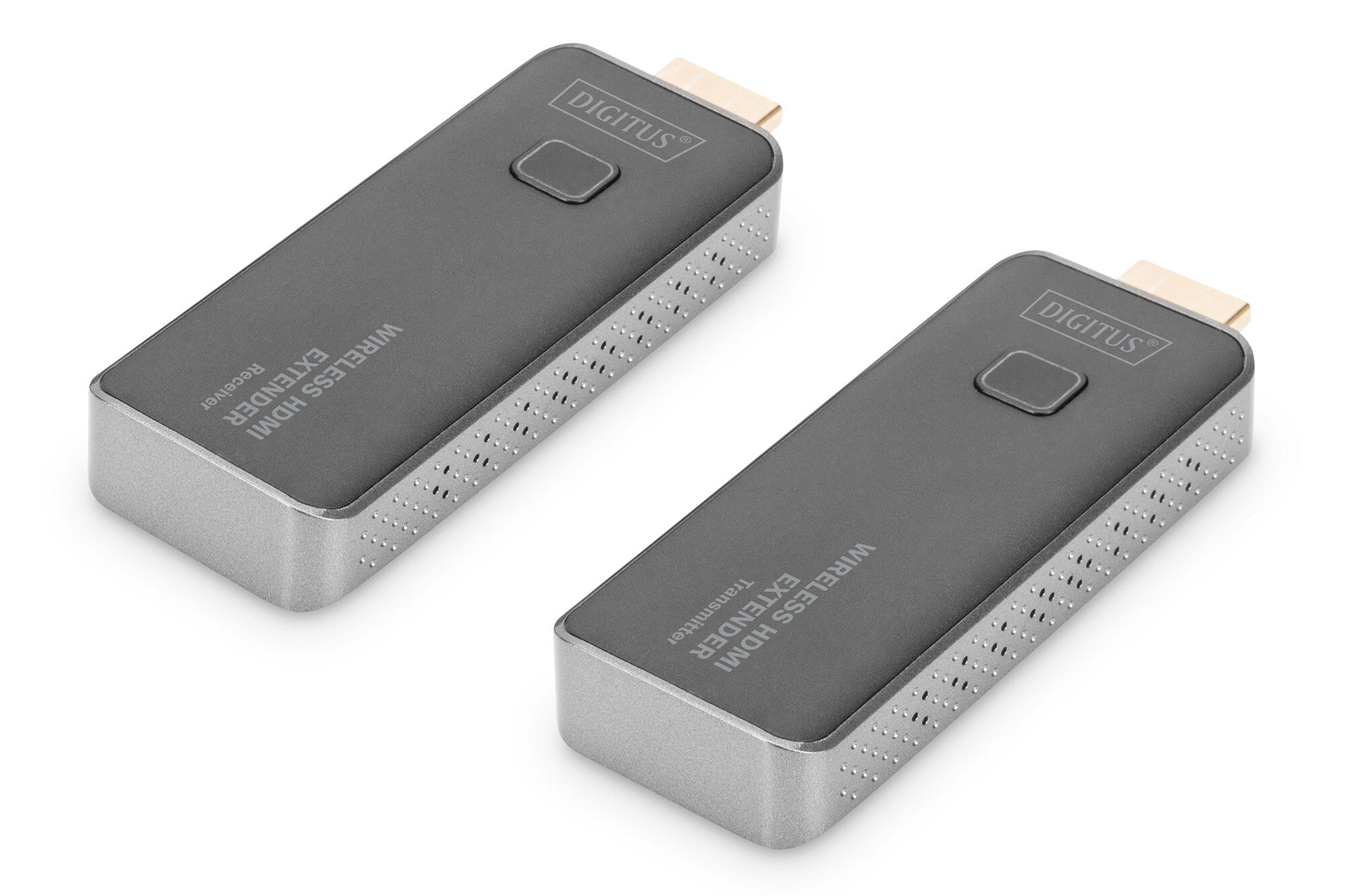

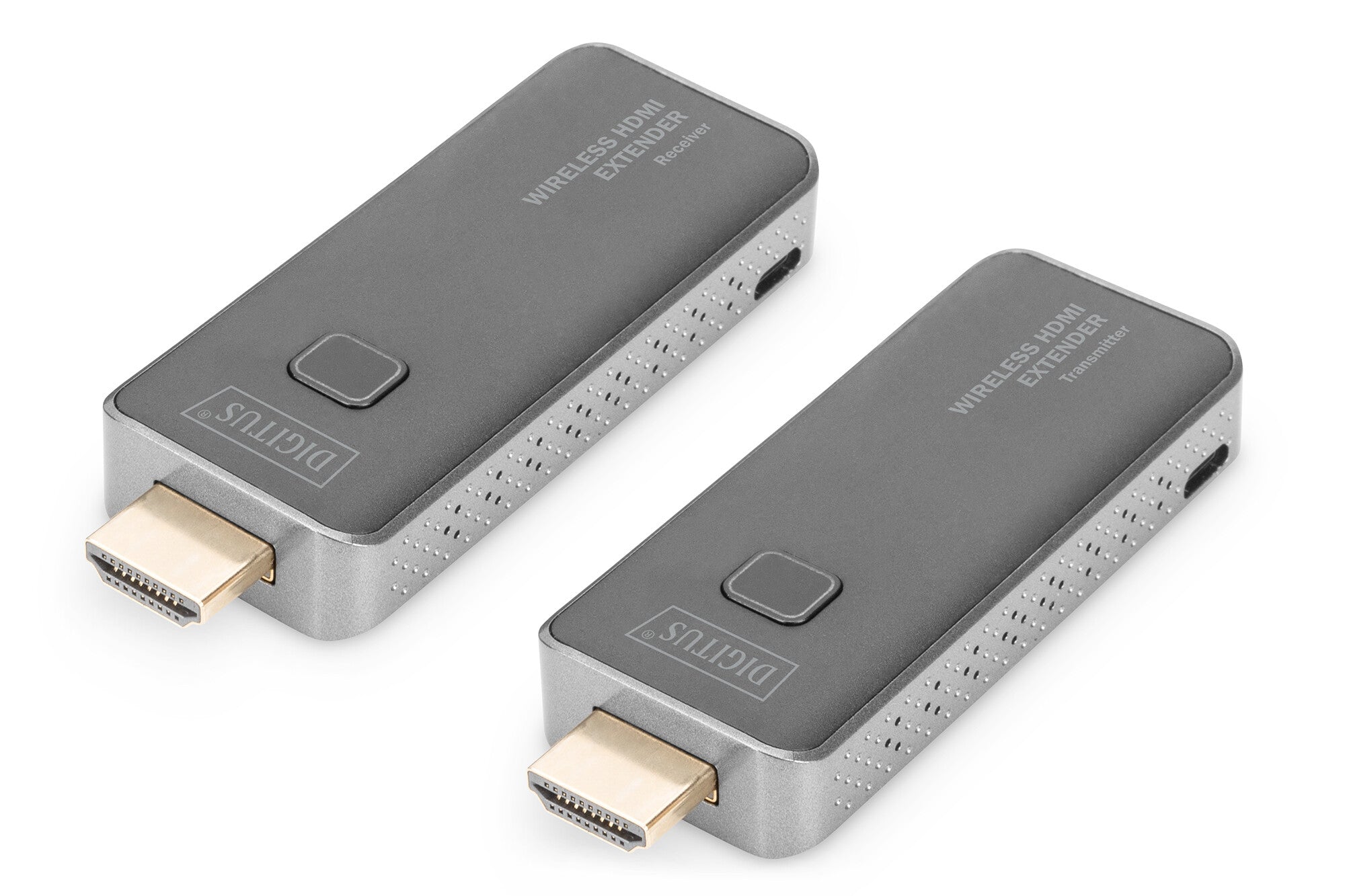

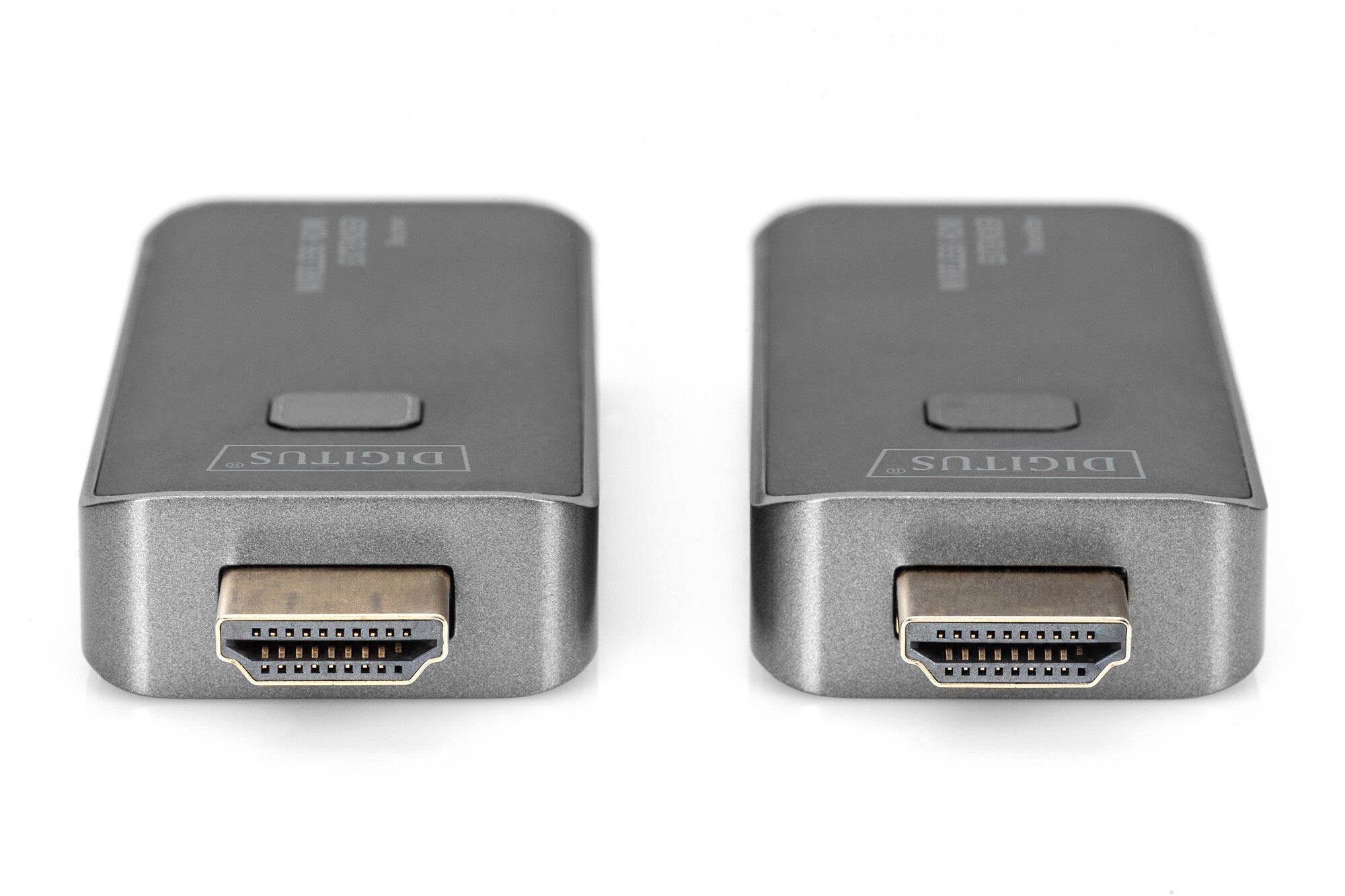

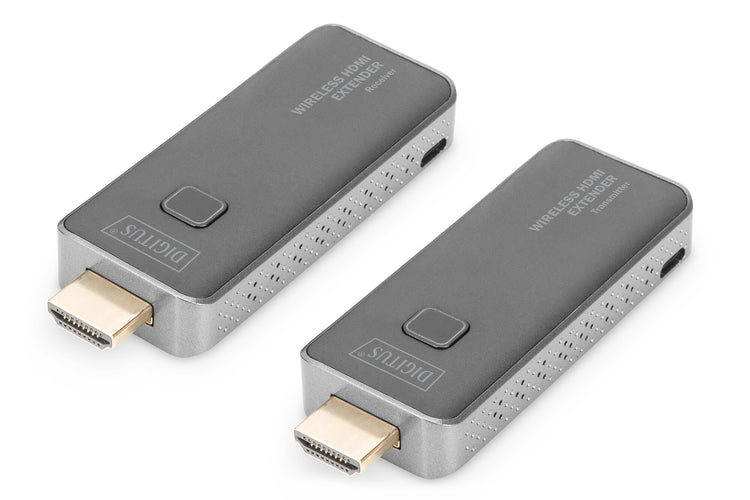

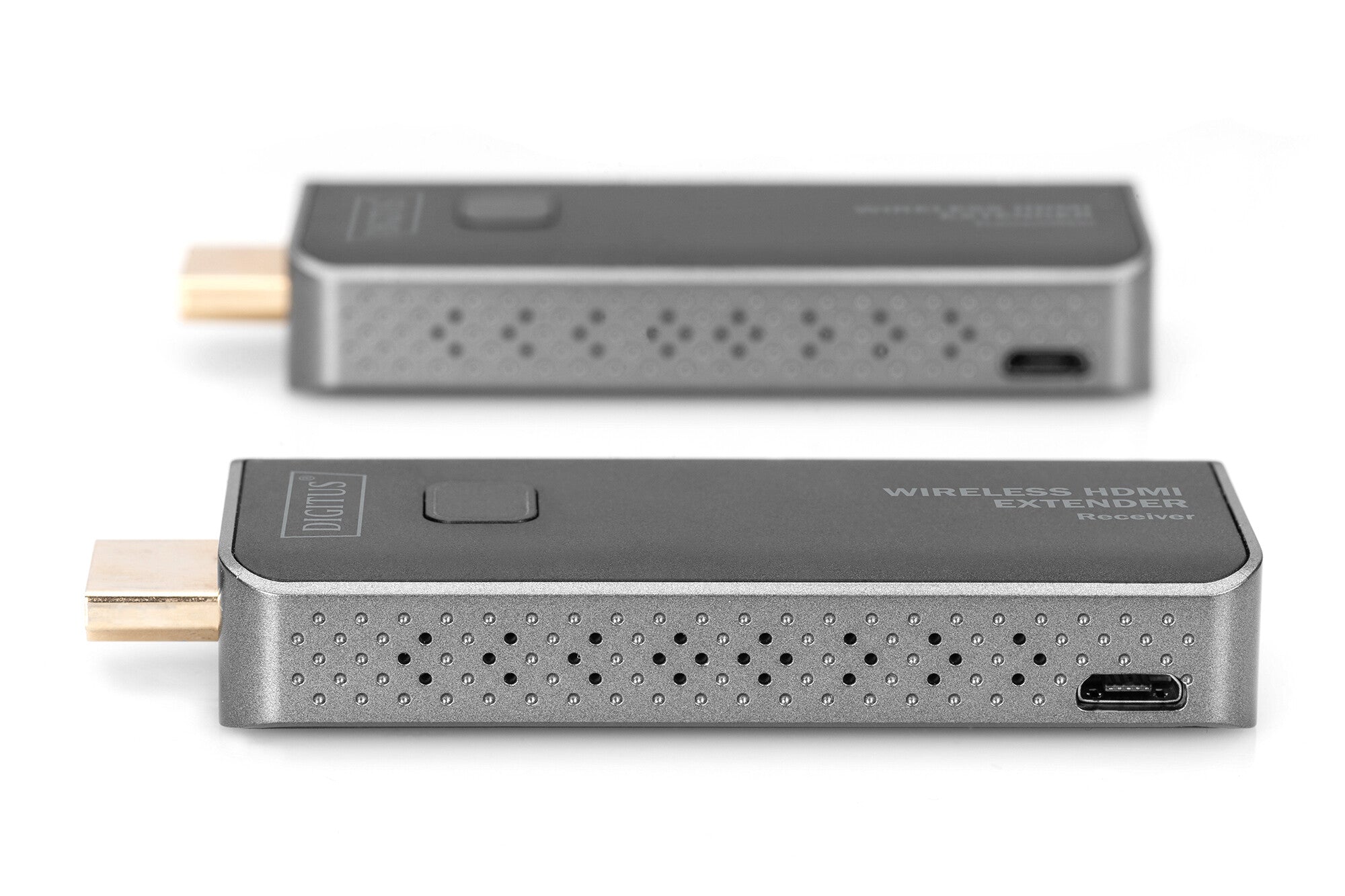

With the Wireless HDMI Extender Set, you can transmit HDMI video and audio signals wirelessly over a distance of up to 50 m in clear view. Operation and installation are child's play. Real plug & play - plug in and go. Transmitter & receiver can be powered via the HDMI port of your device (0.5A required), alternatively (additionally) with the supplied micro USB cable via the USB port of your notebook, PC, etc. Thanks to the compact design of the transmitter and receiver, it can be installed easily, quickly and individually - the perfect solution for meeting, conference or congress rooms. But it can also be used in the home for spontaneous or short-term installations.
