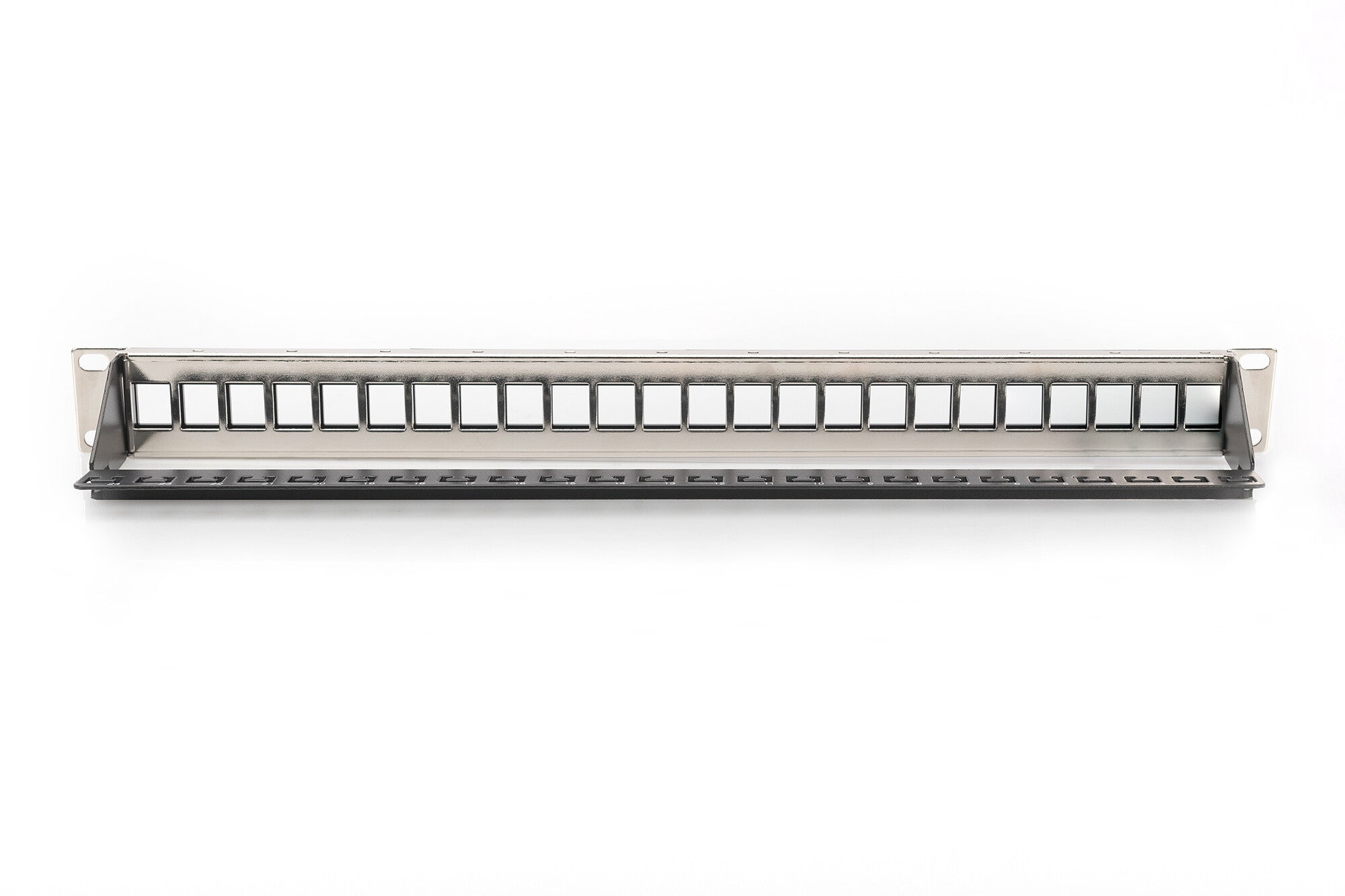

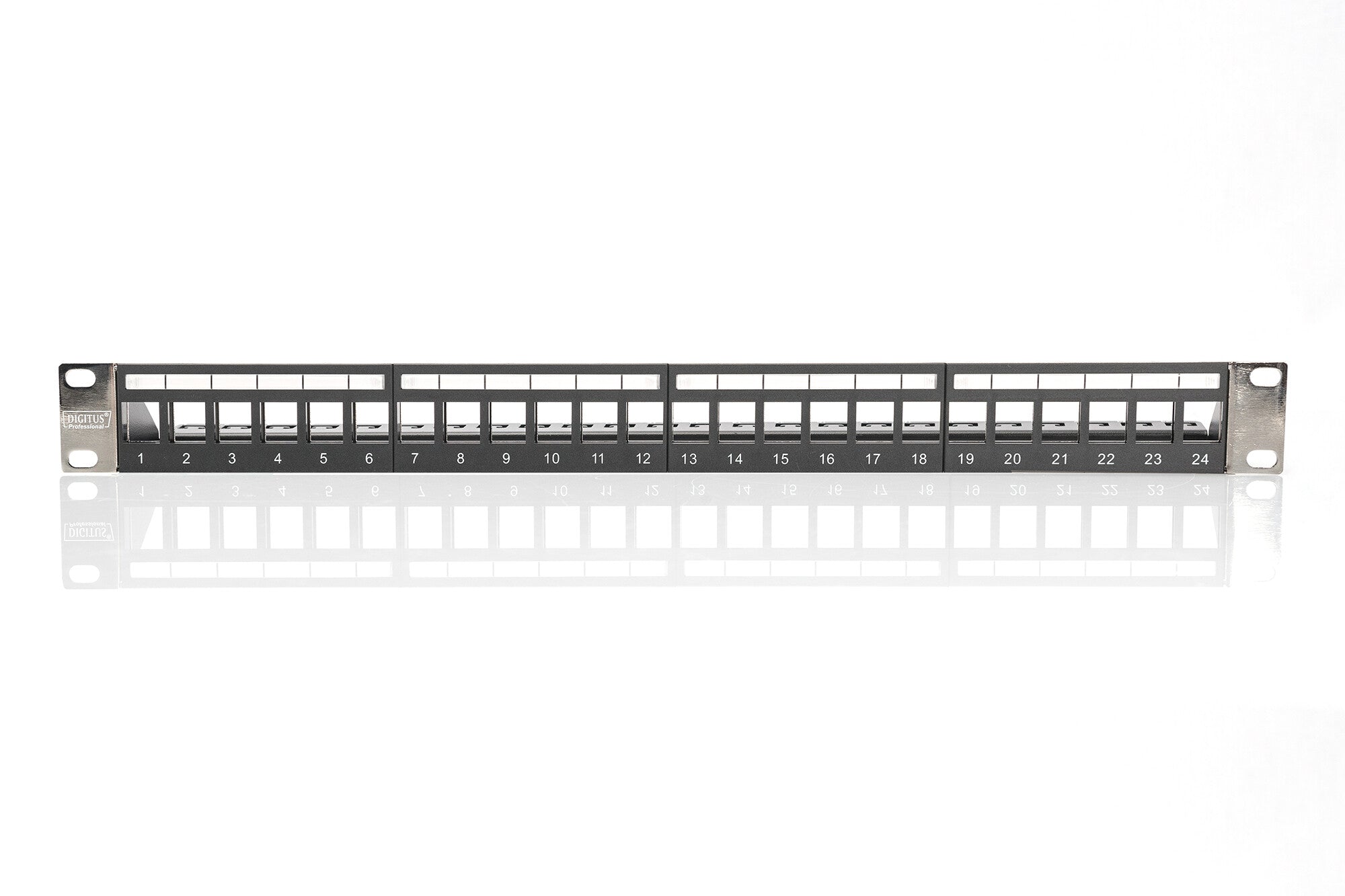

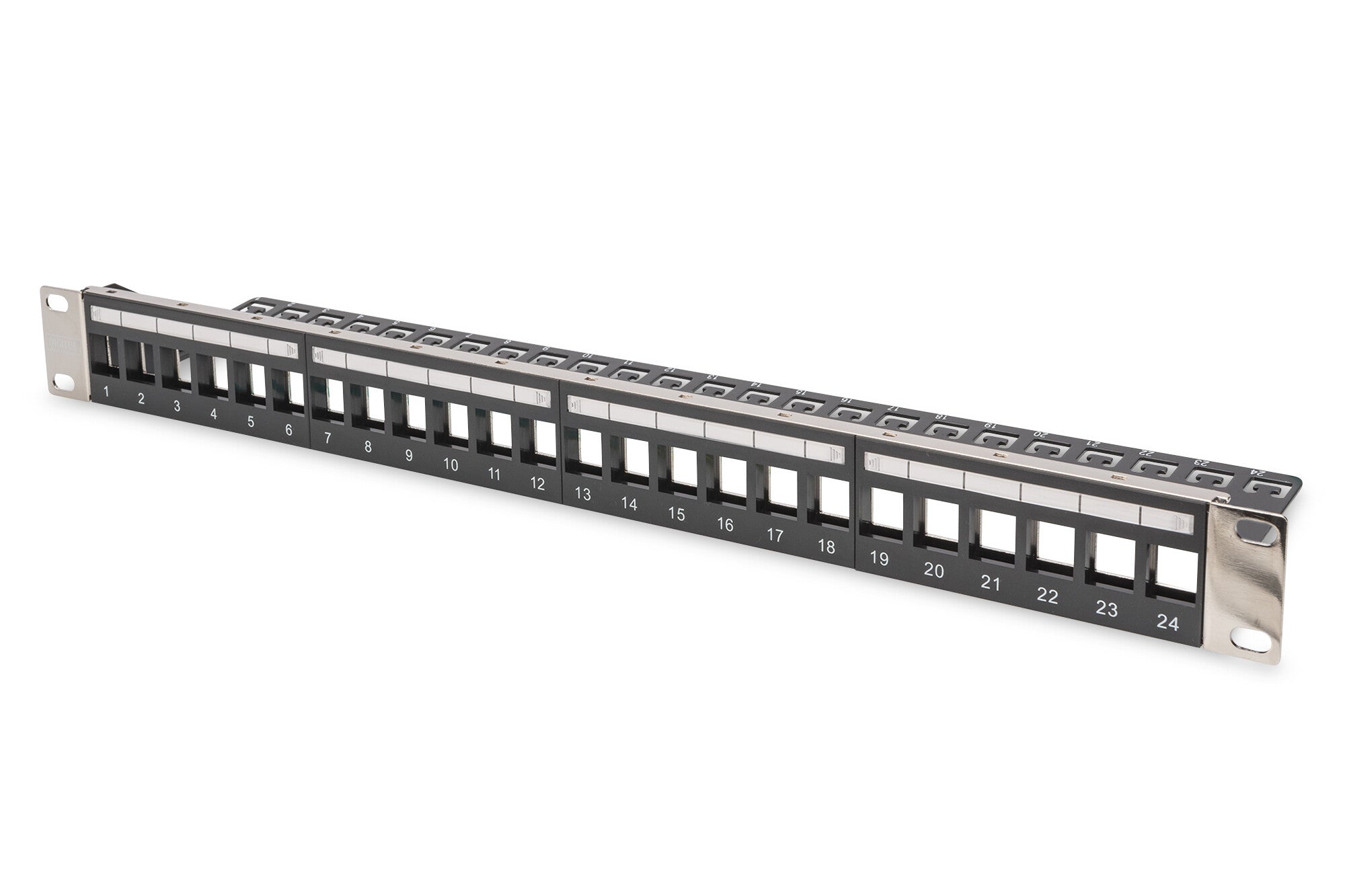

Digitus Modular Patch Panel for Keystone Jack 1U Rack Mount - Unloaded
iFrame
£20.99
Couldn't load pickup availability
- Compatible with DIGITUS® CAT5e, CAT6 & CAT6A jacks
- Part or fully load
- Compatible with DIGITUS® shielded and unshielded jacks
- Available in grey and black color
- Modular version is perfect for pre-terminated and standard installations

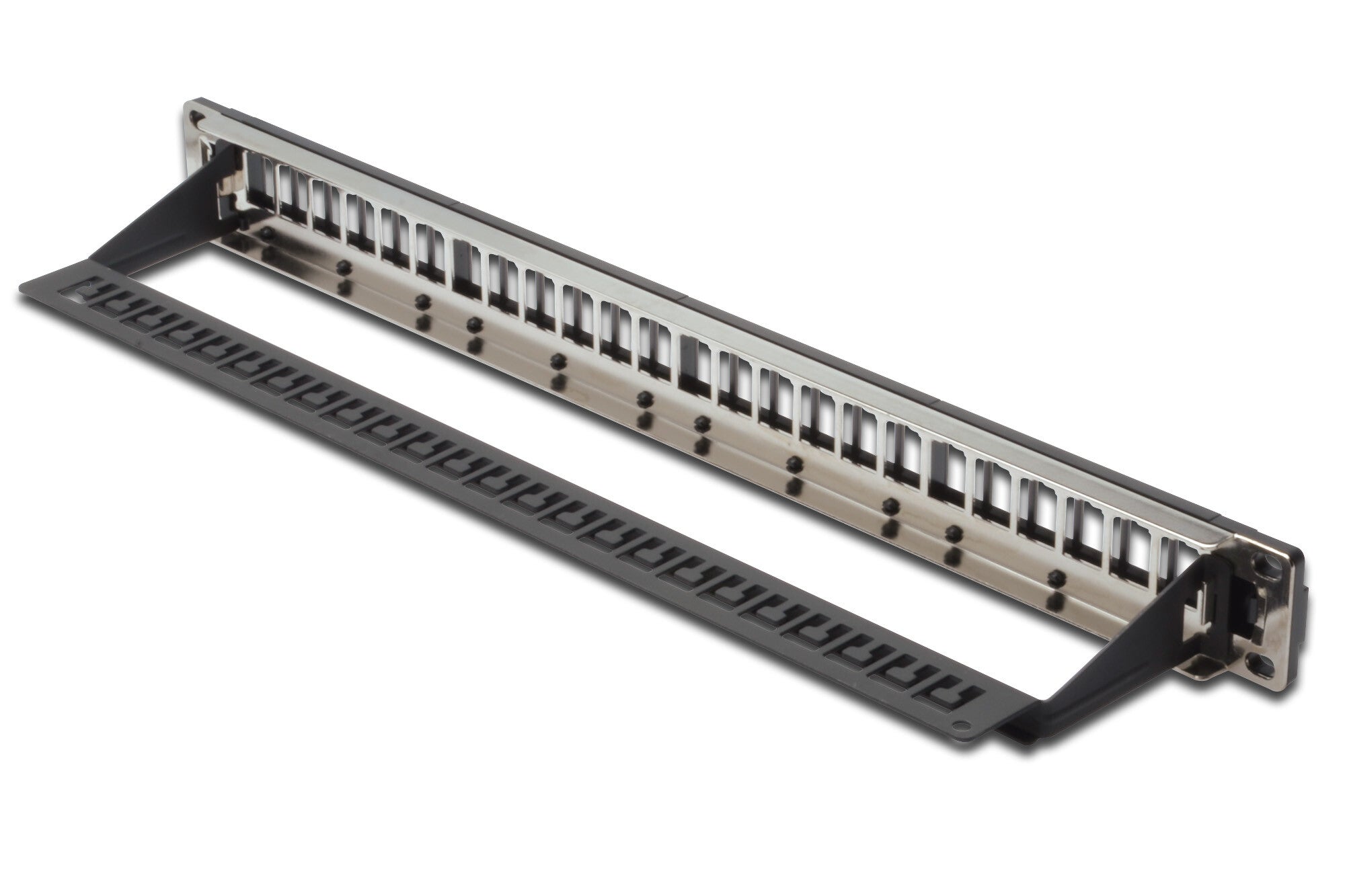

- Delivered with rear management tray
- Operating temperature range: -20 to +75 °C
- Transparent label fields
DIGITUS® modular patch panel are specially designed for 19" rack installation and for mounting DIGITUS® keystone jacks. The modular patch panel is available in two different colors, grey RAL 7035 and black RAL 9005. The material consists of SPCC, 1.55 mm cold-rolled carbon steel in compliance with JIS G3141-1996. The front part of the modular patch panel is manufactured of ABS High-Impact UL-94V-0. The rear management tray with special designed cable tie positions, is delivered as snapping in tool for simple installation.
| Network | |
|---|---|
| Ports quantity | 24 |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Design | |
|---|---|
| Product colour | Black |
| Material | Acrylonitrile butadiene styrene (ABS), Steel |
| Mounting | Rack mounting |
| Rack capacity | 1U |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -20 - 75 °C |
| Packaging data | |
|---|---|
| Package width | 520 mm |
| Package depth | 120 mm |
| Package height | 50 mm |
| Package weight | 770 g |
| Package volume | 3120 cm³ |
| Logistics data | |
|---|---|
| Country of origin | China |
| Harmonized System (HS) code | 85371098 |
| Master (outer) case width | 540 mm |
| Master (outer) case length | 310 mm |
| Master (outer) case height | 280 mm |
| Master (outer) case gross weight | 7.7 kg |
| Products per master (outer) case | 10 pc(s) |
| UK Trade Tariff code | 83024900 |
