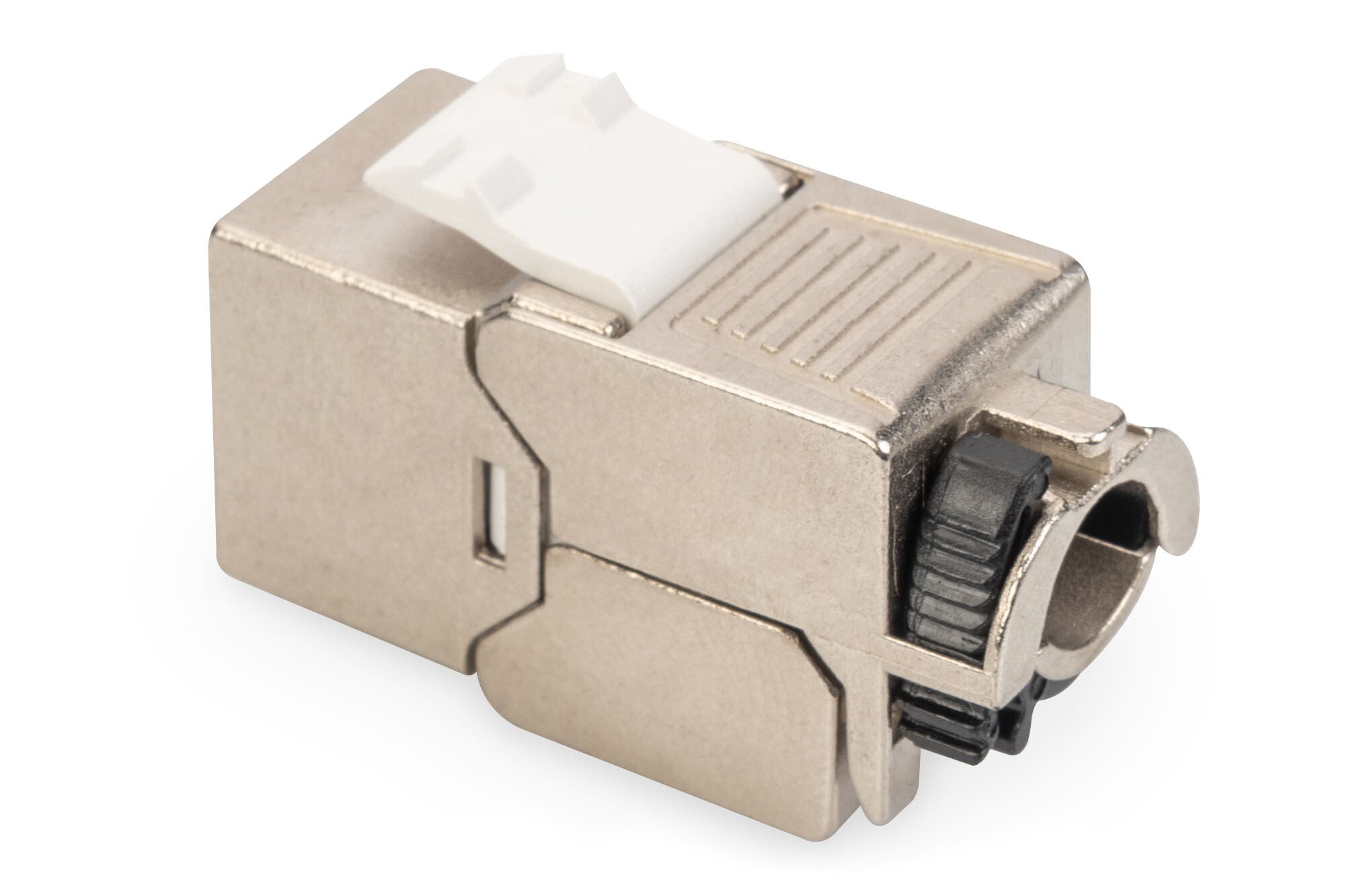

Digitus CAT 6A Keystone module, shielded with intelligent cable manager, set (24 pieces)

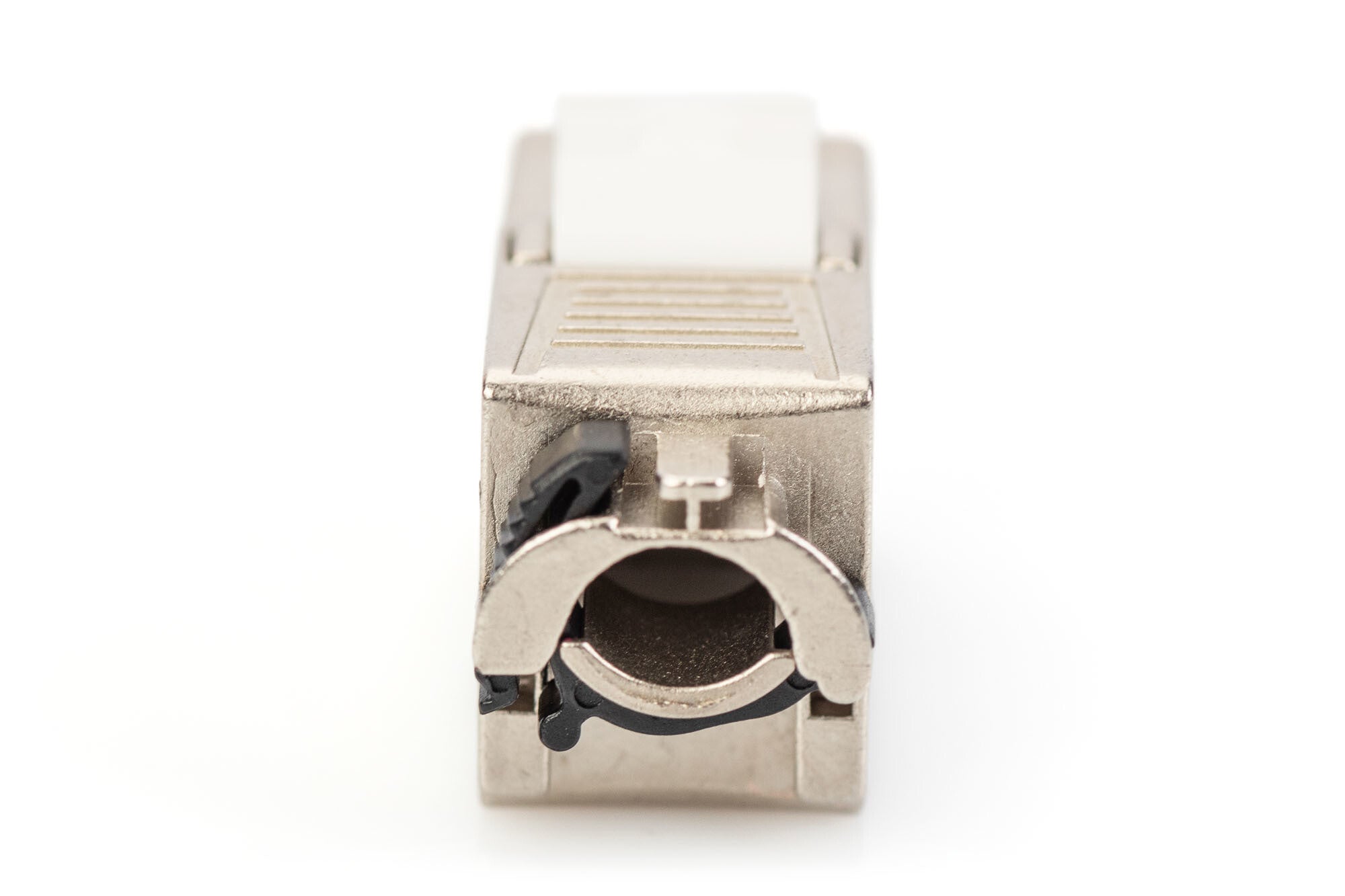

Digitus CAT 6A Keystone module, shielded with intelligent cable manager, set (24 pieces) - image 2
Digitus CAT 6A Keystone module, shielded with intelligent cable manager, set (24 pieces) - image 3
Digitus CAT 6A Keystone module, shielded with intelligent cable manager, set (24 pieces) - image 4
Digitus CAT 6A Keystone module, shielded with intelligent cable manager, set (24 pieces) - image 5
Digitus CAT 6A Keystone module, shielded with intelligent cable manager, set (24 pieces) - image 6
1 / 6
Digitus CAT 6A Keystone module, shielded with intelligent cable manager, set (24 pieces)
Digitus CAT 6A Keystone module, shielded with intelligent cable manager, set (24 pieces) - image 2
Digitus CAT 6A Keystone module, shielded with intelligent cable manager, set (24 pieces) - image 3
Digitus CAT 6A Keystone module, shielded with intelligent cable manager, set (24 pieces) - image 4
Digitus CAT 6A Keystone module, shielded with intelligent cable manager, set (24 pieces) - image 5
Digitus CAT 6A Keystone module, shielded with intelligent cable manager, set (24 pieces) - image 6
Digitus CAT 6A Keystone module, shielded with intelligent cable manager, set (24 pieces)
Digitus CAT 6A Keystone module, shielded with intelligent cable manager, set (24 pieces) - image 2
Digitus CAT 6A Keystone module, shielded with intelligent cable manager, set (24 pieces) - image 3
Digitus CAT 6A Keystone module, shielded with intelligent cable manager, set (24 pieces) - image 4
Digitus CAT 6A Keystone module, shielded with intelligent cable manager, set (24 pieces) - image 5
Digitus CAT 6A Keystone module, shielded with intelligent cable manager, set (24 pieces) - image 6

Digitus CAT 6A Keystone module, shielded with intelligent cable manager, set (24 pieces)

Digitus · MPN: DN-93617-24
£66.99
inc. VAT
Spread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £22.33 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

In stock

FREE delivery

Express £9.99

More payment options Snap Finance on orders over £250

Snap Finance on orders over £250

Pay £1 deposit · Pay in 4 available · Decision in minutes

Soft check, won't affect your credit score. Representative 29.9% APR. Choose Snap Finance at checkout.

How Snap Finance works

Credit subject to status. 18+, UK residents only. Back to the Office is an Introducer Appointed Representative of Snap Finance Limited, which is authorised and regulated by the Financial Conduct Authority (FRN 741813). Snap Finance Limited is the lender.

We accept all of these. Choose the one you want at checkout.

  • American Express
  • Apple Pay
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
  • Express checkout Shop Pay, Apple Pay, Google Pay and PayPal
  • Card Visa, Mastercard, American Express and Maestro
  • Pay later Snap Finance, Klarna, Clearpay, PayPal Pay in 3 and more
Go to checkout with this item

Secure checkout. You can add a discount code or gift card on the next page.

Price drop alert

Digitus CAT 6A Keystone module, shielded with intelligent cable manager, set (24 pieces)
Now £66.99

We'll email you if the price of this item drops in the next 90 days.

By setting an alert you agree to receive price drop emails from Back to the Office for this item and others you view. No newsletters. Unsubscribe at any time. Privacy policy

Overview
  • Category 6A 10GBase-T, 500 MHz
  • ISO/IEC 11801 3rd Edition, EN 50173-1
  • Suitable for IEEE 802.3 af/at/bt - PoE, PoE+ (4PPoE in permanent link)
  • Suitable for distribution panel and junction box installation

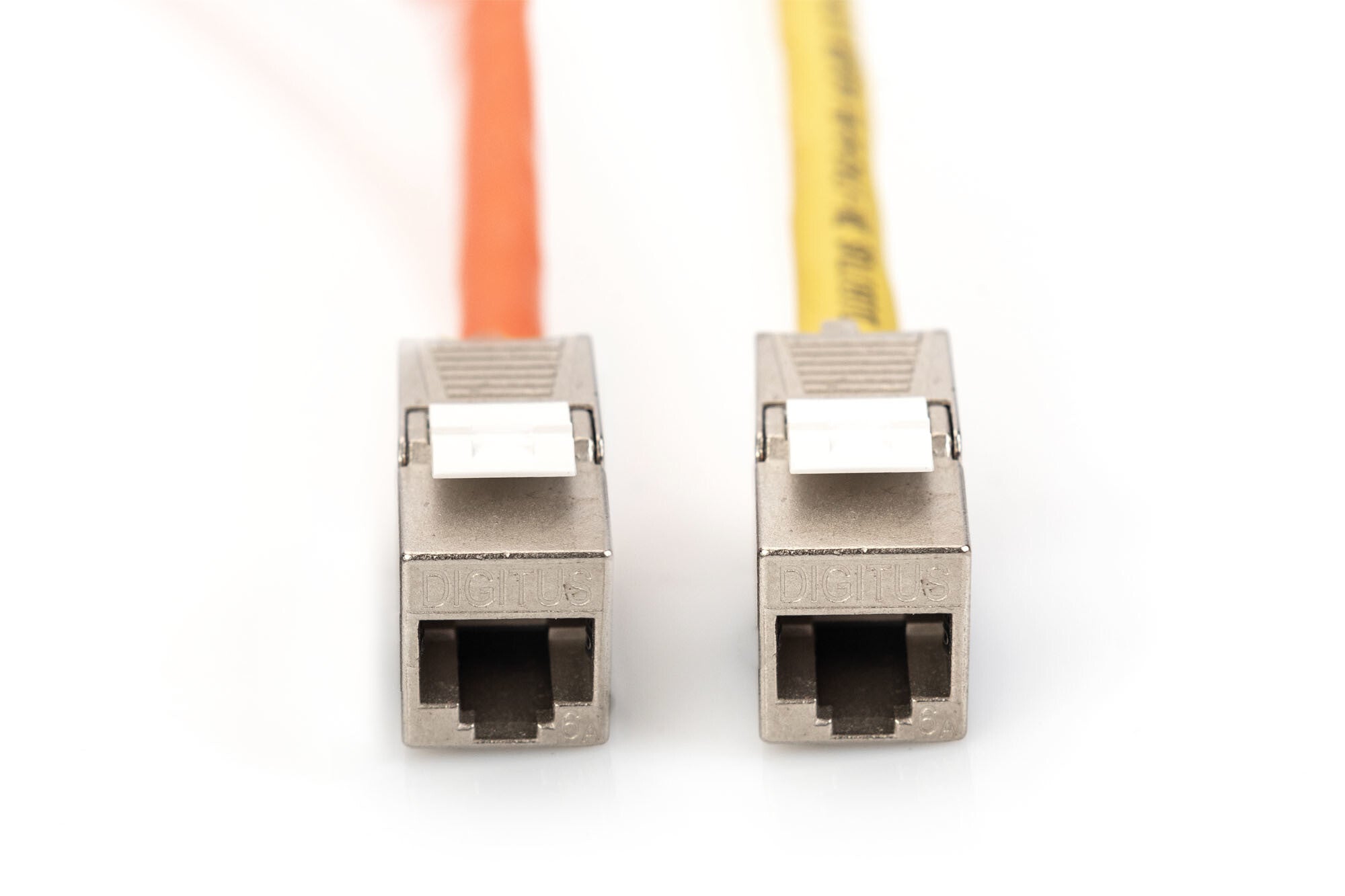

  • RJ45 socket, 8P8C
  • Cable installation via insulation displacement connectors, color-coded according to EIA/TIA 568 A & B

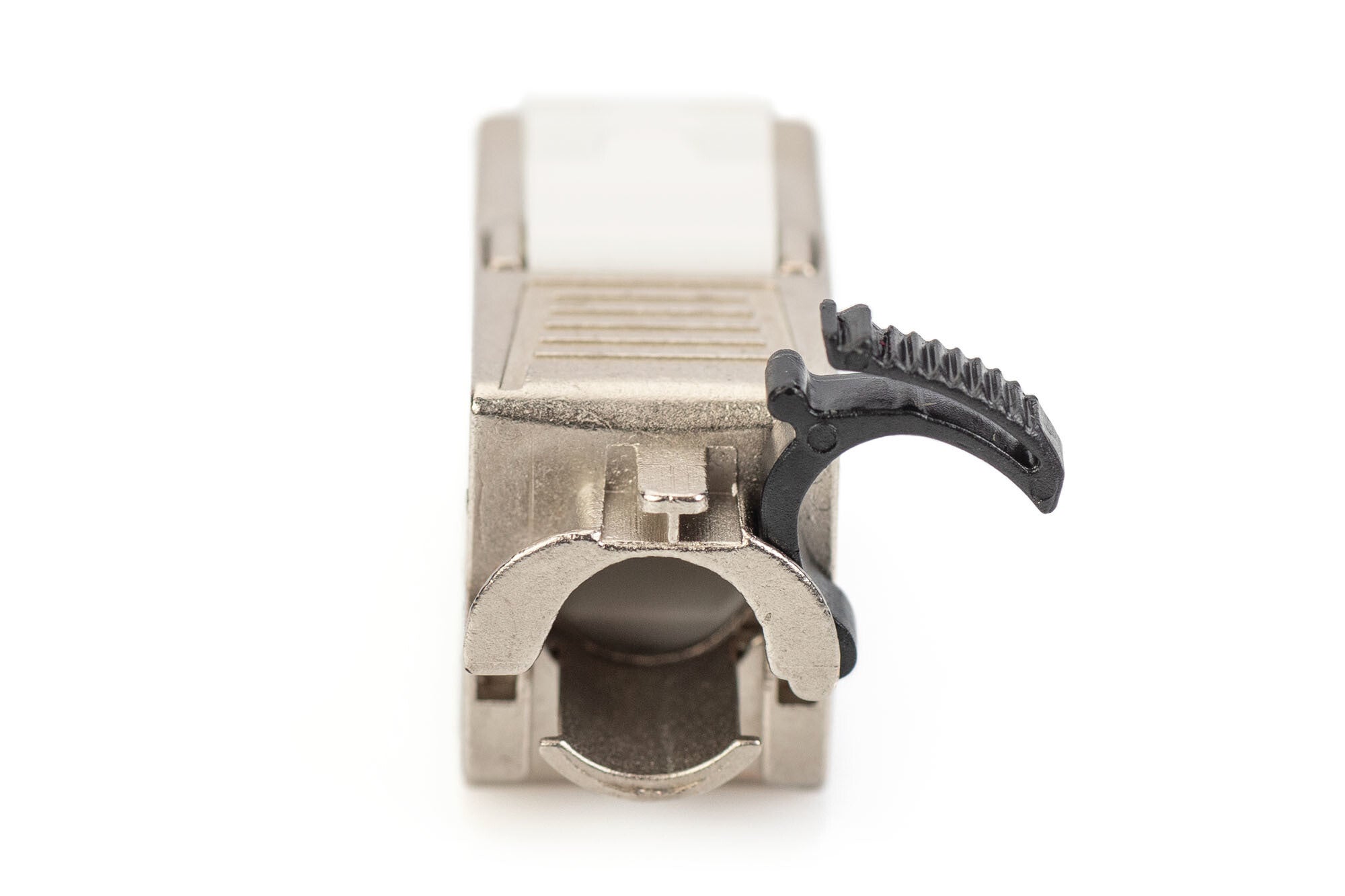

  • Strain relief and cable fixing using intelligent cable manager
  • Tool-free mounting connection

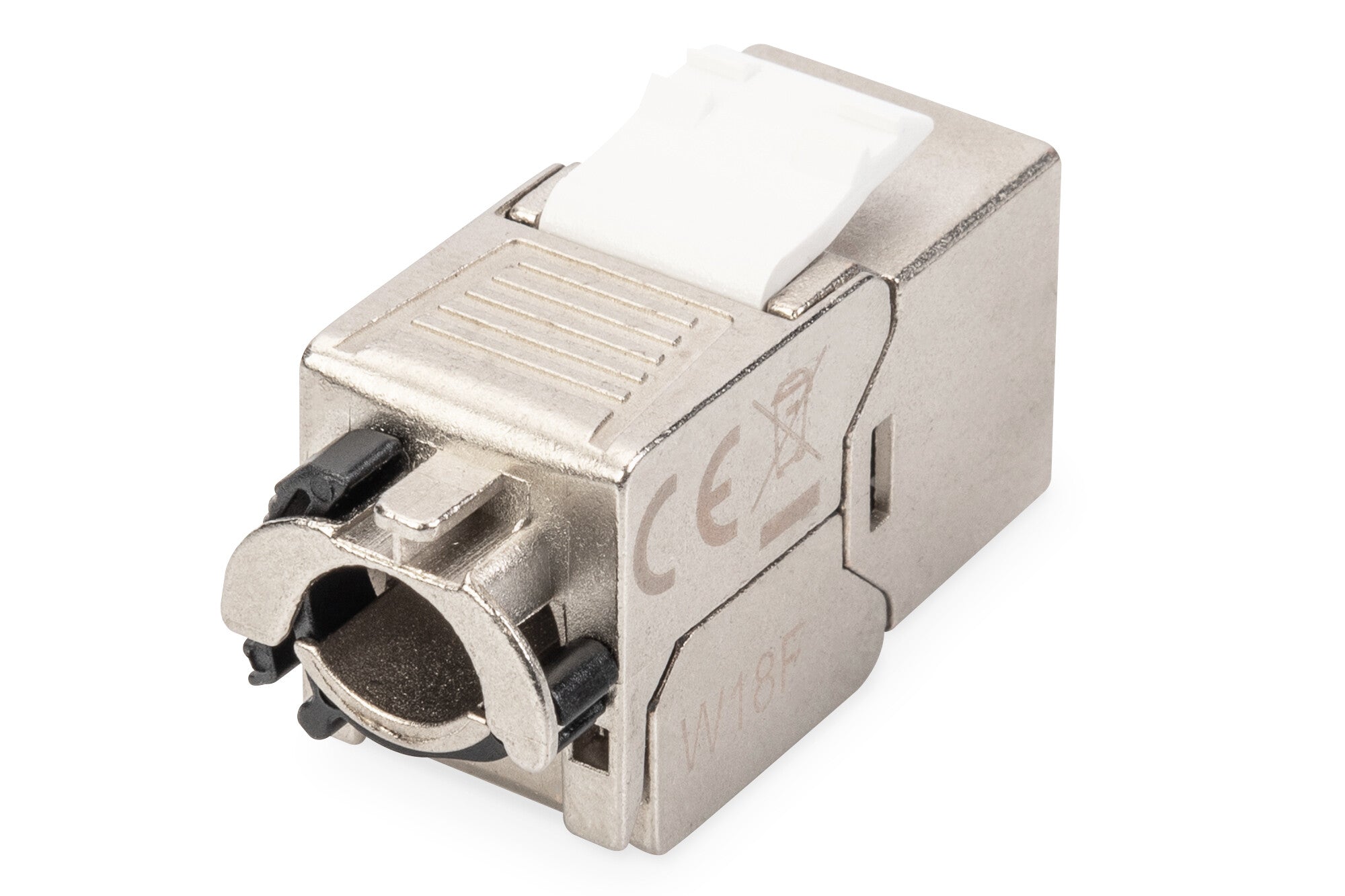

  • 360° shield contacting
  • Housing material: Zinc die-cast - nickel-plated
  • Contact material: Phosphor bronze
  • Coating Contacts: Nickel, gold-plated
  • Insertion force: Max. 30N (according to IEC 60603-7-51)
  • Holding force: 7.7 kg between socket and plug
  • Operating temperature: -20 °C up to +70 °C (ISO/IEC 11801, ANSI/TIA 568 C.2)
  • Mating cycles: ≥ 750 (ISO/IEC 11801, IEC 60603-7-51)
  • In accordance with IEC 60512-5, IEC 60512-6-5
  • Copper conductor diameter: AWG (26/7 - 22/1), stranded and solid wire

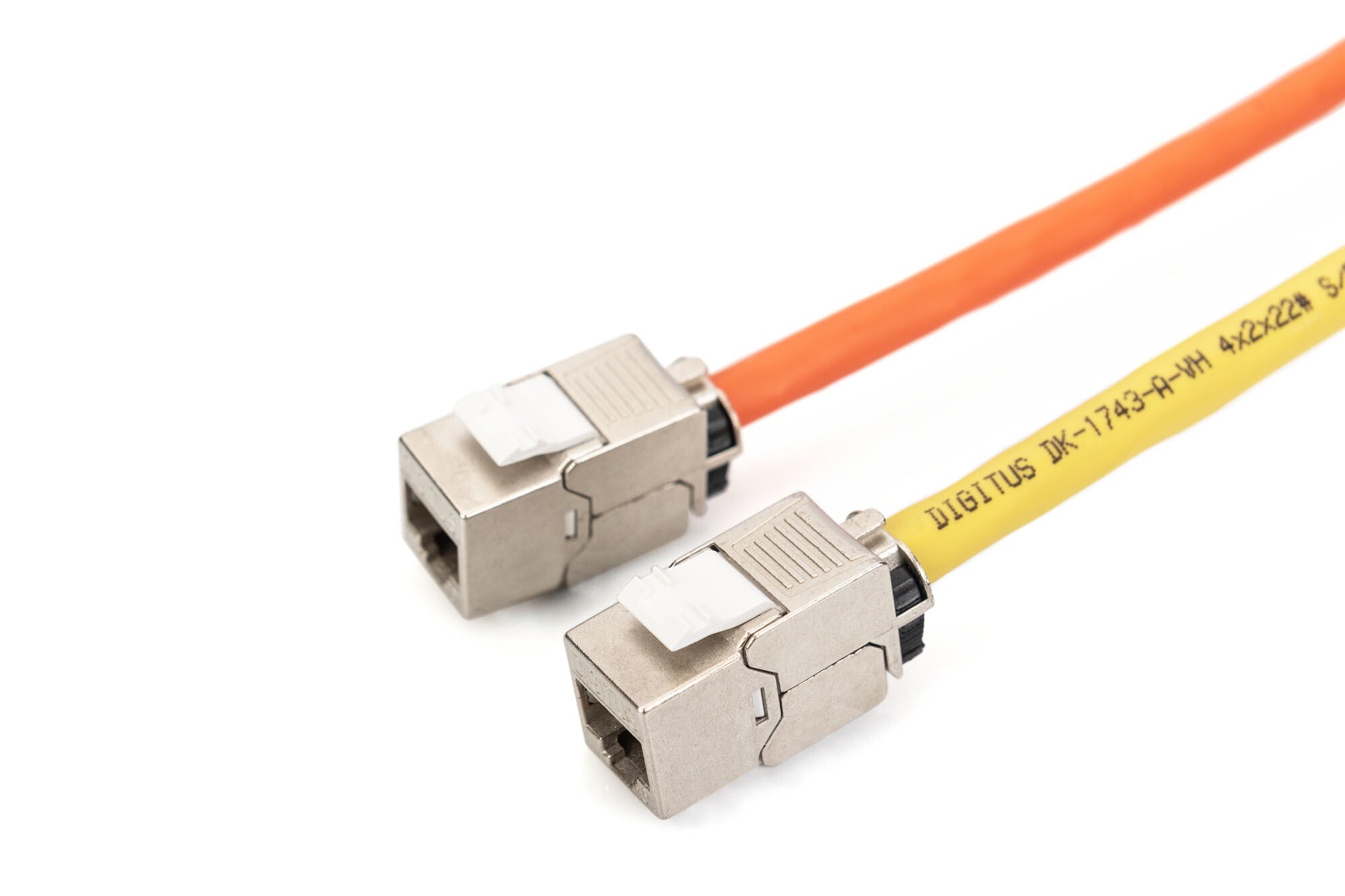

  • Tested with AWG 22/1 solid installation cable
  • (DIGITUS® DK-174X-A-VH-X; AWG 22/1 Cat.7A installation cable)
  • Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)
  • Tool-free installation using LSA insulation displacement connectors, color-coded in accordance with EIA/TIA 568 A & B
  • Intelligent cable manager (reclosable)

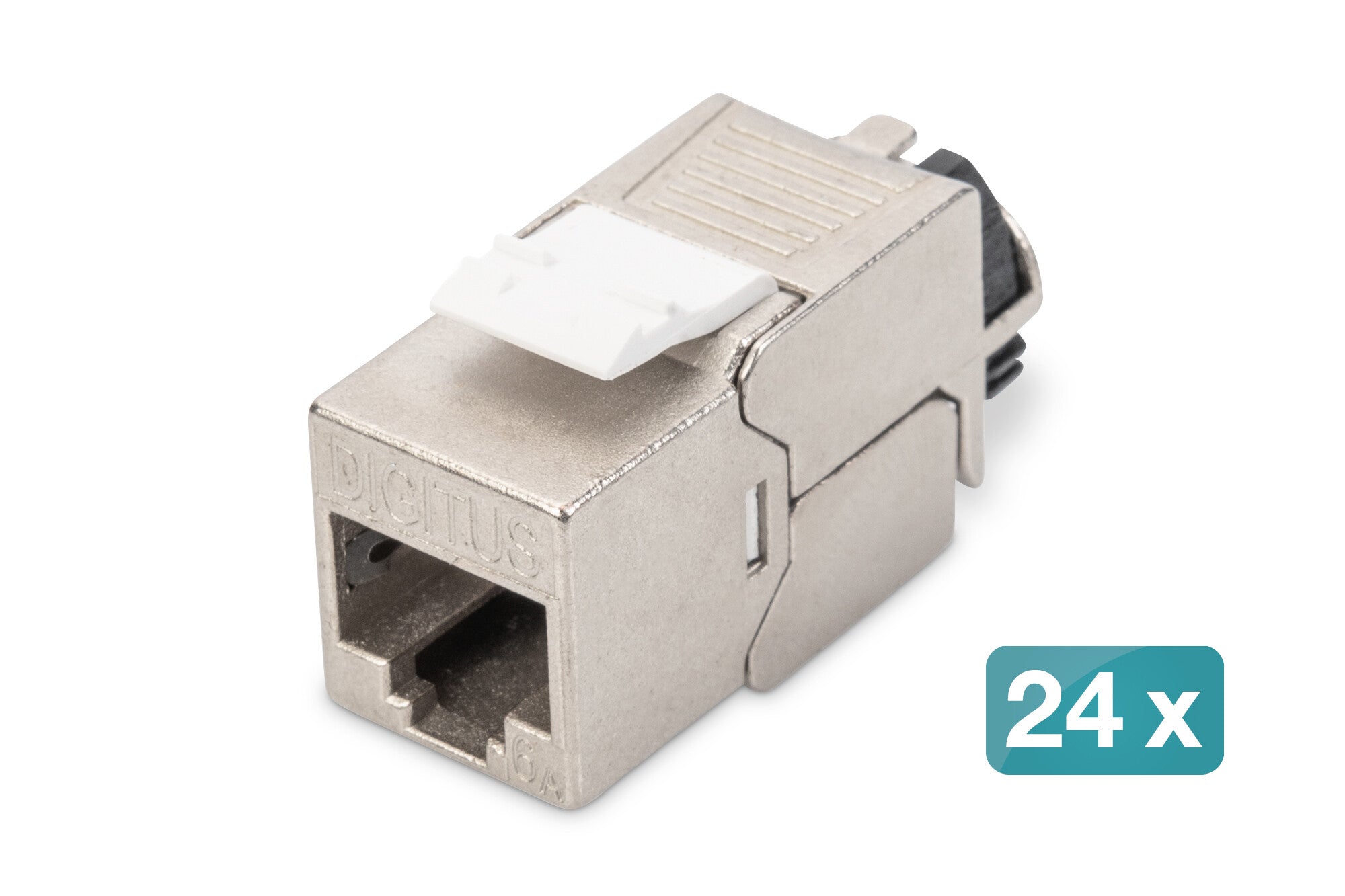

  • CAT 6A Keystone module, shielded, set= 24 pieces
  • Dimensions (HxWxD): 21.0 x 14.5 x 34.5 mm
  • Weight: 19.5 g

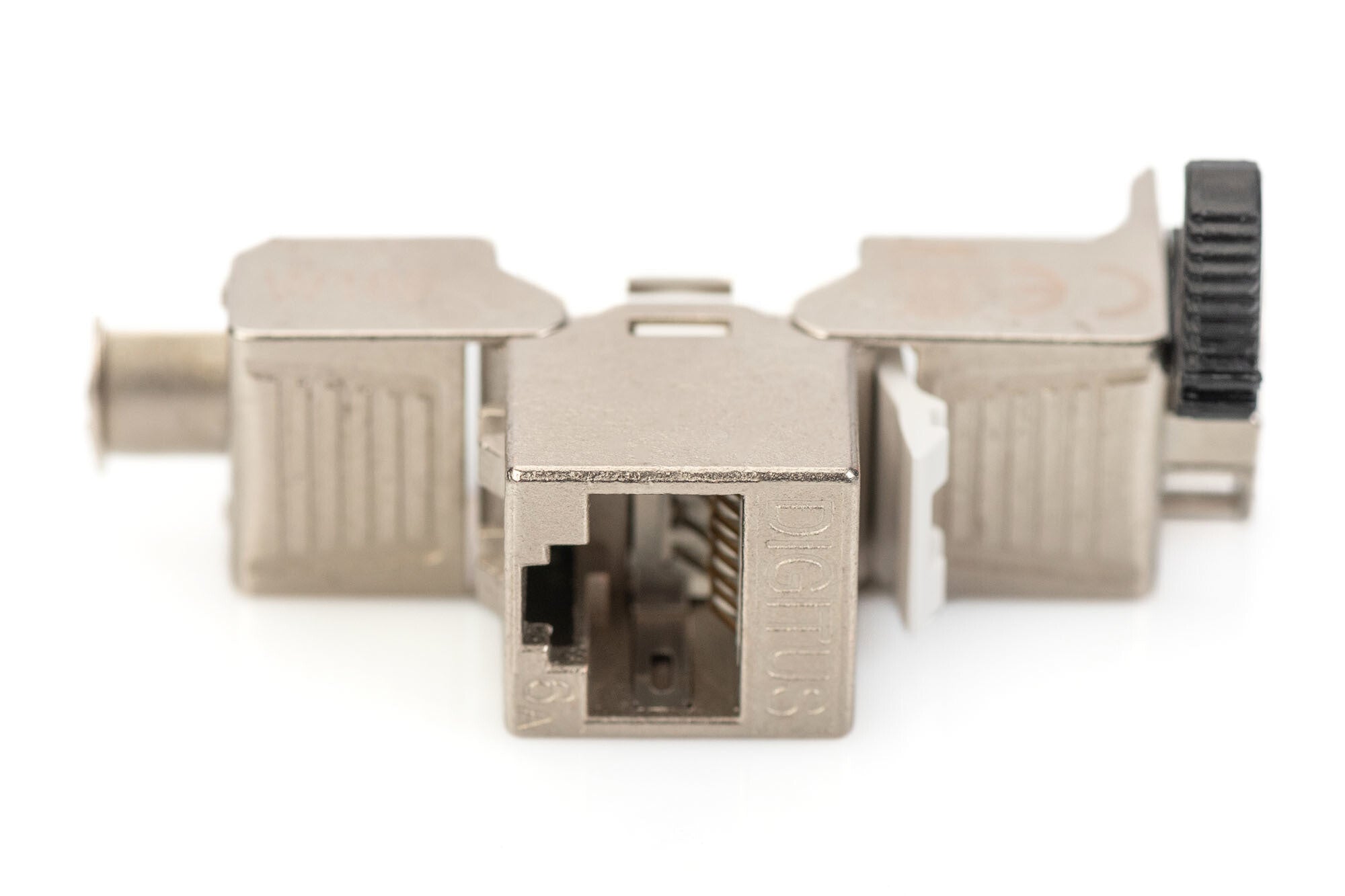

Design-capable, shielded, tool-free and intelligent cable manager

- Strain relief and cable fixing using intelligent cable manager
- 360° shield contacting
- Suitable for field assembly (tool-free installation)
- Design-compatible - suitable for mounting in distribution panels and junction boxes
- CAT 6A with LSA insulation displacement connectors

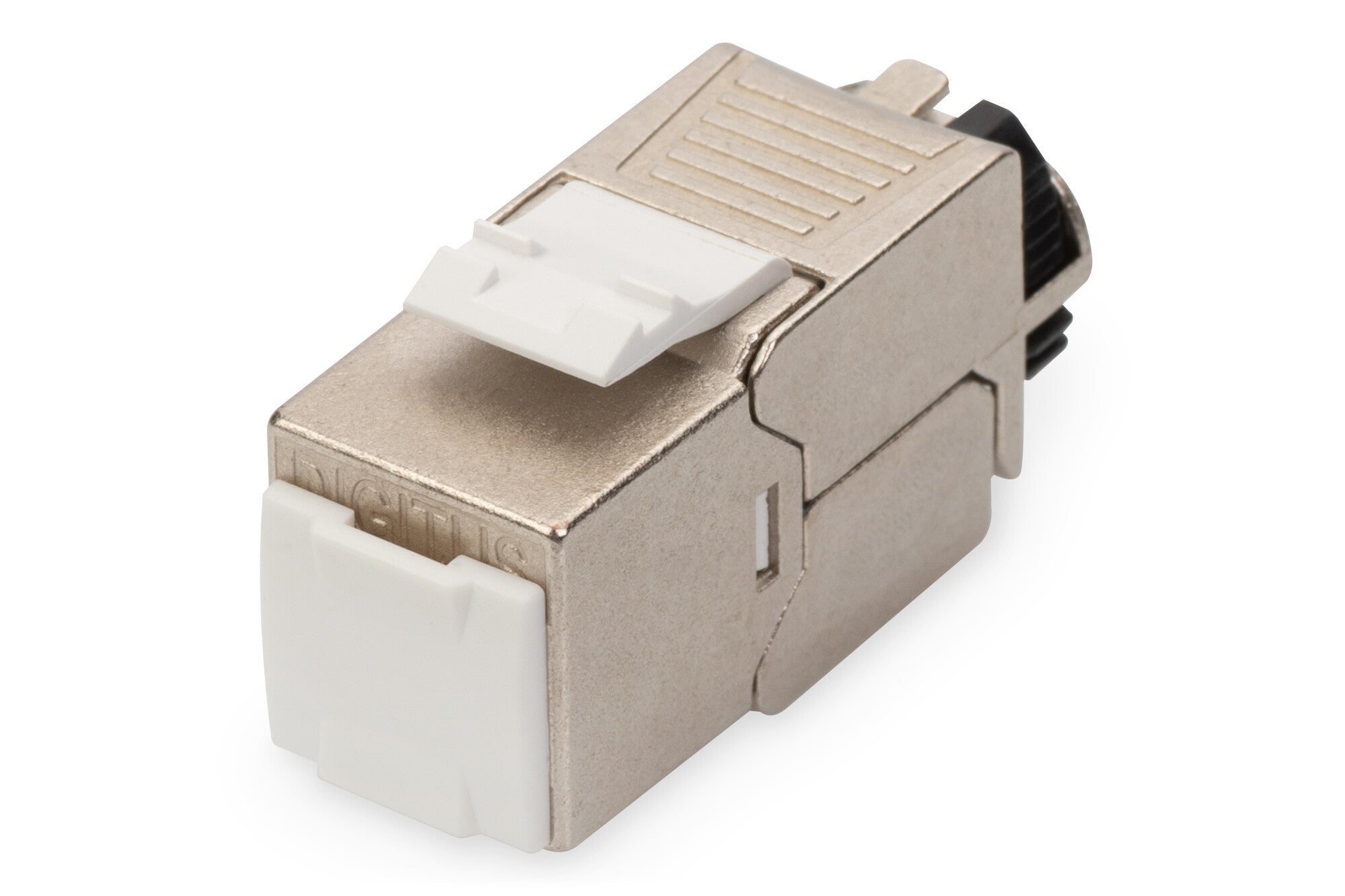

- Dust protection cap for RJ45 socket
- GHMT certified
- Supported PoE standards: IEEE 802.3 af/at/bt - PoE, PoE+ (4PPoE in permanent link)

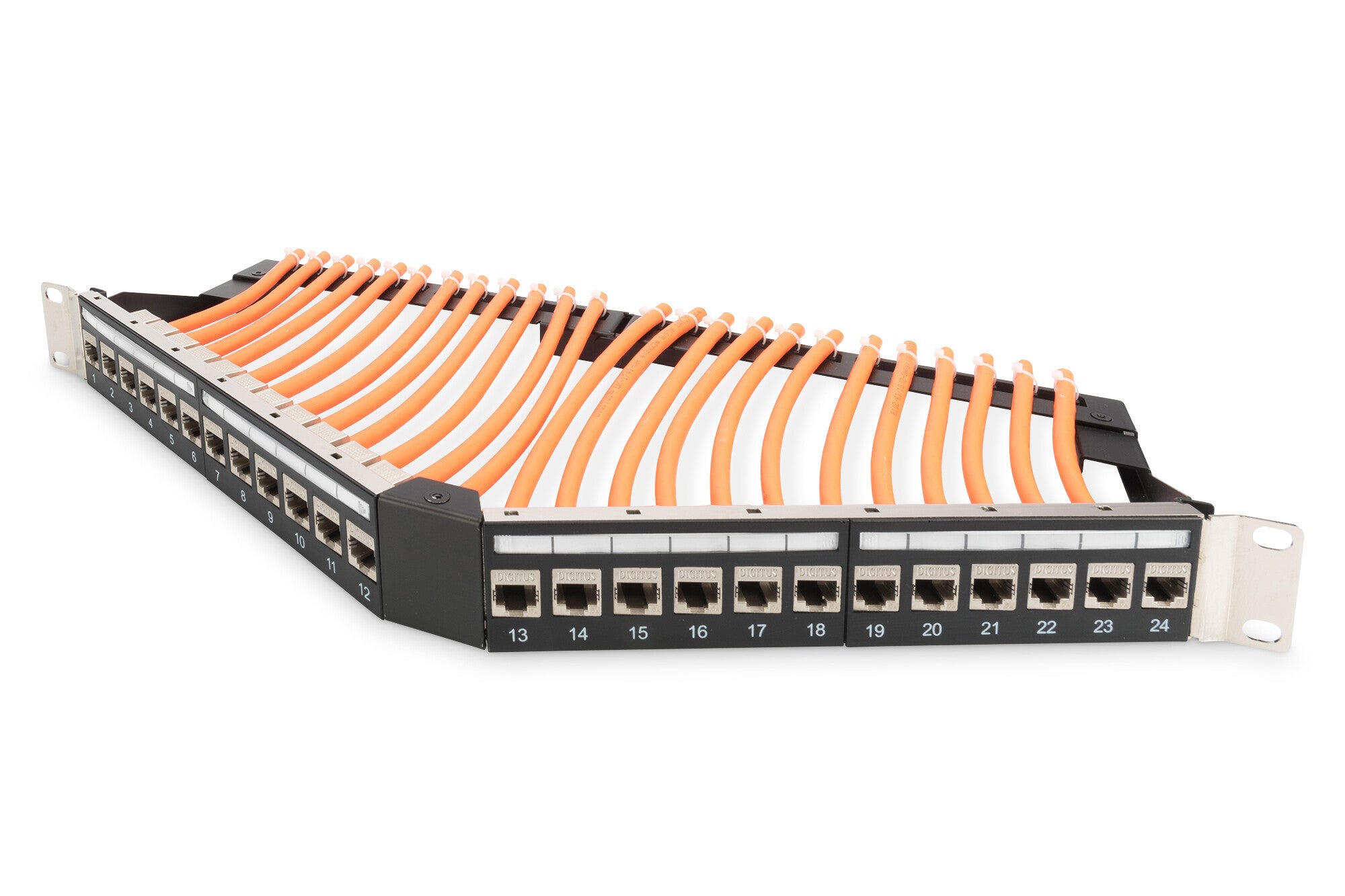

The shielded CAT 6A keystone module set DN-93617-24 from DIGITUS® impresses with future-oriented standards and high-end quality for your network. The modules have 360° shield contacting, a locking lever and a reclosable, intelligent cable manager for strain relief and cable fixing. The compact design allows for row installation in 483 mm (19") 1U panels. The tool-free installation is carried out via LSA strips, color-coded in accordance with EIA/TIA 568 A&B. Thanks to its compact design, the module also fits into design-compatible modular junction boxes.

Specifications

Features

Product colourSilver

Operational conditions

Operating temperature (T-T)-10 - 60 °C
Show all 6 specificationsShow fewer specifications

Weight & dimensions

Dimensions (WxDxH)14.5 x 35.3 x 19.5 mm
Weight19 g

Technical details

Connector 2LSA
Connector 1Rj-45
