Digitus CAT 6A, Class EA Patch Panel, shielded
Spread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £20.99 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
In stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Overview
- Transmission characteristics: Category 6A, Class EA
- Application areas: Up to 500 MHz, 10GBase-T
- Standards: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+
- General properties:

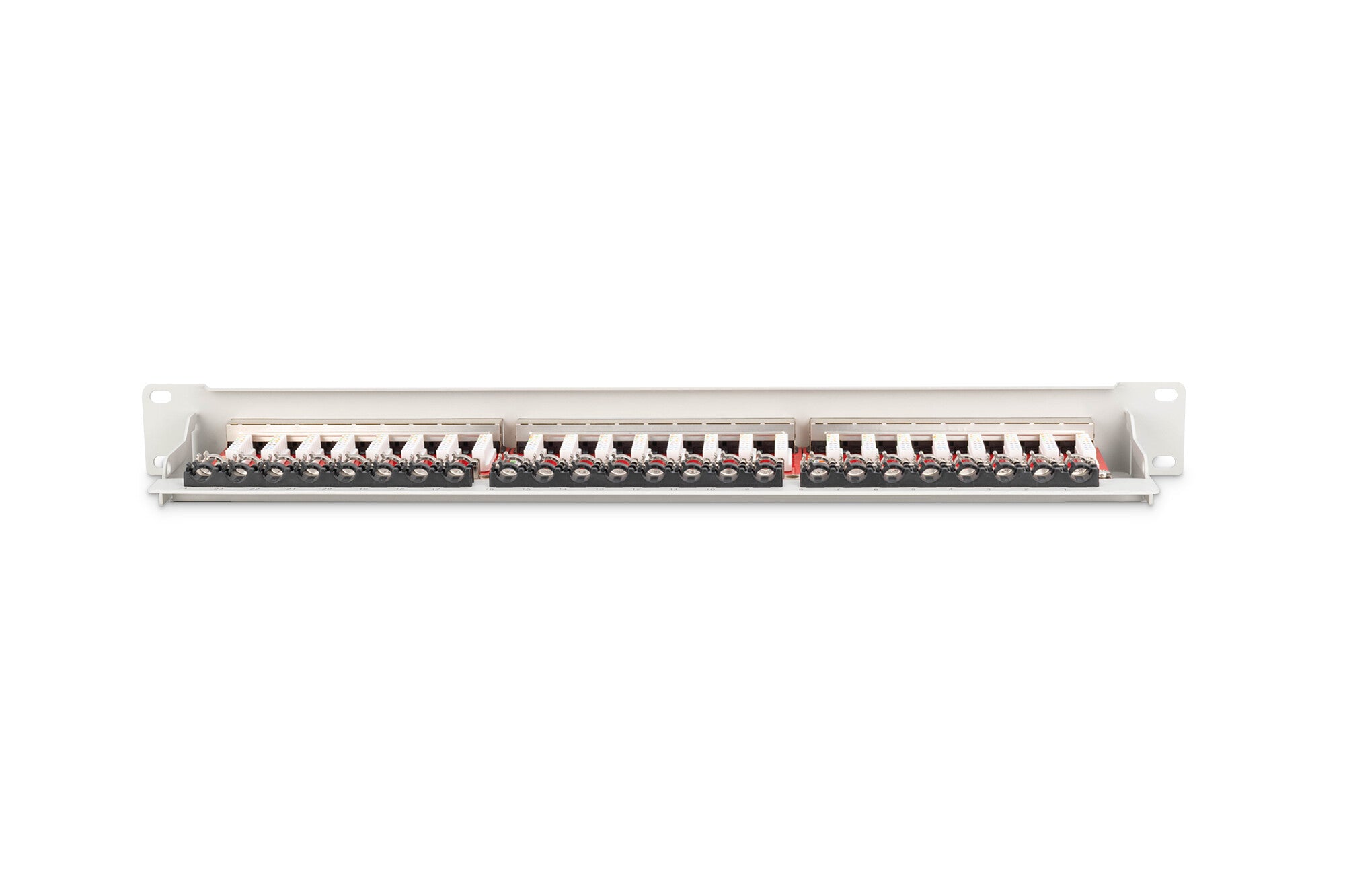

- Suitable for 483 mm (19") rack mounting

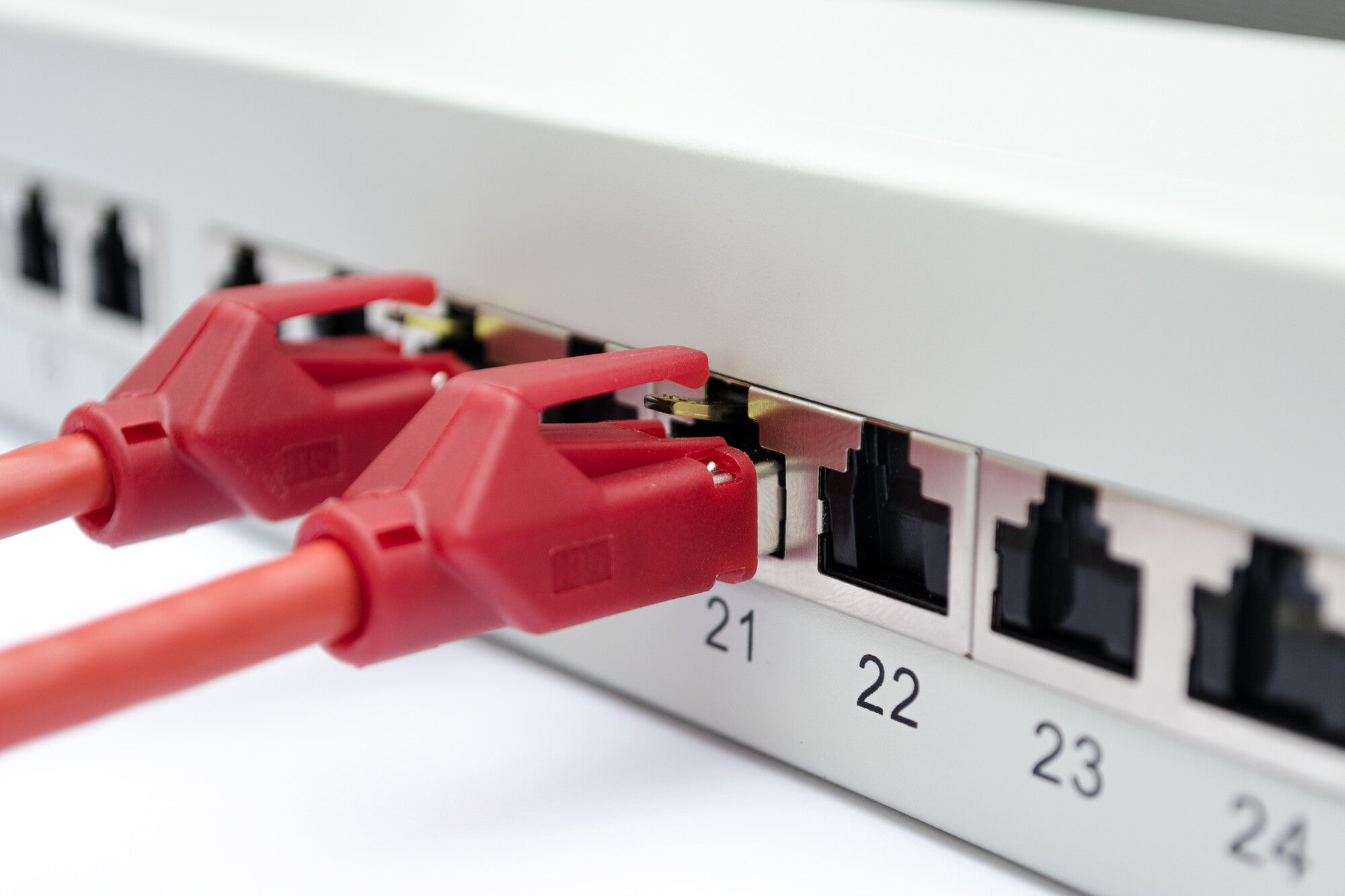

- RJ45 sockets, 8P8C

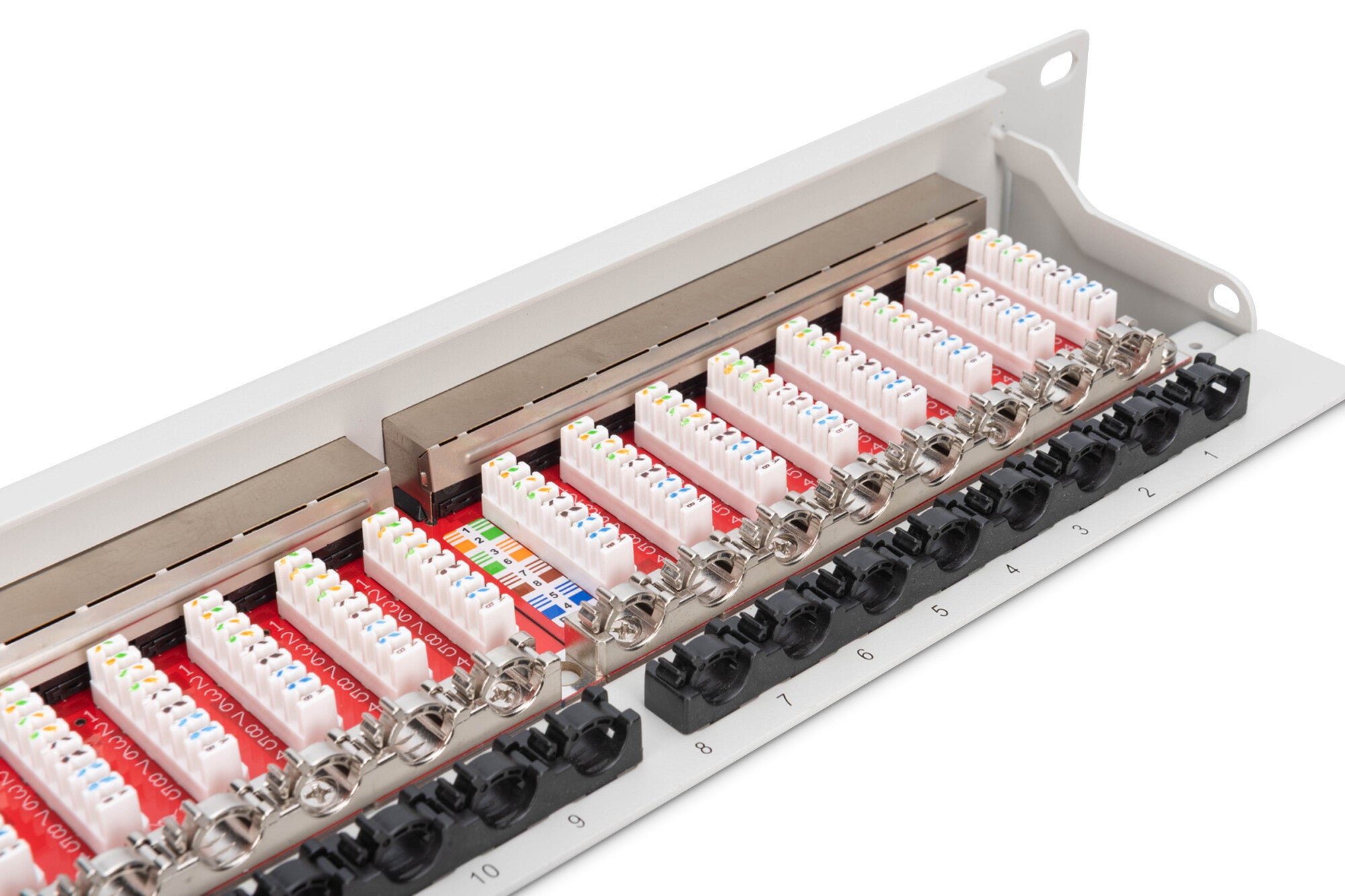

- Cable installation via LSA strips, color-coded according to EIA/TIA 568 A & B

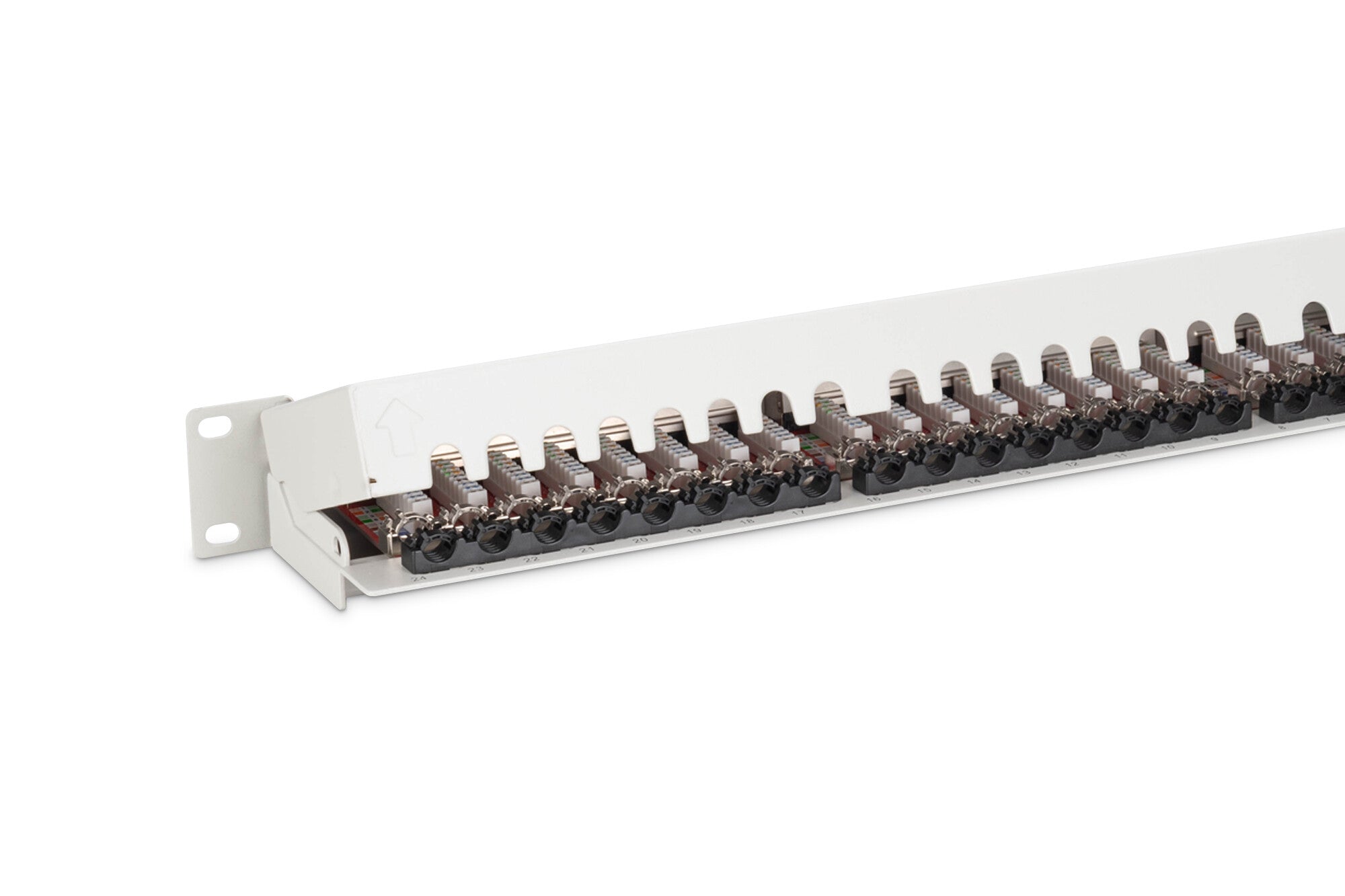

- Cable fixation by means of quick latches
- Central earthing connection
- 360° shield contacting
- Integrated dust protection flaps
- Plastic labeling field
- CAT 6A Class EA for up to 500 MHz
- Mechanical properties:
- Housing material: 1.5 mm galvanized, cold-rolled steel according to EN1.4301, UNS S30400, AISI 304 and LMSAD110
- RJ45 socket material: ABS UL 94V-0
- Contact RJ45 socket: Nickel-plated phosphor bronze, 0.5 μ gold-plated contact
- RJ-45 shielding: Nickel-plated bronze
- LSA cutting clamp: Krone LSA+, UL 94V-2, galvanized phosphor bronze
- Earthing wire: Not included in the scope of delivery
- Printed circuit board: FR4, UL 94V-0
- Physical properties:
- Insertion force: 30N max. (IEC 60603-7-5)
- Tensile load: 7.7 kg between socket and plug
- Operating temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
- Socket mating cycle: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
- Terminal: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
- Core receptacle: 22-26 AWG solid and stranded conductors
- Insulation resistance: > 500 MOhm
- Contact resistance: < 20 milliOhms
- Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)
Future-oriented standards and high-end quality for your network.

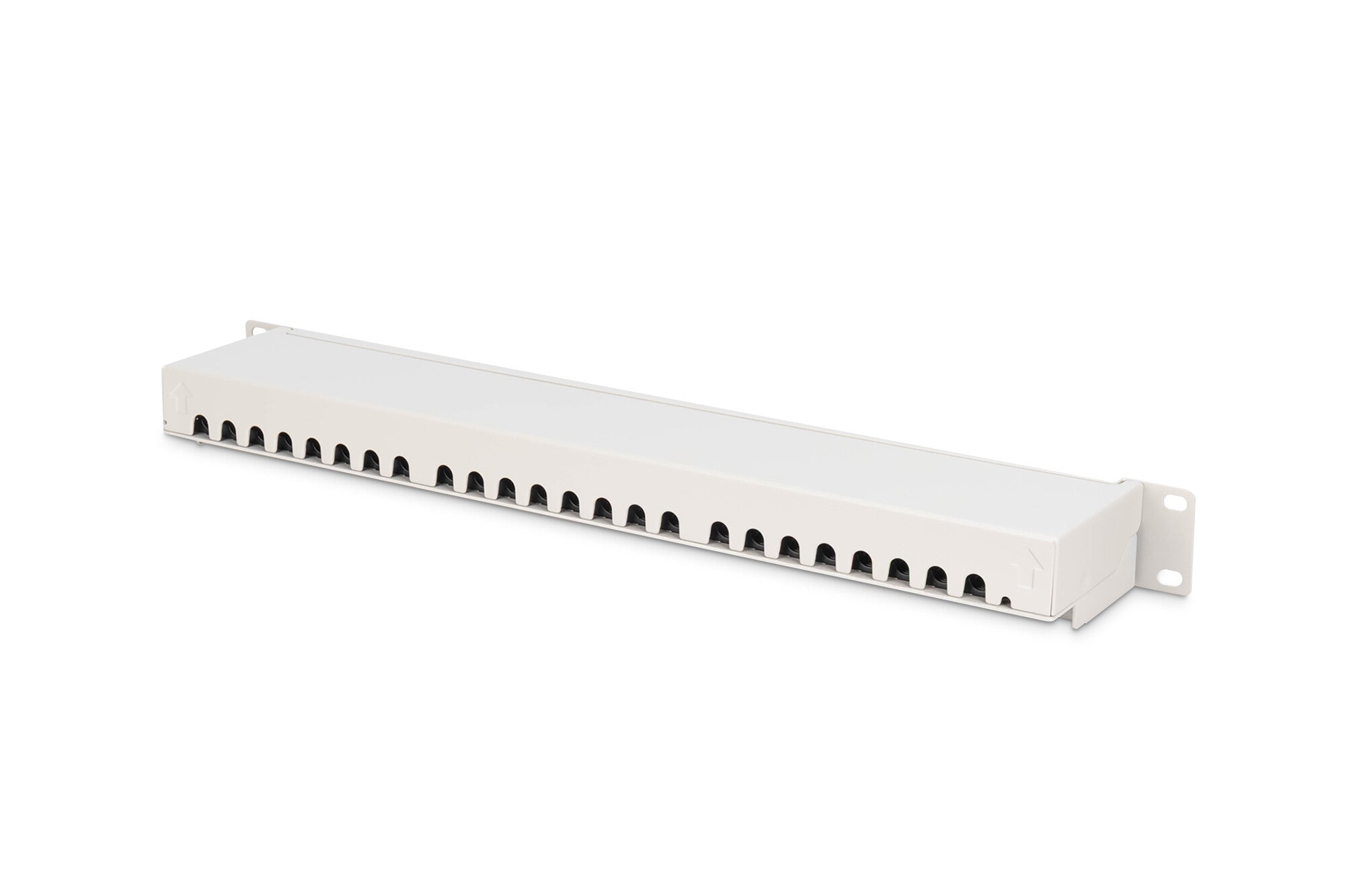

- Sturdy patch panel with metal housing
- Complete shielding of housing and shield contact
- Cable installation by IDC-strips
- Central grounding connector
- Dielectric strength up to 1500 VDC (contact/ground)
- Metal-coated (electrically conductive) cable fixation for grounding the cable shield

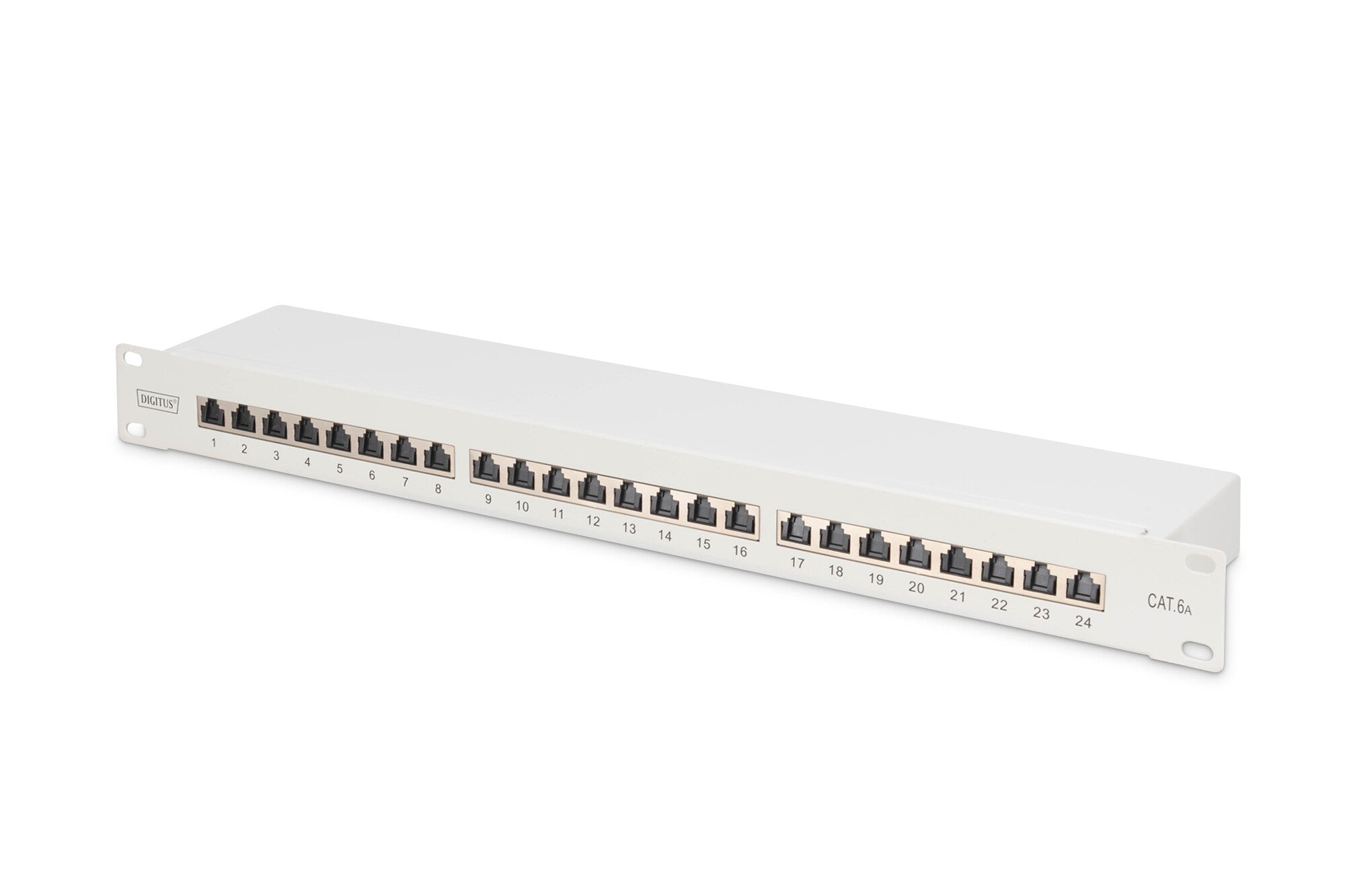

The DIGITUS® "DN-91624S-EA" CAT 6A Patch Panel is available as 24-port version and is made of 1.5 mm cold-rolled steel which makes it a sturdy Patch Panel for 19" rack mounting. It complies with the 802.3at PoE+ and the 802.3af PoE standardand is equipped with dust protection shutters.
Specifications
Network
| Ethernet interface type | Gigabit Ethernet |
|---|---|
| Ports quantity | 24 |
| Cable types supported | Cat6a |
Design
| Product colour | Grey |
|---|---|
| Mounting | Rack mounting |
| Rack capacity | 1U |
Show all 7 specificationsShow fewer specifications
Weight & dimensions
| Depth | 1.5 mm |
|---|
