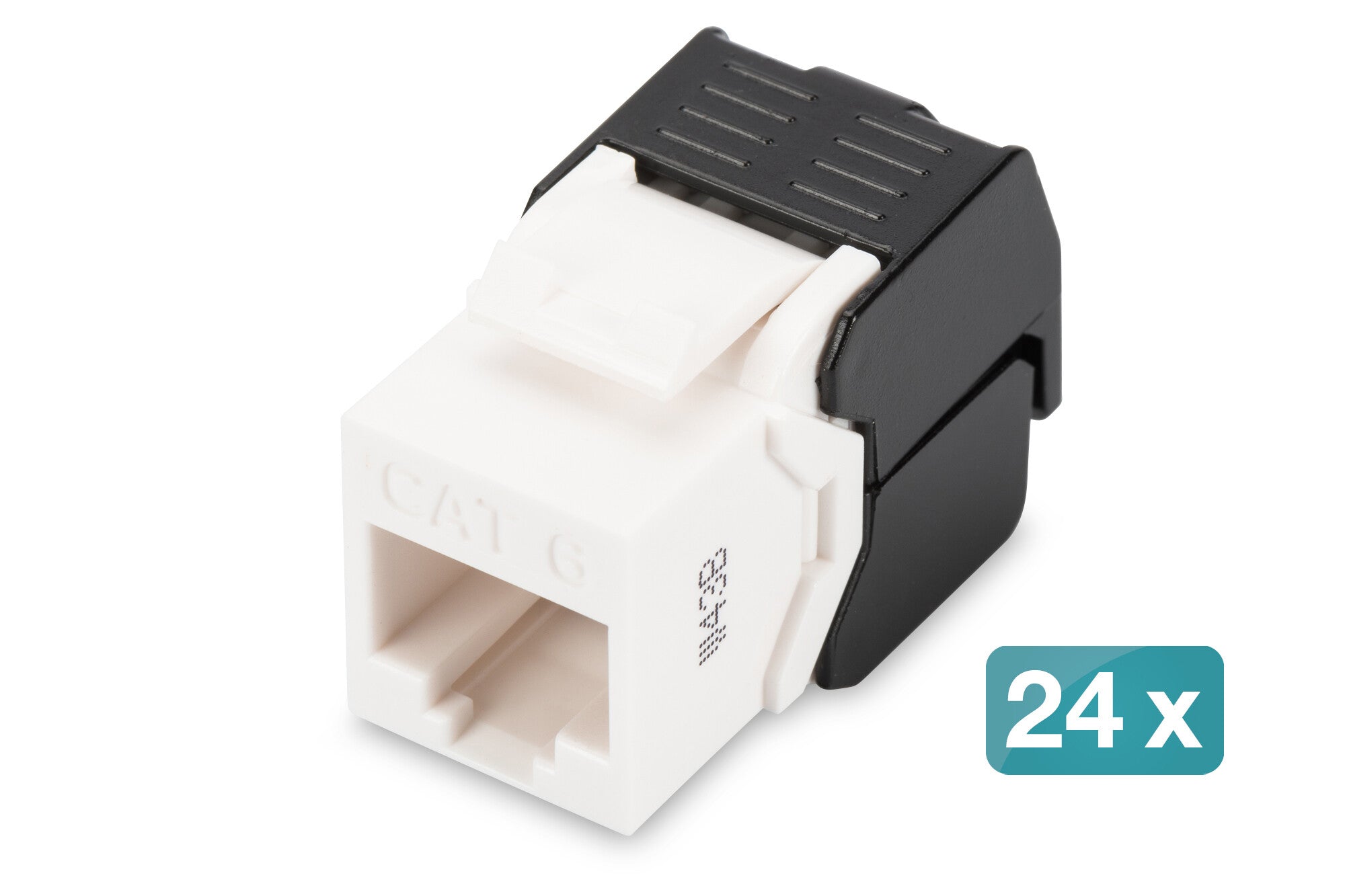

Digitus CAT 6 Keystone module, unshielded - 24 pcs.
£27.99
inc. VATSpread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £9.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
In stock
£4.95 delivery
Express £9.99
Spend £22.01 more for free delivery
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Overview
- Transmission property: Category 6
- Application areas: Up to 250 MHz, 1GBase-T
- Standards: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
- General properties:
- Suitable for 483 mm (19") rack mounting
- RJ45 sockets, 8P8C
- Cable installation via LSA strips, color-coded according to EIA/TIA 568 A & B
- Cable fixing by means of quick latches
- Tool-free mounting connection
- Technical features:
- RJ45 socket material: ABS UL 94V-0
- LSA cutting clamp: Krone LSA+, UL 94V-2, galvanized phosphor bronze
- Printed circuit board: FR4, UL 94V-0
- Physical properties:
- Insertion force: 30N max. (IEC 60603-7-5)
- Tensile load: 7.7 kg between socket and plug
- Operating temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
- Socket mating cycle: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
- Terminal: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
- In accordance with IEC 60512-5, IEC 60512-6-5
- Core receptacle: 22-26 AWG solid and stranded conductors
- Insulation resistance: > 500 MOhm
- Contact resistance: < 20 milliOhms
- Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)
- 24 pcs.
Future-oriented standards and high-end quality for your network.
- GHMT certified
The item "DN-93603-24" from DIGITUS® is an unshielded keystone module with tool-free mounting connection, which offers you excellent performance and connection quality for your network. Its compact design allows 24 units to be installed in series in 483 mm (19") 1U panels.
Specifications
Features
| Construction type | Flat |
|---|---|
| Product colour | Black, White |
| Connector 1 | RJ-45 |
| Connector 2 | LSA |
| Connector 1 gender | Female |
| Connector 2 gender | Female |
| Cabling technology | 1GBase-T |
| AWG wire size | 22/26 |
| Cable types supported | Cat6 |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| Frequency | 250 MHz |
Operational conditions
| Operating temperature (T-T) | -20 - 70 °C |
|---|
Show all 13 specificationsShow fewer specifications
Packaging content
| Quantity per pack | 24 pc(s) |
|---|
