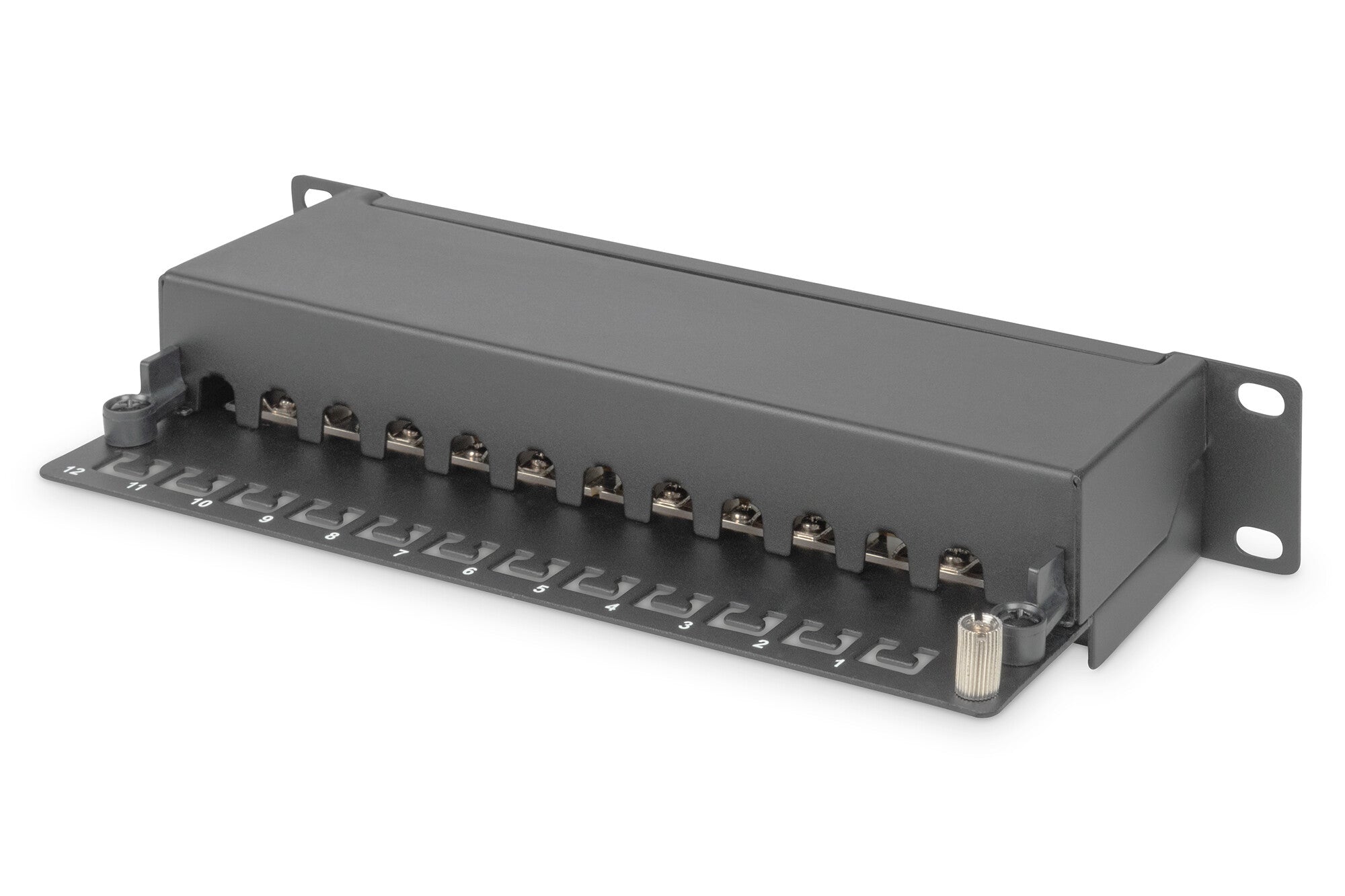

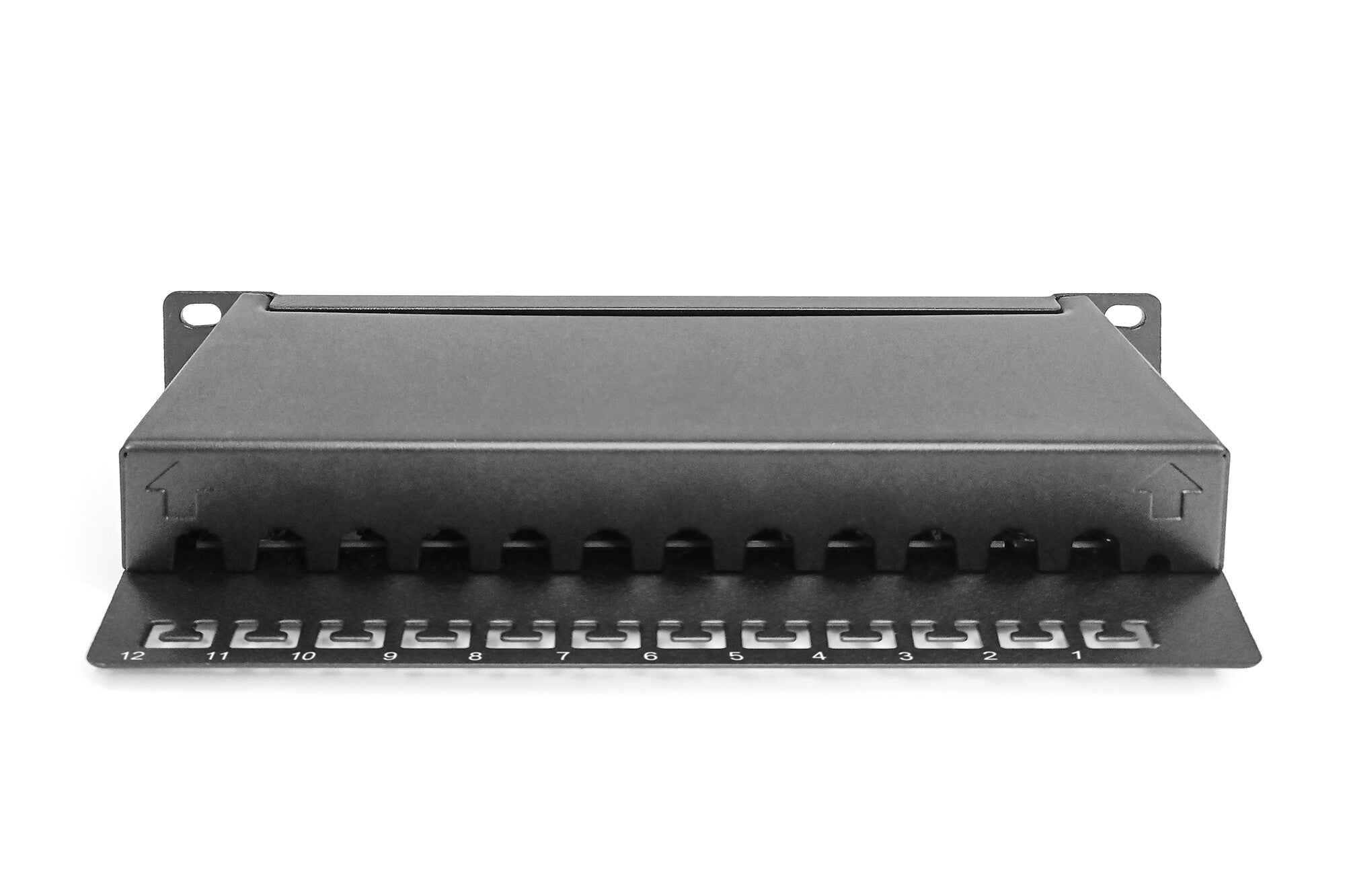

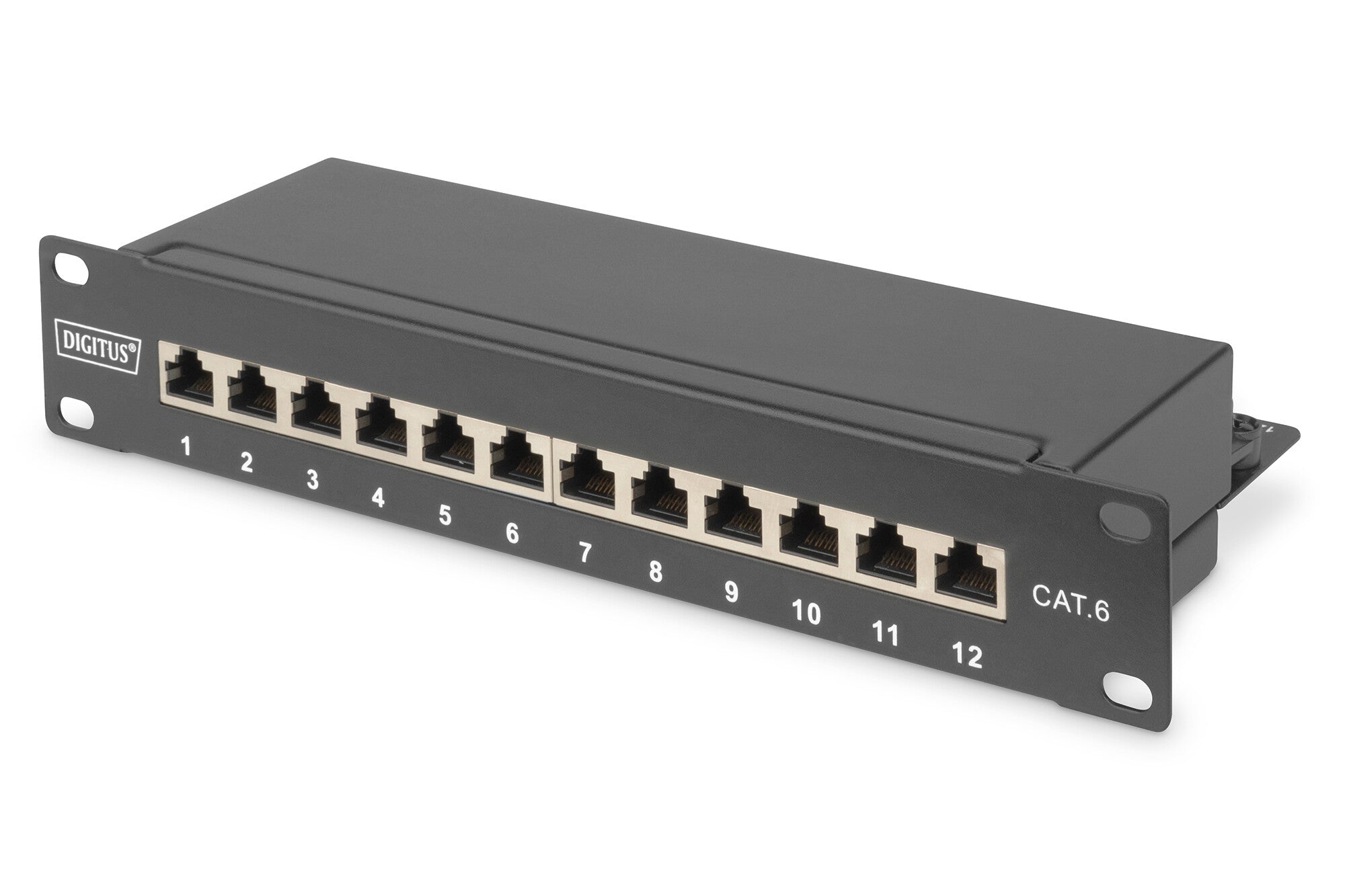

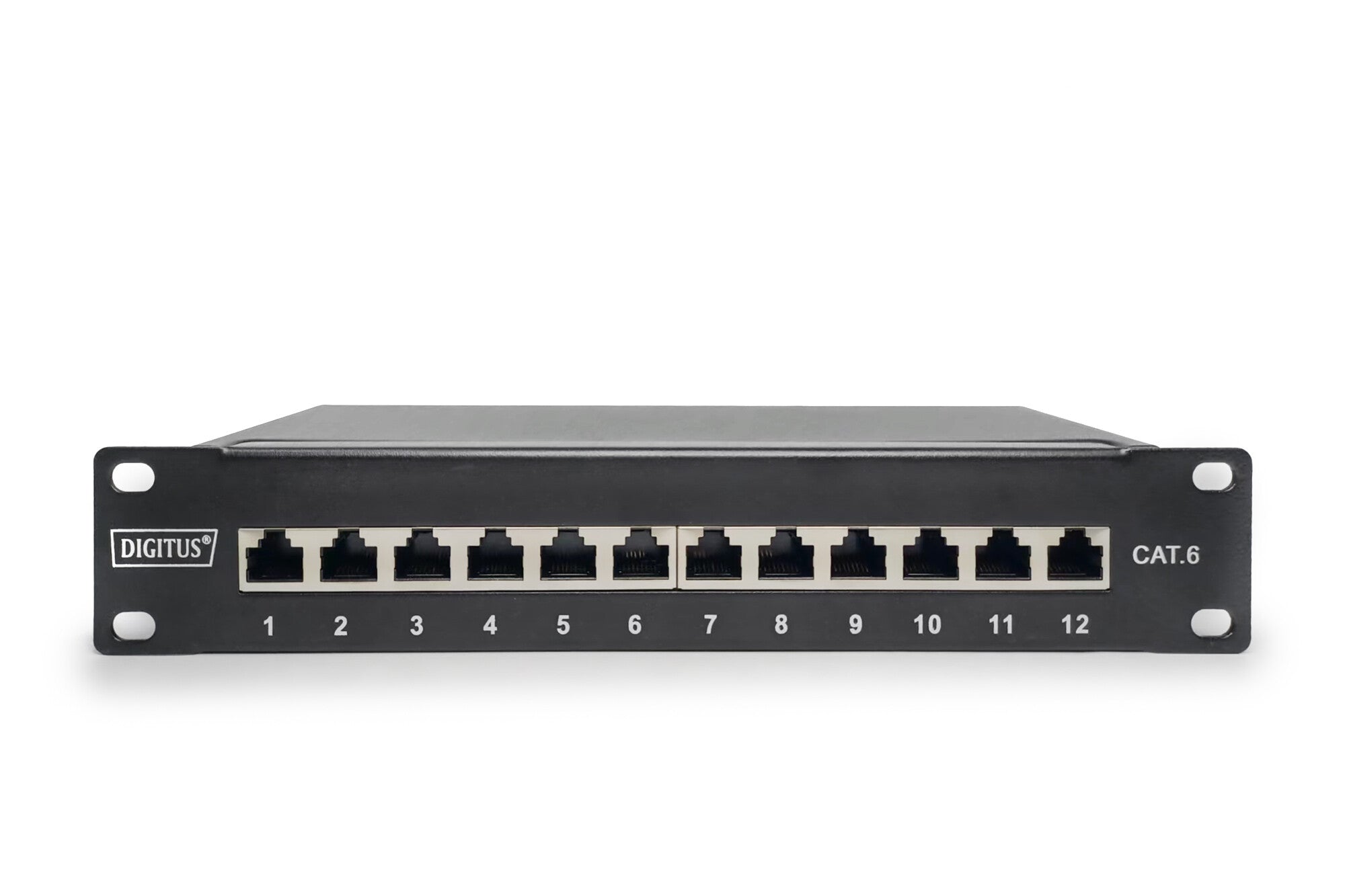

Digitus CAT 6, Class E Patch Panel, shielded, black
Now £22.99

We'll email you if the price of this item drops in the next 90 days.

Overview

  • Area of application: Up to 250 MHz, 1GBase-T
  • Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
  • General properties:
  • Suitable for 254 mm (10") cabinet mounting
  • RJ45 female, 8P8C
  • Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B
  • Cable fixing with smart cable ties
  • Central ground connection
  • 360° shield coverage
  • Mechanical properties:
  • Housing material: 1.5 mm galvanic cold rolled steel, acc. to EN1.4301, UNS S30400, AISI 304 and LMSAD110
  • RJ45 female material: ABS UL 94V-0
  • RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact
  • RJ45 shielding: Tinned bronze
  • LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze
  • Ground wire: Not included
  • Conductor plate: FR4, UL 94V-0
  • Physical properties:
  • Insertion force: 30N max. (IEC 60603-7-5)
  • Retention strength: 7.7 kg between jack and plug
  • Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
  • Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
  • Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
  • IDC wire size: 22 – 26 AWG solid and stranded conductor
  • Insulation resistance: > 500 MOhm
  • Contact resistance: < 20 MilliOhm
  • Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)

Future-oriented standards and high-end quality for your network.

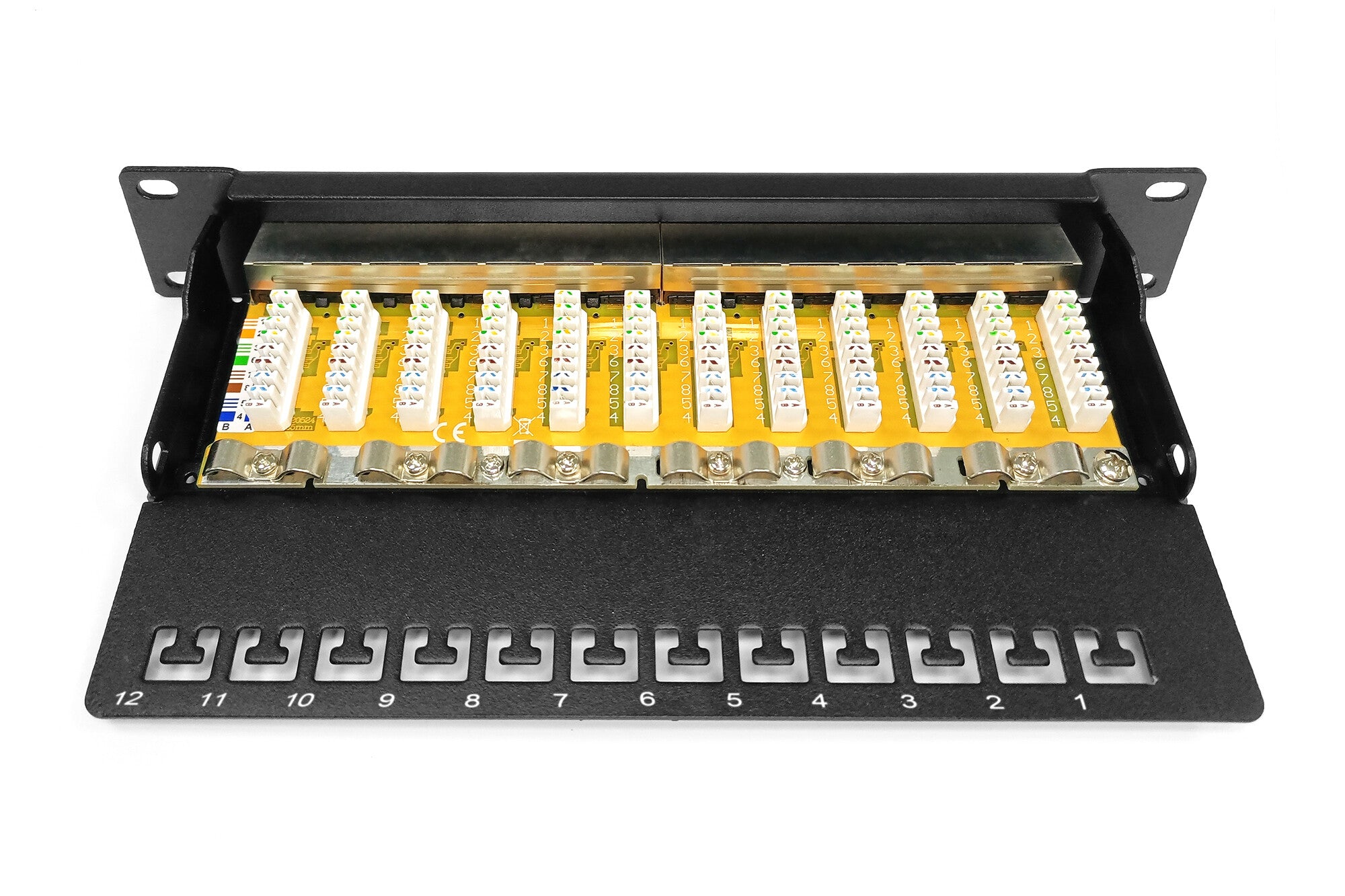

- Easy wire installation possible due to color coded LSA strips
- Shielding provides optimized performances
- Compact 10" design with 8x RJ45 ports

The CAT 6 Patch Panels for 254 mm (10") rack mount from DIGITUS® are manufactured with Link Performance Class E, for up to 250 MHz, ISO/IEC 11801 and EN 50173. Cable installation takes place via LSA strips which are color coded acc. EIA/TIA 568B. The housing consists of galvanized, cold-rolled steel, acc. EN1.4301, UNS S30400, AISI 304 and LMSAD110.

Specifications

Network

Ports quantity12
Connector(s)RJ-45

Design

Product colourBlack
MaterialGalvanized steel, SECC
MountingRack mounting
Rack capacity1U
