Digitus CAT 6, Class E Patch Panel
£44.99
inc. VATSpread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £14.99 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
In stock
£4.95 delivery
Express £9.99
Spend £5.01 more for free delivery
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Overview
- Area of application: Up to 250 MHz, 1GBase-T
- Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
- General properties:
- Suitable for 483 mm (19") cabinet mounting
- RJ45 female, 8P8C

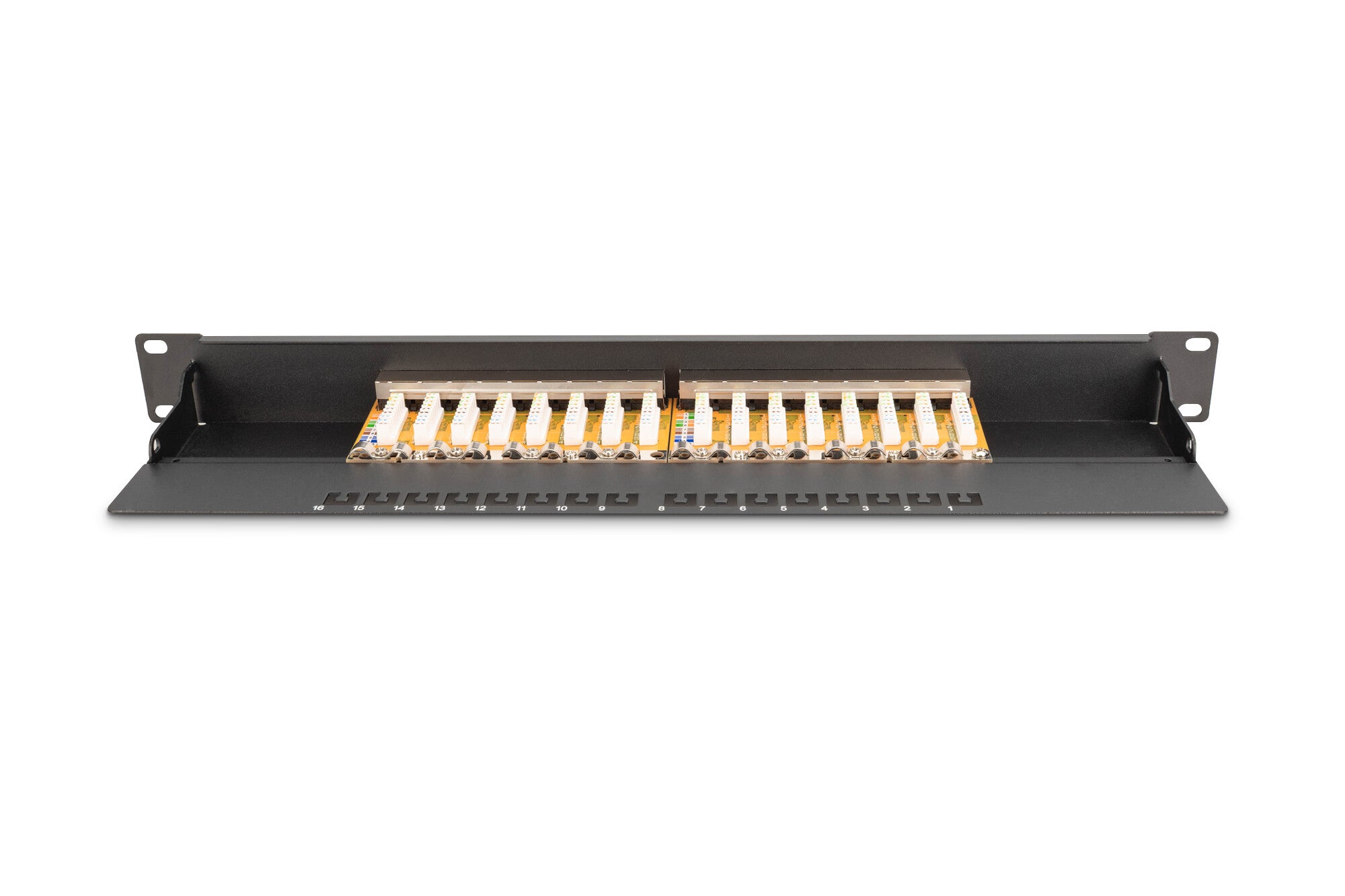

- Cable installation via LSA strips
- Cable fixing with smart cable ties
- Central ground connection
- 360° shield coverage
- Mechanical properties:
- Housing material: 1.5 mm galvanic cold rolled steel, acc. to EN1.4301, UNS S30400, AISI 304 and LMSAD110
- RJ45 female material: ABS UL 94V-0
- RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact
- RJ45 shielding: Tinned bronze
- LSA termination clamp: Krone LSA+, UL 94V-0, zinc plated phosphor bronze
- Ground wire: Not included
- Conductor plate: FR4, UL 94V-0
- Physical properties:
- Insertion force: 30N max. (IEC 60603-7-5)
- Retention strength: 7.7 kg between jack and plug
- Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
- Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
- Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
- IDC wire size: 22 – 26 AWG solid and stranded conductor
- Insulation resistance: > 500 MOhm
- Contact resistance: < 20 MilliOhm
- Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
Future-oriented standards and high-end quality for your network.

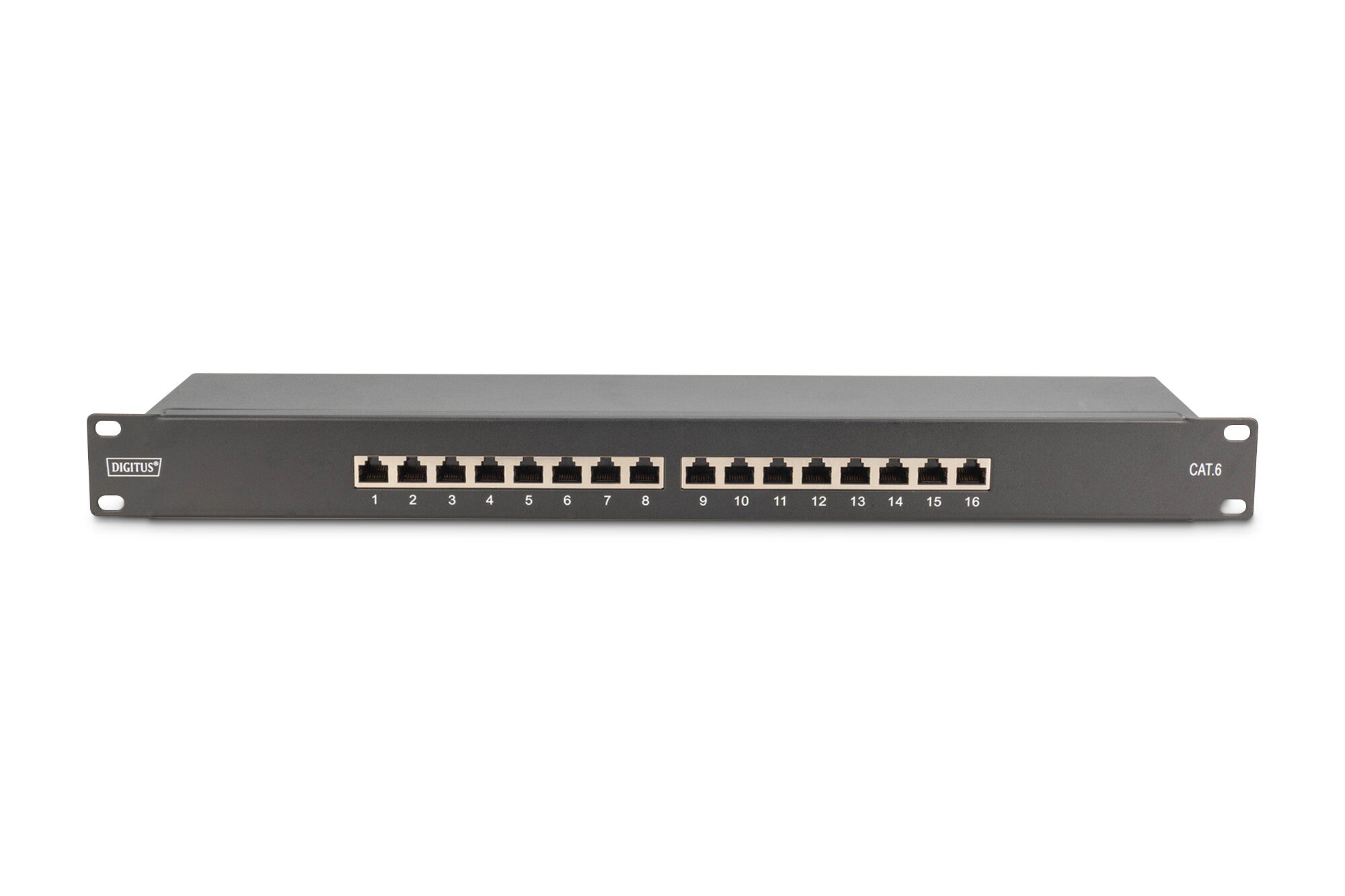

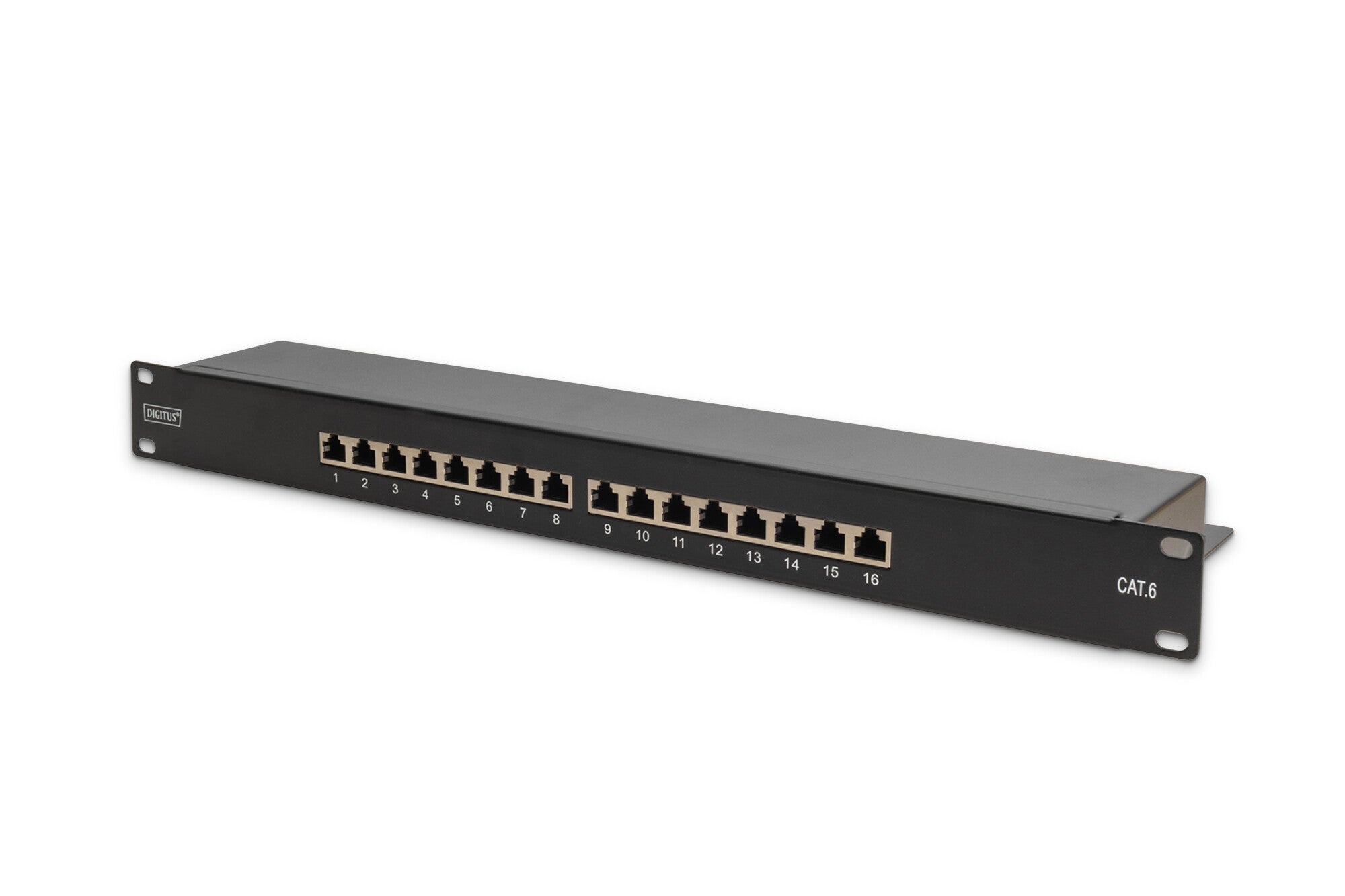

The shielded CAT 6 Patch Panel from DIGITUS® is available as 16- or 24-port version. It is manufactured acc. to Link Performance Class E, for up to 250 MHz, EN 50173 and ISO/IEC 11801 and complies with the 802.3at PoE+and the 802.3af PoE standard. The housing is made of 1.5 mm galvanized cold-rolled steel and is therefore perfectly suitable for 19" rack mounting.
Specifications
Network
| Networking standards | IEEE 802.3af, IEEE 802.3at |
|---|---|
| Ports quantity | 16 |
| Connector(s) | RJ-45 |
| Connector contacts plating | Gold |
| AWG wire size | 26/22 |
| Plug/connector retention force | 30 N |
Design
| Product colour | Black |
|---|---|
| Material | Galvanized steel |
| Mounting | Rack mounting |
| Rack capacity | 1U |
Show all 11 specificationsShow fewer specifications
Operational conditions
| Operating temperature (T-T) | -20 - 70 °C |
|---|
