• Support PCI Express Specification Revision 2.1
• 2-Lane PCI Express bus connecting with up to 10Gbps bus width
• PCI Express interface: x4
• Integrated 10M BASE-Te and 100/1000M/2.5G base-T 802.3 compatible transceiver
• Supports 2.5G and 1G Lite mode
• Auto-Negotiation with Extended Next Page capability(XNP)
• Supports pair swap/polarity/skew correction
• Crossover Detection& Auto-Correction
• Supports 1-Lane 2.5/5Gbps PCI Express Bus
• Supports hardware ECC(Error correction code)function
• Supports hardware CRC(Cyclic Redundancy Check)function
• Supports PCI MSI (Message Signaled Interrupt)and MSI-X
• Transmit/Receive on-chip buffer support
• Supports ECMA-393 ProxZzzy Standard for sleeping hosts
• Wake-On-LAN and ‘RealWow!’ Technology (remote wake-up)supports
• Compatible with IEEE802.3,IEEE802.3u,IEEE802.3ab
• Supports IEEE1588v1,IEEE1588v2,IEEE80.2AS time synchronization
• Supports IEEE802.1Qav credit-based shaper algorithm
• Supports IEEE802.1P Layer 2 Priority encoding
• Supports IEEE802.1Q VLan tagging
• Supports IEEE802.1ad Double VLAN
• Supports IEEE802.3az (Energy Efficient Ethernet)
• Supports IEEE802.3bz(2.5GBase-T)
• Supports full duplex flow control(IEEE802.3x)
• Supports jumbo frame to 16K bytes
• Supports Virtual Machine Queue(VMQ)
• Supports quad core Receive –Side Scaling(RSS)
• Supports Protocol Offload (ARP&NS)
• Drivers for Vista /Win7 / Win8 / Win10 /Win11/ Sever2008 / Sever 2012 / Linux / DOS
• Chipset: RTL8125B+ASM1806

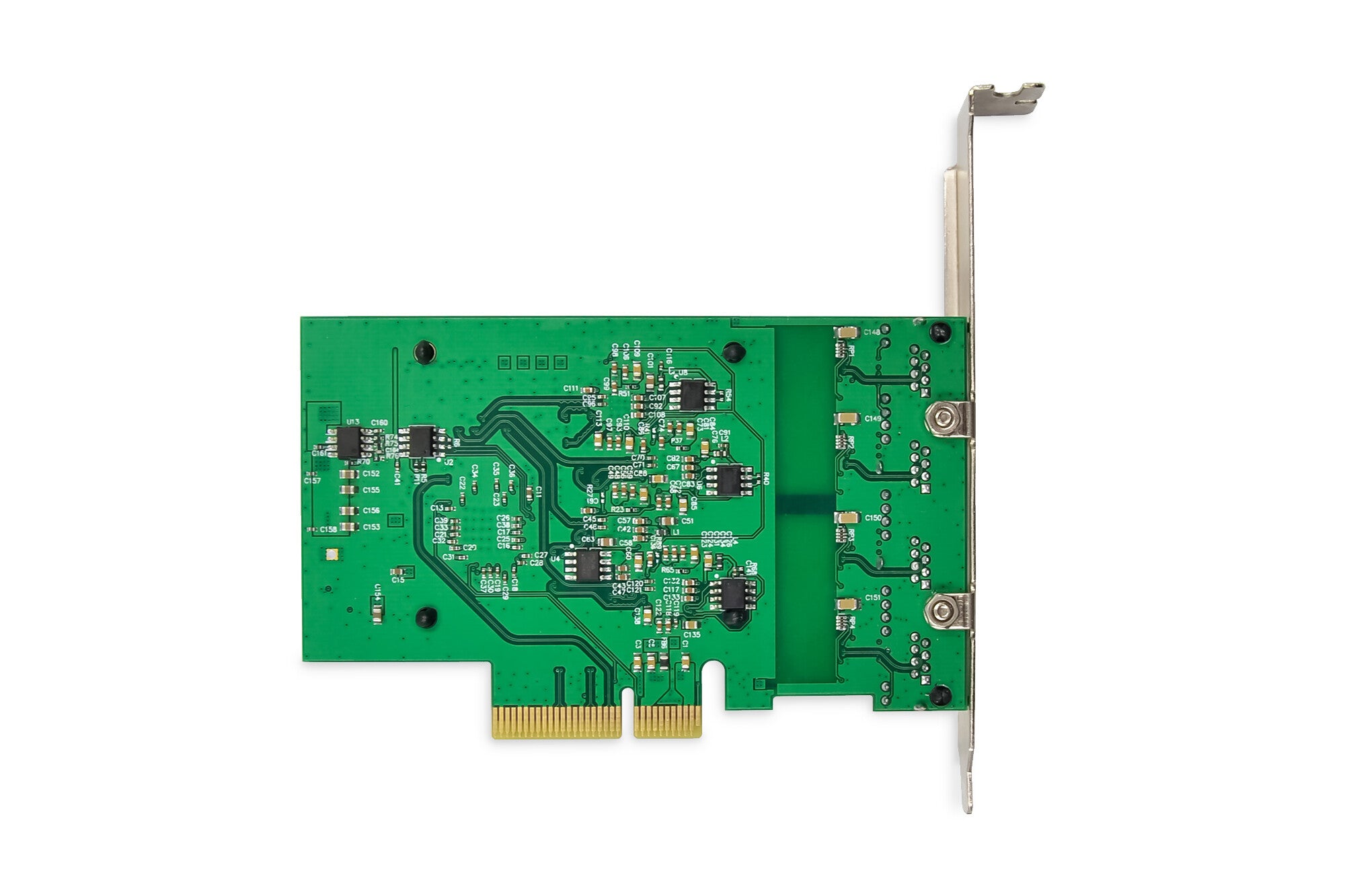

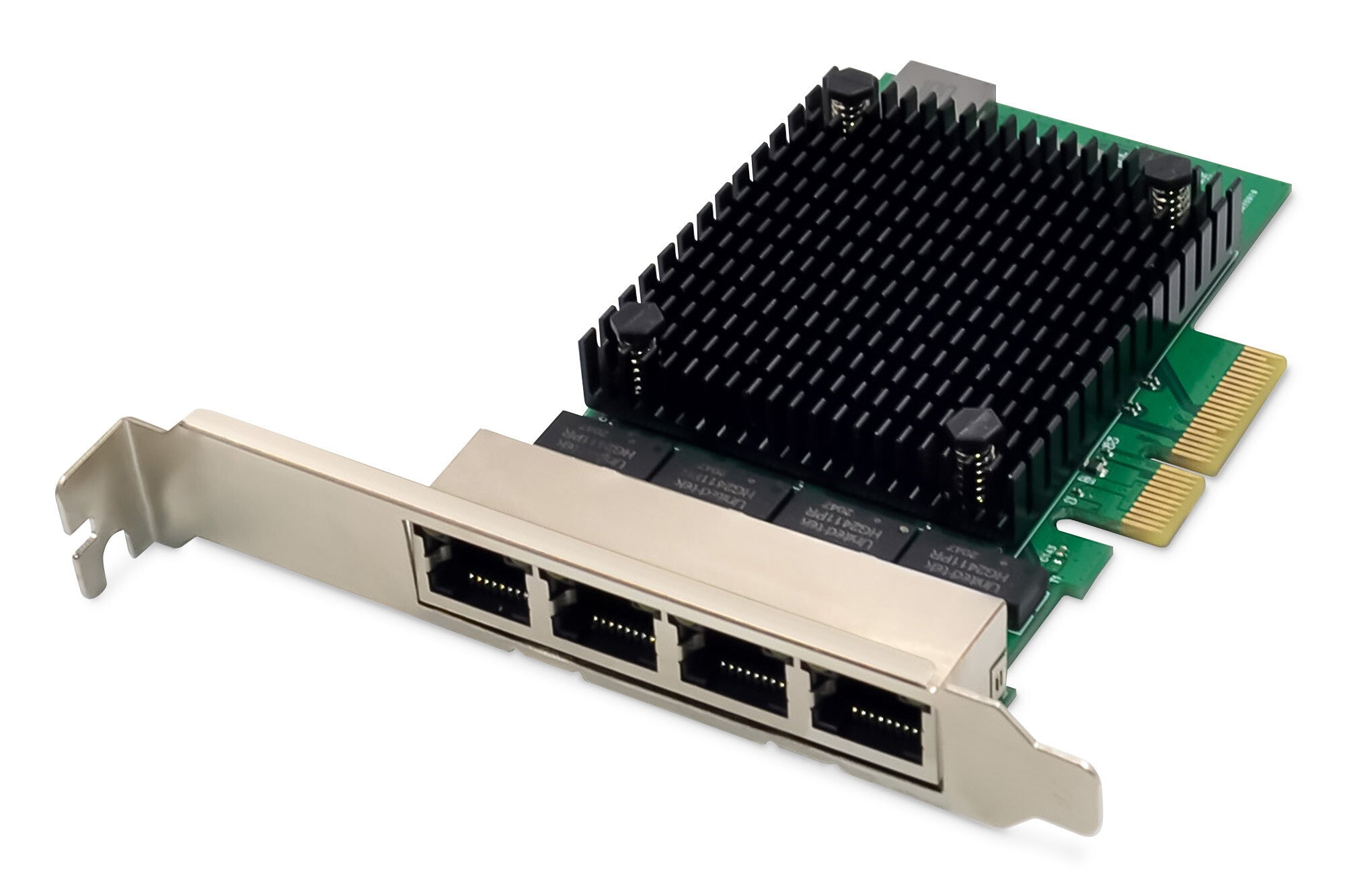

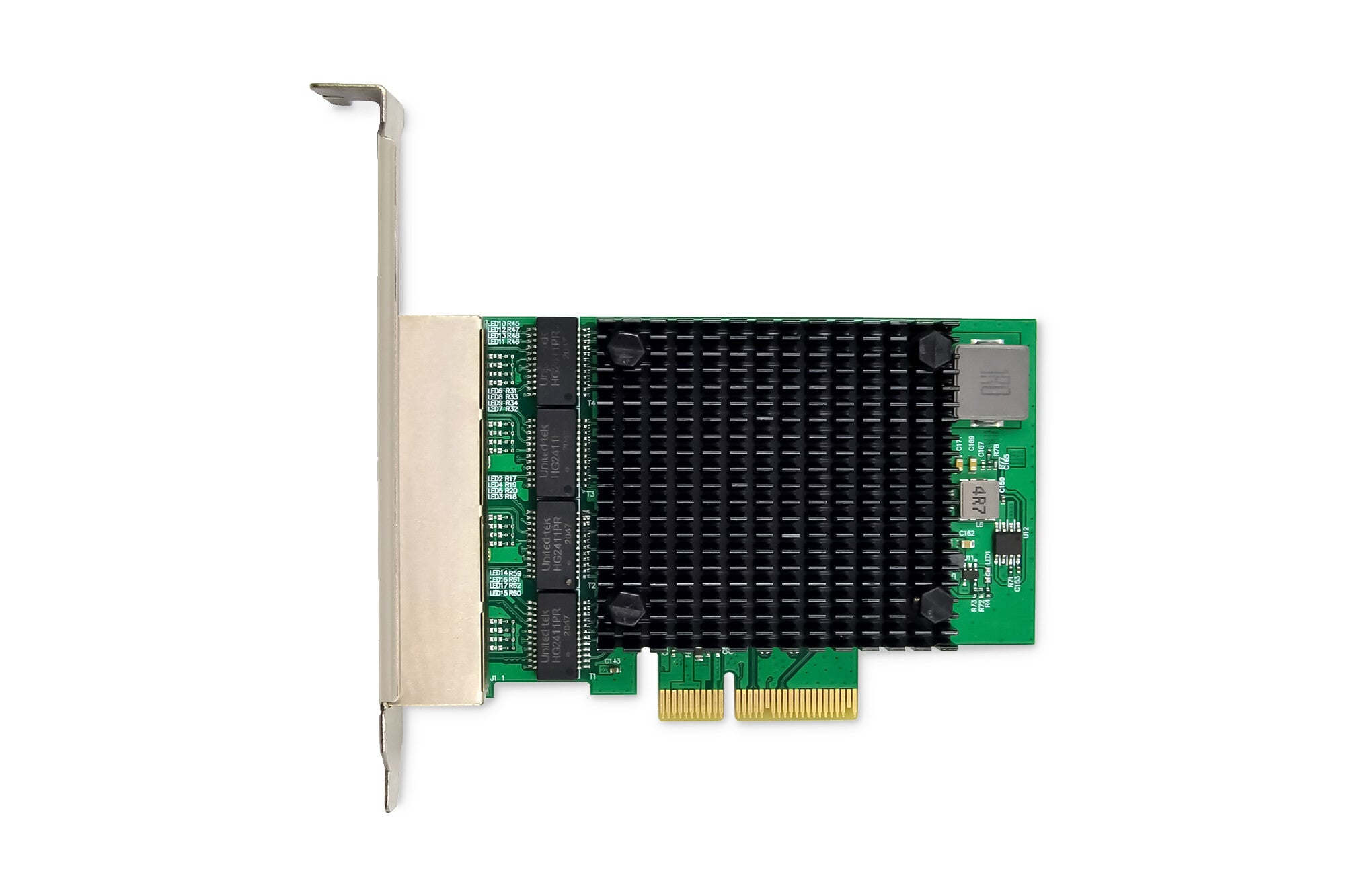

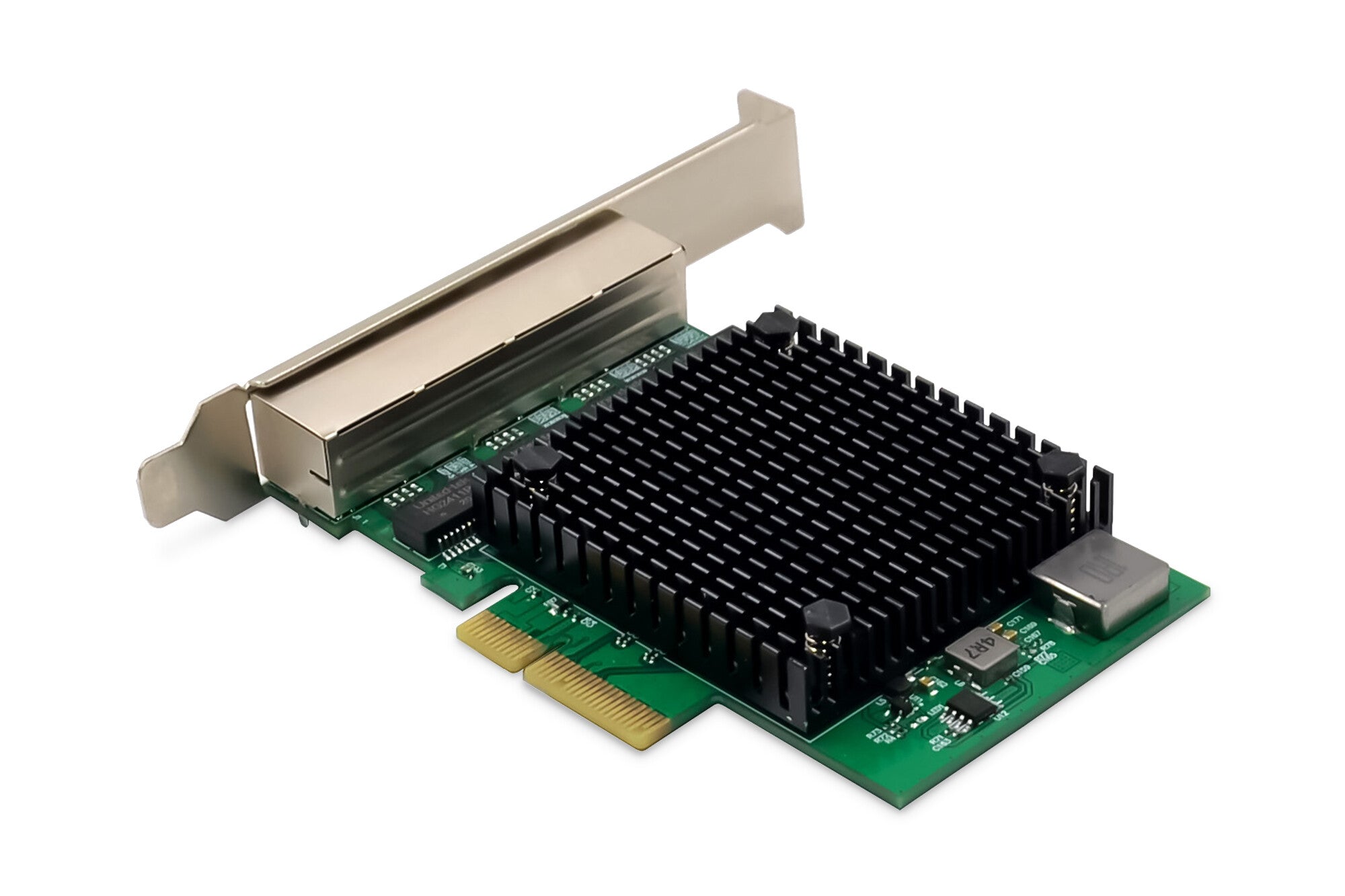

The DN-10136 PCIe Quad-Port 2.5G network adapter combines an IEEE802.3-compliant Media Access Controller with a four-speed Ethernet transceiver. It meets the IEEE802.3u, IEEE802.3ab, and IEEE802.3bz specifications, supports high-speed transmissions over CAT5e/ CAT3 UTP cables, and is suitable for desktops, workstations, servers, communication platforms, and embedded applications.

- 2-Lane PCI Express bus connecting with up to 10Gbps bus width
- PCI Express interface: x4
- Integrated 10M BASE-Te and 100/1000M/2.5G base-T 802.3 compatible transceiver
- Supports 2.5G and 1G Lite mode
- Supports pair swap/polarity/skew correction
- Crossover Detection& Auto-Correction

The DN-10136 PCIe Quad-Port 2.5G network adapter is realized by the combination of multiple chips, it is combines a four-speed IEEE802.3 compatible Media Access controller with a four-speed Ethernet transceiver, it is complies with the IEEE802.3u specification for 10/100Mbps Ethernet ,the IEEE802.3ab specification for 1000Mbps Ethernet and IEEE802.3bz specification for 2500 Mbps Ethernet. Also it offers high-speed transmission over CAT5e UTP cable OR CAT3 UTP(10Mbps only)cable .It is suitable for multiple market segments and emerging applications, such as desktop, workstation, server, communications platforms, and embedded applications.
