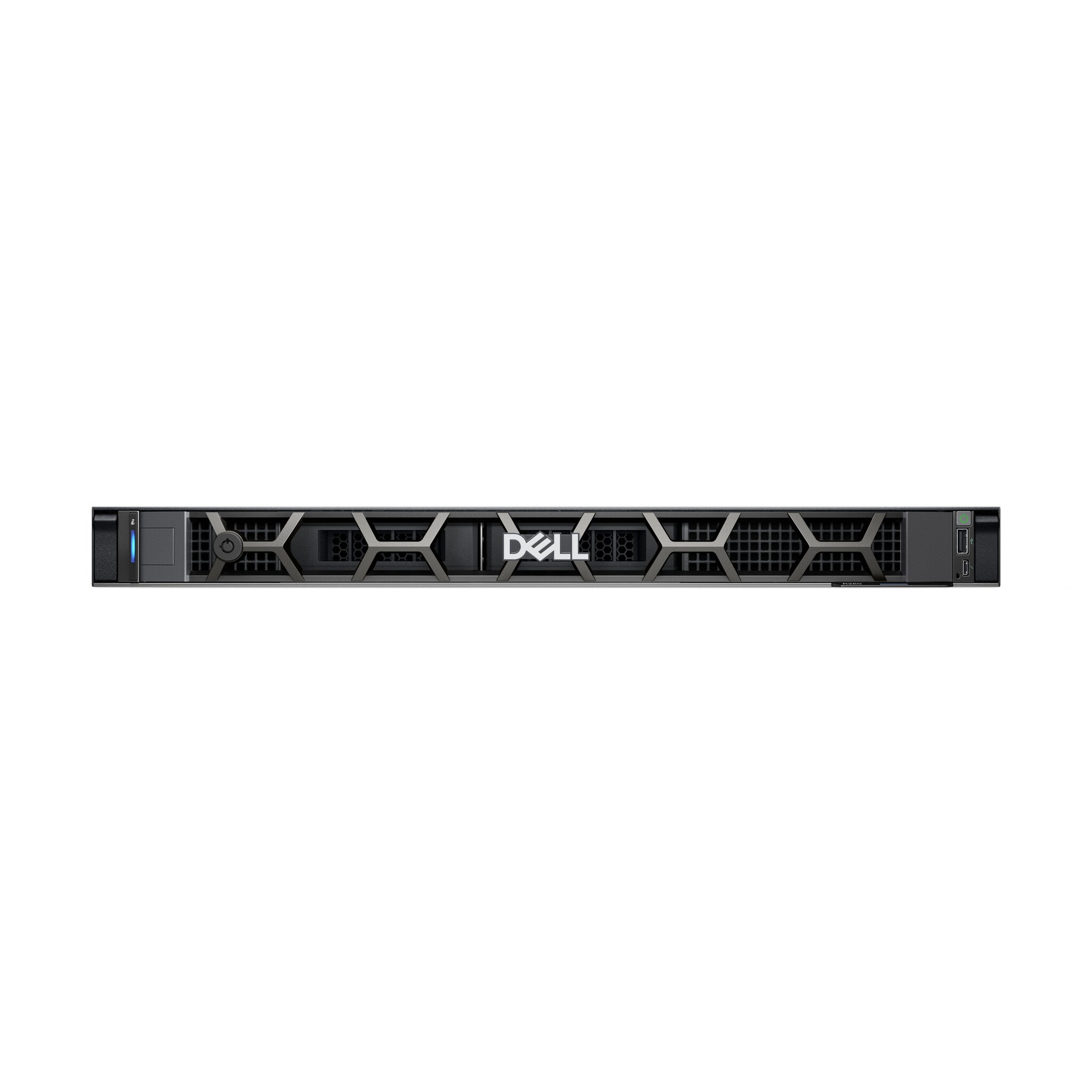

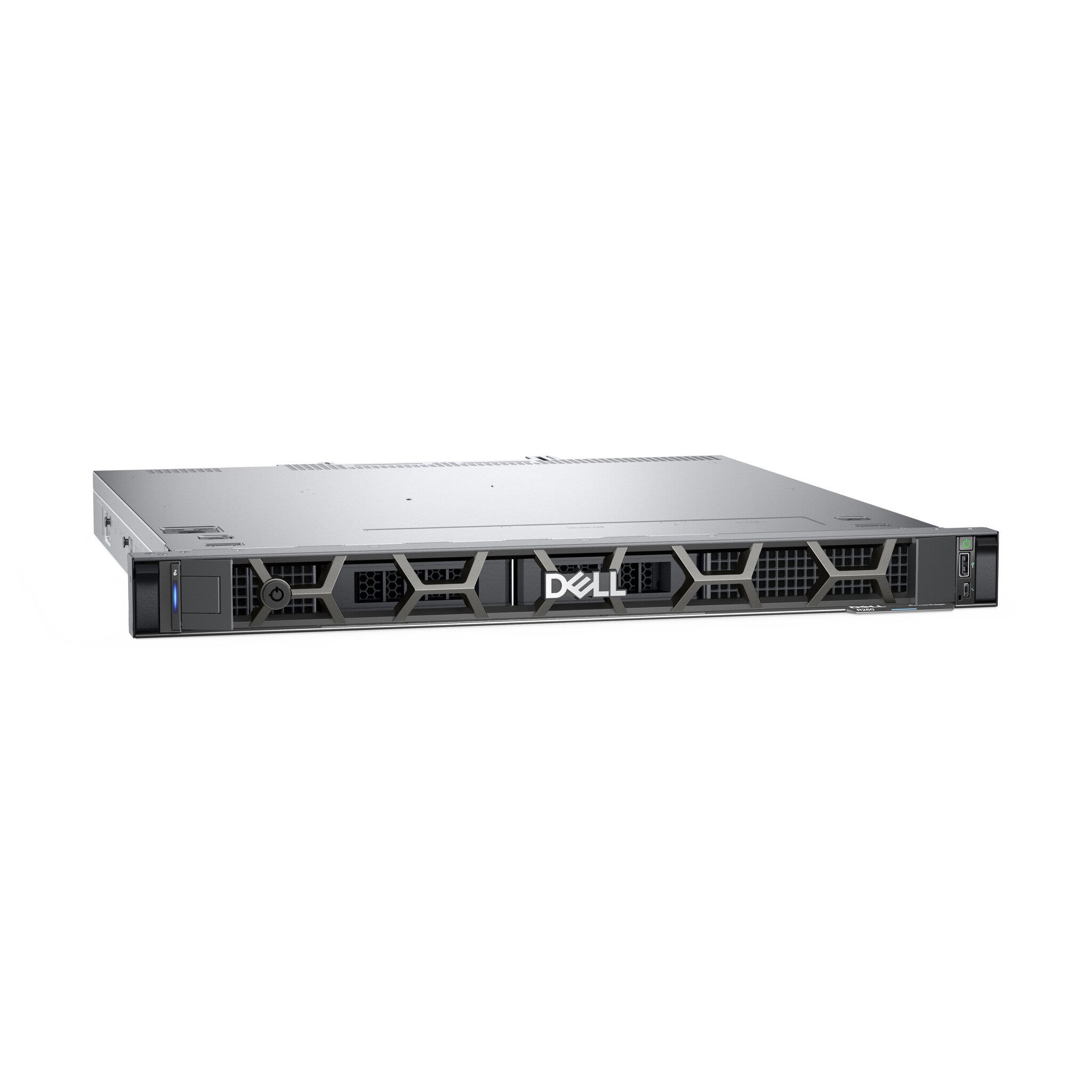

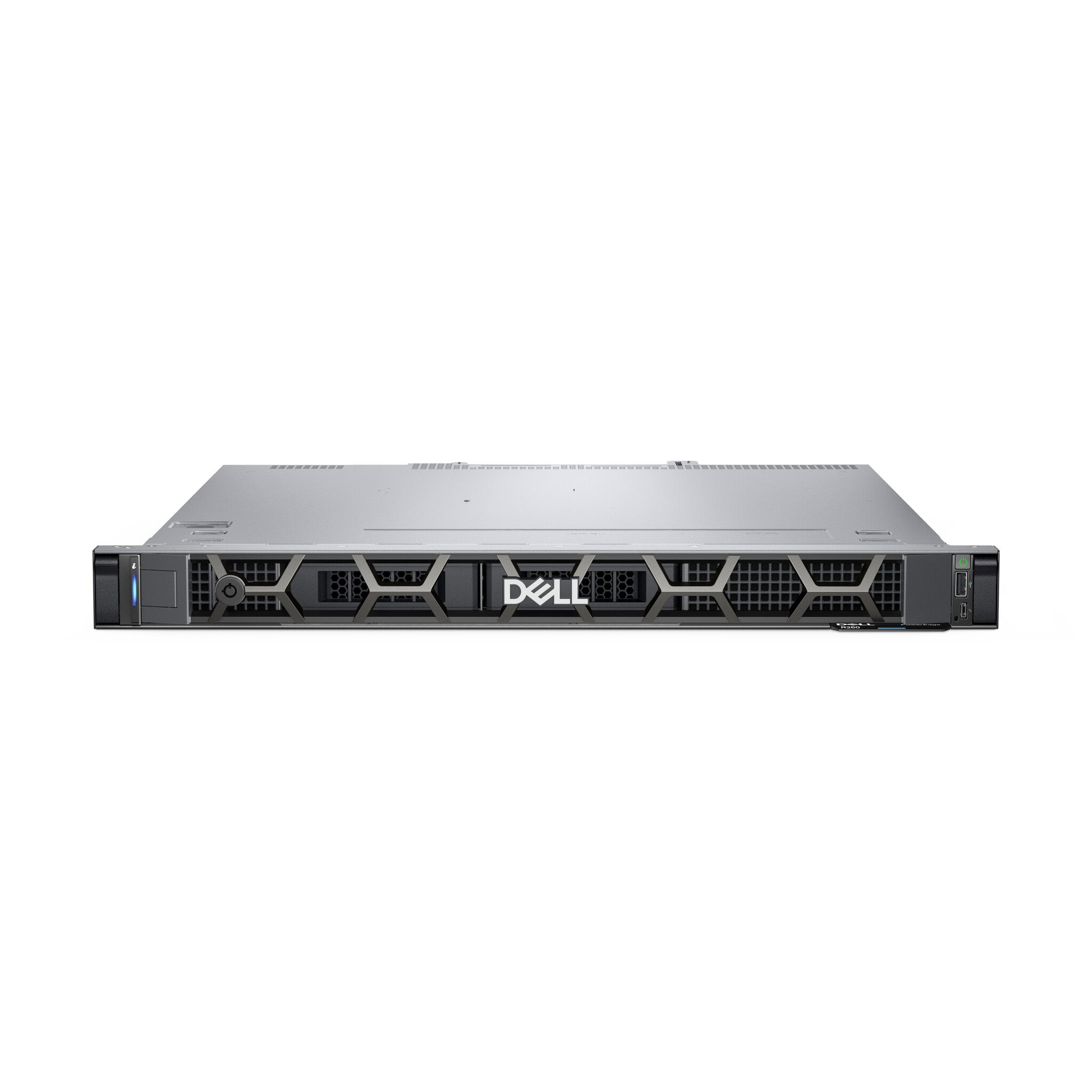

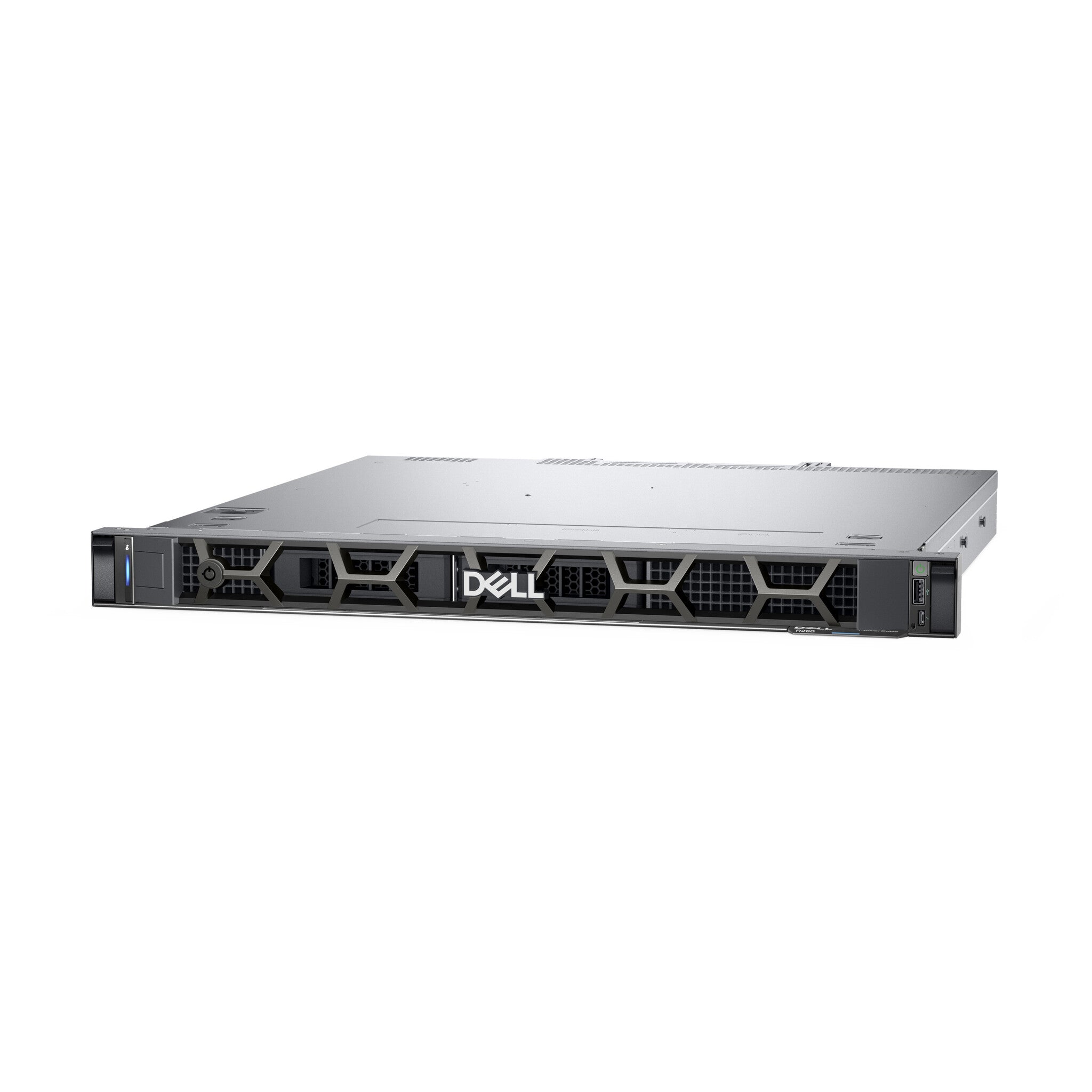

DELL PowerEdge R260 server 2.4 TB Rack (1U) Intel Xeon 6 6315P 2.8 GHz 16 GB DDR5-SDRAM 700 W
£3,210.99
Couldn't load pickup availability
- No OS
- Intel Xeon 6 6315P (12MB Cache, 2.8GHz)
- 16GB DDR5-SDRAM (1 x 16) & 2400GB HDD
- iDRAC9, Enterprise 16G
The 1U, single-socket Dell PowerEdge R260 is a short-depth form factor for customers desiring flexibility, affordability and processing power.
| Processor | |
|---|---|
| Processor threads | 4 |
| Memory types supported by processor | DDR5-SDRAM |
| Memory clock speeds supported by processor | 4800 MHz |
| System bus rate | 16 GT/s |
| Thermal Design Power (TDP) | 55 W |
| Number of processors installed | 1 |
| Processor cache | 12 MB |
| Processor cores | 4 |
| Performance cores | 4 |
| Processor boost frequency | 5.2 GHz |
| Processor frequency | 2.8 GHz |
| Processor model | 6315P |
| Processor family | Intel Xeon 6 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Maximum internal memory | 128 GB |
| Memory data transfer rate | 5600 MT/s |
| Memory slots | 4x DIMM |
| ECC | Yes |
| Memory layout (slots x size) | 1 x 16 GB |
| Buffered memory type | Unregistered (unbuffered) |
| Internal memory type | DDR5-SDRAM |
| Internal memory | 16 GB |
| Storage | |
|---|---|
| Optical drive type | No |
| Hot-Plug support | Yes |
| Supported RAID controllers | PERC H355 Adapter LP |
| RAID support | No |
| Supported HDD sizes | 2.5" |
| Number of HDDs supported | 6 |
| HDD size | 2.5" |
| HDD speed | 10000 RPM |
| HDD interface | Serial Attached SCSI (SAS) |
| HDD capacity | 1.2 TB |
| Number of HDDs installed | 2 |
| Total storage capacity | 2.4 TB |
| Network | |
|---|---|
| LAN controller | Broadcom 5720 |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| Design | |
|---|---|
| Bezel | Yes |
| Product colour | Black |
| Chassis type | Rack (1U) |
| Performance | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Remote administration | iDRAC9, Enterprise 16G |
| Software | |
|---|---|
| Compatible operating systems | Canonical Ubuntu Server LTSMicrosoft Windows Server with Hyper-VRed Hat Enterprise LinuxSUSE Linux Enterprise ServerVMware ESXi |
| Operating system installed | No |
| Power | |
|---|---|
| Power supply input voltage | 200 - 240 V |
| Number of main power supplies | 1 |
| Power supply | 700 W |
| Redundant power supply (RPS) support | No |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 - 12000 m |
| Operating altitude | 0 - 3048 m |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 65 °C |
| Certificates | |
|---|---|
| 80 PLUS certification | 80 PLUS Titanium |
| General | |
|---|---|
| Product family | PowerEdge |
| Carbon footprint | |
|---|---|
| Total carbon footprint (kg of CO2e) | 950 |
| Total carbon emissions, standard deviation (kg of CO2e) | 711 |
| Carbon emissions, manufacturing (kg of CO2e) | 304 |
| Carbon emissions, logistics (kg of CO2e) | 95 |
| Carbon emissions, energy usage (kg of CO2e) | 541.5 |
| Carbon emissions, end-of-life (kg of CO2e) | 9.5 |
| PAIA version | 1.3.2, 2024 |
| Weight & dimensions | |
|---|---|
| Height | 42.8 mm |
| Width | 482 mm |
| Packaging content | |
|---|---|
| Packaging content | Riser Config 1, Gen4 RiserEuropean Power Cord 220V |
| Other features | |
|---|---|
| Data transfer rate | 12 Gbit/s |
| Bytes per sector | 512n |
