DELL 403-BBLZ interface cards/adapter Internal Fiber
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £367.99 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Key specs
- CompatibilityPowerEdge C4130PowerEdge FC630PowerEdge FC830PowerEdge R530PowerEdge R630PowerEdge R730PowerEdge R730XD
- Connectivity technologyWired
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
Pay in full today. We'll dispatch it for release day and email you tracking as soon as it ships.
Get an email if it's back in stock
If this comes back in stock, we'll send you one email. No spam, and you can stop alerts at any time.
You're on the list
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Internal
- Host interface: PCIe
- Output interface: Fiber
- Purpose: Server
- 14.025 Gbit/s
- Green
- Support for Dell iDRAC8 with LifeCycle Controller and Emulex OneCommand manager to improve IT staff productivity through simplified deployment and management;
- T10 PI high-performance offload for advanced, end-to-end data integrity (requires support from SAN target solution).

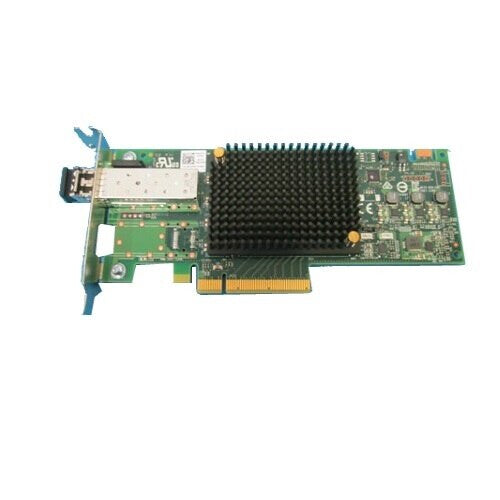

Emulex LPe31000-M6-D Low Profile Single Port 16Gb Fibre Channel HBA with 16Gb FC connectivity (short wave optical – LC SFP+ included) from Dell™ are designed to address the demanding performance, reliability and management requirements of modern networked storage systems that utilize high performance and low latency solid state storage drives and HDD arrays. Compared to the previous generation, they provide up to 2x greater bandwidth, less than half the latency, and new features such as Forward Error Correction and enhanced diagnostics and I/O monitoring capabilities.
Specifications
Ports & interfaces
| Expansion card standard | PCIe 3.0 |
|---|---|
| Expansion card form factor | Low-profile |
| Output interface | Fiber |
| Host interface | PCIe |
Design
| Certification | CSA, UL, FCC, RoHS, TUV Bauart, BSMI Class A, ICES Class A, VCCI Class A, MSIP Class A, RCM |
|---|---|
| Purpose | Server |
| Product colour | Green |
| Internal | Yes |
Show all 20 specificationsShow fewer specifications
Features
| Data transfer rate (max) | 14.025 Gbit/s |
|---|
Operational conditions
| Operating relative humidity (H-H) | 5 - 95% |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
Technical details
| Compliance certificates | RoHS |
|---|
System requirements
| Linux operating systems supported | Yes |
|---|---|
| Windows operating systems supported | Yes |
Other features
| Compatibility | PowerEdge C4130PowerEdge FC630PowerEdge FC830PowerEdge R530PowerEdge R630PowerEdge R730PowerEdge R730XD |
|---|---|
| Compatible operating systems | SUSE Linux Enterprise Server, Microsoft Windows, Red Hat Enterprise Linux |
| Connectivity technology | Wired |
| Data link protocols | 16Gb Fibre Channel |
| Ports quantity | 1 |
| Data transfer rate | 14.025 Gbit/s |
