DeepCool PN850D power supply unit 850 W 20+4 pin ATX ATX Black
Spread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £23.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
Pay in full today. We'll dispatch it for release day and email you tracking as soon as it ships.
Get an email if it's back in stock
If this comes back in stock, we'll send you one email. No spam, and you can stop alerts at any time.
You're on the list
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- 850 W 100 - 240 V 50/60 Hz
- Motherboard power connector: 20+4 pin ATX
- PC ATX 80 PLUS Gold
- Active 12 cm
- Black

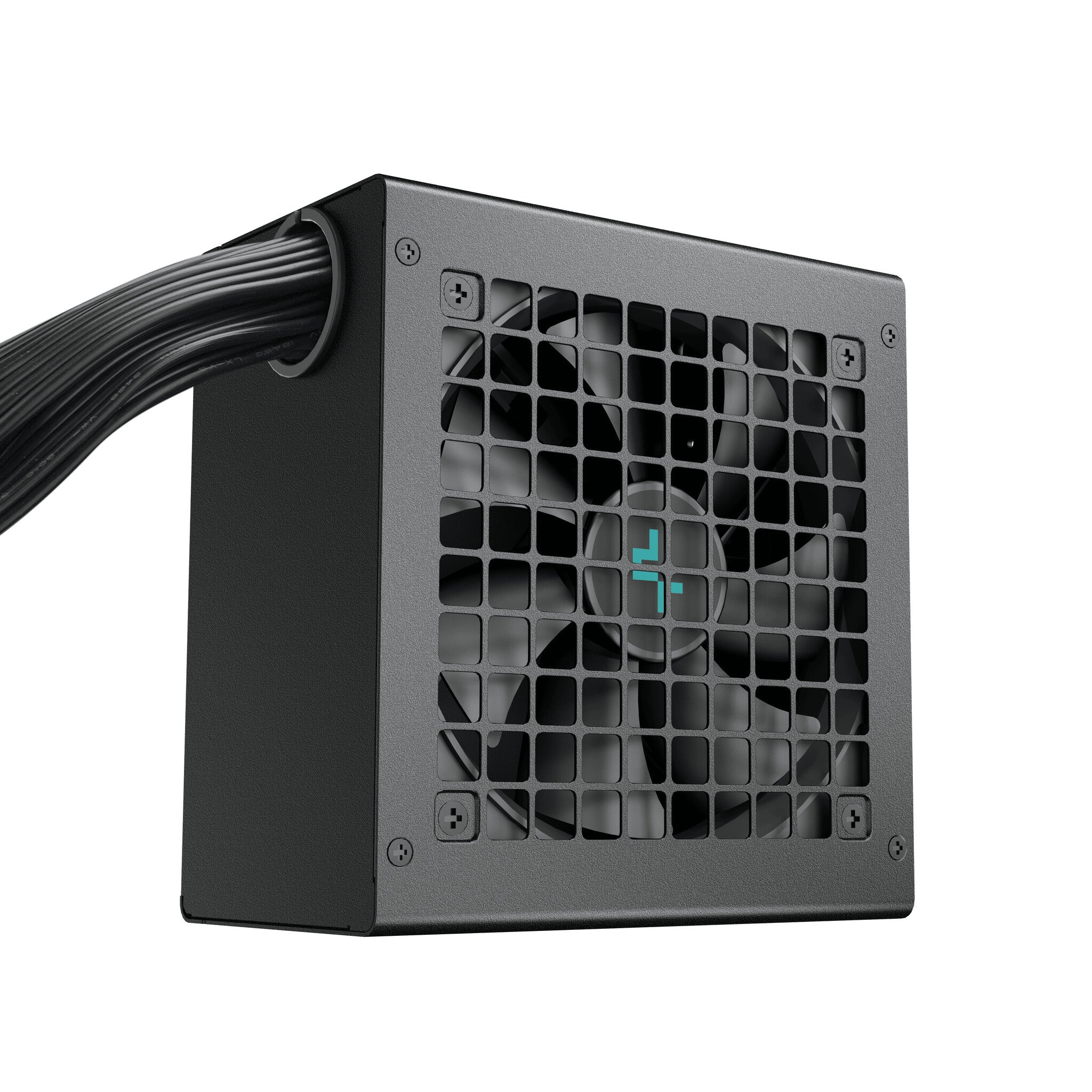

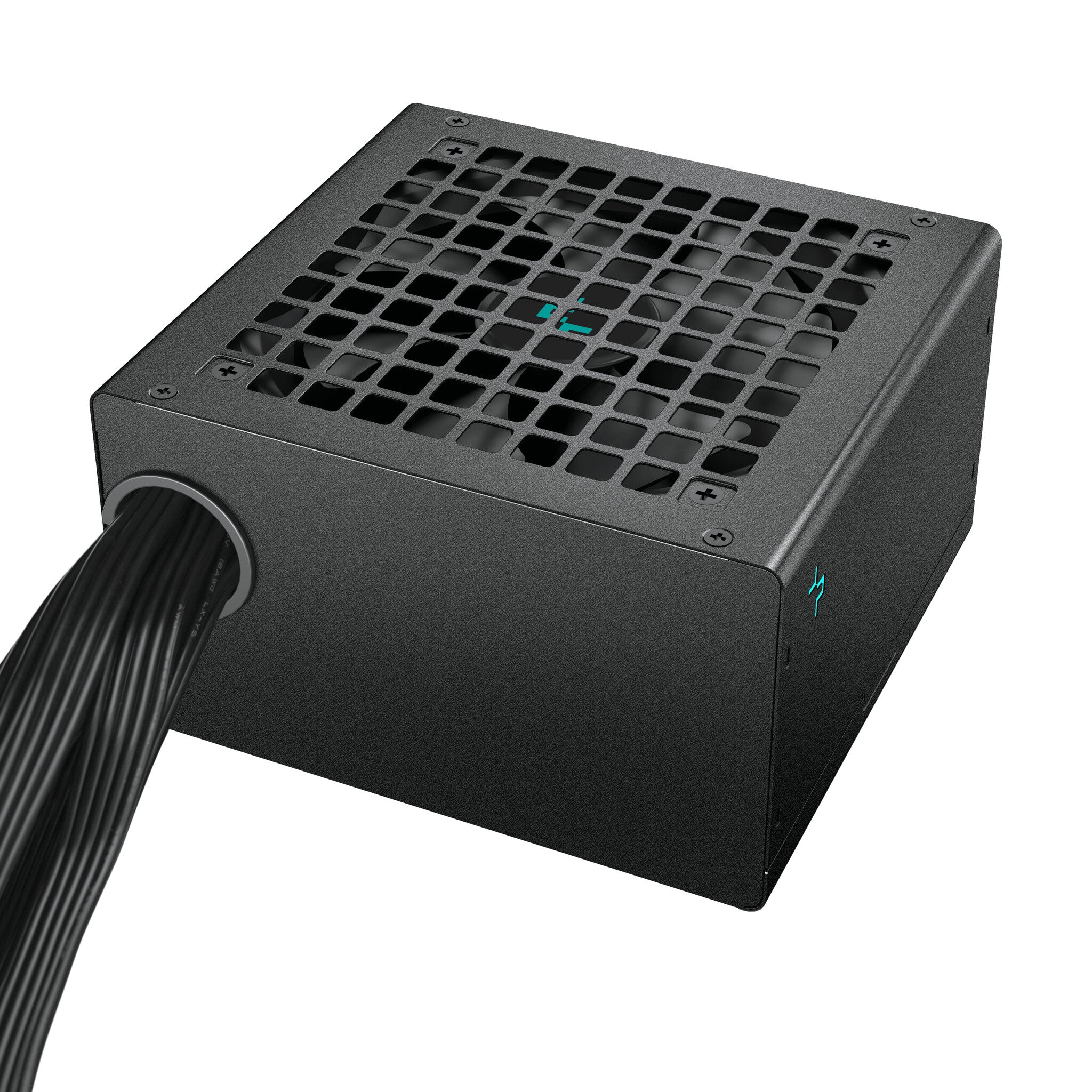

PN850D
The DeepCool PN850D is a new non-modular power supply that meets the latest Intel ATX 3.1 and PCIe 5.1 standards. With a dedicated 12V-2x6, 2 EPS, and 3 PCIe connectors, the PN850D provides stable power for a wide range of modern high-power components.
FUTURE PROOF
With the ability to provide three times the TGP for 0.1 ms, random power spikes will never be an issue. The PN850D will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.
GRACEFUL GOLD
80 Plus Gold certified to meet a high level of power efficiency under 90% of typical loads. Each unit is also rated Gold by Cybenetics.
POWER YOU CAN TRUST
Through the use of a premium main electrolytic capacitor, active PFC, full-bridge SRC LLC, and a DC-to-DC topology, the PN850D can keep the hold-up time to ≥ 16 ms under a high load of 80%.
PCI-E 5.1 POWER
Equipped with a high-grade 105C-resistant 16AWG copper-core embossed 12V-2x6 cable, the PN850D provides up to 600W for modern GPUs.
DYNAMIC HYDRO BEARING FAN
The PN850D comes equipped with a dynamic 120mm hydro bearing fan that will adjust its speed based on the cooling needs of the PSU.

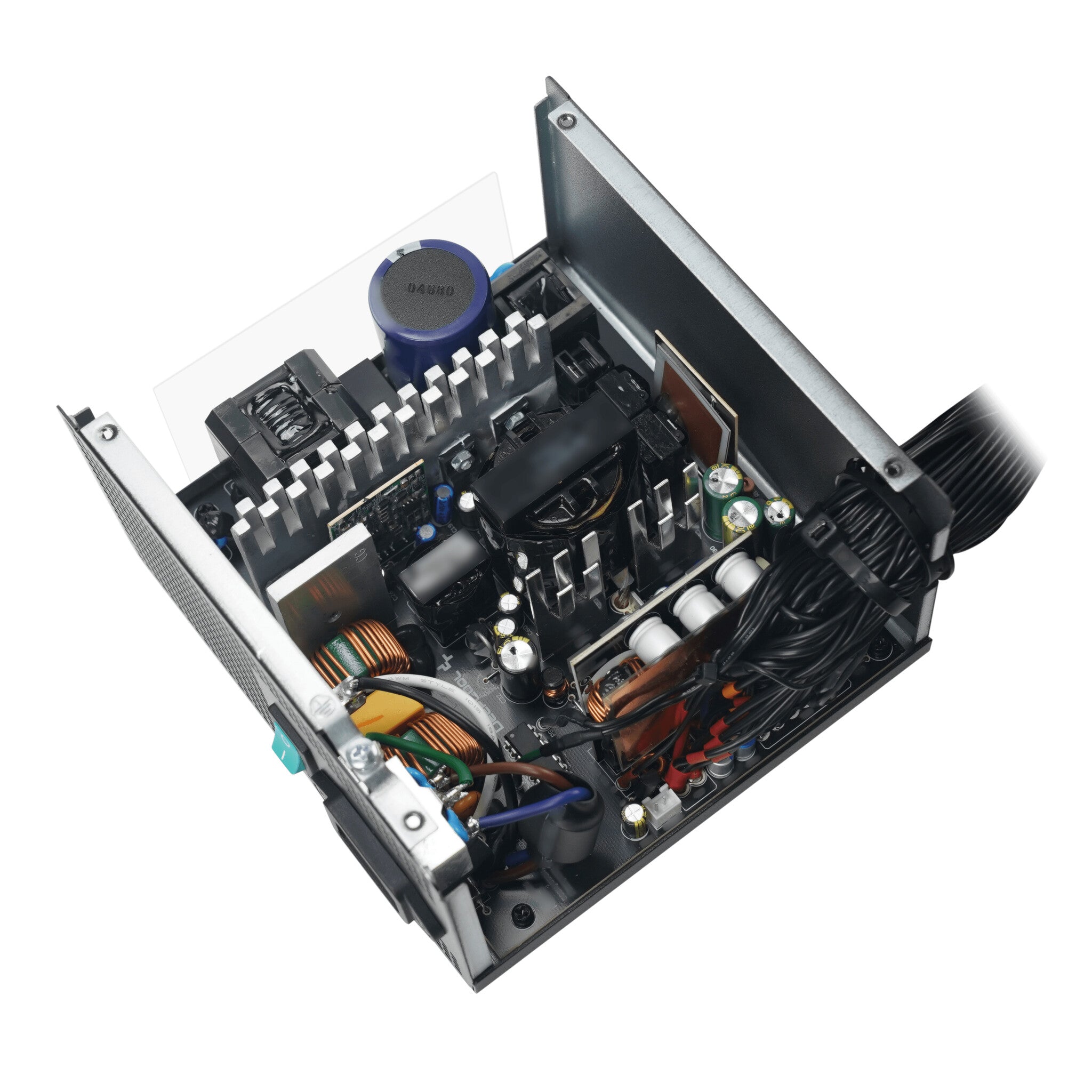

HIGH QUALITY BUILD
Due to the high quality of the parts utilized, the PN850D will operate at altitudes up to 5000 meters above sea level.
PEACE OF MIND
The PN850D comes standard with a slew of well-rounded safeguards, including OPP, OVP, SCP, OTP, OCP, UVP, NLO, and SIP.

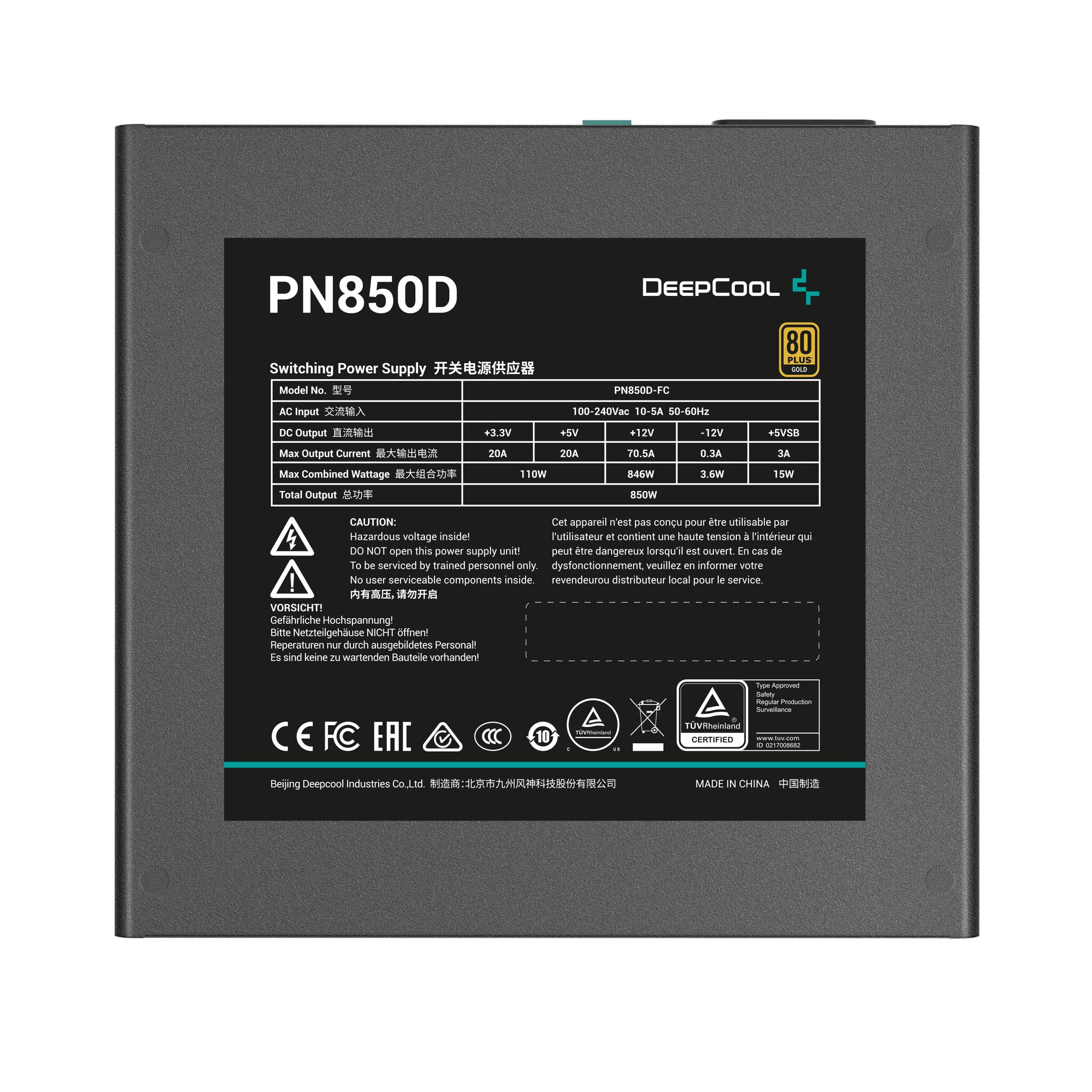

Specifications
Power
| Total power | 850 W |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 10 - 5 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 110 W |
| Combined power (+12V) | 846 W |
| Combined power (+5V) | 110 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power Good signal delay range | 100 - 150 ms |
| Efficiency | 90% |
| Hold time | 16 ms |
| Power protection features | No load operation, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Surge protection, Under voltage |
Ports & interfaces
| Motherboard power connector | 20+4 pin ATX |
|---|---|
| Motherboard power cable length | 55 cm |
| Number of SATA power connectors | 8 |
| SATA power cable length | 550,750,450,650 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 850 mm |
| PCI Express power connectors (6+2 pin) | 3 |
| PCI Express power connectors (16-pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 70 cm |
| ATX power connector (20+4 pin) | Yes |
| Number of EPS connectors | 2 |
| Cabling type | Non-Modular |
Show all 53 specificationsShow fewer specifications
Performance
| Purpose | PC |
|---|---|
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 3.1 |
| Bearing technology | HYB |
| Mean time between failures (MTBF) | 100000 h |
Design
| Product colour | Black |
|---|---|
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|

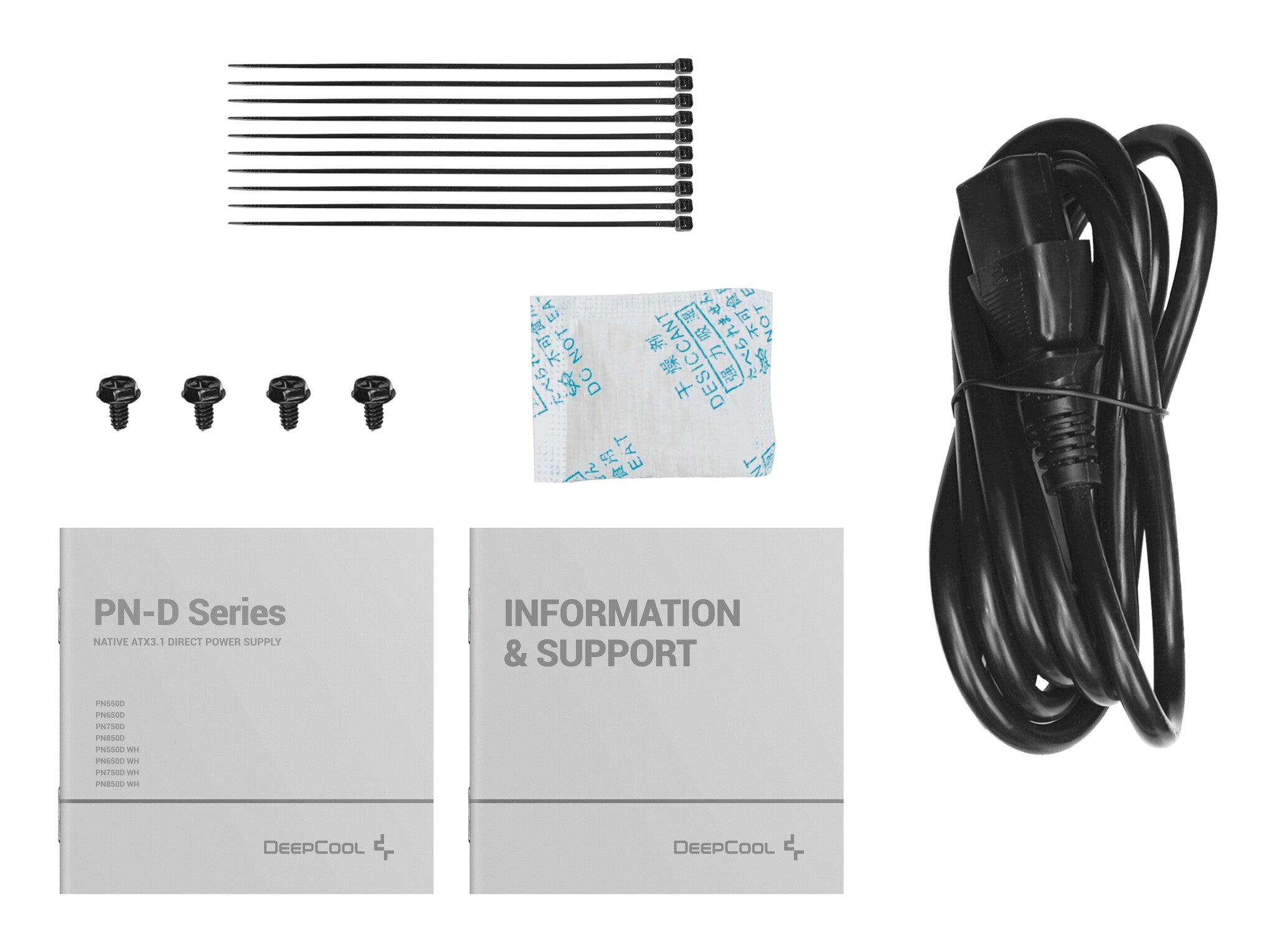

Packaging content
| Cables included | AC |
|---|---|
| Cable tie(s) included | Yes |
Certificates
| Compliance certificates | CCC, CE, EAC, Federal Communications Commission (FCC), RCM, RoHS, WEEE |
|---|
Weight & dimensions
| Width | 150 mm |
|---|---|
| Depth | 140 mm |
| Height | 86 mm |
Technical details
| Sustainability certificates | ErP, Triman |
|---|---|
| Sustainability compliance | Yes |
