DeepCool · MPN: R-CH270-BKNDM0-G-1
£77.99
inc. VAT
Spread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £25.99 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Out of stock

FREE delivery

Express £9.99

Overview

  • Mini Tower PC
  • micro ATX, Mini-ITX
  • Supported HDD sizes: 2.5,3.5"
  • Number of 2.5" bays: 1 Number of 3.5" bays: 1
  • Acrylonitrile butadiene styrene (ABS), SPCC, Tempered glass
  • Black

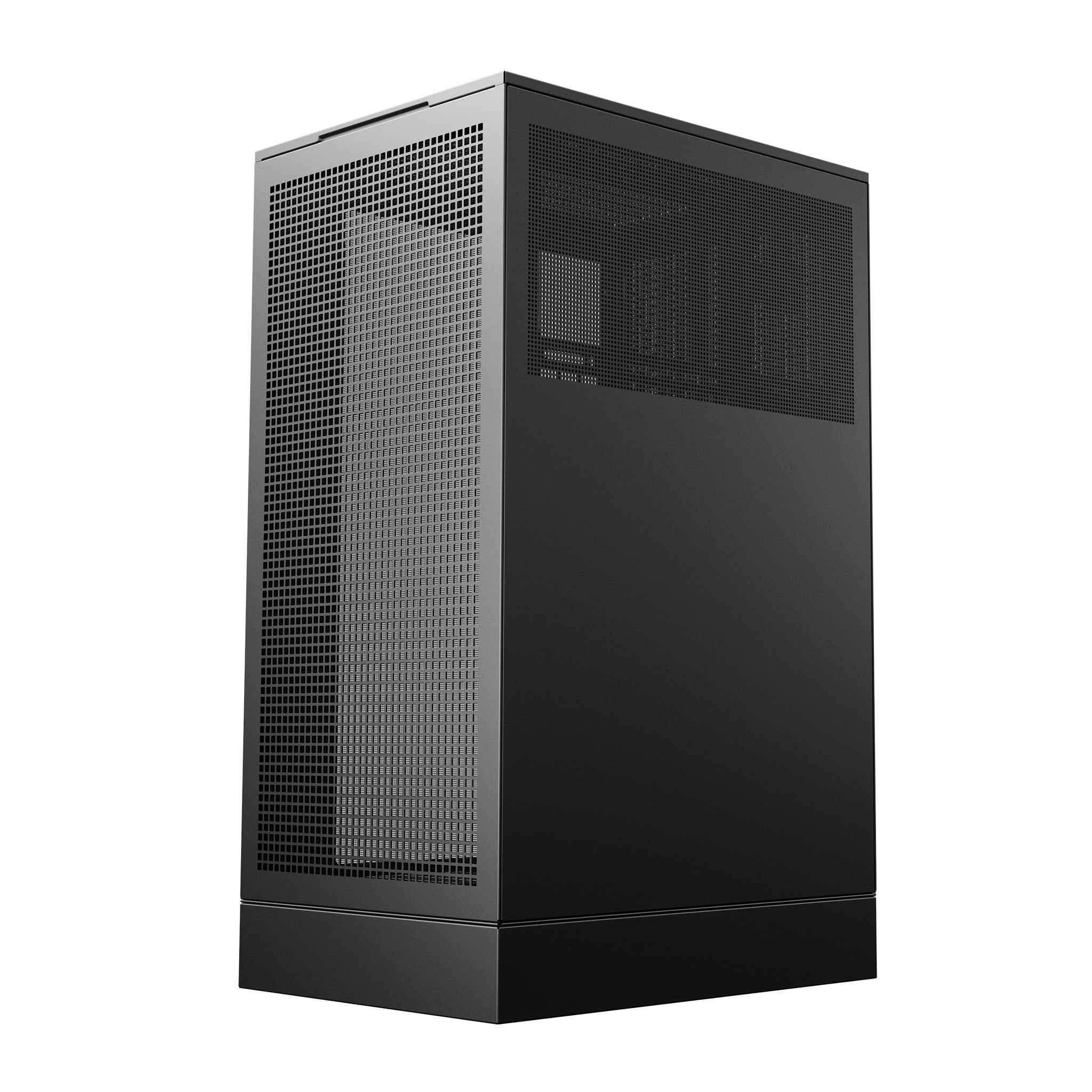

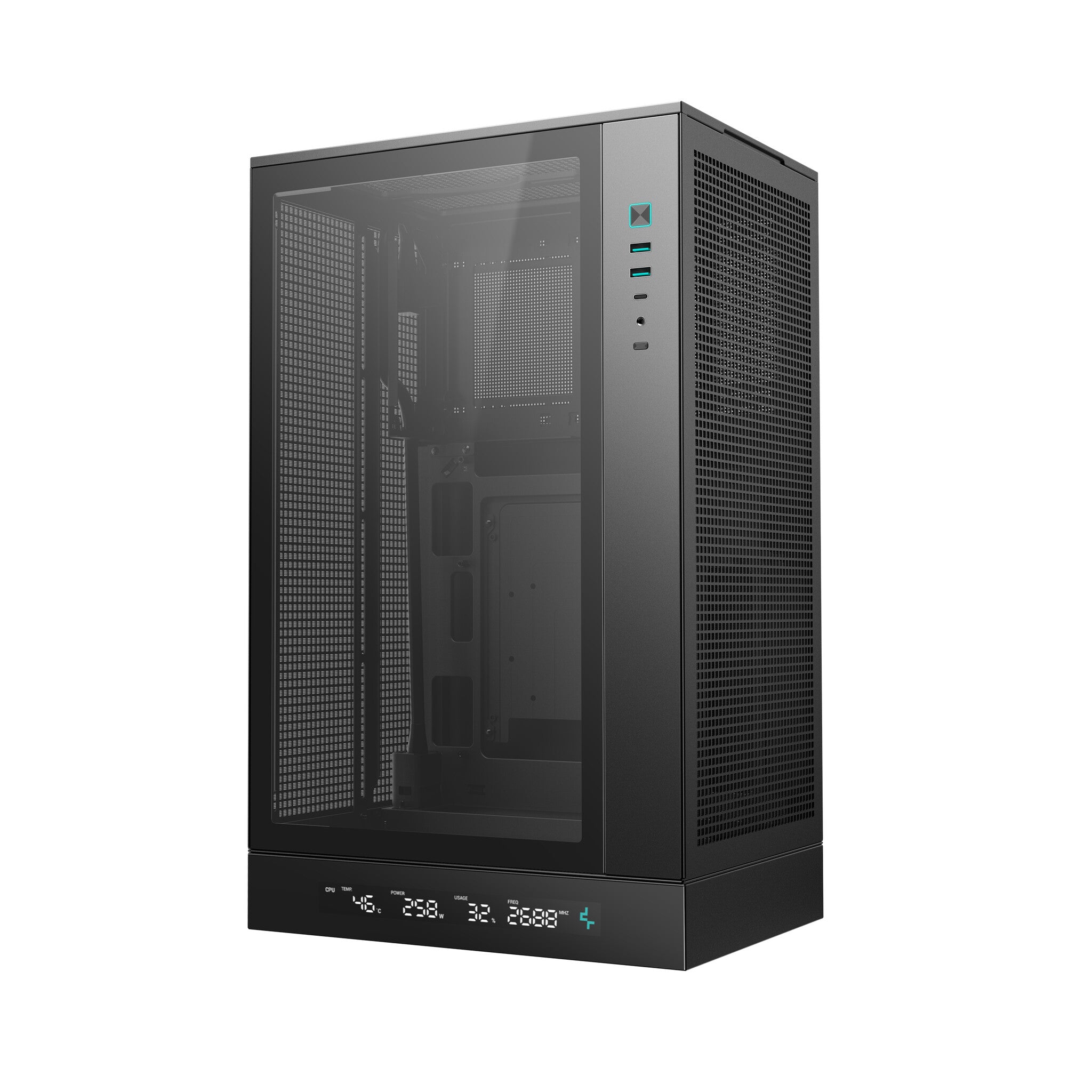

The CH270 DIGITAL is an elevated mini-tower case with a small footprint to save up your desktop space. It is adapted to accommodate up to M-ATX motherboards and mainstream ATX components to smooth your building experience.

GO MICRO

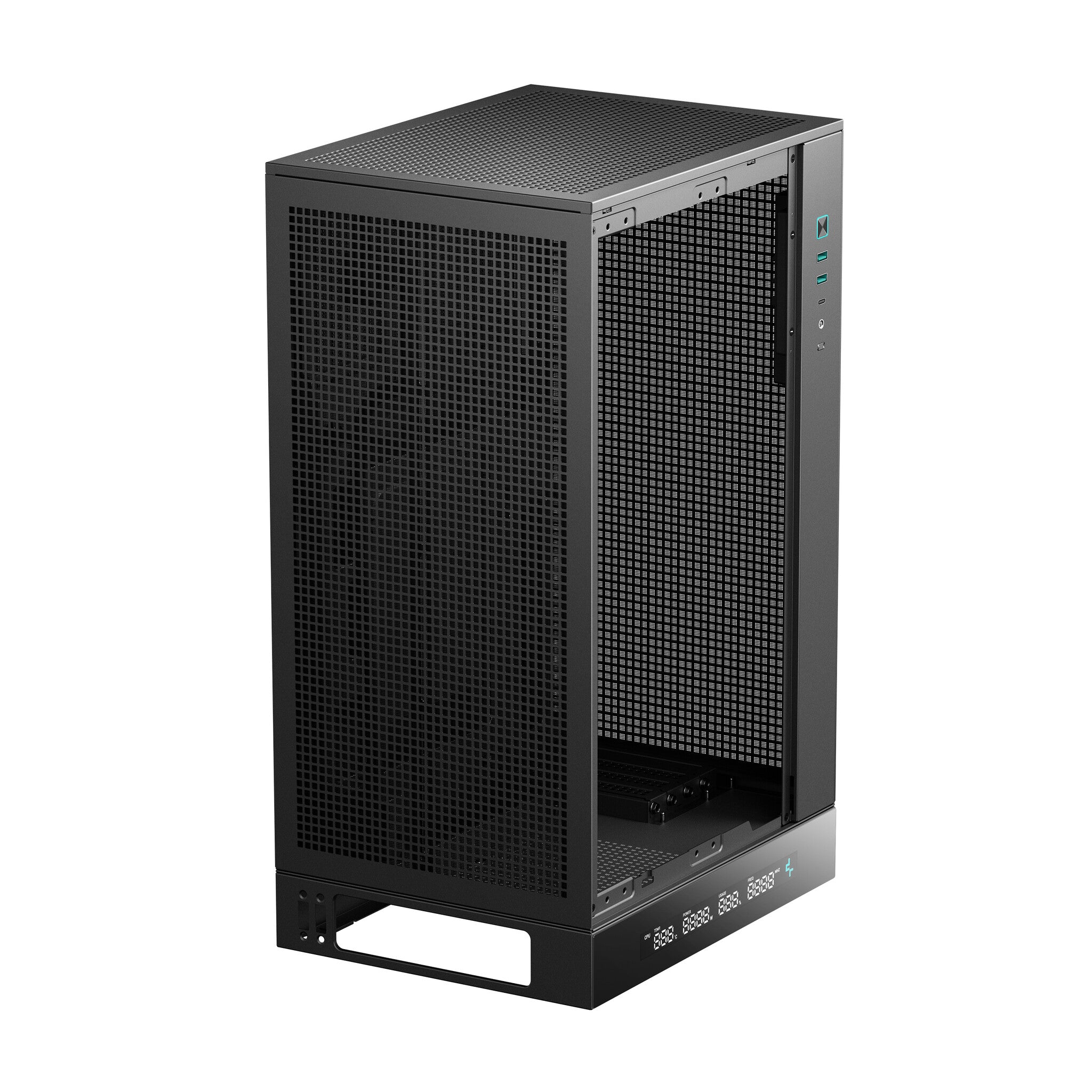

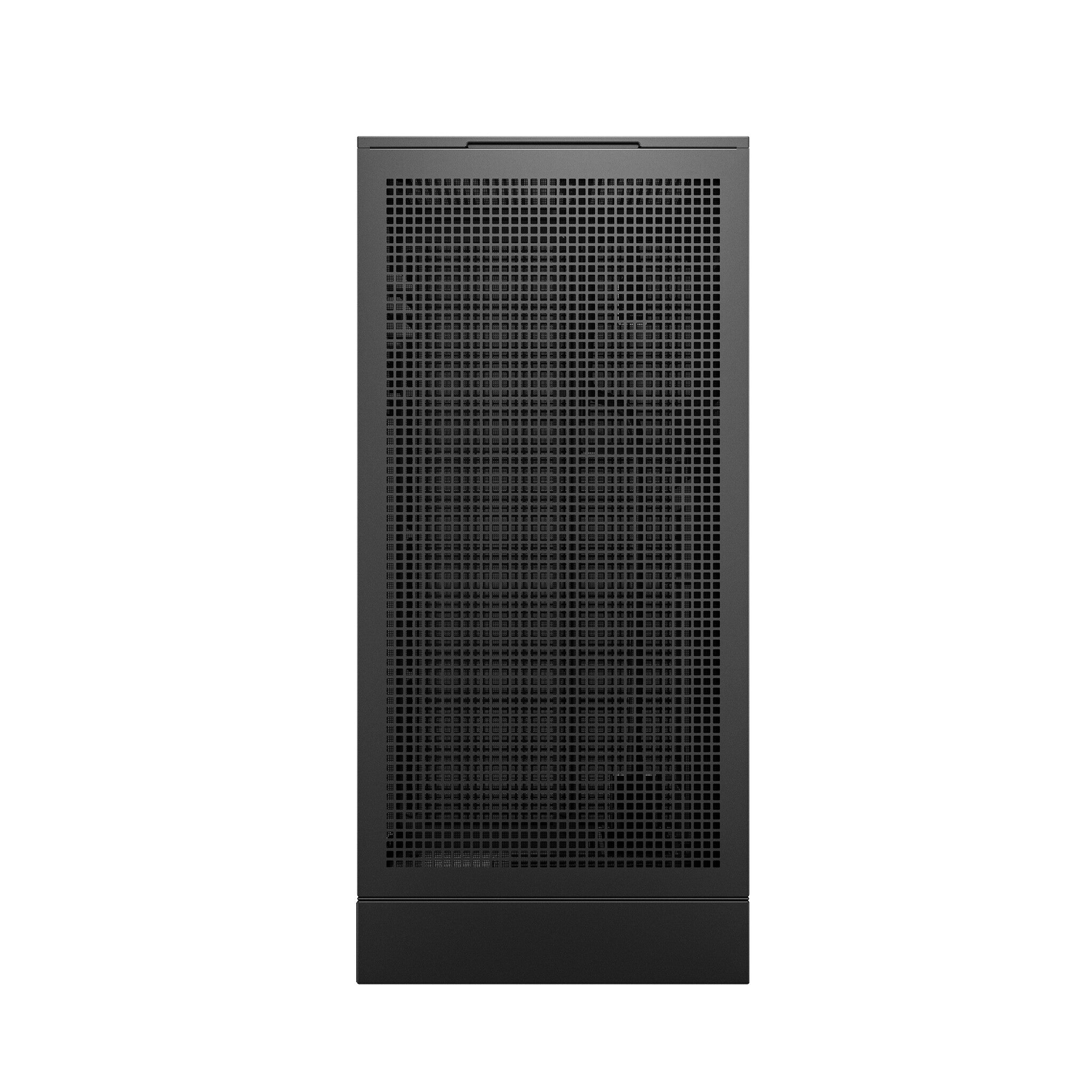

The Micro Form Factor CH270 DIGITAL comes with a tempered glass side panel to give your modern internal gears a show as the perforated top and front panels can be decked out with PIXEL rubber bits. The case also meets the rising demands for rear connector motherboards with a wider clearance in the backplane.

DIGITAL VERTICAL BASE

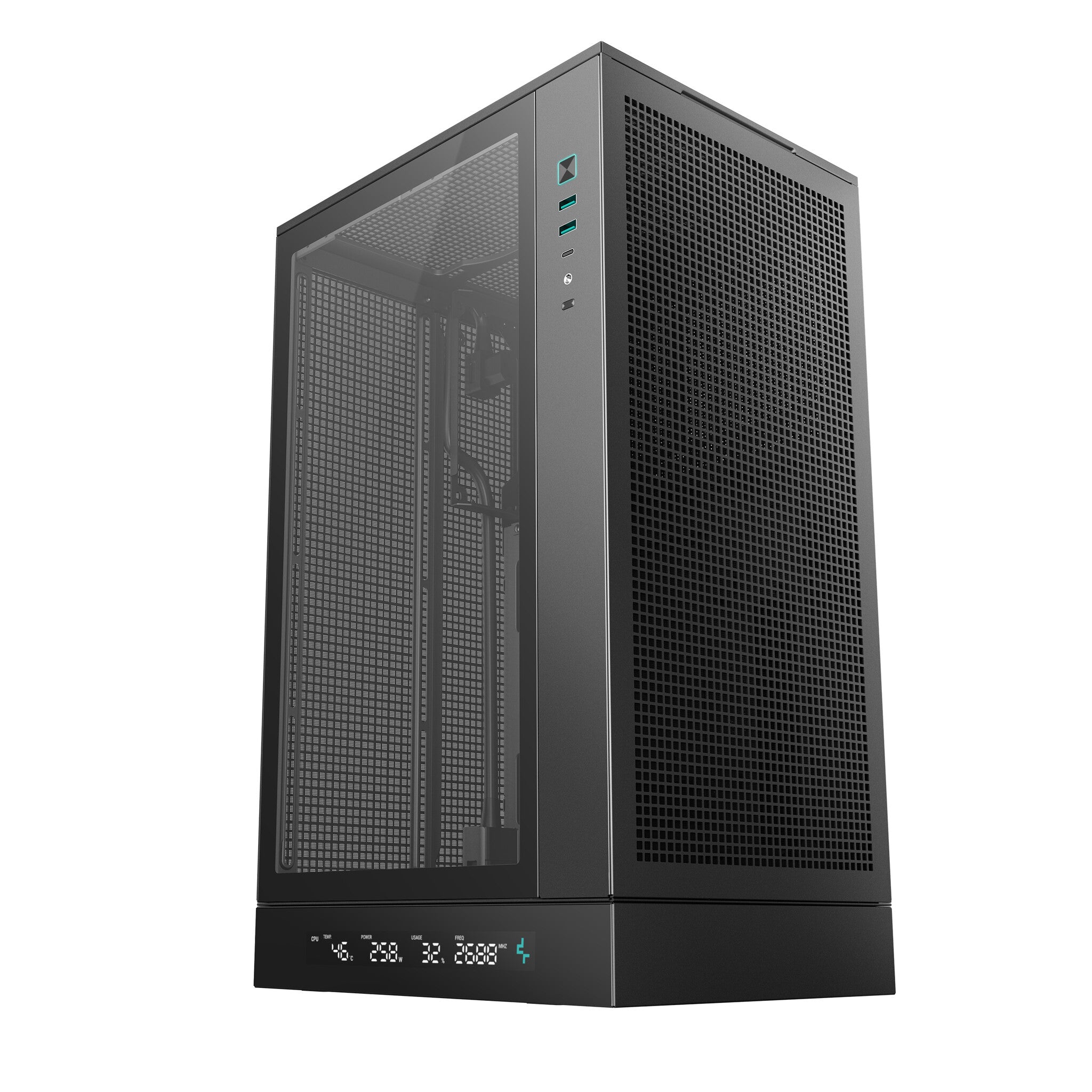

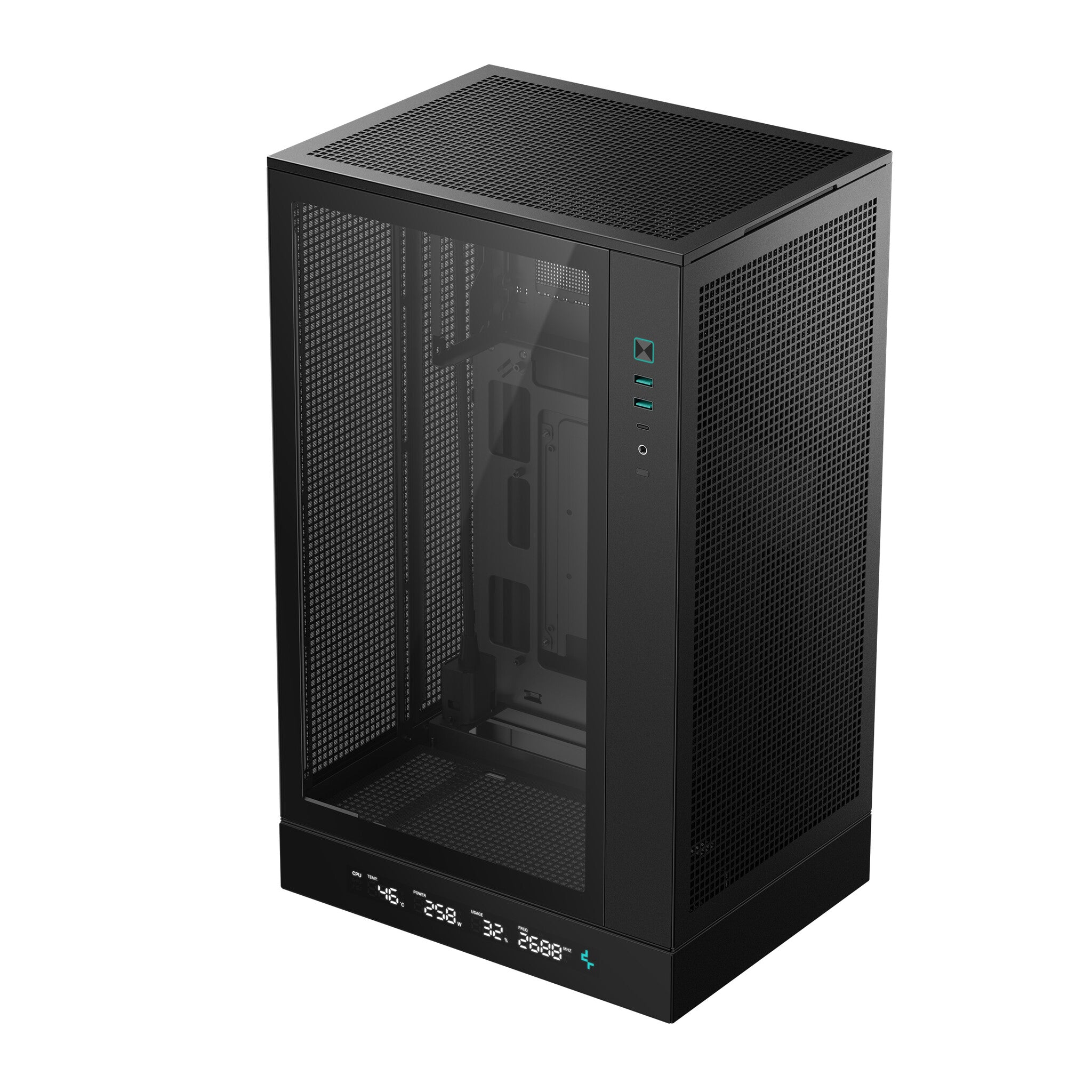

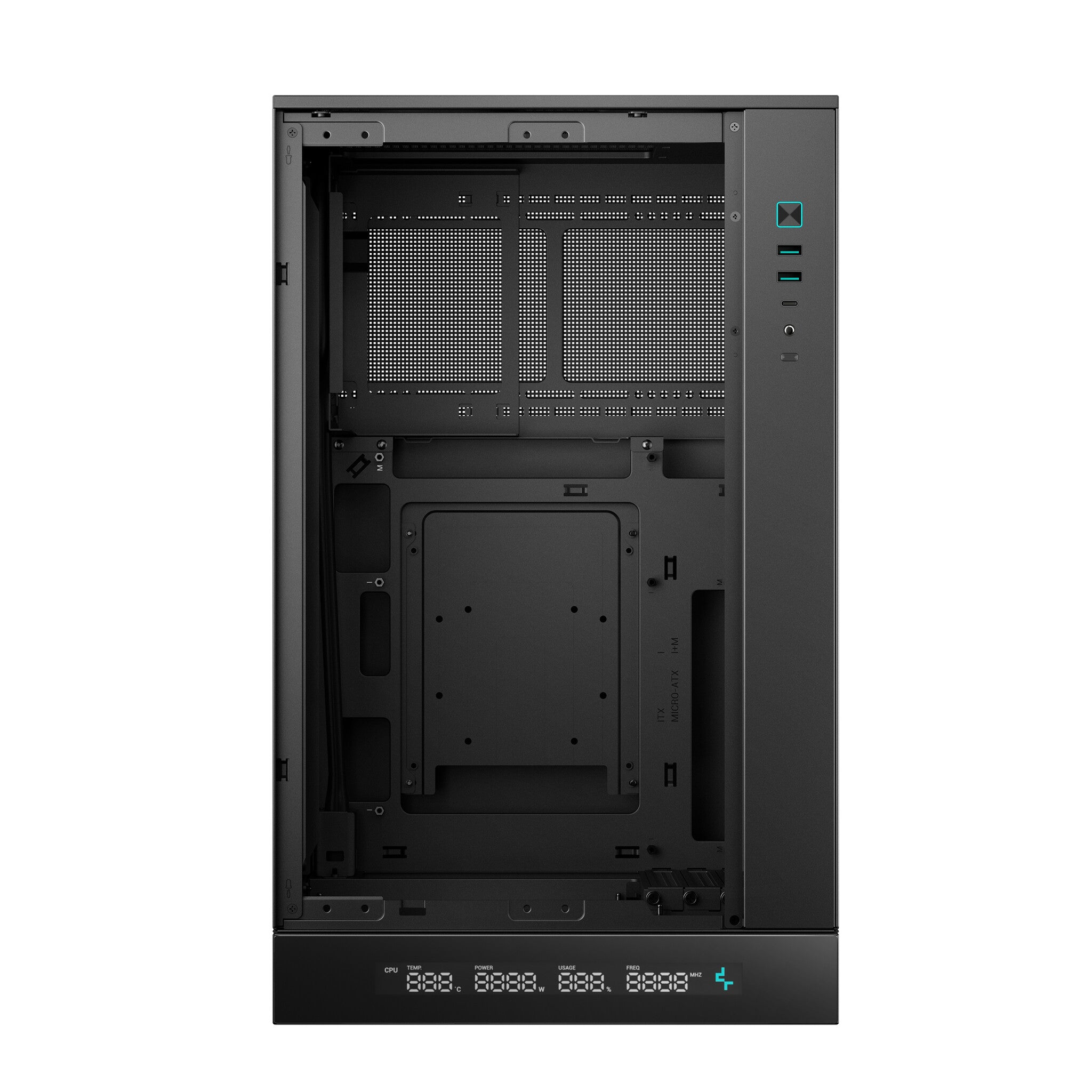

A digital display bar is integrated at the base of the case to monitor your system vitals in real time. The status mode can switch between CPU, GPU, and PSU.

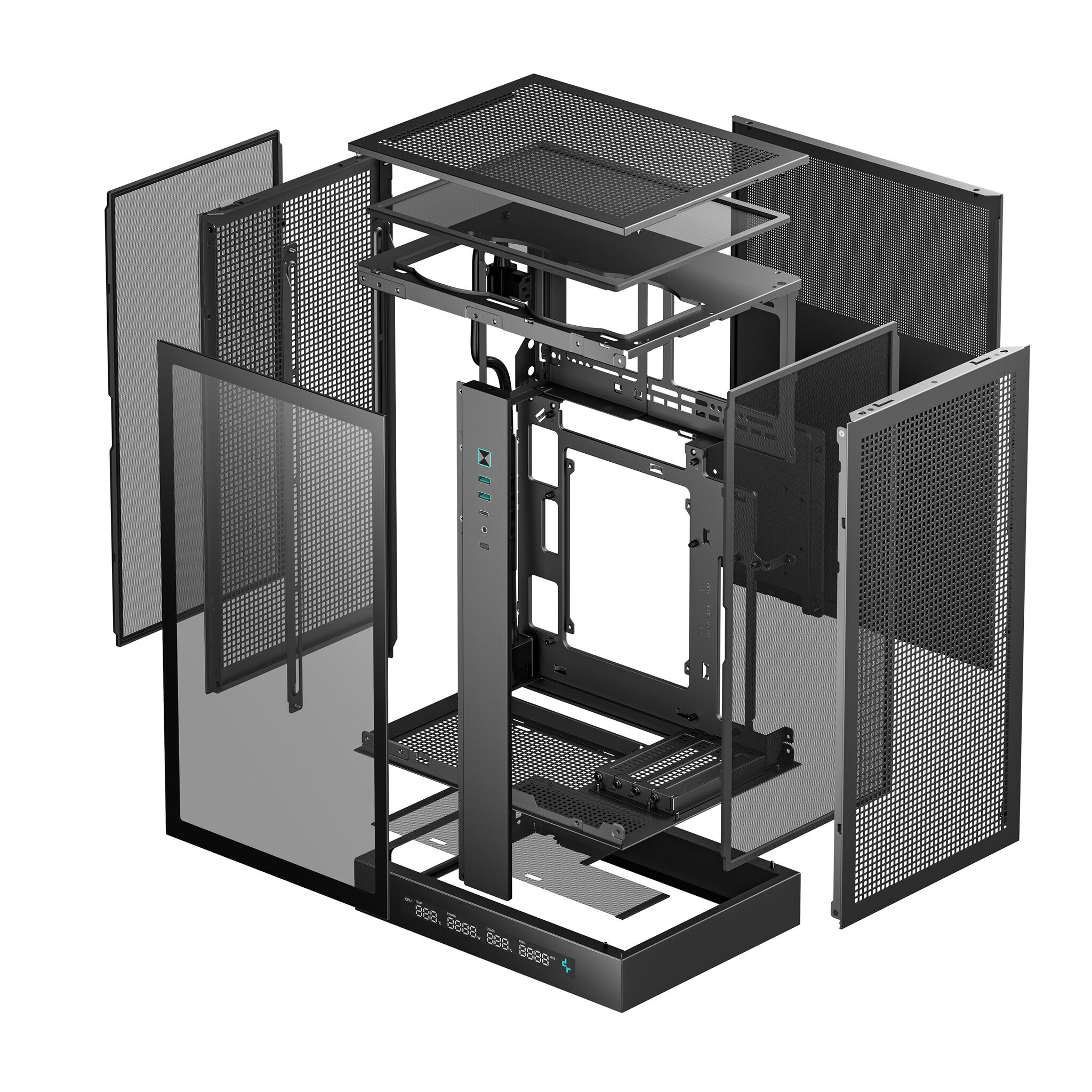

SMALL SIZE OUTSIDE, FULL SIZE INSIDE

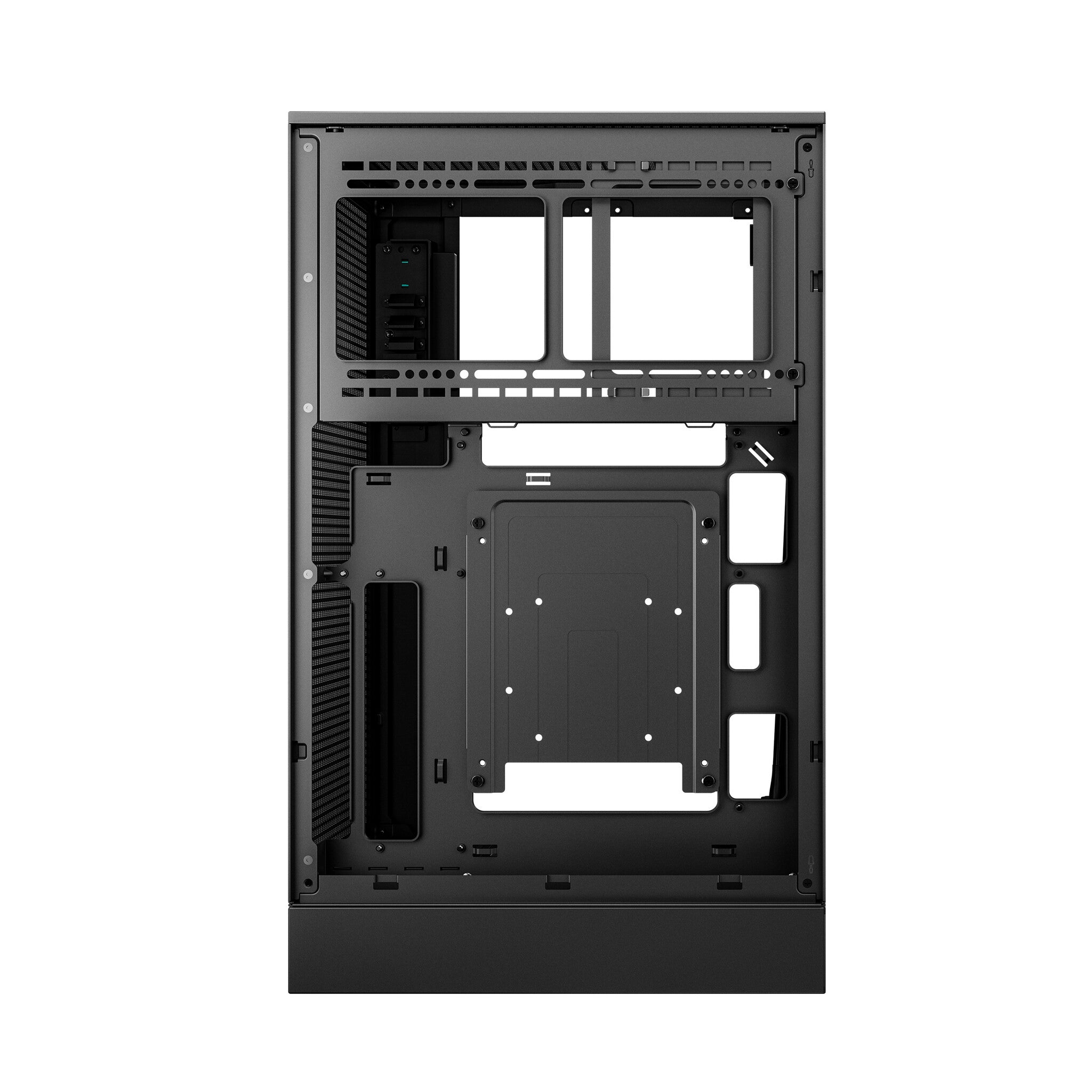

Upgraded on the precedent CH170 series, the CH270 DIGITAL now gives expanded options in key components compatibility that supports full-size GPU up to 388mm in length or goes even longer to 413mm without fan placement on the top. ATX PS2 power supply can also fit into the case with a removable mounting bracket to free up space for easy cable management.

UNCOMPROMISED VENTILATION

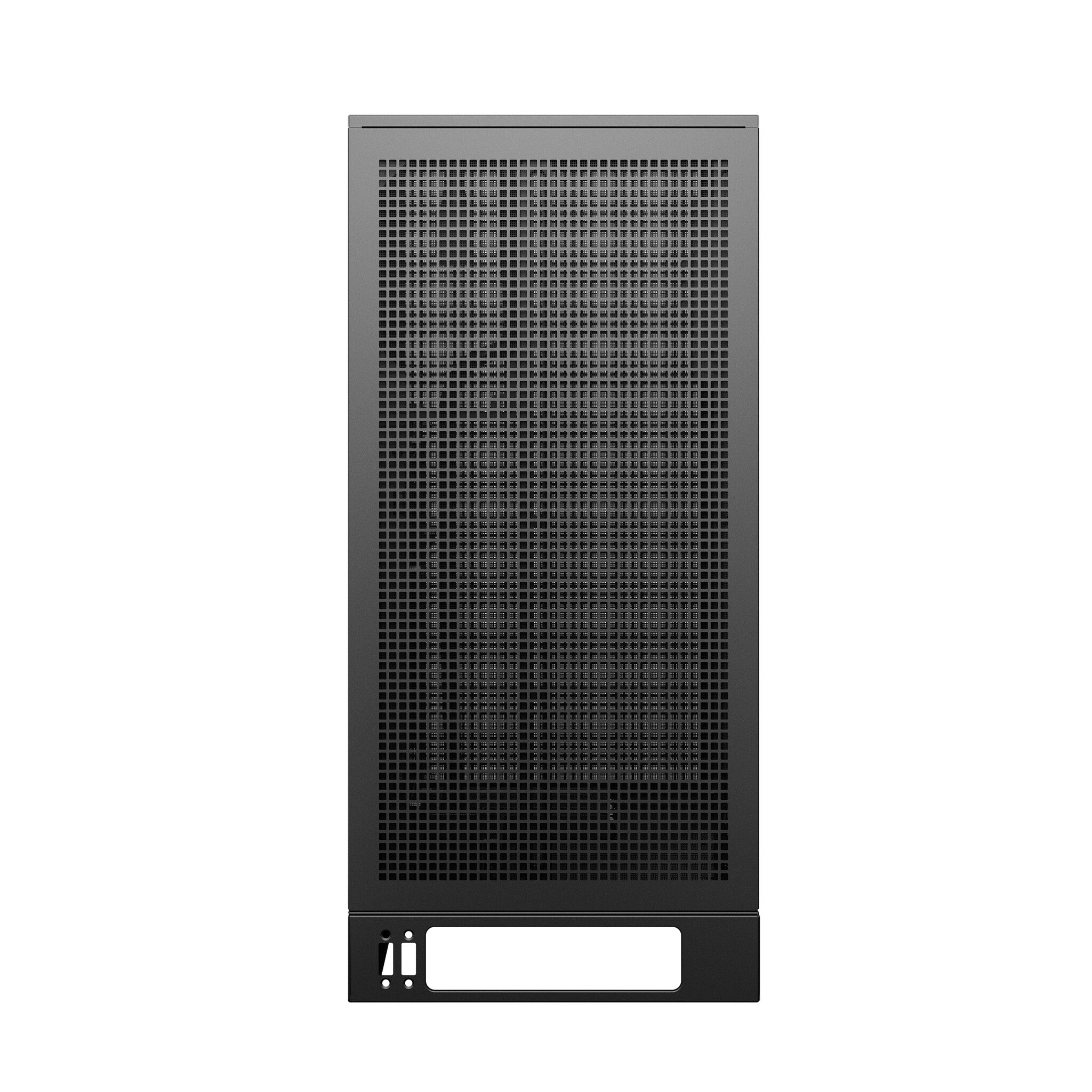

The wraparound mesh panels and up to six 120mm fan placements effectively ensure cool air flows through the compact system and takes heat away. The maximum thermal hardware can go up to a 360mm AIO liquid cooler on the side or a 174mm high tower heat sink on the CPU.

Specifications

Design

Form factorMini Tower
TypePC
MaterialAcrylonitrile butadiene styrene (ABS), SPCC, Tempered glass
Product colourBlack
Supported motherboard form factorsmicro ATX, Mini-ITX
Number of 3.5" bays1
Number of 2.5" bays1
Number of expansion slots4
Maximum CPU cooler height17.4 cm
Maximum graphics card length41.3 cm
Maximum PSU length15 cm

Power supply

Power supply includedNo
Supported power supply form factorsATX
Show all 29 specificationsShow fewer specifications

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Combo headphone/mic portYes

Cooling

Number of side fans supported (max)3
Side fans diameters supported120,240 mm
Number of top fans supported (max)2
Top fans diameters supported120 mm
Number of bottom fans supported (max)1
Bottom fans diameters supported120 mm
Side radiator sizes supported120,240,360 mm
Bottom radiator sizes supported120 mm

Storage

Supported HDD sizes2.5,3.5"

Weight & dimensions

Width225 mm
Depth296 mm
Height486 mm
Weight5.8 kg
