DeepCool · MPN: R-CH160-BKNGM0-G
£54.99
inc. VAT
Spread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £18.33 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Out of stock

FREE delivery

Express £9.99

Overview

  • Small Form Factor (SFF) PC
  • micro ATX, Mini-ITX
  • Supported HDD sizes: 2.5,3.5"
  • Number of 2.5" bays: 1 Number of 3.5" bays: 1
  • Side window Tempered glass panel(s)
  • Acrylonitrile butadiene styrene (ABS), Tempered glass, SPCC
  • Black

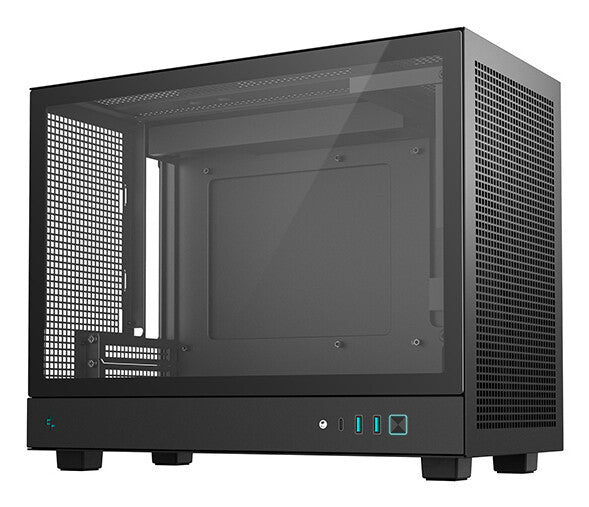

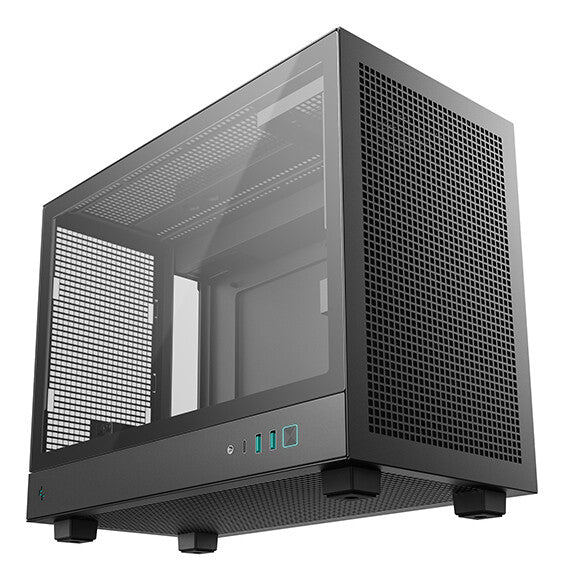

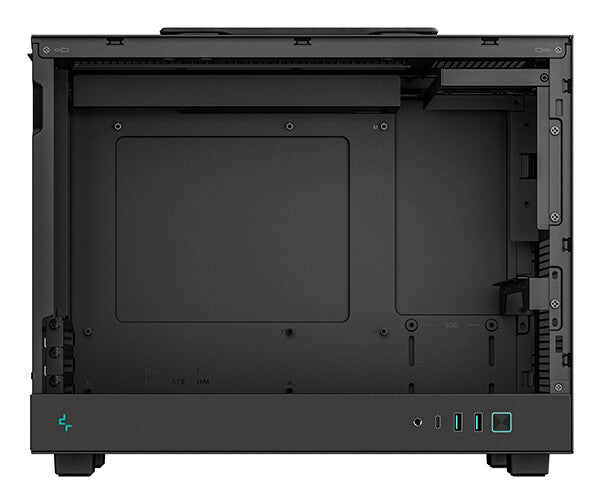

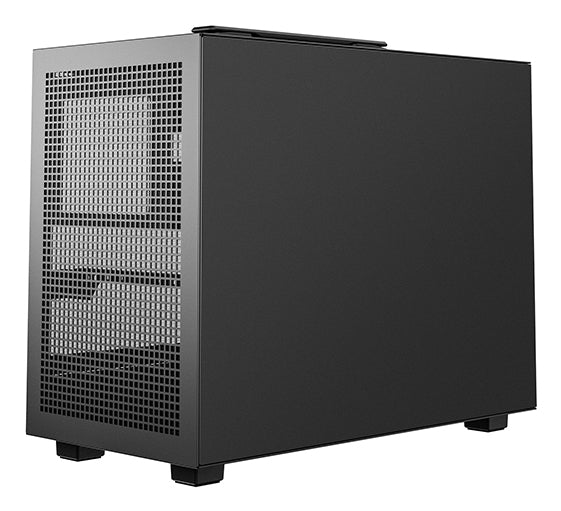

Deepcool CH160 PLUS

The CH160 PLUS retains the clean, compact aesthetic of the original CH160, while expanding support for Micro-ATX motherboards and 240mm liquid cooling.

BUILT TO BREATH

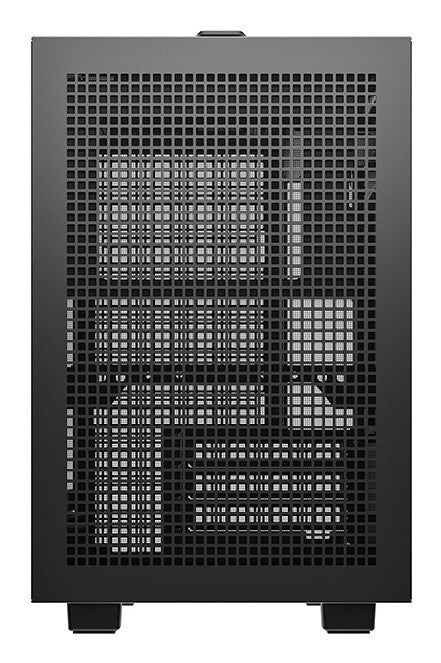

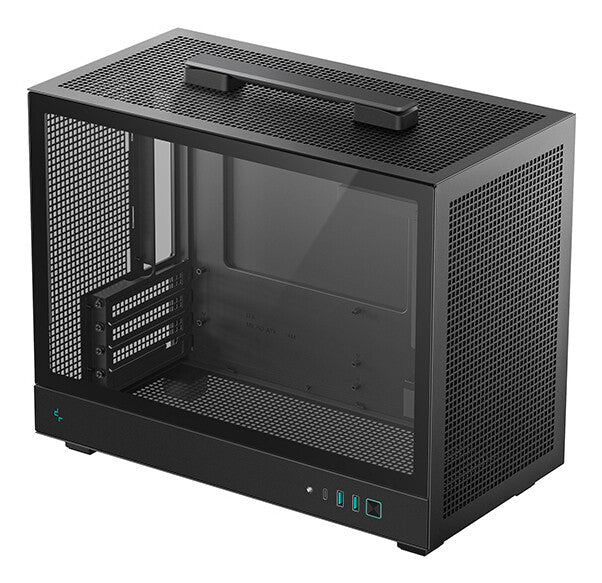

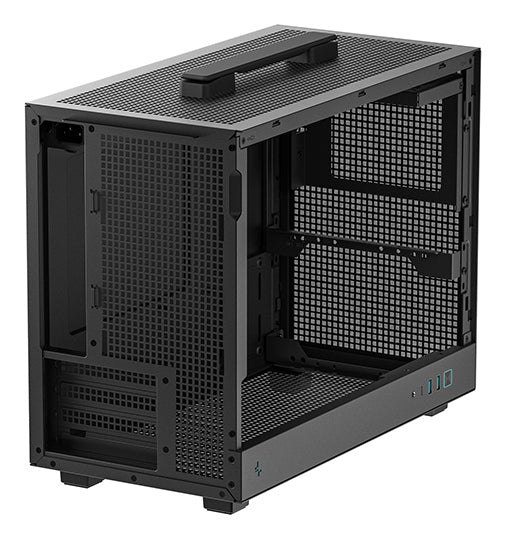

Mesh panels wrap the CH160 PLUS to boost airflow in a size-conscious design. The integrated top handle makes it easy to move and reposition whenever you need.

NOW WITH LIQUID COOLING!
Liquid cooling is now part of the experience, with support for up to a 240mm radiator on top.
Radiators:
Front: NA
Top: 120/240mm
Bottom: NA
Rear: 120mm
Fans:
Front: 1x120mm / 1x140mm (with SFX PSU)
Top: 2x120mm
Rear: 1x120mm
CPU Cooler:164mm

BUILT TO FIT MORE
With minimal growth in size, it expands compatibility with support for Micro-ATX motherboards, GPUs up to 342mm (328mm with front fan installed), and full-sized ATX PSUs up to 140mm. A fourth expansion slot opens the door to more powerful builds.

CUSTOMIZE WITH PURPOSE
Personalize with DeepCool accessories like the HB-01 headset holder and PIXEL decorative bits to give your build a unique touch.

CONVENIENCE IN EVERY DETAIL
Everyday access is easy with two USB 3.0 ports, a Gen2 Type-C, and a hybrid audio jack all within reach. Dust filters on three sides keep maintenance simple and your build clean.

Specifications


Product Dimensions -375mmx195mmx323.5mm(LxWxH)
Net Weight -4.2Kg
Materials - ABS+SPCC+Tempered Glass
Motherboard Support - Mini-ITX / Micro-ATX
Front I/O Ports - USB3.0x2, Gen2 Type-C x1, Audio/Micx1
3.5 Drive Bays -1
2.5 Drive Bays -1+1
Expansion Slots -4Slots
Pre-Installed Fans -None

Specifications

Design

Form factorSmall Form Factor (SFF)
TypePC
MaterialAcrylonitrile butadiene styrene (ABS), Tempered glass, SPCC
Product colourBlack
Supported motherboard form factorsmicro ATX, Mini-ITX
Number of 3.5" bays1
Number of 2.5" bays1
Number of expansion slots4
Side windowYes
Tempered glass panel(s)Yes
On/off buttonYes
Maximum CPU cooler height16.4 cm
Maximum graphics card length34.2 cm
Maximum PSU length14 cm

Power supply

Power supply includedNo
Power supply locationTop
Supported power supply form factorsATX, PS2, SFX, SFX-L
Show all 34 specificationsShow fewer specifications

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Combo headphone/mic portYes

Cooling

Number of front fans supported (max)1
Front fans diameters supported120,140 mm
Number of rear fans supported (max)1
Rear fans diameters supported120 mm
Number of top fans supported (max)2
Top fans diameters supported120 mm
Liquid cooling capabilityYes
Rear radiator sizes supported120 mm
Top radiator sizes supported120 mm

Storage

Supported HDD sizes2.5,3.5"

Weight & dimensions

Width195 mm
Depth375 mm
Height323.5 mm
Weight4.2 kg
