DeepCool CG530U 4F CURVED GLASS SHOWCASE

The CG530U 4F is a curved-glass panoramic case built on a dual-chamber design. Pre-installed with four ARGB fans, it comes ready for effective airflow and lighting.

SEAMLESS PANORAMIC VIEW
The CG530U 4F features a one-piece curved tempered glass panel that transitions smoothly around the corner. With no seams interrupting the line of sight, it offers an open, continuous view into the build within.

READY TO FLOW

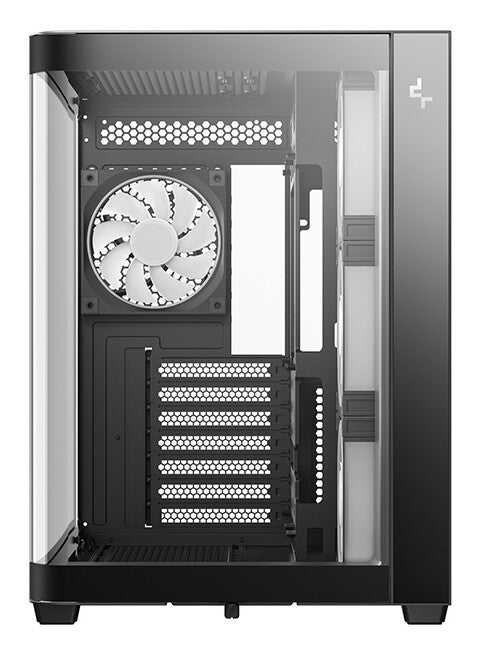

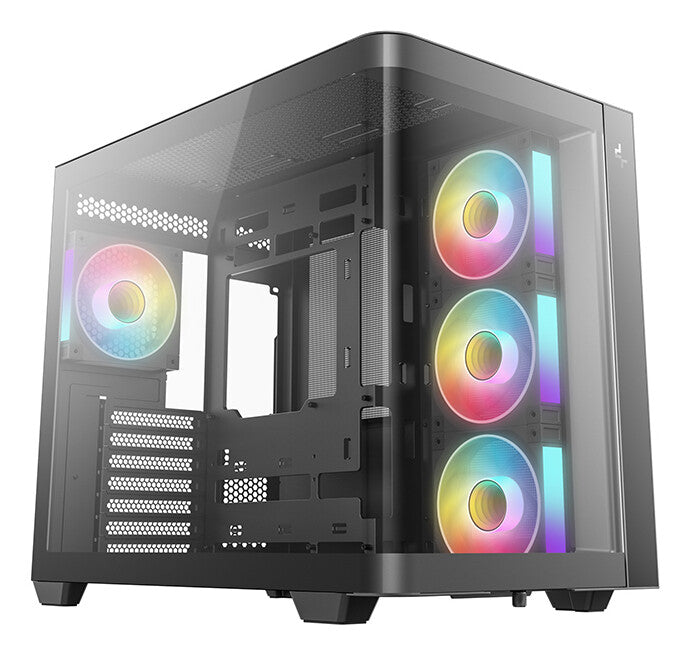

Four ARGB fans come pre-installed with three reverse-blade units on the side and one standard fan at the rear. The balanced intake and exhaust setup provides strong airflow and reliable cooling from the start.

EFFICIENT VENTILATION

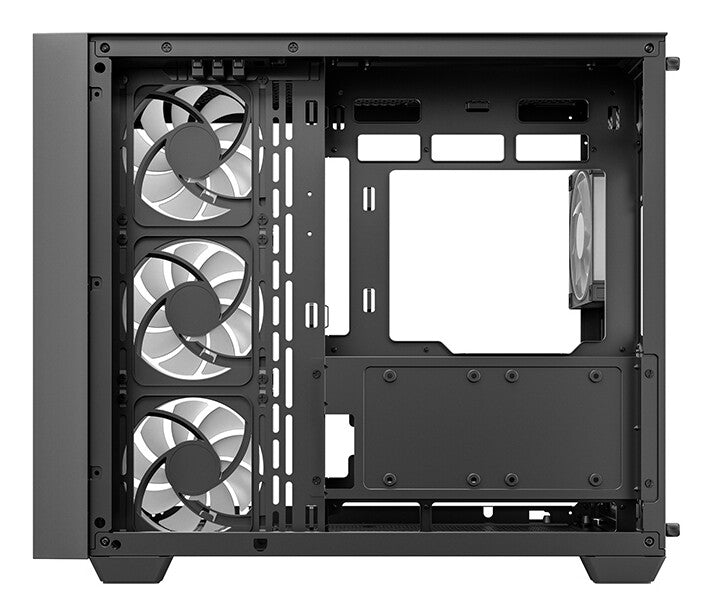

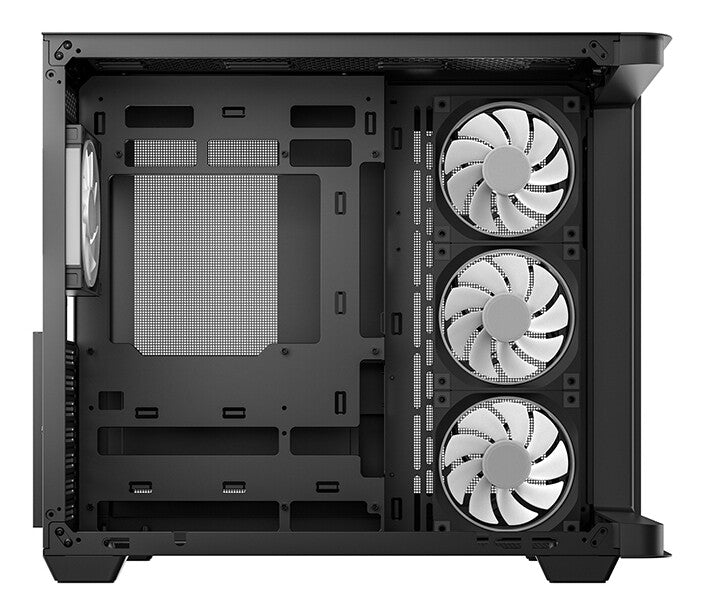

A dual-chamber layout isolates the power supply and storage drives from the main airflow. Large mesh panels maximize ventilation, with side-mounted reverse intake fans drawing in fresh air and the rear fan exhausting heat, creating a direct horizontal airflow path across the case.

MAXIMUM COOLING CAPABILITIES
Never fear the heat with CG530U 4F's exceptional cooling support. Designed to house a variety of cooling components, it offers wide compatibility for radiators and fans to keep your system running cool under any load.

BROAD HARDWARE SUPPORT
Built to handle demanding hardware, the CG530U 4F supports CPU coolers up to 160mm tall, GPUs up to 410mm long, and PSUs up to 210mm, offering broad compatibility for high-performance builds.

DETAILS THAT MATTER
Supports M-ATX and ATX reverse connector motherboards
45mm clearance for cable management
Top and bottom dust filters included

EASY I/O ACCESS

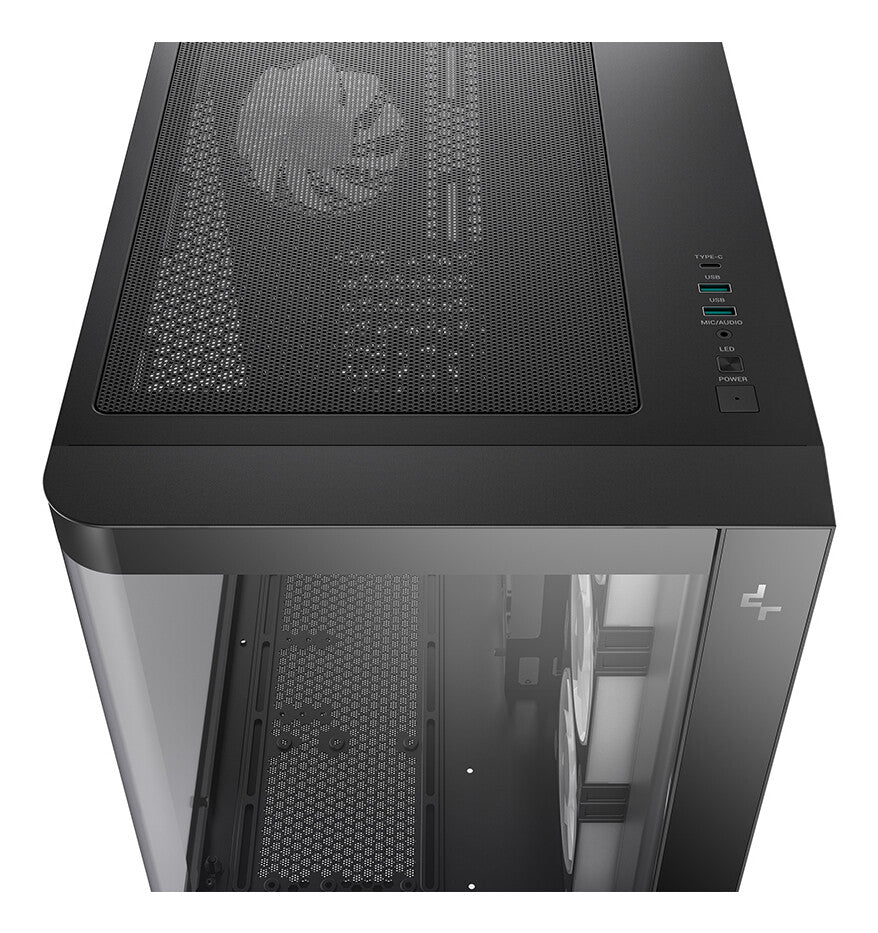

The top I/O panel provides convenient access with two USB 3.0 ports, a Gen2 Type-C port, and a combined audio/mic jack.

Specifications

Product Dimensions
475x285x380mm(LxWxH)

Net Weight
7.3kg

Materials
ABS+SPCC+Tempered Glass

Motherboard Support
ITX/Micro-ATX/ATX
ATX(Rear Connector)/Micro-ATX(Rear Connector)

Front I/O Ports
USB3.0 x2,Gen2 Type-C x1,Audio/Mic x1,LED

3.5 Drive Bays
2

2.5 Drive Bays
2+1

Expansion Slots
7 Slots

Pre-Installed Fans
Side: 3x120mm
Rear: 1x120mm

Fan Support
Front: NA
Top: 3x120mm/2x140mm
Side: 3x120mm/2x140mm
Rear: 1x120mm
Bottom: 3x120mm/3.5 HDD+2x120mm/2.5 SSD+2x120mm

Radiator Support
Front: NA
Top: 120/140/240/280/360mm
Side: 120/140/240/280mm
Bottom: 120/240/360mm

CPU Cooler Height Limit
160mm

GPU Size Limit
410mm

Power Supply Type
ATX PS2 (maximum length: 210mm)/SFX/SFX-L

Design
Maximum PSU length	21 cm
Maximum graphics card length	41 cm
Maximum CPU cooler height	16 cm
RGB control button	Yes
On/off button	Yes
Cable management	Yes
Anti-dust filter	Yes
Tempered glass panel(s)	Yes
Side window	Yes
Number of expansion slots	7
Number of 2.5" bays	3
Number of 3.5" bays	2
Supported motherboard form factors	ATX, ITX, micro ATX
Product colour	Black
Material	Acrylonitrile butadiene styrene (ABS), SPCC, Tempered glass
Type	PC
Form factor	Tower

Power supply
Power supply location	Rear
Power supply included	No

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2

Cooling
Top radiator sizes supported	120,140,240,280,360 mm
Bottom radiator sizes supported	120,240,360 mm
Side radiator sizes supported	120,140,240,280 mm
Bottom fans diameters supported	120 mm
Number of bottom fans supported (max)	3
Top fans diameters supported	120,140 mm
Number of top fans supported (max)	3
Rear fans diameters supported	120 mm
Number of rear fans supported (max)	1
Rear fans installed	1x 120 mm
Side fans diameters supported	120,140 mm
Number of side fans supported (max)	3
Side fans installed	3x 120 mm

Storage
Supported HDD sizes	2.5,3.5"

Technical details
Compliance certificates	CE, UKCA

Weight & dimensions
Weight	7.3 kg
Height	380 mm
Depth	475 mm
Width	285 mm

Other features
Screws included	Yes
