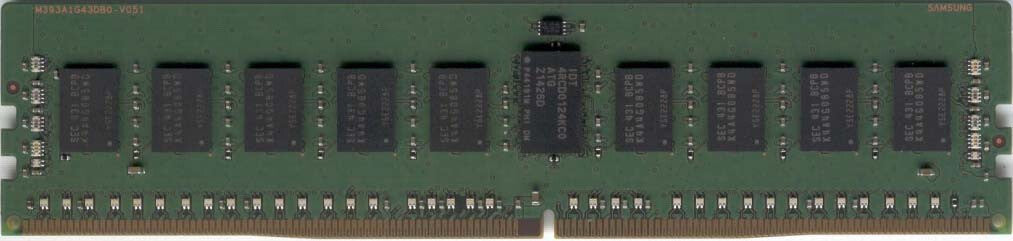

Dataram DTM68127-H memory module 8 GB 1 x 8 GB DDR4 288-pin DIMM ECC
Spread the cost with Klarna, Clearpay or PayPalFrom 3 interest-free payments of £23.99 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
Pay in full today. We'll dispatch it for release day and email you tracking as soon as it ships.
Get an email if it's back in stock
If this comes back in stock, we'll send you one email. No spam, and you can stop alerts at any time.
You're on the list
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- 288-pin JEDEC-compliant DIMM, 133.35 mm wide by 31.25 mm high
- Operating Voltage: VDD/VDDQ = 1.2V (1.14V to 1.26V)
- VPP = 2.5V (2.375V to 2.75V)
- VDDSPD = 2.25V to 2.75V
- I/O Type: 1.2 V signaling
- On-board I2C temperature sensor with integrated Serial Presence-Detect (SPD) EEPROM
- Data Transfer Rate: 21.3 Gigabytes/sec
- Data Bursts: 8 and burst chop 4 mode
- ZQ Calibration for Output Driver and On-Die Termination (ODT)
- Programmable ODT / Dynamic ODT during Writes
- Programmable CAS Latency: 10, 12, 13, 14, 15, 16, 17, 18 and 19
DTM68127-H is a registered 1Gx72 memory module, which conforms to JEDEC's PC4-2666 standard. The assembly is Single-Rank with a rank containing: nine SKHynix 1Gbx8 DDR4-2666 SDRAMs. One 4K-bit EEPROM is used for Serial Presence Detect and a combination register/PLL, with Address and Command Parity is also used. Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology. A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.
Specifications
Features
| Memory voltage | 1.2 V |
|---|---|
| ECC | Yes |
| Memory form factor | 288-pin DIMM |
| Component for | PC/Server |
| Memory clock speed | 2666 MHz |
| Internal memory type | DDR4 |
| Memory layout (modules x size) | 1 x 8 GB |
| Internal memory | 8 GB |
| Buffered memory type | Registered (buffered) |
Technical details
| Compliance certificates | RoHS |
|---|
Show all 12 specificationsShow fewer specifications
Weight & dimensions
| Height | 31.2 mm |
|---|---|
| Width | 133.3 mm |
