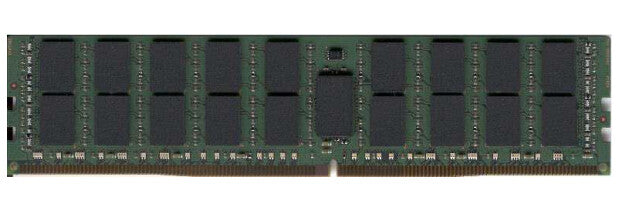

Dataram DRL3200RD8/16GB memory module 1 x 16 GB DDR4 ECC
Spread the cost with Klarna, Clearpay or PayPalFrom 3 interest-free payments of £36.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
Pay in full today. We'll dispatch it for release day and email you tracking as soon as it ships.
Get an email if it's back in stock
If this comes back in stock, we'll send you one email. No spam, and you can stop alerts at any time.
You're on the list
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- 288-pin JEDEC-compliant DIMMs
- 133.35 mm wide by 31.25 mm high (5.25” x 1.23”)
- Data Transfer Rate: 25.6 Gigabytes/sec
- Operating Voltage: 1.2V (1.14V~1.26V)
- Fully RoHS Compliant
- Thermal Sensor
The DRL3200R upgrades are registered memory which conform to JEDEC's DDR4-3200, PC4-3200AA standard.
One EEPROM is used for Serial Presence Detect and a combination register/PLL, with Address and Command Parity is also used.
A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 85C.
Specifications
Features
| Memory voltage | 1.2 V |
|---|---|
| ECC | Yes |
| Memory form factor | 288-pin DIMM |
| Component for | PC/Server |
| Memory clock speed | 3200 MHz |
| Internal memory type | DDR4 |
| Memory layout (modules x size) | 1 x 16 GB |
| Internal memory | 16 GB |
Technical details
| Compliance certificates | RoHS |
|---|
Show all 12 specificationsShow fewer specifications
Weight & dimensions
| Height | 31.2 mm |
|---|---|
| Depth | 3.98 mm |
| Width | 133.3 mm |
