Datalogic · MPN: 945550002
£1,398.99
inc. VAT
Spread the cost with Klarna, PayPal, Float or SnapFrom 3 interest-free payments of £466.33 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Key specs

  • Display resolution240 x 320 pixels
  • Wi-Fi standards802.11a, 802.11b, 802.11g
  • Keyboard layoutAlphanumeric
All specifications

Out of stock

FREE delivery

Express £9.99

Overview

  • Choice of Microsoft Windows Embedded Compact 7 (WEC7) or Android® v4.4
  • Equipped with Datalogic’s new 2D Megapixel white illumination imager and the revolutionary green line 1D linear scan engine
  • Superior Wi-Fi connectivity with 802.11 a/b/g/n and MIMO antenna technology
  • Featuring Datalogic’s patented ‘Green Spot’ technology for good-read feedback and SoftSpot for soft trigger applications
  • Accessories of the Falcon X3+ are fully compatible with the Falcon X4
  • Available in either a hand held model or a pistol-grip model; both models can be converted

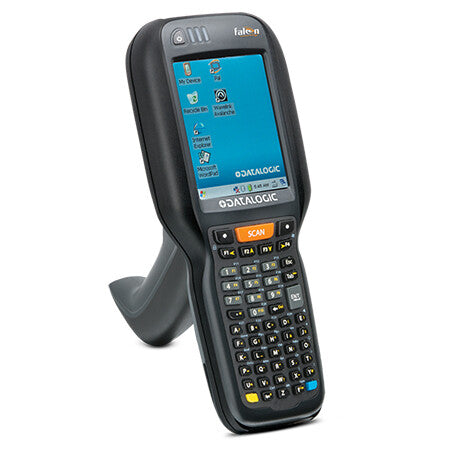

Leveraging well-known ergonomics and the elegant design of the Falcon product line, the Falcon X4 mobile computer represents the next generation of Datalogic’s flagship product. The Falcon X4 mobile computer is ideal for both Retail and Logistics applications both on the store floor and in the back office/warehouse.

Datalogic core technologies for data capture enable top scanning performance in reading any kind of 1D and 2D codes. The new Auto Range 2D imager scans from near to extremely far distances. Communicate over a superior TI 802.11 a/b/g/n radio with CCX v4 compliance and MIMO antenna technology for improved connectivity and coverage, or through wired standards including USB Hi-Speed, RS-232, Modem and Ethernet. Bluetooth® v4 provides support for the new low energy mode (BLE) and for improved voice recognition via wide band audio on Android models.

The Falcon X4 mobile computer is fully compatible with previous Falcon X3+ accessories and with most any existing CE applications. The Falcon X4 mobile computer represents full protection for past investments of our end users and partners, but it also enables a new path to innovation and to the recent industry trends with the Android™ version (also upgradable from Windows® WEC7 models).

The new Auto Range scanning capability allows the Falcon X4 to scan up to 15.0 m / 49.2 ft while providing superior performance and user experience of Datalogic scanning technology.

Specifications

Display

Display number of colours65536 colours
TouchscreenYes
DisplayTFT
Display resolution240 x 320 pixels
Display diagonal8.89 cm (3.5")

Memory

Maximum memory card size32 GB
Compatible memory cardsSDHC
Flash memory8 GB
Internal memory1 GB
Show all 44 specificationsShow fewer specifications

Processor

Built-in processorYes
Processor manufacturerTexas Instruments
Processor frequency1 GHz

Network

Security algorithmsCCX v4
Data networkNot supported
Bluetooth version2.1+EDR
BluetoothYes
Wi-Fi standards802.11a, 802.11b, 802.11g
Wi-FiYes

Camera

Built-in cameraNo

Audio

Voice recordingYes
SpeakersYes
Built-in microphoneYes

Ports & interfaces

RS-232 input ports1
USB 2.0 ports quantity1

Performance

CertificationRoHS
International Protection (IP) codeIP65
Drop proofYes
Handle(s)Yes
Keyboard layoutAlphanumeric
Phone functionNo
2D (matrix & stacked) barcodes supportedAztec Code, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
Barcode readerYes
Product colourBlack

Software

Operating system installedWindows Embedded Compact 7

Power

Battery voltage3.7 V
Battery technologyLithium-Ion (Li-Ion)
Battery capacity5200 mAh

Weight & dimensions

Height225 mm
Depth168 mm
Width88 mm
Weight668 g

Operational conditions

Storage temperature (T-T)-30 - 70 °C
Operating temperature (T-T)-20 - 50 °C

Packaging content

Pistol-grip handle includedYes
