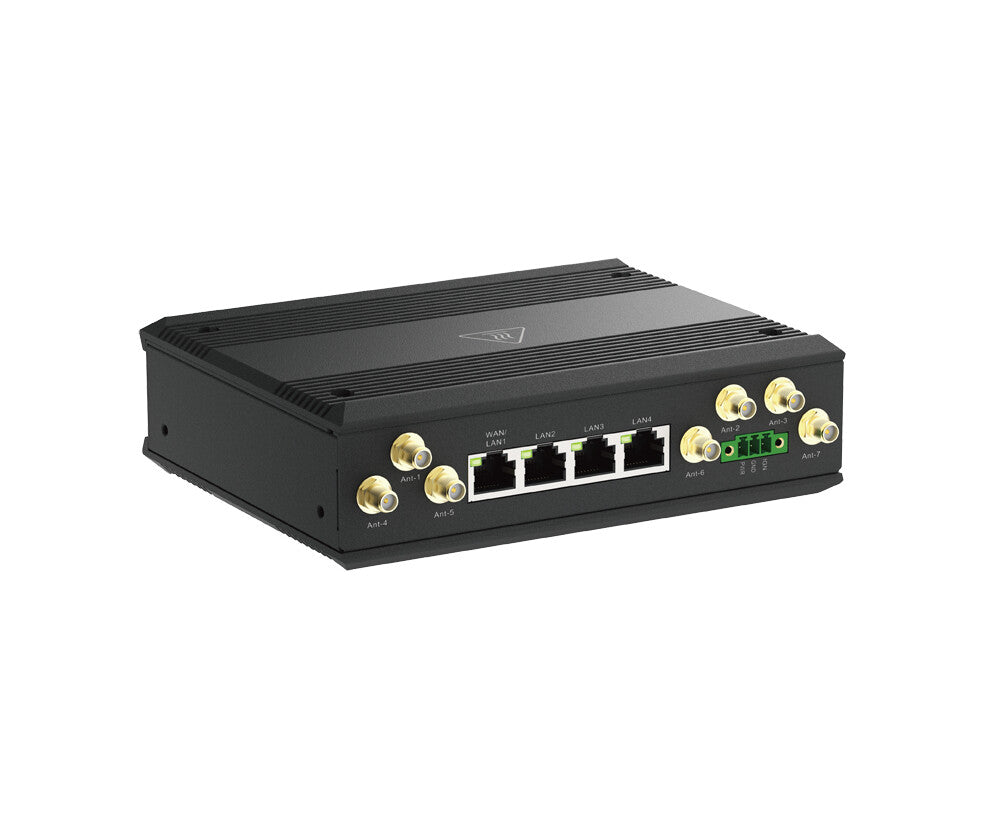

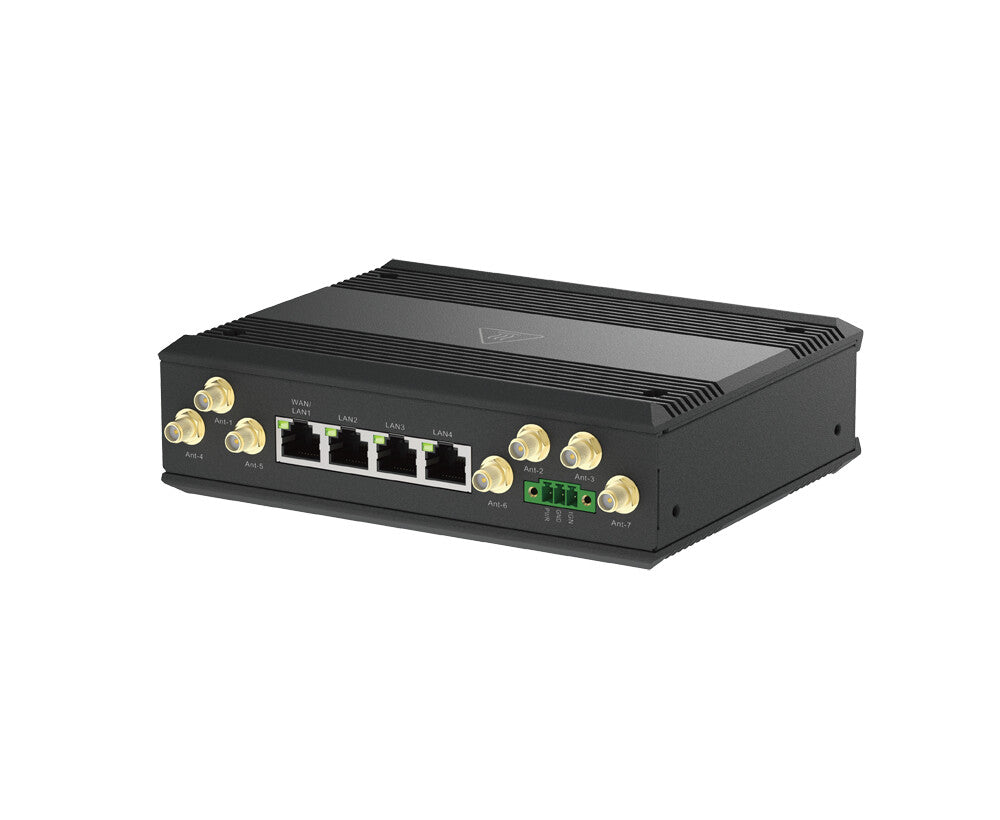

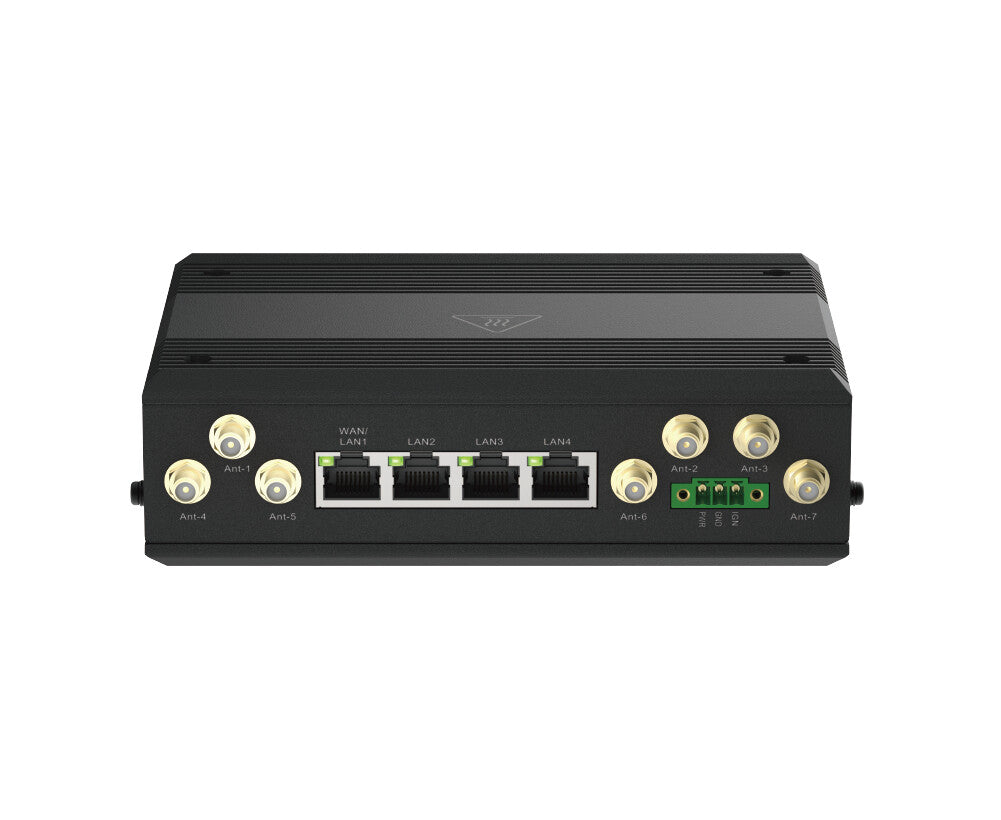

D-Link 5G Transit Router
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £145.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- 5G SA & NSA with dual SIM slots for cellular WAN failover redundancy
- 4 x Gigabit Ethernet ports
- Wi-Fi 6 AX1800 to connect multiple on-board devices
- 1 x IGN (Ignition Sense) for power control function
- GNSS for GPS/GLONASS
- -30 to 70°C operating temperature to resist harsh environments
- Wide voltage range input: DC 12-36V
- Mounting bracket allows for optimal device placement
5G SA & NSA
Leverage flexible 4G/5G dual-mode compatibility to adapt seamlessly to diverse carrier networks.
Wi-Fi 6 AX1800
Enhanced service efficiency via high-speed Wi-Fi for seamless access for passenger and connected devices.
Dual-SIM Failover
Two SIM slots with failover redundancy for critical applications to ensure reliable cellular WAN connectivity and business continuity.
EN50155 / E-Mark Certified
Compliant with EN50155 and E-Mark certifications to ensure the reliability and safety for the smart transportation.
GPS Location
Real-time tracking enables routing services to minimize travel time and optimize fleet efficiency.
Wide Voltage Input Range
Safely accepts power input from various on-board power sources for convenient installation.
Enhanced Passenger Wi-Fi and Real-Time Telematics
The DTM-550-G 5G Transit Gateway transforms public transport experiences by providing high-speed in-vehicle Wi-Fi and real-time content updates. Passengers can enjoy seamless internet access and receive instant updates on weather and advertisements directly on digital signage, enhancing satisfaction in intelligent public transportation.
Optimize Vehicle Operation with Location-Based Services
The DTM-550-G equips fleet vehicles with precise GPS location positioning, integrating seamlessly into customer’s fleet management for real-time vehicle tracking, and optimizing route planning. This enhances operational visibility and efficiency and supports improved decision-making.
Robust Design with Vibration/Shock Resistance
Certified with EN50155 and E-Mark, the DTM-550-G design withstands vibrations, shocks, and extreme temperatures, ensuring data transmission stability even in moving vehicles. Ideal for demanding M2M applications in public transportation, it meets rigorous safety and regulatory standards for seamless automotive integration.
Specifications
Design
| LED indicators | Yes |
|---|---|
| Reset button | Yes |
| Product colour | Black |
| Device type | Cellular network gateway |
Ethernet LAN features
| DHCP server | Yes |
|---|---|
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
Show all 33 specificationsShow fewer specifications
Wireless LAN features
| WLAN data transfer rates supported | 574,1201 Mbit/s |
|---|---|
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Wi-Fi | Yes |
Mobile network
| Number of SIM cards | 2 |
|---|---|
| 5G standard | Sub6 NSA, Sub6 SA |
| 4G standard | LTE |
| Data network | 4G, 5G |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 4 |
|---|
Security
| Port forwarding | Yes |
|---|---|
| DMZ support | Yes |
| Firewall | Yes |
| Network address translation (NAT) | Yes |
| Security algorithms | AES, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3-Enterprise, WPA3-SAE |
Performance
| Antennas quantity | 7 |
|---|---|
| Antenna connector type | SMA |
| Antenna type | External |
Power
| Input voltage | 12 - 36 V |
|---|---|
| Power source type | DC |
Operational conditions
| Operating temperature (T-T) | -30 - 70 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 95% |
Weight & dimensions
| Height | 47 mm |
|---|---|
| Depth | 120 mm |
| Width | 160 mm |
Manuals & downloads
