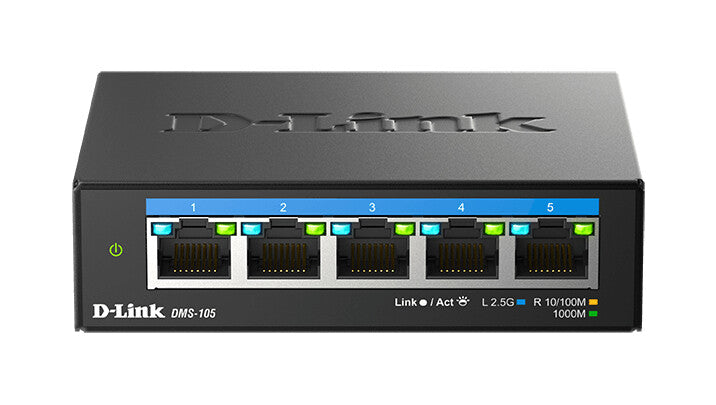

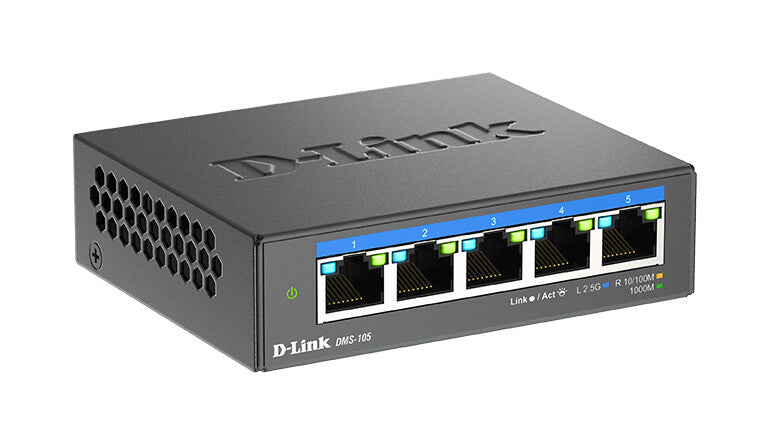

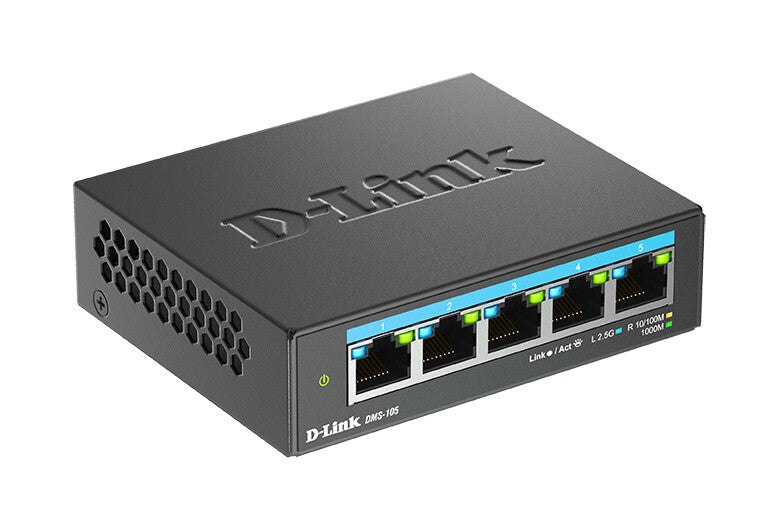

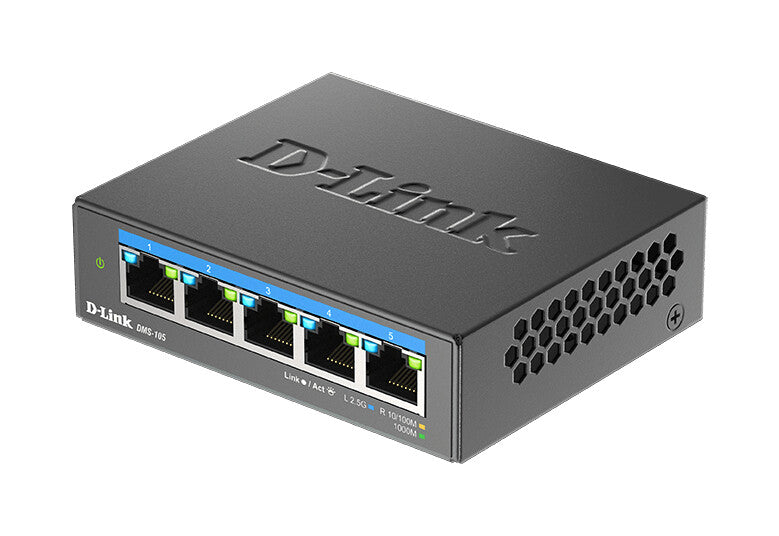

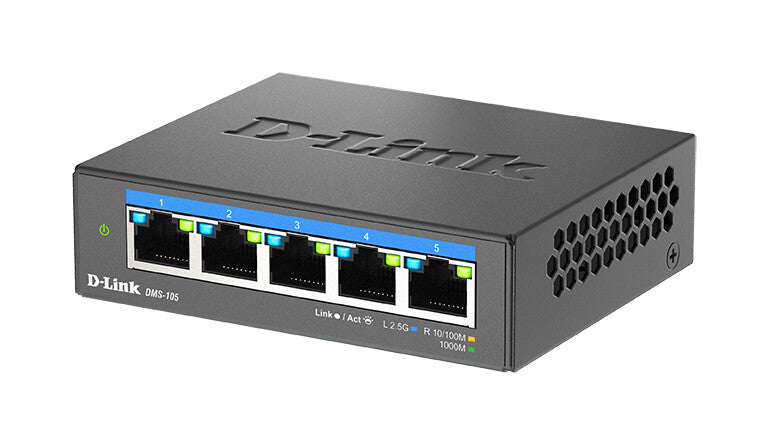

D-Link 5-Port 2.5G Multi-Gigabit Desktop Switch
Spread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £30.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- x5 2.5Gbps Ethernet ports
- 25 Gbps switching capacity
- IGMP Snooping
- QoS & Flow Control
- Durable metal housing
- Energy efficient, fanless
- Plug & play installation
- Ideal for Wi-Fi 6
Small switch. Multi-Gigabit Ethernet.
Maximise network throughput with 2.5Gbps Multi-Gigabit Ethernet on each port of this compact 5-port switch. Whether it’s to connect to your core or create a network between devices, now you can easily start sharing an internet connection, files, music, and video, or for gaming without bottlenecks.
2.5 Gigabit Ethernet
Save time transferring large files and improve sharing and productivity
Effortless multi-Gigabit networking
Easily upgrade or extend your home or small business network
Compact Metal Housing
Sturdy, compact metal housing with fanless design for silent operation
Energy Efficient Design
Automatic power saving features to reduce power usage
Plug-and-pay convenience.
The DMS-105 is a plug-and-play device that requires no configuration to get started. Plug-and-play makes it easy to instantly create a network without any technical knowledge.
Effortless traffic optimisation.
With 2.5 Gigabit transfer speeds from every port, you can rapidly transfer files between connected servers and network attached storage (NAS) to computers. The Quality of Service (QoS), and Flow Control features automatically prioritises important data for efficient delivery. And the IGMP Snooping function reduces unwanted multicast traffic so you can enjoy seamless video streaming and IPTV viewing experiences.
Designed for life, built to last.
The DMS-105 has a sturdy and compact metal housing to ensure the product can withstand wider operating temperatures by helping to dissipate heat and reduce stress on internal components.
Energy Saving.
The DMS-105 is designed with energy efficiency in mind. The fanless design eliminates a common point of failure and means the switch can be placed virtually anywhere and operate silently. The Link Status detection feature of the switch saves power by automatically powering down ports that are inactive or not connected, and it supports the IEEE 802.3az Energy-Efficient Ethernet standard.
Ready for Wi-Fi 6.
You can add a Wi-Fi 6 Access Point to your network to any of the 2.5 Gbps ports to maximise throughput and speed. Multi-Gigabit Ethernet eliminates potential bottlenecks with Wi-Fi 6 Access Points, allowing your network to take full advantage of the efficiency and speeds provided by Wi-Fi 6.
Specifications
Management features
| Switch type | Unmanaged |
|---|---|
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 5 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| 2.5G Ethernet (copper) ports quantity | 5 |
Show all 40 specificationsShow fewer specifications
Network
| Networking standards | IEEE 802.1p, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
|---|---|
| 10G support | No |
| MAC address auto-learning supported | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Data transmission
| MAC address table | 4000 entries |
|---|---|
| Switching capacity | 25 Gbit/s |
| Forwarding rate | 18.6 Mpps |
| Store-and-forward | Yes |
| Packet buffer memory | 8.1 MB |
Security
| IGMP snooping | Yes |
|---|
Multicast features
| Multicast support | Yes |
|---|
Design
| Stackable | Yes |
|---|---|
| Product colour | Black |
| LED indicators | Activity, Link, Power |
Performance
| Fanless | Yes |
|---|---|
| Mean time between failures (MTBF) | 765190 h |
Power
| Power source | DC |
|---|---|
| Power supply included | Yes |
| DC input voltage | 12 V |
| Input current | 1 A |
| Power consumption (typical) | 4.918 W |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 16.78 BTU/h |
Weight & dimensions
| Width | 100.5 mm |
|---|---|
| Depth | 82 mm |
| Height | 28 mm |
| Weight | 238.6 g |
Sustainability
| Sustainability compliance | Yes |
|---|
Certificates
| Compliance certificates | BSMI, CE, Low Voltage Directive (LVD), RoHS |
|---|
