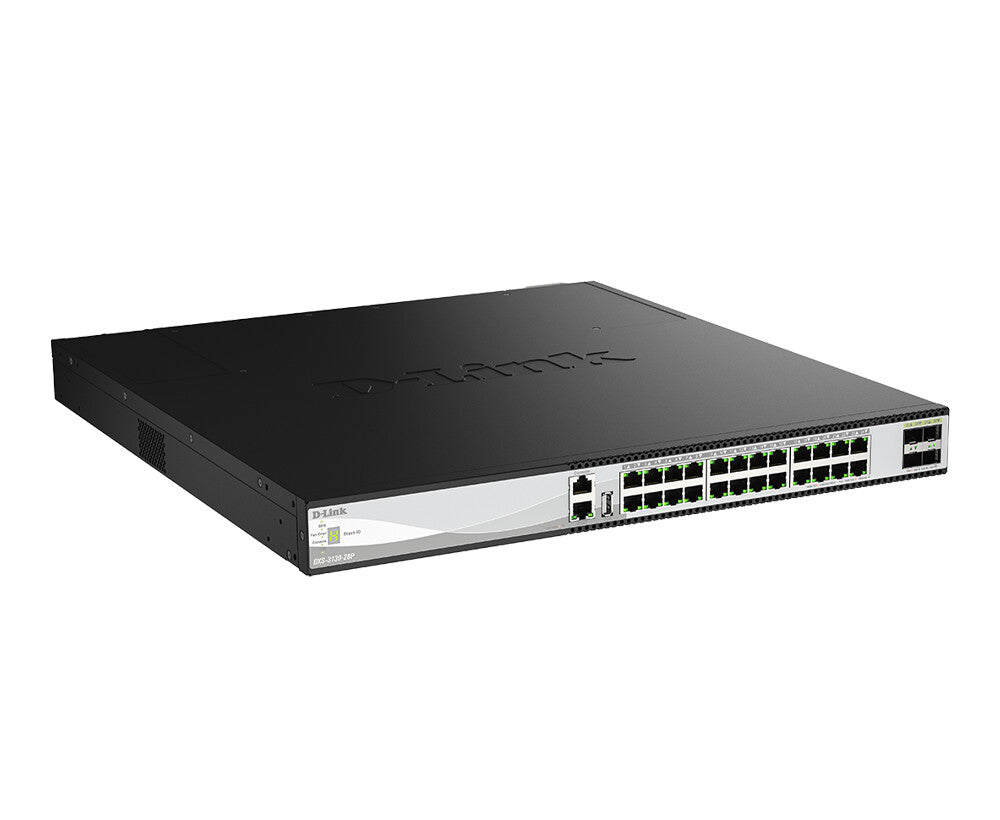

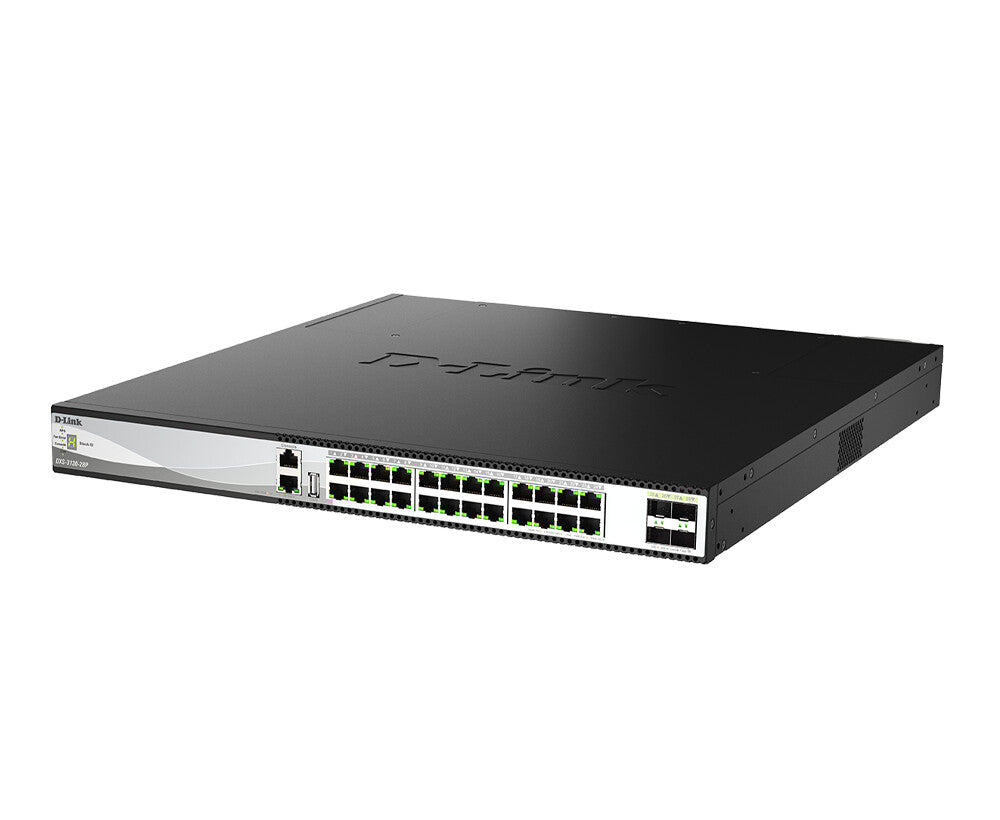

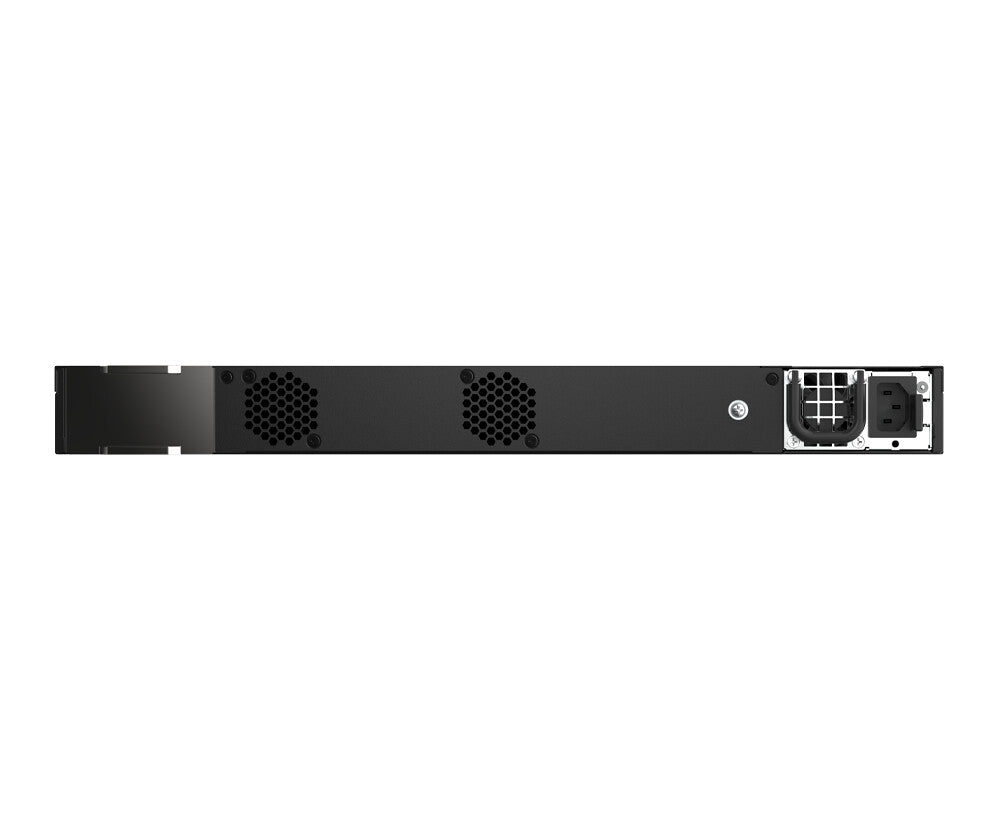

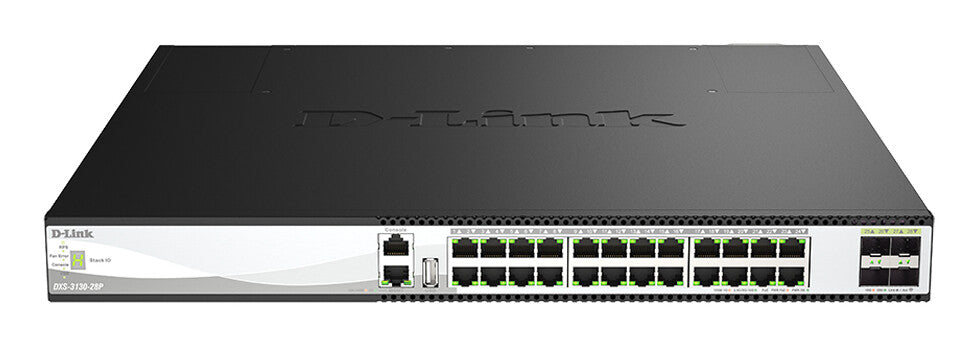

D-Link 28-Port 10G Multi-Gigabit Layer 3 Stackable PoE++ Managed Switch with 25G Uplinks
Spread the cost with Klarna, Float or SnapFrom 3 interest-free payments of £1,003.66 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- 24 Ports 10G/multi-Gigabit for downlink
- 4 Ports 10/25G SFP28 for uplink
- PoE IEEE802.3af/at/bt options, power budget 790 W
- 6kV surge protection on 10G Ethernet ports
- Physical stack of up to 9 units via four 25G ports
- 200 Gbps per-device physical stacking bandwidth
- RIP/RIPng, OSPFv2/v3, VRRP for L3 routing
- IEEE 802.1ag for Connectivity Fault Management
- Green features for reduced power consumption
- Manage through the Nuclias Network Controller
Versatile Traffic Management
Optimizes critical services with QoS, traffic shaping, multicast support, and ISM VLAN for enhanced efficiency
High-Power PoE
24 PoE ports support up to 60 W each, with a 790 W budget expandable to 1440 W—ideal for 10G PoE devices
Boosted Network Reliability
Two hot-swappable power modules enable 1+1 redundancy and load sharing for uninterrupted power and reliability
Advanced Security for Access
Supports authentication mechanisms such as 802.1X, Web/MAC-based access control for the easy deployment
High Availability and Scalability
Stack up to 9 switches with 200 Gbps bandwidth and unified IP for simplified control, fast failover and solid redundancy
Efficient Layer 3 Routing
Enables Layer 3 routing between different parts of your network, improving efficiency by directing traffic to its optimal destination
High-Speed Versatile Switching
Featuring 24×10G multi-Gigabit ports + 4×10/25G SFP28 uplinks, this switch delivers flexible, high-performance connectivity. The 100M-10G auto-sensing ports optimize speed while 25G-capable uplinks handle heavy traffic.
Perfect as a core switch for SMBs, enterprise aggregation, or Metro Ethernet edge, it combines rich software features with robust security for diverse deployments.
Power You Can Rely On
The DXS-3130-28P supports 802.3af/at/bt PoE standards, delivering up to 60 W per port with Perpetual and Fast PoE.
The DXS-3130-28P offers a 790 W PoE budget, expandable to 1440 W with dual power supplies powering more devices with ease.
PoE enables simple deployment of IP cameras, APs, and VoIP phones over standard Ethernet, reducing the need for separate electrical wiring.
- Perpetual PoE
Maintains power to connected devices during Power Sourcing Equipment (PSE) switch reboots
- Fast PoE
Delivers power to connected devices quickly, without waiting for the switch operating system to fully boot
- PD-Alive
PD-Alive auto-reboots unresponsive IP devices to ensure continuous operation and monitors their status
Unified the Power, Stack for Success
Scale your network with the DXS-3130-28P by stacking up to 9 switches into a single physical or virtual unit. This simplifies management, improves redundancy, and allows control of the entire stack through one IP address. With up to 200 Gbps, physical stacking boosts capacity to meet growing network demands.
Built for Unbreakable Networks
The DXS-3130-28P ensures continuous uptime with redundant power and stacking. It's 50ms ERPS recovery minimizes downtime, loop back detection blocks storm-affected ports, and VRRP provides seamless backup routing making it ideal for hospitals, factories, and other mission-critical networks.
Optimized Performance for Critical Services
The DXS-3130-28P switch prioritizes mission-critical traffic like VoIP and IPTV through advanced QoS/CoS, traffic shaping, and L2 Multicast (IGMP/MLD Snooping). ISM VLAN further enhances bandwidth efficiency and security for multicast streaming.
- Advanced QoS/CoS
Prioritizes critical traffic like VoIP and video, ensuring smooth performance and minimal latency for time-sensitive applications
- IGMP/MLD Snooping
Multicast traffic streams only to intended recipients, reducing unnecessary bandwidth usage and enhancing network efficiency
- ISM VLAN
Controls multicast across VLANs to reduce traffic and enhance security and performance on the large-scale network
Specifications
Management features
| System event log | Yes |
|---|---|
| Traffic classification | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
Ports & interfaces
| Power connector | AC-in jack |
|---|---|
| USB 2.0 ports quantity | 1 |
| SFP28 ports quantity | 4 |
| 10G Ethernet (copper) ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
Show all 71 specificationsShow fewer specifications
Network
| Number of VLANs | 4000 |
|---|---|
| VLAN support | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Rate limiting | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 10,100,1000,2500,10000 Mbit/s |
| Spanning tree protocol | Yes |
| IP routing | Yes |
| Policy-based routing | Yes |
| Port mirroring | Yes |
| 10G support | Yes |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x |
Data transmission
| Packet buffer memory | 4 MB |
|---|---|
| Jumbo frames | 12000 |
| Jumbo frames support | Yes |
| Number of static routes | 512 |
| Static route | Yes |
| Forwarding rate | 505.92 Mpps |
| Switching capacity | 680 Gbit/s |
| MAC address table | 32000 entries |
Security
| Loop protection | Yes |
|---|---|
| Security algorithms | SNMP, SNMPv2, SNMPv3 |
| Authentication type | RADIUS, TACACS+ |
| Password protection | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) ingress | 3072 |
| Access Control List (ACL) egress | 1024 |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server, DHCP snooping |
Multicast features
| Multicast support | Yes |
|---|
Design
| Number of fans | 2 fan(s) |
|---|---|
| LED indicators | Yes |
| Product colour | Black, Grey |
| Stackable | Yes |
| Rack mounting | Yes |
Performance
| Mean time between failures (MTBF) | 286495.2 h |
|---|---|
| Noise level | 50.01 dB |
Power
| Power consumption (max) | 1782.37 W |
|---|---|
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power supply included | Yes |
| Power source | AC |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) power per port | 60 W |
|---|---|
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Heat dissipation | 3439.64 BTU/h |
|---|---|
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 5 - 50 °C |
Weight & dimensions
| Weight | 6.48 kg |
|---|---|
| Height | 44 mm |
| Depth | 250 mm |
| Width | 440 mm |
Packaging content
| Quick start guide | Yes |
|---|
