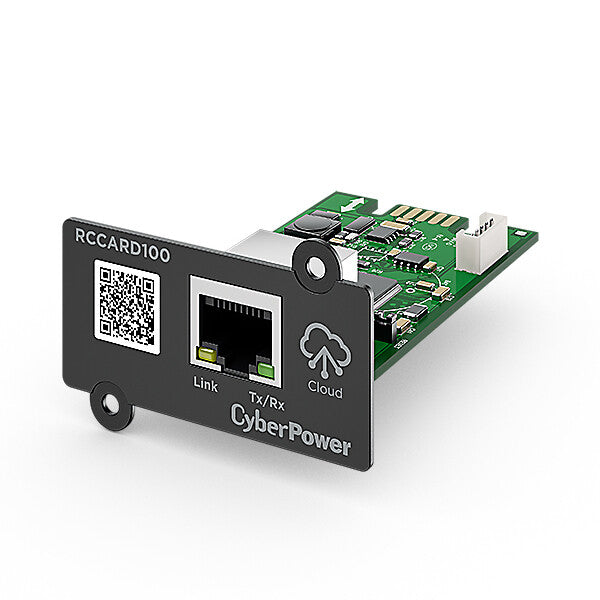

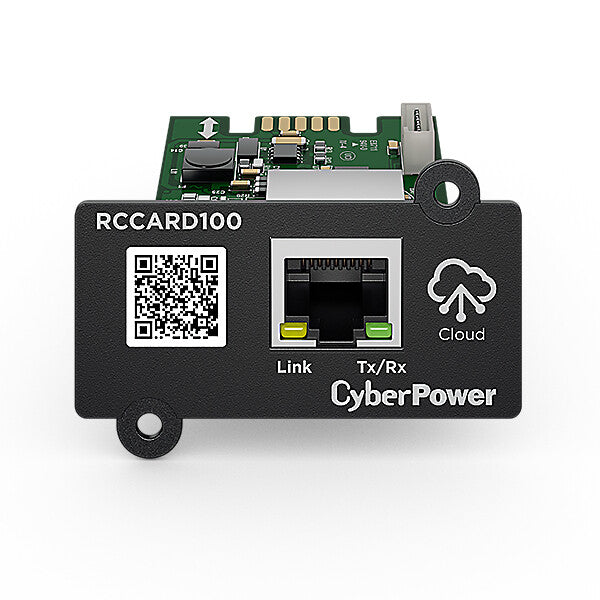

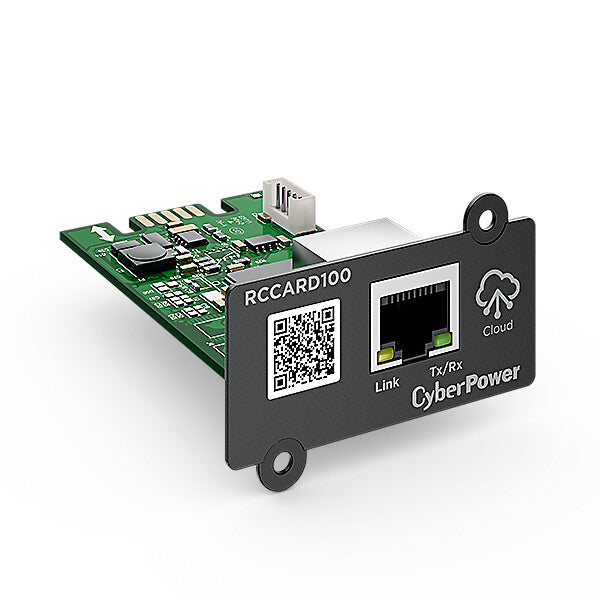

CyberPower RCCARD100 network card Internal Ethernet 100 Mbit/s
iFrame
£62.99
Couldn't load pickup availability
- UPS Management through Cloud
- Plug-and-play Installation
- RoHS Compliant
- QR Code for Quick Setup
- User-upgradeable Firmware
CyberPower RCCARD100 is an optional management add-on to specific CyberPower UPS series. By inserting the card into the expansion slot on the UPS, users can add the UPS to the PowerPanel® Cloud system, thus enabling remote monitoring and management of the UPS, through a secure web portal or mobile app.
The card is plug-and-play design and features hot-swappable capability, allowing quick and easy installation without interrupting the operation of the UPS. In addition, the card supports user-upgradeable firmware, so users are able to keep the functionality up-to-date with ease.
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Interface | Ethernet |
| Connectivity technology | Wired |
| Network | |
|---|---|
| Cabling technology | 10/100BaseT(X) |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Maximum data transfer rate | 100 Mbit/s |
| Design | |
|---|---|
| Certification | CE, FCC Class B, RoHS |
| Country of origin | China |
| LED indicators | TX / RX, Link |
| Plug and Play | Yes |
| Product colour | Black, Green, Metallic |
| Component for | PC |
| Internal | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -10 - 50 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 31 g |
| Height | 36.1 mm |
| Depth | 76.5 mm |
| Width | 54 mm |
| Packaging data | |
|---|---|
| Package weight | 300 g |
| Package height | 165 mm |
| Package depth | 60 mm |
| Package width | 170 mm |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 8473302000 |
