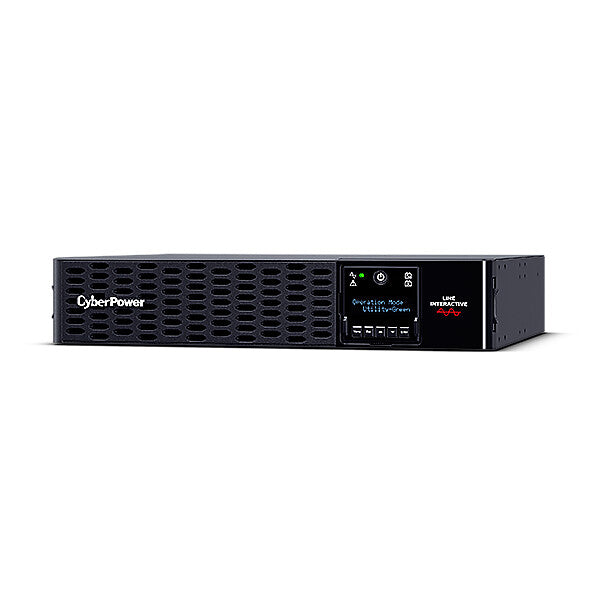

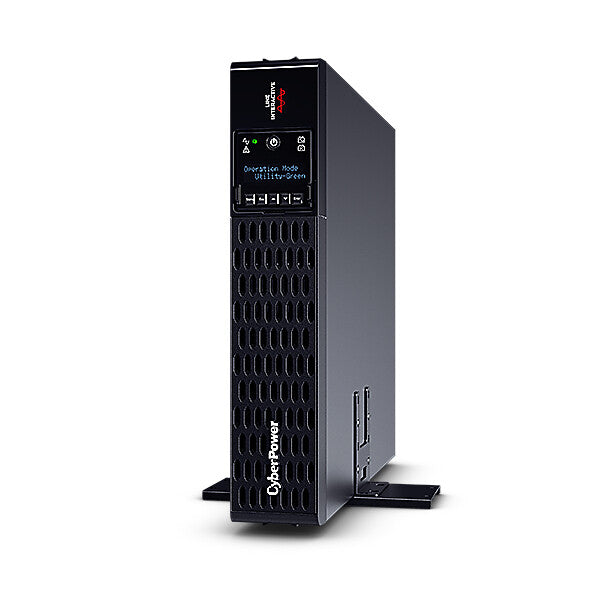

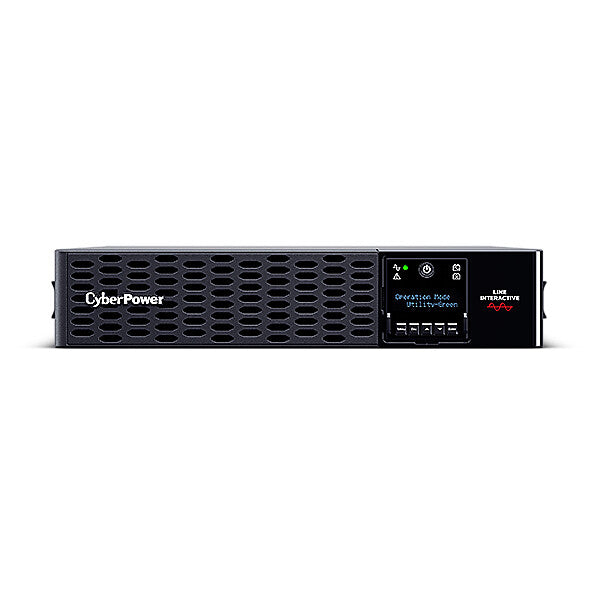

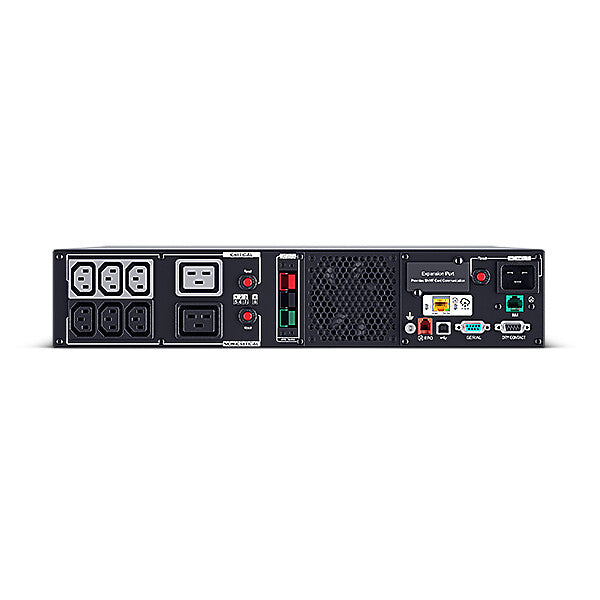

CyberPower PR3000ERTXL2UC uninterruptible power supply (UPS) Line-Interactive 3 kVA 3000 W 8 AC outlet(s)
Couldn't load pickup availability
- Line-interactive UPS Topology
- Active PFC Compatible
- Toolless Battery Replacement
- High Output Power Factor
- Overload Protection
- Quick Charging Technology
- Extended Battery Module (EBM)
- EMI and RFI Filtration
- USB Connectivity Port
- Emergency Power Off (EPO) Port
- SNMP/HTTP Remote Management Capability (Optional)
- Energy Saving Technology
- Pure Sine Wave Output
- Battery Management Technology
- Automatic Voltage Regulation (AVR)
- Critical/Non-critical Load Outlets
- Hot-swappable Batteries
- Surge and Spike Protection
- LCD Status Display
- Serial Connectivity Port
- PowerPanel Management Software
- Built-in Remote Cloud Card by Ethernet
CyberPower PR3000ERTXL2UC with rackmount design guarantees power backup protection for home theater systems, multimedia devices, IT equipment, computers, workstations, NAS/Storage devices, telecom devices, networking devices, and surveillance systems. The UPS adopts line-interactive topology with Automatic Voltage Regulation (AVR) function, and offers stabilized Pure Sine Wave output to ensure high power quality.
The UPS’s output power factor is 1, which means it is capable of connecting to more critical loads than conventional UPS. It also features Battery Management Technology to help batteries obtain optimal life span by balancing battery string voltage. The quick charging technology allows fast and safe battery charging. Its multi-functional matrix LCD supports intuitive operation and quick configuration. The LCD panel is also rotatable to meet installation requirements.
| Features | |
|---|---|
| UPS topology | Line-Interactive |
| Output power capacity | 3 kVA |
| Output power | 3000 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 148 V |
| Input operation voltage (max) | 288 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Automatic Voltage Regulation (AVR) | Yes |
| Maximum current | 16 A |
| Surge energy rating | 2430 J |
| Response time | 6 ms |
| Heat dissipation | 192.5 BTU/h |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Output power factor | 1 |
| Power Factor Correction (PFC) type | Active |
| Emergency Power Off (EPO) | Yes |
| EMI/RFI noise filtering | Yes |
| Surge protection | Yes |
| Power protection features | Overload |
| Audible alarm modes | Alarm when on battery, Fault, Low battery alarm, Overload alarm |
| Detachable power cord | Yes |
| Power source type | AC |
| Ports & interfaces | |
|---|---|
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | C20 coupler |
| AC outlets quantity | 8 AC outlet(s) |
| USB port | Yes |
| USB port type | USB Type-B |
| USB 2.0 ports quantity | 1 |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| RS-232 ports | 2 |
| Serial ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| Emergency Power Off (EPO) connector | Yes |
| Battery | |
|---|---|
| Battery technology | Sealed Lead Acid (VRLA) |
| Number of batteries supported | 1 |
| Typical backup time at full load | 1.7 min |
| Typical backup time at half load | 7.1 min |
| Battery recharge time | 3 h |
| Hot-swap battery | Yes |
| Design | |
|---|---|
| Form factor | Rackmount/Tower |
| Product colour | Black |
| Housing material | Metal |
| Extended battery module rack capacity | 2U |
| Rack capacity | 2U |
| Cable length | 3.05 m |
| Cooling type | Active |
| Built-in fan | Yes |
| Control type | Buttons |
| Display type | LCD |
| LED indicators | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Packaging content | |
|---|---|
| Batteries included | Yes |
| Rack mount kit | Yes |
| Cables included | Serial |
| Manual | Yes |
| Certificates | |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RCM, RoHS, UL, VCCI |
| Weight & dimensions | |
|---|---|
| Width | 433 mm |
| Depth | 500 mm |
| Height | 86.5 mm |
| Weight | 32.8 kg |
| Packaging data | |
|---|---|
| Package width | 560 mm |
| Package depth | 620 mm |
| Package height | 275 mm |
| Package weight | 40.8 kg |
| Package type | Box |
| Logistics data | |
|---|---|
| Country of origin | China |
| Other features | |
|---|---|
| Battery type | RBP0128 |
