CyberPower

iFrame
×
£86.99
Stock Available: 12
  • Single-phase Basic 1U Black
  • 12 AC outlet(s) C13 coupler
  • Circuit breaker

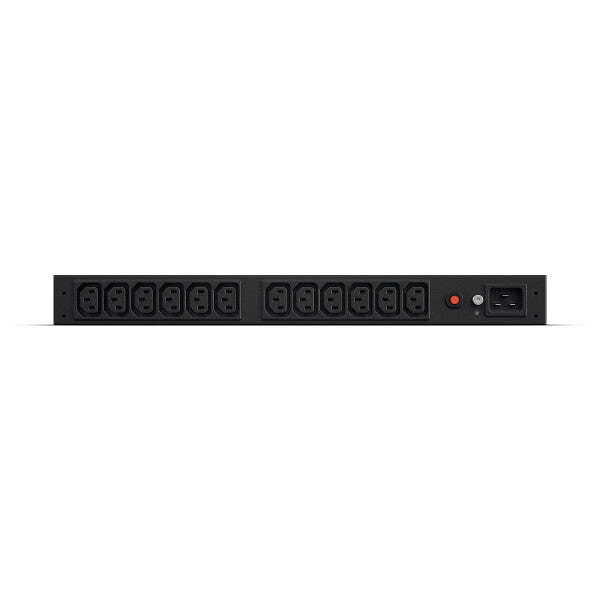

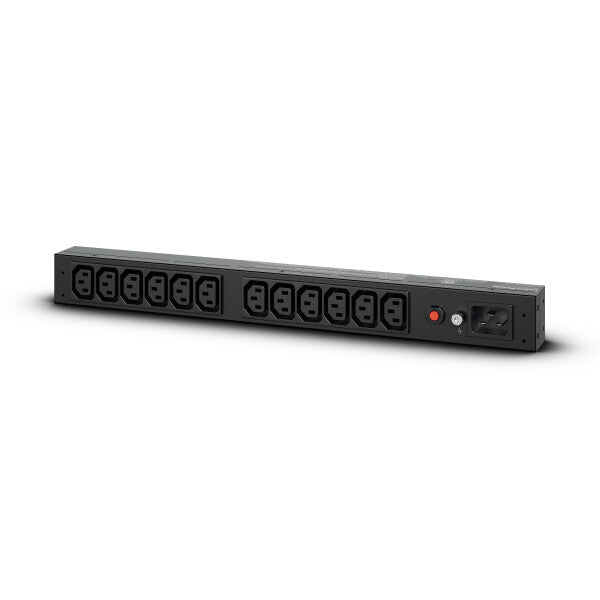

The CyberPower 12-outlet (12 Rear) rack mount basic power distribution unit (PDU20BHVIEC12R) provides 208V/230V 20A output. It distributes power to 12 IEC-320 C13 receptacles from a single IEC-320 C20 plug, with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.

- 12 IEC-320 C13 output receptacles
- Single IEC-320 C20 plug
- 20-amp electrical capacity with circuit breaker
- 208/230V - 50/60Hz
- 1U rack mount
- 10-ft. power cord

Design
Product colour Black
Housing material Steel
Mounting Horizontal/Vertical
Rack capacity 1U
Type Single-phase
PDU types Basic
Ports & interfaces
AC outlet types C13 coupler
Power plug C20 coupler
AC outlets quantity 12 AC outlet(s)
Features
Cable length 3.05 m
Power
Circuit breaker Yes
Power protection features Overload
Surge protection Yes
Nominal output voltage 200 - 240 V
Maximum current 16 A
AC input frequency 50 / 60 Hz
Nominal input voltage 200 - 240 V
Certificates
Certification UL60950_1 ETL, CSA C22.2
Compliance certificates RoHS
Sustainability
Sustainability compliance Yes
Operational conditions
Non-operating altitude 0 - 15000 m
Operating altitude 0 - 3000 m
Operating relative humidity (H-H) 0 - 95%
Storage relative humidity (H-H) 0 - 95%
Storage temperature (T-T) -15 - 45 °C
Operating temperature (T-T) 0 - 35 °C
Weight & dimensions
Dimensions (W x D x H) (imperial) 444.5 x 38.1 x 44.5 mm (17.5 x 1.5 x 1.75")
Weight (imperial) 0.907 kg (2 lbs)
Weight 900 g
Height 44.5 mm
Depth 38.1 mm
Width 445 mm
Packaging content
Packaging content PDU20BHVIEC12R, User's Manual, Product Registration Card, Cord Retention Tray, Mounting Brackets, Cable Ties, Screw Kit
Packaging data
Package height 233 mm
Package depth 330 mm
Package width 530 mm
Package weight 15 kg
Logistics data
Warranty period 2 year(s)
