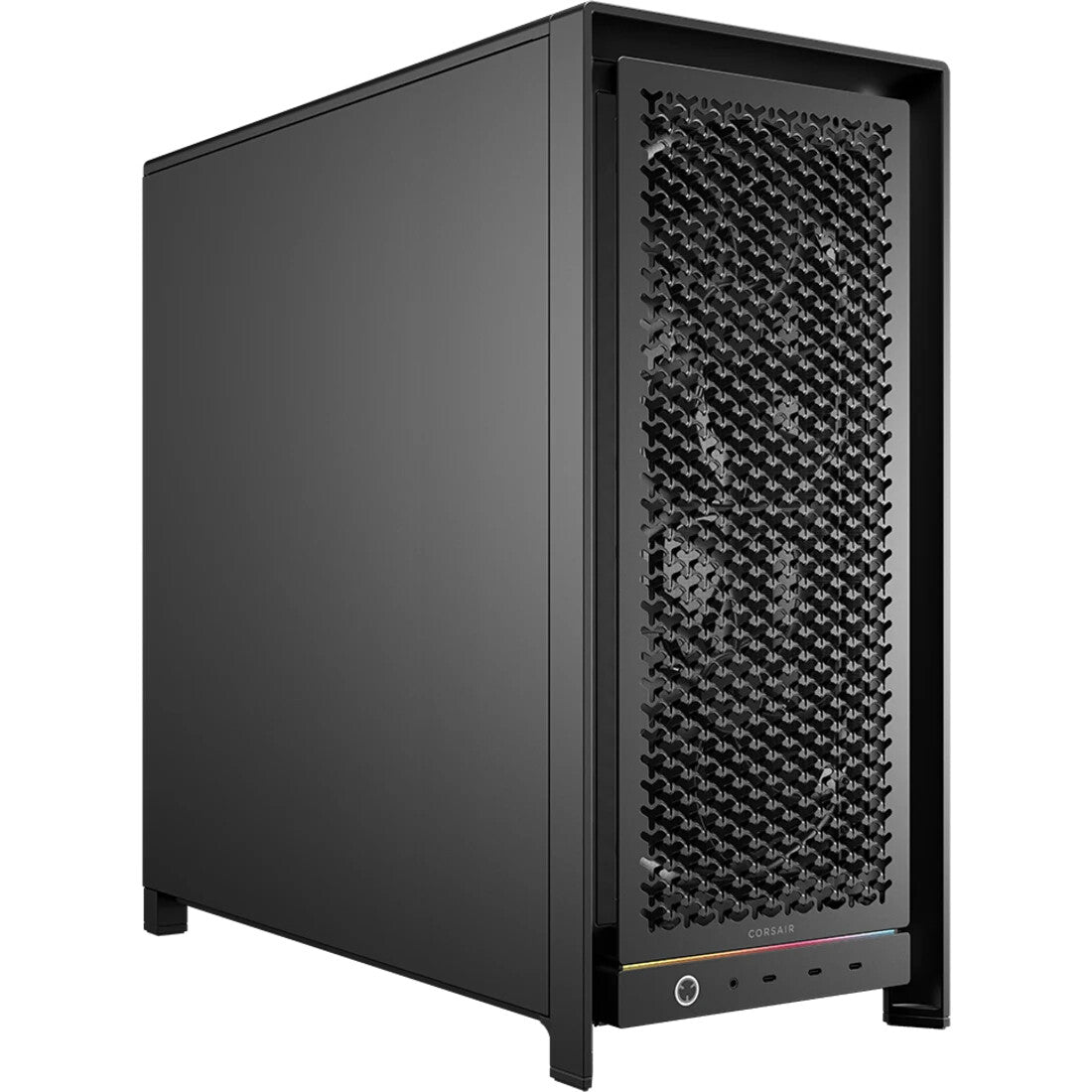

Corsair FRAME 5000D WORKSTATION Midi Tower Black
Spread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £50.66 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview

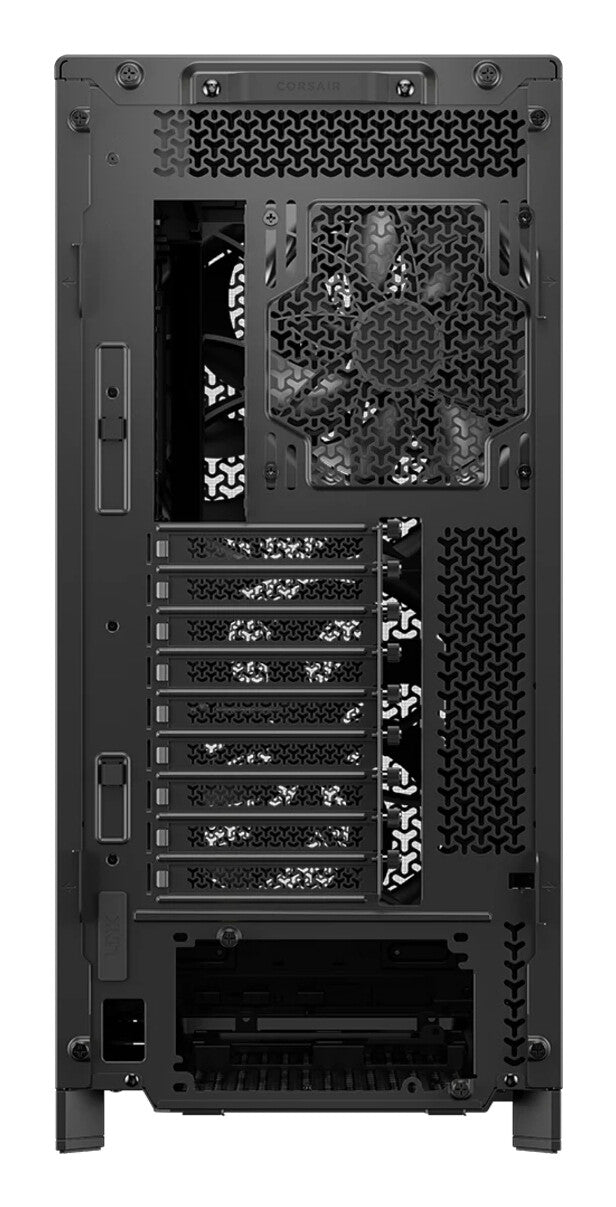

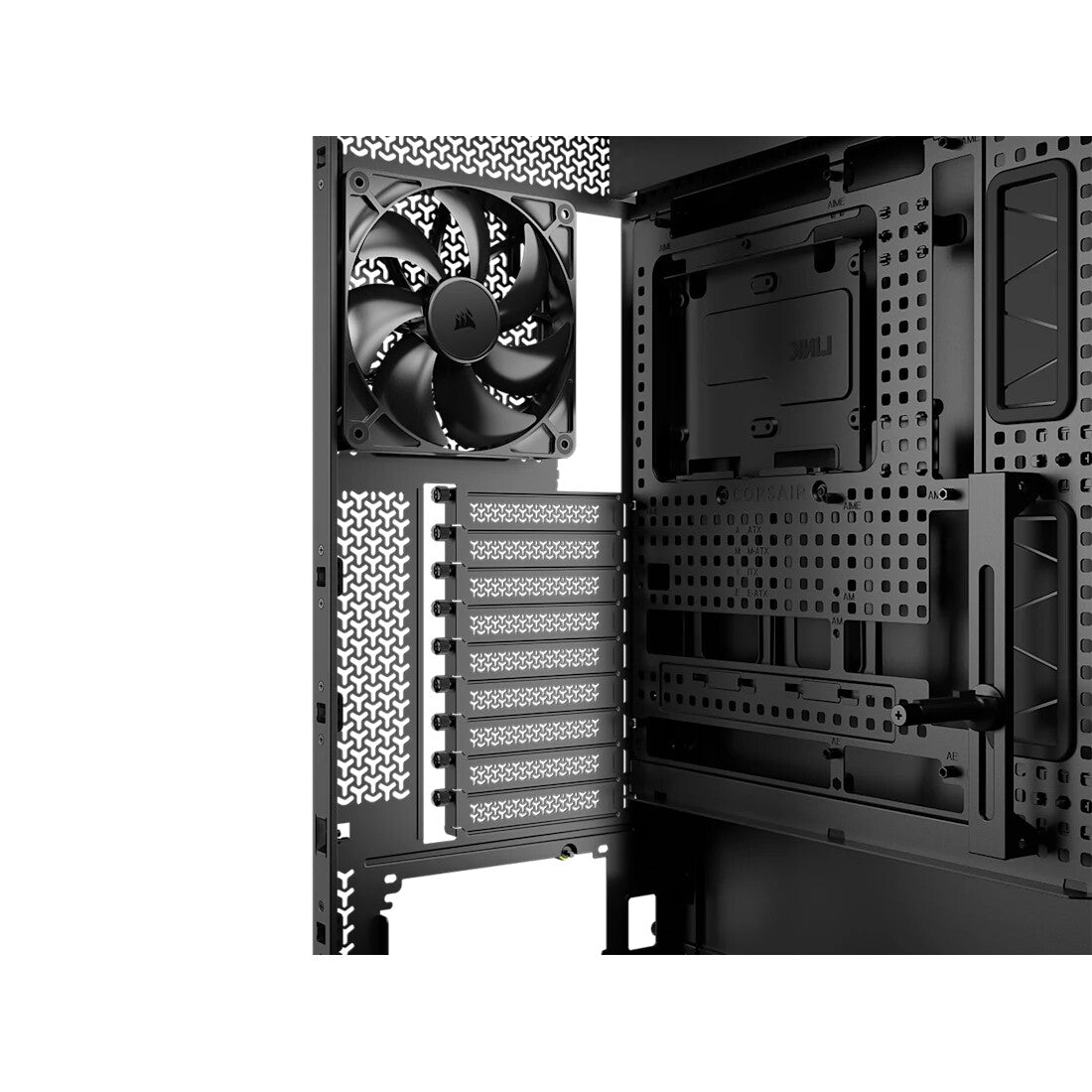

- A roomy chassis with 9 PCI slots for multi-GPU builds
- Steel side panels feature sound dampening material
- GPU immobilization and anti-sag options
- Support for SSI-EEB/CEB, reverse-connector motherboards
- Dual 200mm intake fans for quiet, powerful airflow
- Optional UV printing and custom hardware configurations available
SUPERSIZED
FILL IT UP WITH THE LATEST HARDWARE

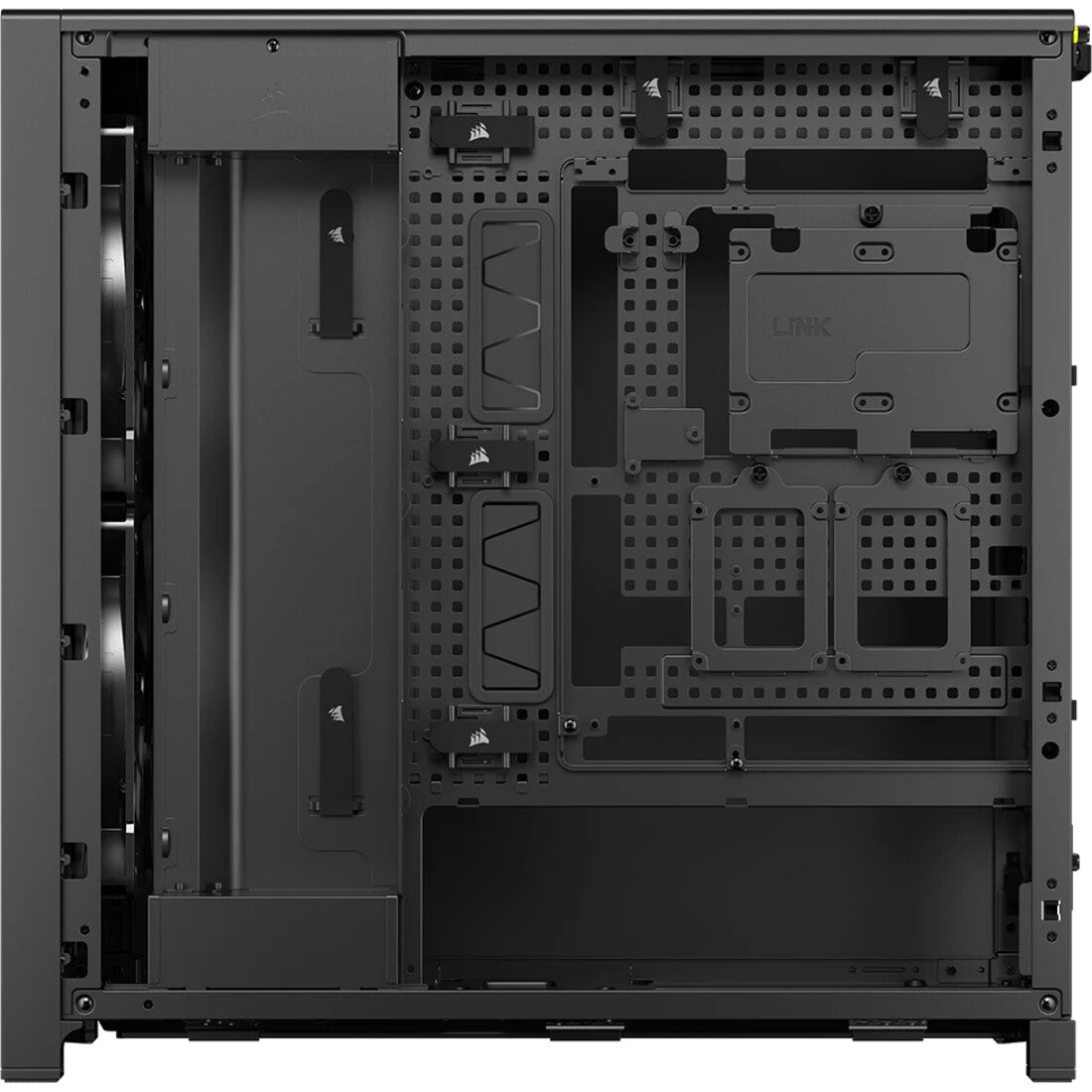

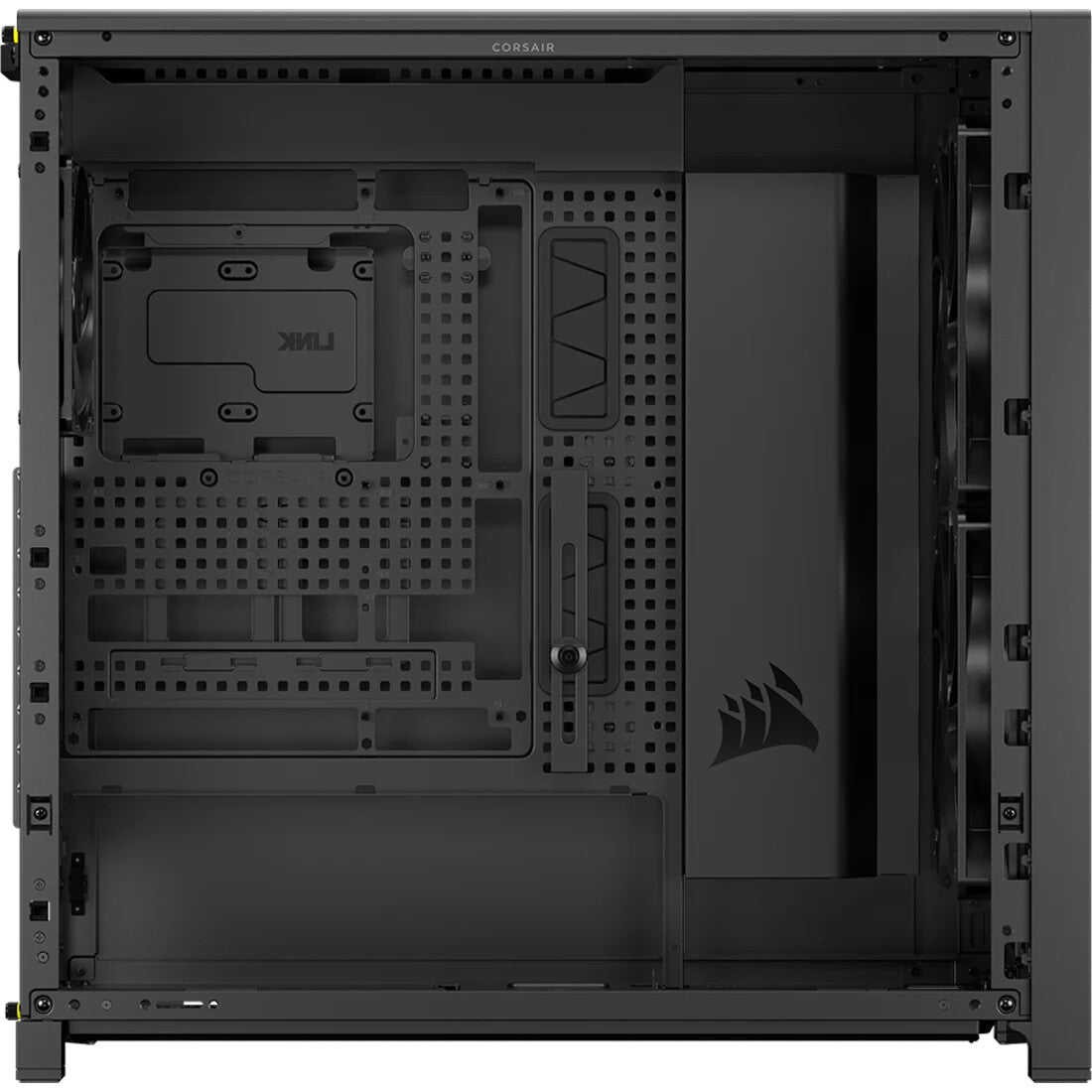

The spacious interior is fully compatible with SSI-EEB/CEB motherboards for servers as well as more traditional ATX, E-ATX, and motherboards with reverse connectors.
GPU OPTIMIZED
BUILT FOR DEMANDING WORKLOADS
The interior of the FRAME 5000D WORKSTATION is made for multi-GPU builds with ample vertical clearance for up to four dual-slot GPUs for advanced rendering, CAD, and AI workloads.
PEACEFULLY POWERFUL
BUILT TO ELIMINATE NOISE

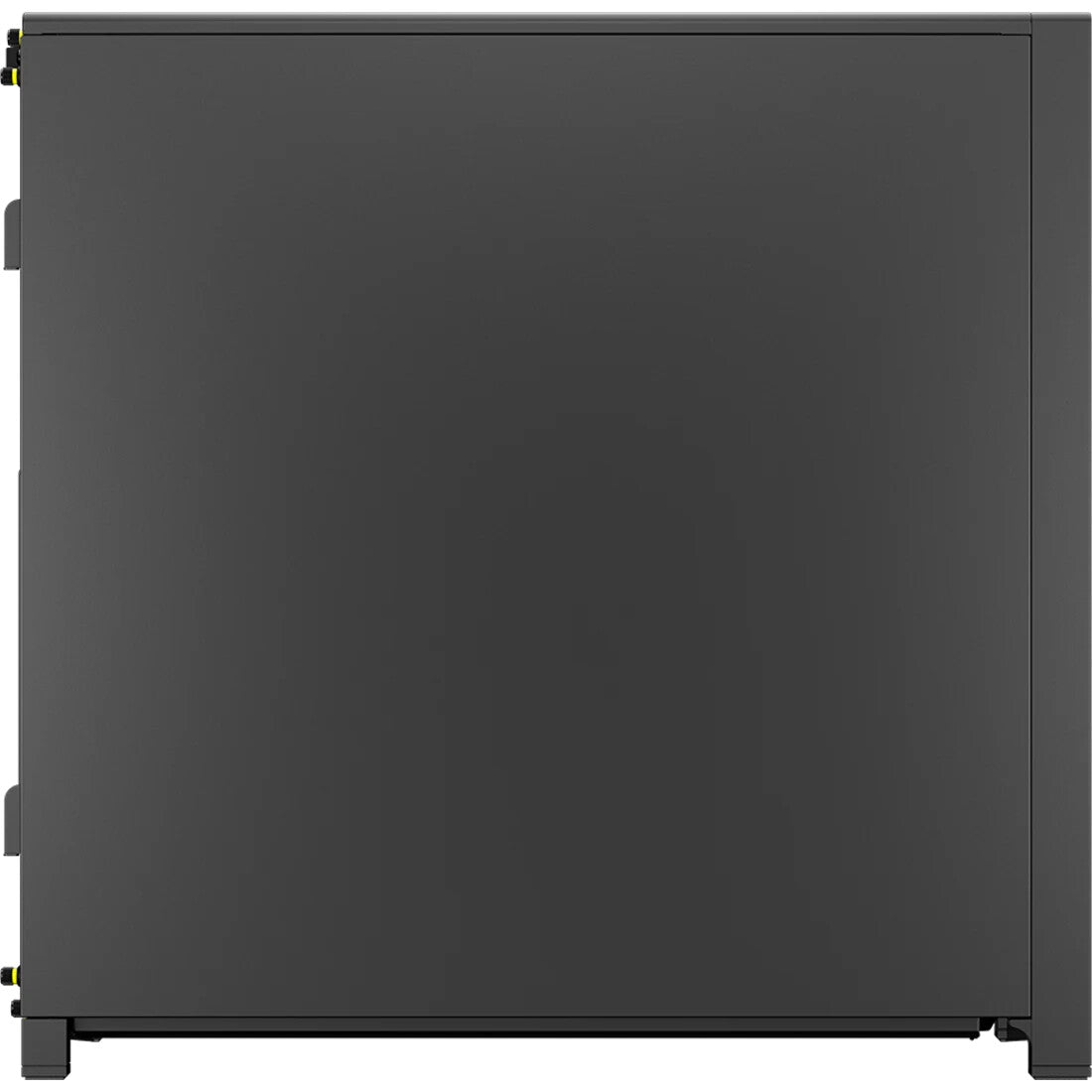

The steel side panels feature embedded sound dampening materials for quiet operation, while the massive 200mm intake fans in the ventilated front panel and rear 140mm exhaust fan provide continuous airflow with very little noise.
EXPANSION IS ENCOURAGED
PLENTIFUL STORAGE
Abundant storage options include dual HDD/SDD combo trays and two dedicated 2.5" SSD trays for a total of 2x 3.5" HDDs and up to 6x 2.5" SSDs for those who need more than just M.2 drives.
WIDE COOLING FLEXIBILITY

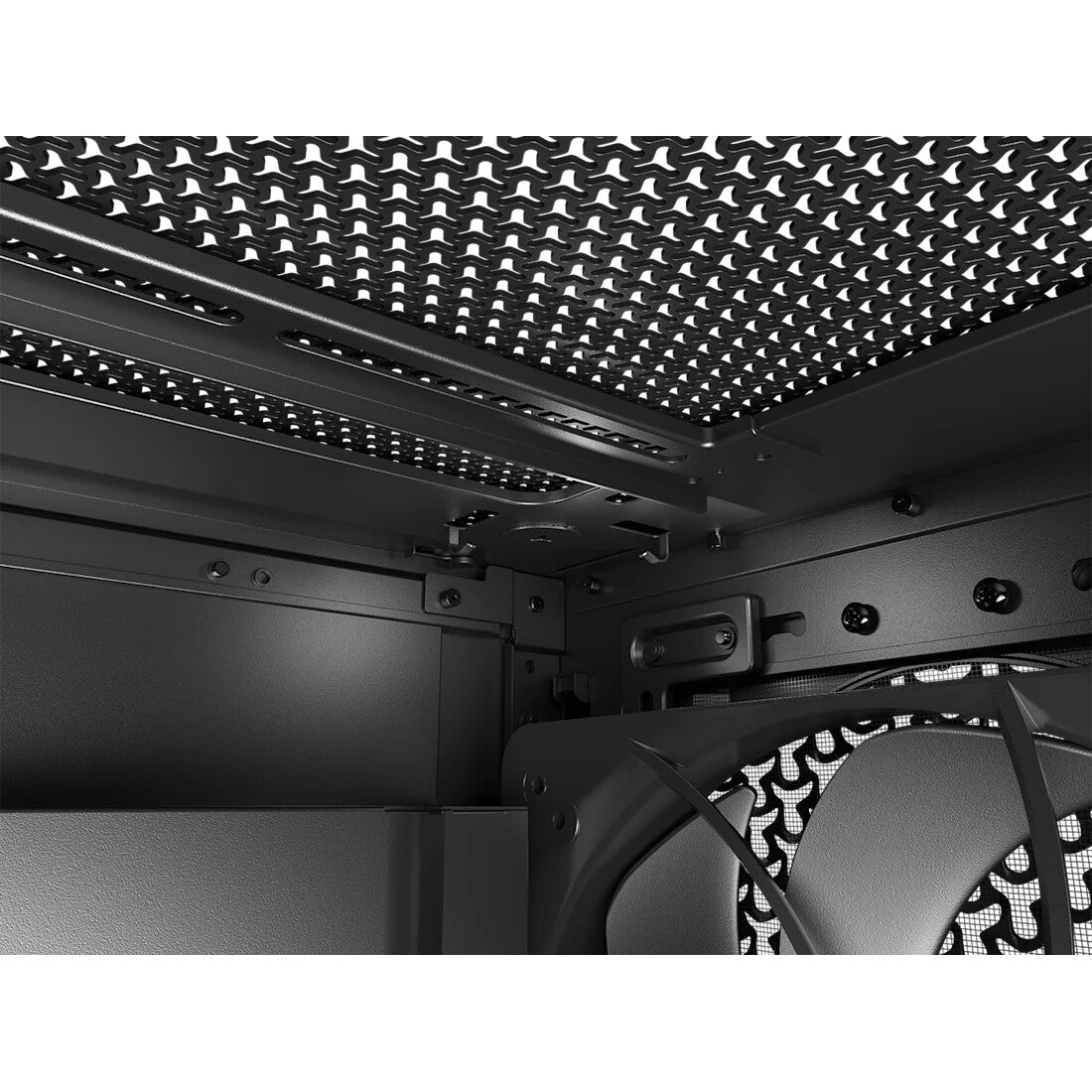

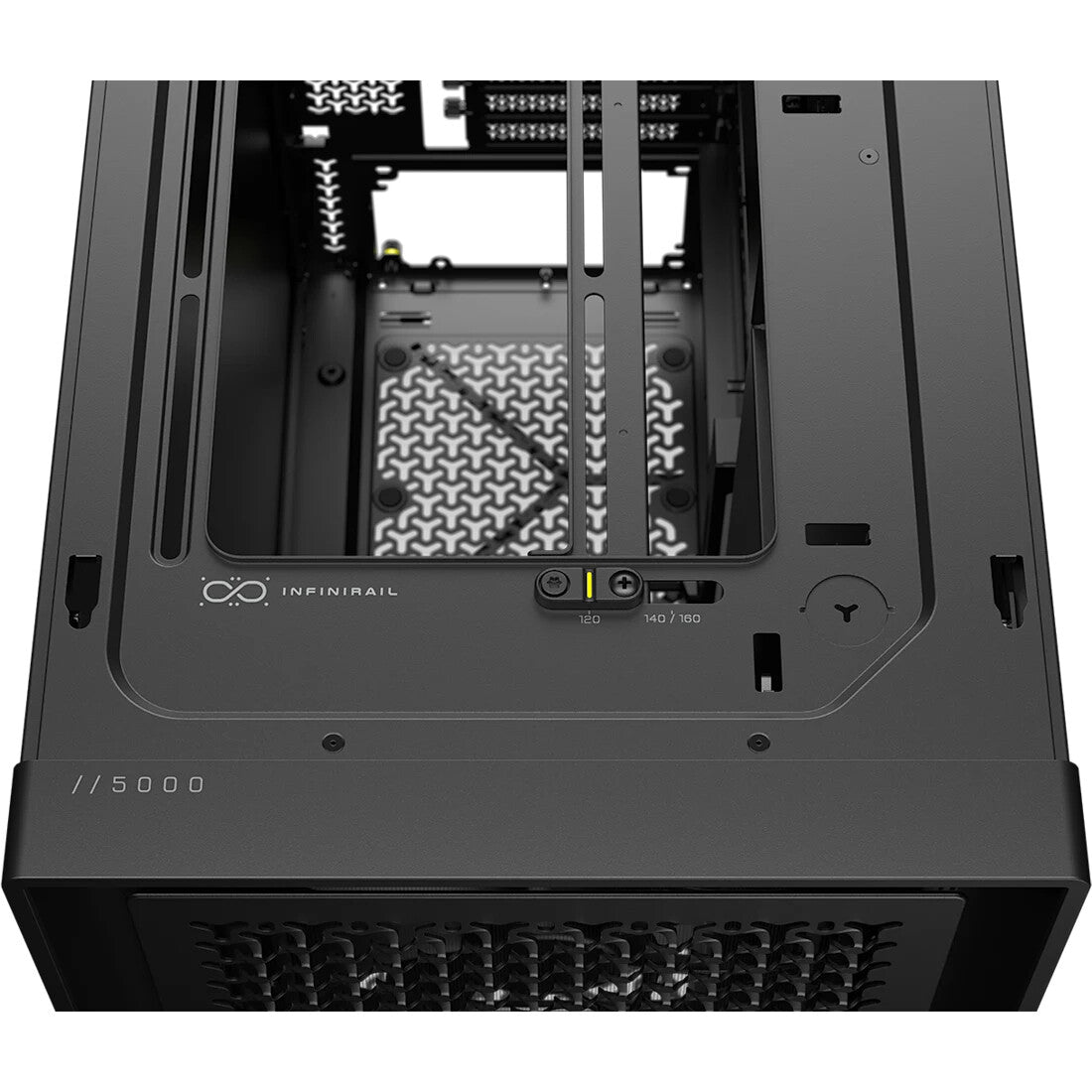

Customize your cooling setup with room for up to 9x 120mm fans, plus versatile radiator mounting options including up to dual 360mm radiators in the roof and front.
DIMENSIONS
The FRAME 5000D WORKSTATION has a cavernous interior designed for high-powered builds and abundant cooling.
FAN CAPACITY

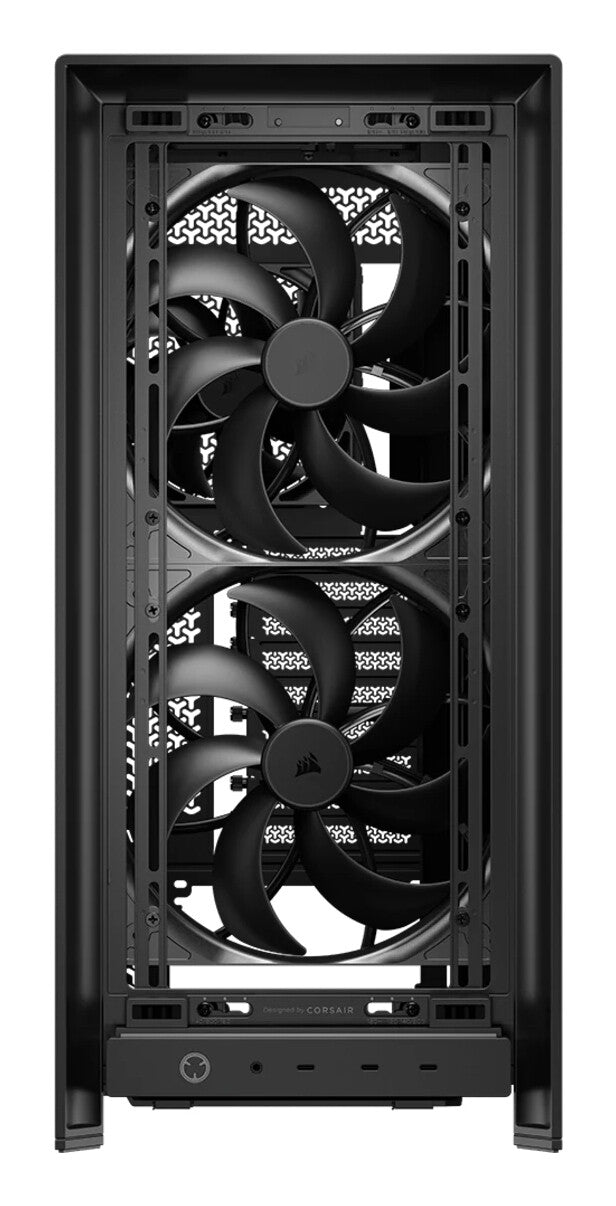

Includes 2x 200mm intake fans and 1x 140mm exhaust fan with a total of 9x 120mm or 140mm fan mounts for flexible cooling options on every surface of the interior.
RADIATOR CAPACITY
Mount a 360mm or 280mm radiator in the front and a 360mm or 480mm radiator on top for enhanced airflow

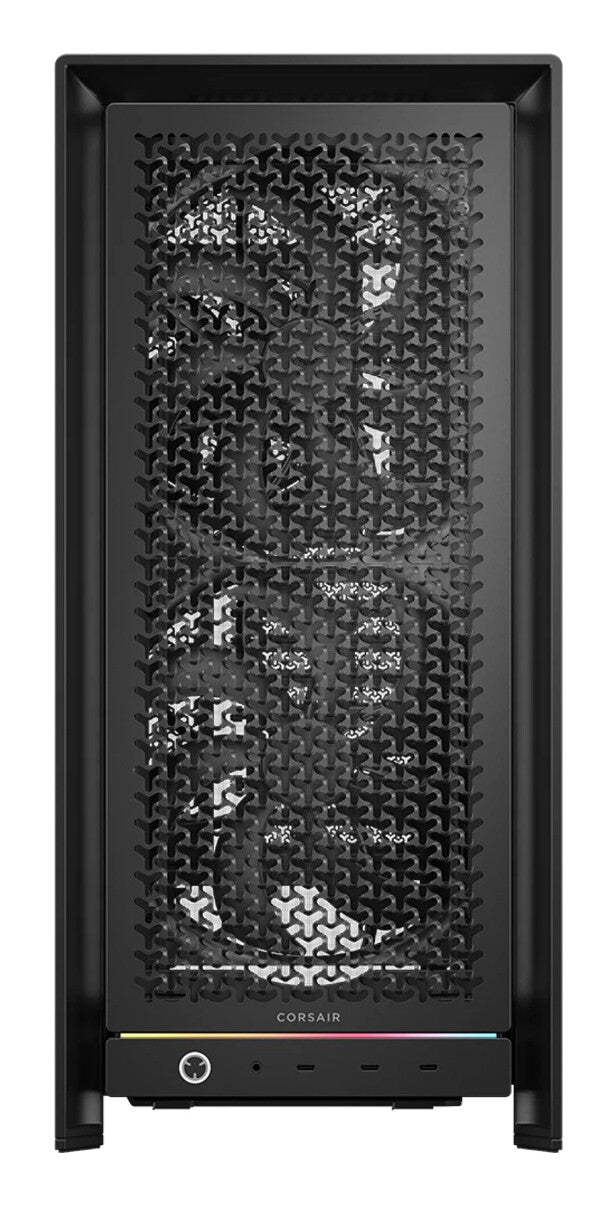

MODERN FRONT PANEL I/O
Puts your connections within easy reach, including 2x USB 3.2 Gen 1 Type-C ports, 1x USB 3.2 Gen 2x2 Type-C port, and a combination audio/microphone jack.
TAILOR MADE
MODULAR AND CUSTOMIZABLE
The FRAME 5000D WORKSTATION is a flexible and powerful platform that can be customized to fit your exact needs. CORSAIR offers UV printing options for personalized branding, as well as bespoke chassis configurations for a wide variety of build diversity thanks to the FRAME Modular Case System.
Specifications
Design
| Maximum graphics card length | 45 cm |
|---|---|
| Maximum CPU cooler height | 17.5 cm |
| On/off button | Yes |
| Cable management | Yes |
| Anti-dust filter | Yes |
| Tempered glass panel(s) | Yes |
| Suitable for | Gaming |
| Side window | Yes |
| Number of expansion slots | 8 |
| Number of 2.5" bays | 6 |
| Number of 3.5" bays | 2 |
| Supported motherboard form factors | ATX, micro ATX, Mini-ITX, SSI CEB, SSI EEB |
| Product colour | Black |
| Material | Plastic, Steel, Tempered glass |
| Type | PC |
| Form factor | Midi Tower |
Power supply
| Supported power supply form factors | ATX |
|---|
Show all 48 specificationsShow fewer specifications
Ports & interfaces
| Combo headphone/mic port | Yes |
|---|---|
| USB Type-C ports quantity | 3 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
Display
| Built-in display | No |
|---|
Cooling
| Top radiator sizes supported | 240,280,360,420 mm |
|---|---|
| Rear radiator sizes supported | 120,140 mm |
| Side radiator sizes supported | 240,280,360 mm |
| Front radiator sizes supported | 240,280,360 mm |
| Liquid cooling capability | Yes |
| Suitable location | Computer case |
| Bottom fans diameters supported | 120 mm |
| Number of bottom fans supported (max) | 4 |
| Top fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Rear fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans installed | 1x 140 mm |
| Side fans diameters supported | 120,140 mm |
| Number of side fans supported (max) | 3 |
| Front fans diameters supported | 120,140,200 mm |
| Number of front fans supported (max) | 3 |
| Front fans installed | 2x 200 mm |
Storage
| Number of HDDs supported | 2 |
|---|---|
| SSD form factor | 2.5" |
| HDD/SSD combo cage | Yes |
| Supported HDD sizes | 3.5" |
Weight & dimensions
| Weight | 15.5 kg |
|---|---|
| Height | 542 mm |
| Depth | 556 mm |
| Width | 250 mm |
