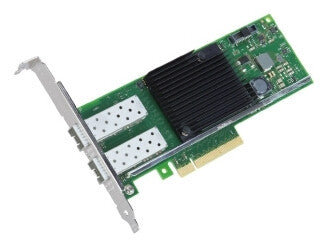

Cisco UCSC-PCIEID10GF-D network card Internal Fiber 40000 Mbit/s
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £290.66 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Wired
- PCI Express Fiber
- 10 Gigabit Ethernet 40000 Mbit/s 10GBase-T
- Internal
Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.
Intel® Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed.
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.
Specifications
Ports & interfaces
| Connectivity technology | Wired |
|---|---|
| Host interface | PCI Express |
| Interface | Fiber |
| Fiber ports quantity | 2 |
| PCI Card form factor | Half-height (low-profile) |
Network
| Maximum data transfer rate | 40000 Mbit/s |
|---|---|
| Networking standards | IEEE 802.1Q, IEEE 802.1as, IEEE 802.1p, IEEE 802.3, IEEE 802.3ad |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ethernet LAN data rates | 10000 Mbit/s |
| Cabling technology | 10GBase-T |
| iSCSI support | Yes |
| VLAN tagging | Yes |
| LAN controller | Intel® X550 |
Show all 30 specificationsShow fewer specifications
Design
| Internal | Yes |
|---|---|
| Product colour | Green |
System requirements
| Linux operating systems supported | Yes |
|---|---|
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2012 R2, Windows Server 2012 R2 x64 |
Operational conditions
| Operating temperature (T-T) | 0 - 55 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 0 - 90% |
Other features
| Data transfer rate | 8 GT/s |
|---|---|
| Intel Ethernet Power Management | Yes |
| Fiber Channel over Ethernet | Yes |
| On-chip QoS and Traffic Management | Yes |
| Intelligent Offloads | Yes |
| Intel Data Direct I/O Technology | Yes |
| Number of VLANs | 4096 |
| PCI-SIG* SR-IOV Capable | Yes |
| Intel Flexible Port Partitioning | Yes |
| Intel Virtual Machine Device Queues (VMDq) | Yes |
