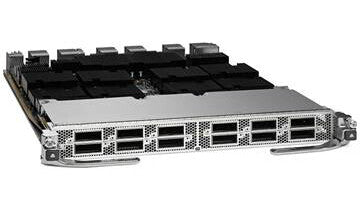

Cisco Nexus 7700 F3 network switch module
Spread the cost with Klarna, Float or SnapFrom 3 interest-free payments of £16,428.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- 40000 Mbit/s
- QSFP+
- Access Control List (ACL)
The Cisco Nexus® 7700 F3-Series 24-Port 40 Gigabit Ethernet Module (referred to as the 7700 F3‑Series module in this document) offers outstanding feature flexibility and wire-rate performance on each port. The module enables the deployment of high-density, low-latency, scalable data center architecture.
Powering Cisco Unified Fabric Architecture
The Cisco Nexus 7000 Series Switches are the foundation of the Cisco® Unified Fabric solution. Designed to meet the requirements of mission-critical data centers, these switches deliver exceptional availability, outstanding scalability, and the proven and comprehensive Cisco NX-OS Software data center switching feature set.
The Cisco Nexus 7700 platform is the latest extension to the 7000 Series modular switches. With more than 83 terabits per second (Tbps) of overall switching capacity, the 7700 platform delivers the highest-capacity 10, 40, and 100 Gigabit Ethernet ports in the industry, with up to 768 native 10-Gbps ports, 384 40-Gbps ports, and 192 100‑Gbps ports. This high system capacity is designed to meet the scalability requirements of the largest cloud environments.
The 7700 platform switches have operation and feature consistency with the existing 7000 Series switches, using
a common system architecture, the same application-specific integrated circuit (ASIC) technology, and the same proven NX-OS releases.
The 7700 F3-Series module is a low-latency, high-performance, high-density 40 Gigabit Ethernet module designed for the 7700 platform to deliver up to 384 wire-rate 40 Gigabit Ethernet ports in a single Cisco Nexus 7700 18-Slot Switch chassis.
Specifications
Network
| Jumbo frames support | Yes |
|---|---|
| Networking standards | IEEE 802.3 |
| Ethernet LAN data rates | 40000 Mbit/s |
Optical fiber
| Fiber optic connector | QSFP+ |
|---|
Show all 20 specificationsShow fewer specifications
Data transmission
| Number of VLANs | 4096 |
|---|---|
| MAC address table | 64000 entries |
Ports & interfaces
| Fiber ports quantity | 24 |
|---|
Performance
| Compatibility | Cisco Nexus 7000 |
|---|---|
| Access Control List (ACL) | Yes |
| Queues per port | 8 |
| Buffer size per port | 144 MB |
Power
| Power over Ethernet (PoE) | No |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Certificates
| Safety | UL/CSA/IEC/EN 60950-1, AS/NZS 60950 |
|---|---|
| Electromagnetic compatibility | FCC Part 15 (CFR 47) (USA) Class A, ICES-003 (Canada) Class A, EN55022 (Europe) Class A, CISPR22 (International) Class A, AS/NZS CISPR22 (Australia and New Zealand) Class A, VCCI (Japan) Class A, KN22 (Korea) Class A, CNS13438 (Taiwan) Class A, CISPR24, EN55024, EN50082-1, EN61000-3-2, EN61000-3-3, EN61000-6-1, EN300 386 |
Weight & dimensions
| Dimensions (WxDxH) | 403.9 x 553.7 x 44 mm |
|---|---|
| Weight | 7.7 kg |
