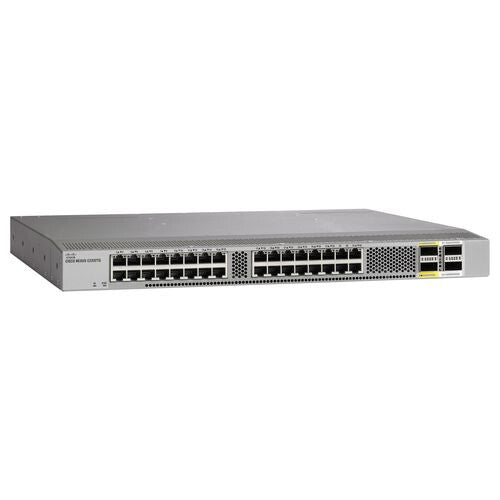

Cisco Nexus 2332TQ Grey 100, 1000, 10000 Mbit/s
Spread the cost with Klarna, Float or SnapFrom 3 interest-free payments of £1,689.66 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
Simplify your data center access architecture and operations with the Cisco Nexus® 2300 platform fabric extenders, the successors to the industry’s widely adopted Cisco Nexus 2000 Series Fabric Extenders. The Cisco Nexus 2300 platform with its Cisco® fabric extender architecture provides a highly scalable unified server-access platform across a range of connectivity options such as 100 Megabit Ethernet; 1, 10, and 40 Gigabit Ethernet; unified fabric; copper and fiber connectivity; and rack and blade server environments.
The platform offers excellent support for migration from traditional 1 Gigabit Ethernet to 10 and 40 Gigabit Ethernet and virtual machine - aware unified fabric technologies.
The Cisco Nexus 2300 platform maintains all the existing Cisco Nexus 2000 Series features, including a single point of management, high availability with virtual PortChannels (vPC), vPC+, Enhanced vPC, and LAN and SAN convergence using Fibre Channel over Ethernet (FCoE). With the addition of true 40 Gigabit Ethernet support, deep buffers to handle bursts of traffic common in today’s data center, and unified port capability (on 2348UPQ with 5600 only starting 7.3 release), the Cisco Nexus 2300 platform is suitable for highly virtualized, automated, and cloud environments.
The Cisco Nexus 2300 fabric extenders provide a 1-rack-unit (1RU) energy-efficient platform with a choice of front-to-back (port-side exhaust) and back-to-front (port-side intake) airflow options that offer 100 Megabit Ethernet; 1, 10, and 40 Gigabit Ethernet; Fibre Channel (on 2348UPQ with 5600 only starting 7.3 release); and FCoE for a broad range of traditional data center and large-scale virtualized cloud deployments.
Specifications
Performance
| Auto-negotiation | Yes |
|---|---|
| Duplex system | Full |
| Jumbo frames support | Yes |
| Ethernet LAN data rates | 100,1000,10000 Mbit/s |
| Maximum transfer distance | 3000 m |
Network
| Quality of Service (QoS) support | Yes |
|---|---|
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3u |
Show all 22 specificationsShow fewer specifications
Ports & interfaces
| Fiber optic connector | QSFP |
|---|---|
| Fiber ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 32 |
Design
| Product colour | Grey |
|---|
Power
| Power consumption (typical) | 190 W |
|---|---|
| Power consumption (max) | 250 W |
Operational conditions
| Operating altitude | 0 - 3000 m |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 55 °C |
Weight & dimensions
| Weight | 6.8 kg |
|---|---|
| Height | 43.7 mm |
| Depth | 356.9 mm |
| Width | 439.4 mm |
Certificates
| Compliance certificates | RoHS |
|---|
