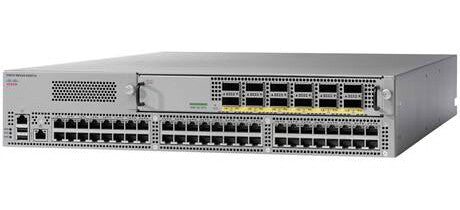

Cisco N9K-C9396TX, Refurbished Managed L3 10G Ethernet (100/1000/10000) 2U Grey
Spread the cost with Klarna, Float or SnapFrom 3 interest-free payments of £2,825.66 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Managed L3 Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 48
- 10G support
- MAC address table: 96000 entries Switching capacity: 1920 Gbit/s
- Access Control List (ACL)
- 2U Rack mounting
- Power supply included
The Cisco Nexus 9396TX is a dense, line-rate 10GBase-T switch. It delivers comprehensive line-rate Layer 2 and Layer 3 overlays and the Cisco Application Centric Infrastructure (ACI) feature set. It is ideal for top-of-rack deployments in both traditional and ACI-enabled enterprise, service provider, and cloud environments.
The Cisco Nexus 9396TX Switch has 48 10GBase-T ports that can operate at 100 Mbps, 1 Gbps, and 10 Gbps speeds and 12 Quad Small Form Pluggable Plus (QSFP+) uplinks. All the ports are line rate, delivering 1.92 Tbps of throughput in a 2-rack-unit (2RU) form factor. The switch can be deployed as an access switch in traditional three-tier designs or as a leaf node in spine-leaf architectures.
ACI Support
- Integrated multi-hypervisor and bare-metal interoperation with VLAN and VxLAN routing and bridging support in ACI mode
- Single view of the entire fabric on APIC dashboard
- Full normalization of any encapsulation inside the fabric
- Consistent policy-based approach to deploying applications on top of the ACI fabric
- Fabric supports seamless integration of layer 4 (physical and virual) services in the end-to-end ACI policy framework
- Cohesive alignment of policies as workload moves around inside the fabric
Programmability
- Open APIs to manage the switch through remote-procedure calls (JavaScript Object Notation or XML) over HTTP or HTTPS
- Automated configuration through Linux shell scripts
- Support for customer applications through a Linux container environment
High Availability
- Hot-swappable, redundant power supplies and fan trays
- Full patching support
Energy Efficiency
- Power supplies that are rated at 80 Plus Platinum
- Support for front-to-back or back-to-front airflow configuration
Investment Protection
- 40 Gb bidirectional transceiver for reuse of existing 10 Gigabit Ethernet multimode cabling plant for 40 Gigabit Ethernet
- Support for Cisco NX-OS and ACI modes of operation
Specifications
Management features
| System event log | Yes |
|---|---|
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
Ports & interfaces
| QSFP+ module slots quantity | 8 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
Show all 45 specificationsShow fewer specifications
Network
| Number of VLANs | 4096 |
|---|---|
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| 10G support | Yes |
Data transmission
| Packet buffer memory | 50 MB |
|---|---|
| Throughput | 1500 Mpps |
| Switching capacity | 1920 Gbit/s |
| MAC address table | 96000 entries |
Security
| IGMP snooping | Yes |
|---|---|
| Access Control List (ACL) | Yes |
Multicast features
| Number of multicast groups filtered | 32000 |
|---|---|
| Multicast support | Yes |
Design
| Safety | UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, GB4943 |
|---|---|
| Number of fans | 3 fan(s) |
| LED indicators | Yes |
| Product colour | Grey |
| Form factor | 2U |
| Rack mounting | Yes |
Performance
| Noise level | 68.3 dB |
|---|---|
| Flash memory | 64 MB |
| Internal memory | 16384 MB |
| Processor frequency | 2500 MHz |
| Built-in processor | Yes |
Power
| Power consumption (max) | 712 W |
|---|---|
| Power consumption (typical) | 427 W |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power supply included | Yes |
Operational conditions
| Operating altitude | 0 - 4000 m |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Weight | 10.2 kg |
|---|---|
| Height | 89 mm |
| Depth | 571 mm |
| Width | 445 mm |
Certificates
| Certification | 47CFR, AS/NZS CISPR22, CISPR22, EN55022, ICES003, VCCI, EN61000-3-2, EN61000-3-3, KN22, CNS13438, EN55024, CISPR24, EN300386, KN 61000 |
|---|
