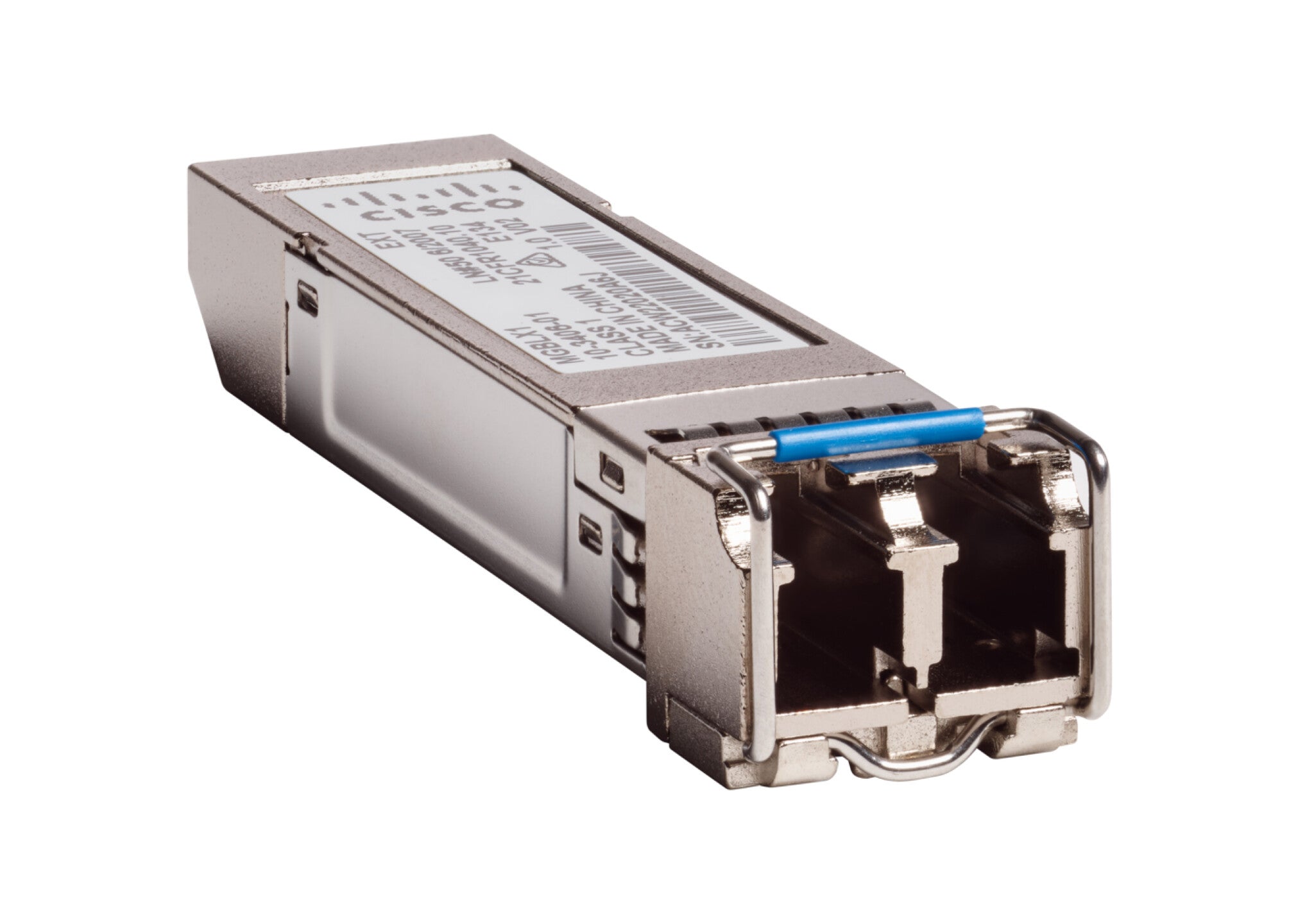

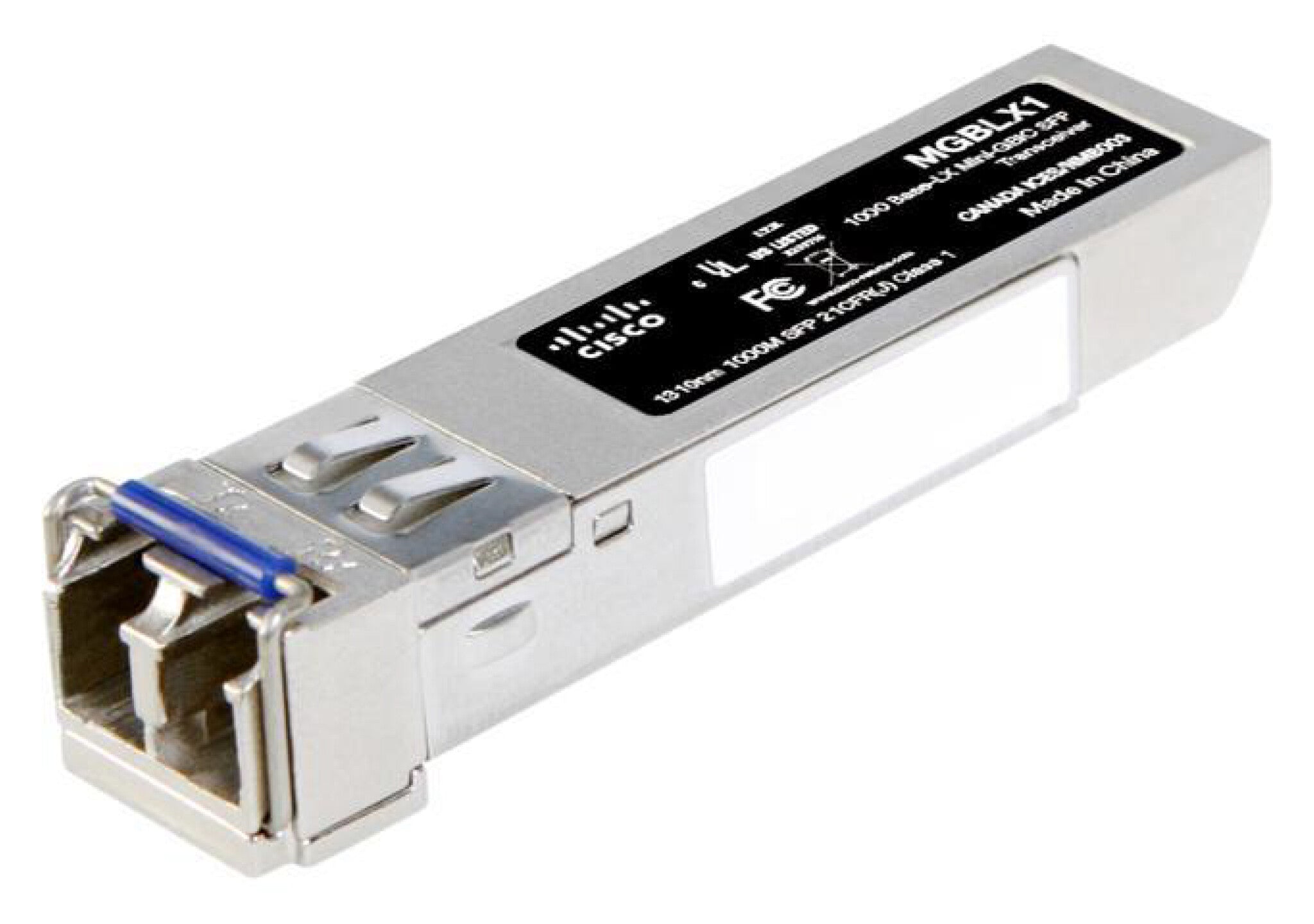

Cisco MGBLX1 SFP Transceiver | Gigabit Ethernet (GbE) 1000BASE-LX Mini-GBIC (MGBLX1)
£168.99
inc. VATSpread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £56.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- ADDS FIBER: Optic connectivity to Cisco 100 to 500 Series switches
- CONNECTIVITY: 1000BASE-LX SFP transceiver for single-mode fiber, 1310 nm wavelength, supports up to 10 km
- DURABLE AND LOW POWER CONSUMPTION: Less power usage and heat-conducting increases the life of the product
- EASY TO USE: Easy installation, plug and play, fully hot-swapple
- PEACE OF MIND: 5-year warranty and one-year technical support
The Cisco MGBLX1 Transceiver MGE Small Form-Factor Pluggable (SFP) or mini Gigabit Interface Converter (mini-GBIC) is an easy-to-install module that provides a simple way to add fiber connectivity to Cisco 100, 200, 300, and 500 Series switches.
The MGBLX1 transceiver is available for single-mode or multimode fiber-optic cabling and can support distances from 100 meters up to 10 kilometers.
Specifications
Network
| Cabling technology | 1000Base-LX |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
Performance
| Wavelength | 1310 nm |
|---|---|
| Maximum transfer distance | 10000 m |
Show all 24 specificationsShow fewer specifications
Features
| Plug and Play | Yes |
|---|---|
| Hot-swap | Yes |
Ports & interfaces
| Connectivity technology | Wired |
|---|
Power
| Power consumption (typical) | 1 W |
|---|
Weight & dimensions
| Weight | 20 g |
|---|---|
| Height | 8.5 mm |
| Depth | 13.4 mm |
| Width | 55.7 mm |
Operational conditions
| Storage relative humidity (H-H) | 5 - 90% |
|---|---|
| Operating relative humidity (H-H) | 10 - 85% |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | 0 - 70 °C |
Certificates
| Certification | FCC Part 15 Class B,EN55022 Class B (CISPR 22B),VCCI Class B. |
|---|---|
| Safety | FDA 21 CFR 1040.10 & 1040.11, EN60950, EN (IEC) 60825-1,2 |
Other features
| Fiber type | SMF |
|---|---|
| Connector(s) | LC-LC |
| Dimensions (WxDxH) | 13.4 x 55.7 x 8.5 mm |
| Interface | SFP |
| Full duplex | Yes |
| Transmit power range | -9.5 - -3 dBmW |
