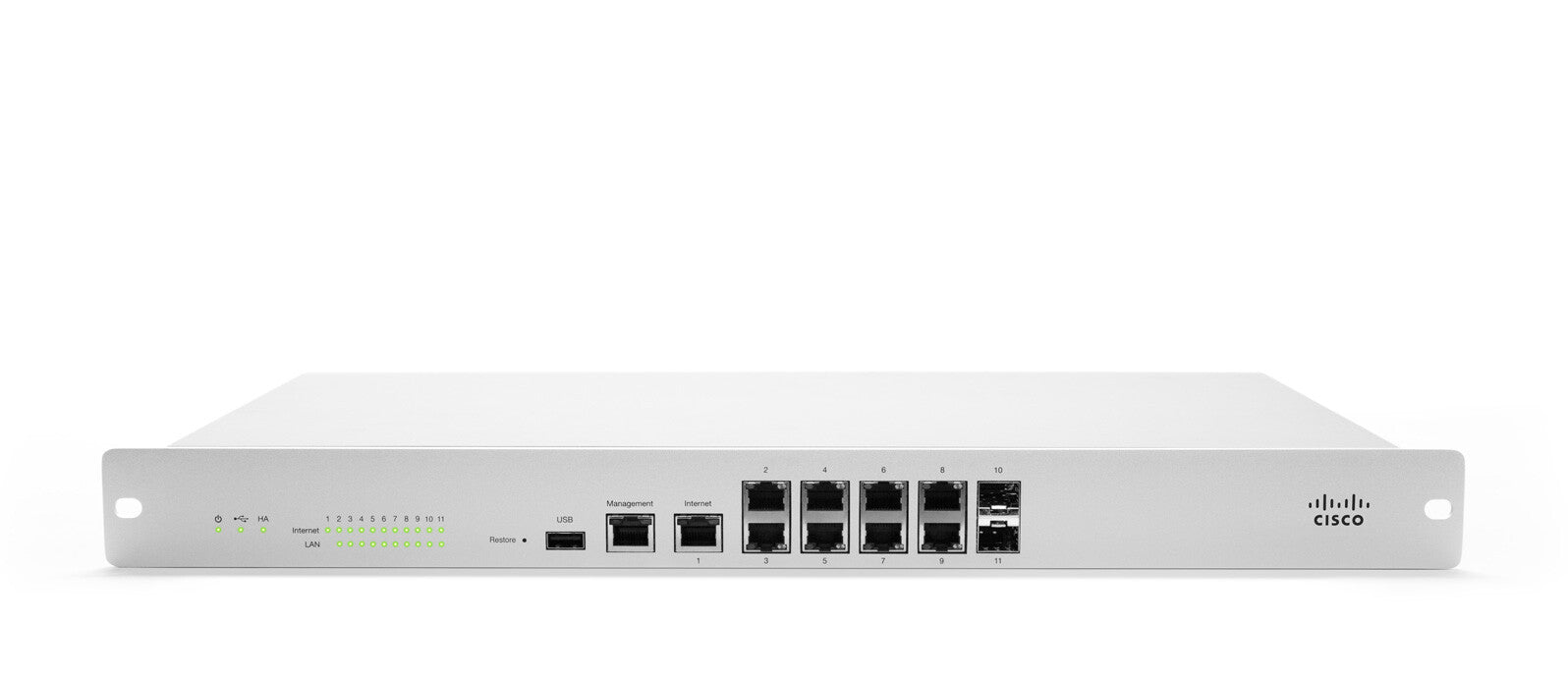

Cisco Meraki MX100 Cloud Managed Security Appliance
£4,288.99
Couldn't load pickup availability
- 1U Firewall throughput: 750 Mbit/s
- 500 user(s)
- Wired
The Meraki MX Series combines comprehensive Unified Threat Management (UTM) capabilities with SD-WAN functionality, enabling exceptional security and smart, redundant inter-site networking. MX is managed through a common dashboard used to manage all Meraki products.
- Comprehensive Unified Threat Management
- SD-WAN
- Auto-VPN
| Data transmission | |
|---|---|
| VPN throughput | 0.5 Gbit/s |
| Firewall throughput | 0.75 Gbit/s |
| Network | |
|---|---|
| Number of users | 500 user(s) |
| Maximum outdoor range | 250 m |
| Management features | |
|---|---|
| Web-based management | Yes |
| LED indicators | Yes |
| Ports & interfaces | |
|---|---|
| WAN connection | Ethernet (RJ-45) |
| SFP module slots quantity | 2 |
| USB 2.0 ports quantity | 1 |
| Combo SFP ports quantity | 2 |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Connectivity technology | Wired |
| Storage | |
|---|---|
| HDD capacity | 1 TB |
| Storage media type | HDD |
| Design | |
|---|---|
| Form factor | 1U |
| Rack mounting | Yes |
| Power | |
|---|---|
| Peak power | 55 W |
| Power consumption (typical) | 30 W |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100-220 V |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 4.1 kg |
| Height | 44 mm |
| Depth | 254 mm |
| Width | 483 mm |
| General | |
|---|---|
| Product family | Meraki |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Other features | |
|---|---|
| Firewall throughput | 750 Mbit/s |
| VPN throughput | 500 Mbit/s |
