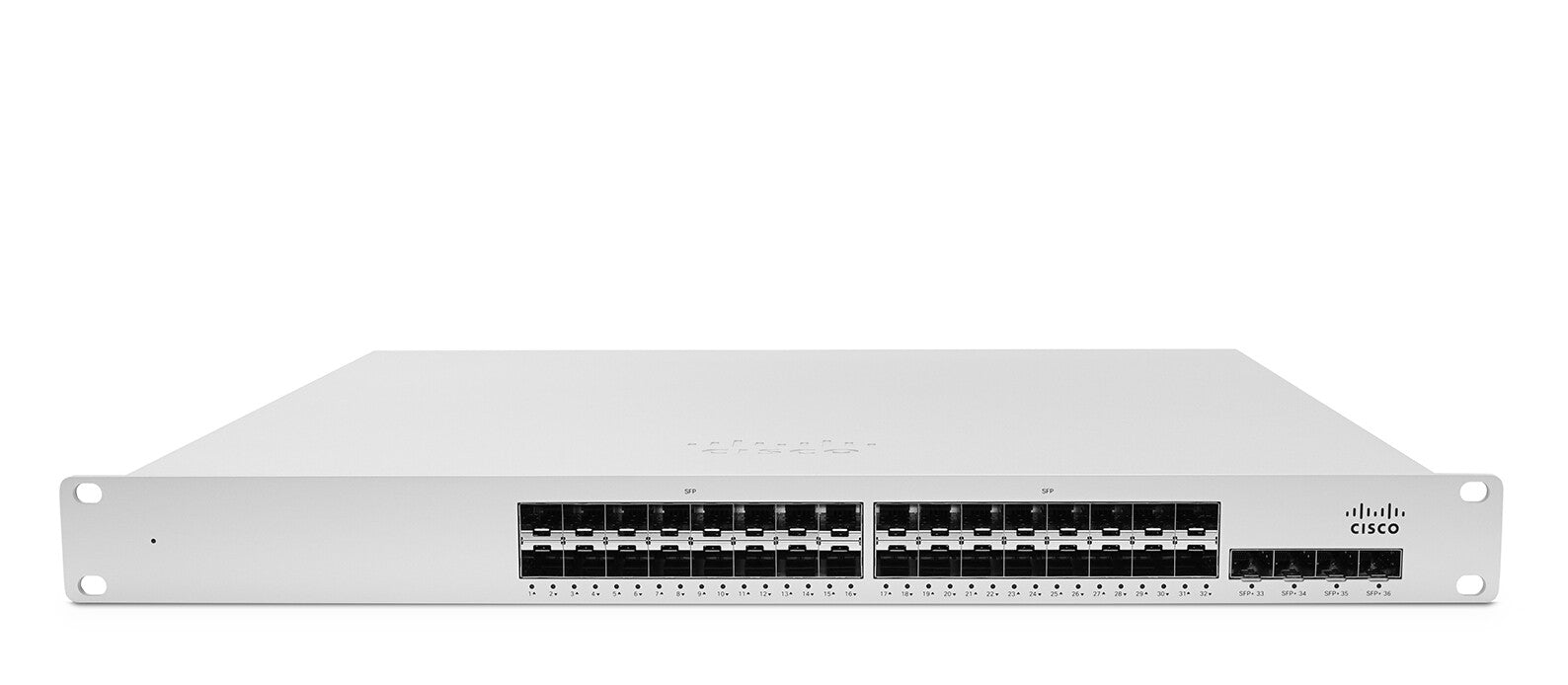

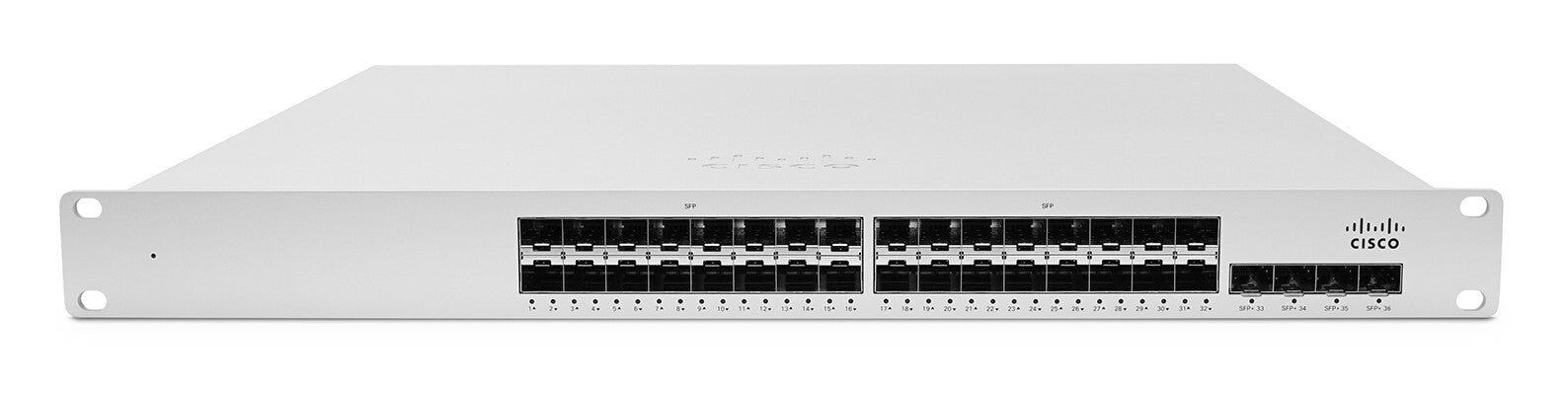

Cisco Meraki MS410-32 Cld-Mngd 32x GigE SFP Switch
Cisco Meraki MS410-32 Cld-Mngd 32x GigE SFP Switch
Cisco Meraki MS410-32 Cld-Mngd 32x GigE SFP Switch
Cisco Meraki MS410-32 Cld-Mngd 32x GigE SFP Switch

Cisco Meraki MS410-32 Cld-Mngd 32x GigE SFP Switch

Cisco
£12,858.99
Stock Available: 0
  • Managed L3 Web-based management DHCP, SNMPD
  • Quality of Service (QoS) support
  • Console port: RJ-45
  • MAC address table: 96000 entries Switching capacity: 144 Gbit/s
  • 1U Rack mounting Stackable

Meraki cloud-managed switches feature ease of multi-site management through a dashboard used to manage the entire Meraki portfolio. Meraki switches feature excellent tools for reducing TCO: zero-touch configuration and remote troubleshooting.

- Fiber aggregation switch for campus or branch
- Physical and virtual stacking
- Redundant power
- Dynamic routing

Management features
System event log Yes
Web-based management Yes
Quality of Service (QoS) support Yes
Switch layer L3
Switch type Managed
Ports & interfaces
Console port RJ-45
SFP+ module slots quantity 36
Network
VLAN support Yes
Broadcast storm control Yes
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w
Data transmission
Switching capacity 144 Gbit/s
MAC address table 96000 entries
Security
DHCP features DHCP server, DHCP client
Multicast features
Multicast support Yes
Protocols
Management protocols DHCP, SNMPD
Design
Product colour Grey
Form factor 1U
Stackable Yes
Rack mounting Yes
Performance
Mean time between failures (MTBF) 291729 h
Power
Power consumption (max) 85 W
Power consumption (typical) 50 W
AC input frequency 47/63 Hz
AC input voltage 100 - 240 V
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Weight 5.7 kg
Height 45 mm
Depth 516 mm
Width 485 mm
General
Product family Meraki
Logistics data
Harmonized System (HS) code 85176990
