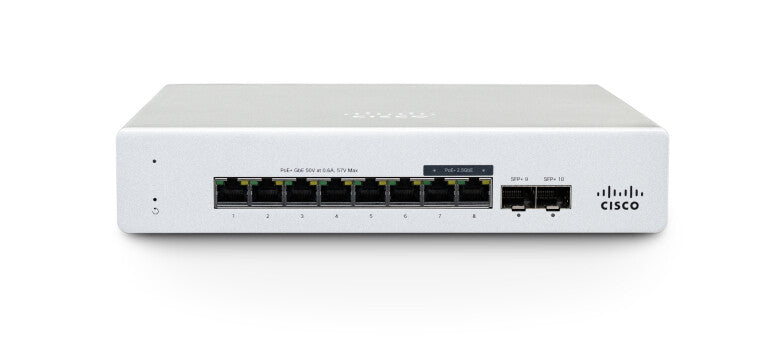

Cisco Meraki MS130-8 network switch Managed 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U Aluminium
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £220.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Managed Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 8 Console port: RJ-45
- Switching capacity: 62 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting Stackable
- DC Power over Ethernet (PoE)
Cost-effective switches perfect for retail point-of-sale (PoS) setup and low-density branch Wi-Fi and IoT deployments.
Specifications
Management features
| Switch type | Managed |
|---|---|
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 8 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP+ |
| Console port | RJ-45 |
Show all 48 specificationsShow fewer specifications
Network
| Networking standards | IEEE 802.11w, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ad |
|---|---|
| 10G support | No |
| Port mirroring | Yes |
| Spanning tree protocol | Yes |
| Broadcast storm control | Yes |
| Link aggregation | Yes |
| VLAN support | Yes |
Data transmission
| Switching capacity | 62 Gbit/s |
|---|---|
| Static route | Yes |
| Jumbo frames support | Yes |
Security
| DHCP features | DHCP snooping, DHCP relay, DHCP client |
|---|---|
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Password protection | Yes |
| BPDU filtering/protection | Yes |
| Authentication type | RADIUS |
| Authentication | MAC-based authentication |
| Security algorithms | SNMP |
Multicast features
| Multicast support | Yes |
|---|
Protocols
| Switching protocols | LLDP, CDP, RSTP, STP |
|---|
Design
| Rack mounting | Yes |
|---|---|
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Aluminium |
Performance
| Physical stacking (units) | 8 |
|---|---|
| Firmware upgradeable | Yes |
Power
| Power source | DC |
|---|---|
| DC input voltage | 54 V |
| Power consumption (typical) | 16 W |
| Power consumption (max) | 136 W |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Width | 230 mm |
|---|---|
| Depth | 230 mm |
| Height | 44 mm |
| Weight | 960 g |
General
| Product family | Meraki |
|---|
Certificates
| Certification | CSA-US, FCC, IC, CE, RCM, RoHS |
|---|
