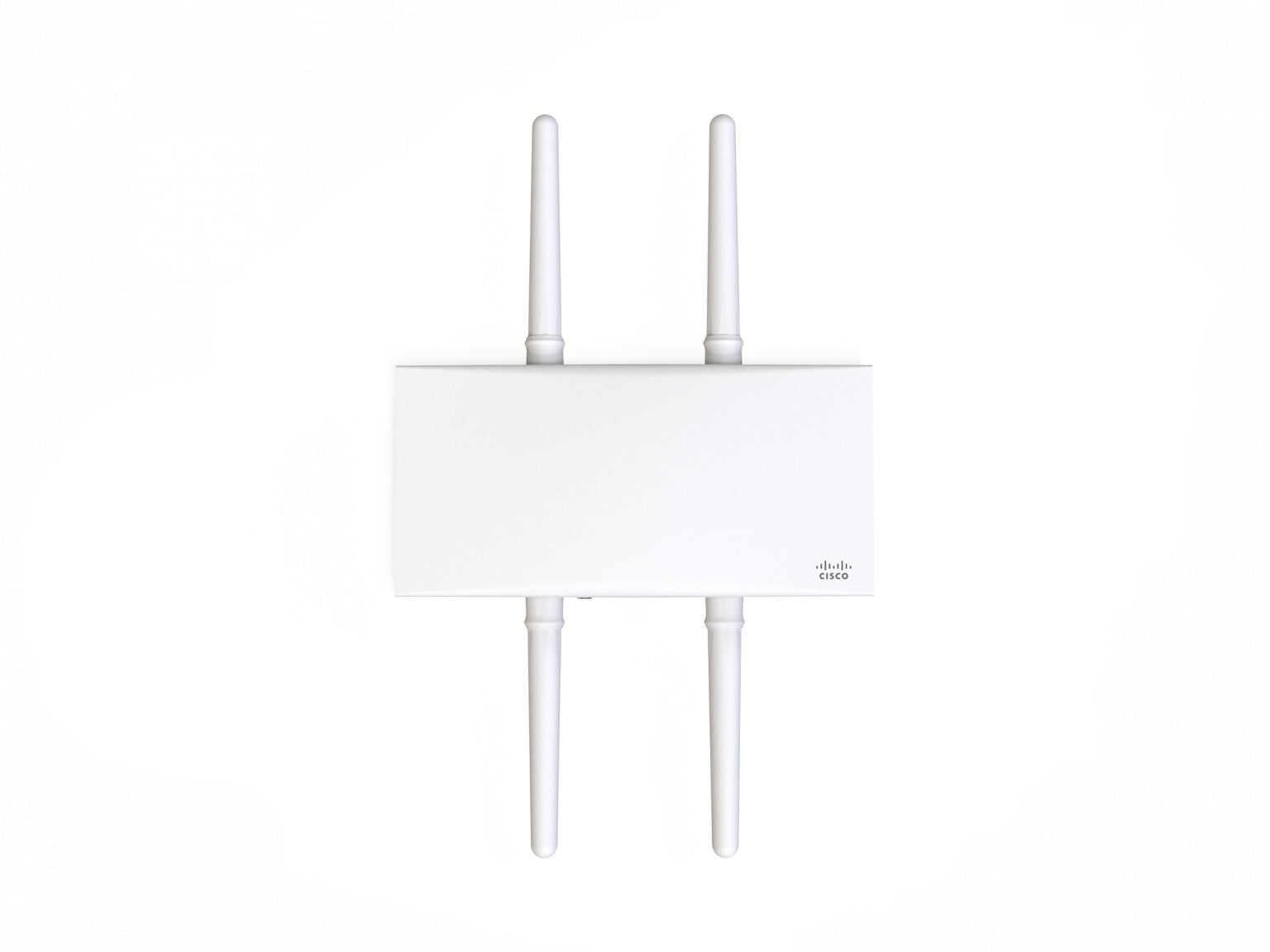

Cisco Meraki MR86 White Power over Ethernet (PoE)
Spread the cost with Klarna, PayPal, Float or SnapFrom 3 interest-free payments of £791.66 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
In stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Overview
- 2.4 GHz
- 5 GHz
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
- WPA, WPA2-Enterprise, WPA2-PSK
- Power over Ethernet (PoE)
- Internal
Ideal use cases
High-density and challenging RF stadium, arena, and open-air deployments
Harsh, rugged, and outdoor environments
Voice, video, and performance-intensive networks
Hardware features
IP67 rated, tested for dust, shock, vibration, and moisture
4 radios: 2.4 and 5 GHz, dual-band WIDS/WIPS and Bluetooth Low Energy (BLE)
4-stream UL/DL MU-MIMO 802.11ax, up to 3.55 Gbps dual-aggregate throughput
1 x Multigigabit Ethernet port, PoE: 802.3at
Cloud management
Network-wide visibility and control
Self-provisioning for rapid deployment
Automatic reporting
Seamless firmware updates
Enterprise security
802.1X and native Active Directory integration
Air Marshal: real-time WIPS with forensics
Stateful Layer 3-7 firewall
Identity-based group policies
Built-in antivirus scan (NAC)
Built-in Umbrella DNS Security*
Adaptive Policy automated segmentation**
Guest access
1-click secure guest access
Guest isolation firewall
Customizable splash pages
Integrated Facebook WiFi login
RF optimization
Dual-concurrent radios with MU-MIMO support, radios optimized for rate-vs-range performance
Third radio dedicated to security and RF management
Built-in real-time RF specturm view
Cloud-based, automatic RF optimization
Traffic Analytics
Classifies hundreds of applications
Create per-application and per-device bandwidth limits
Prioritize productivity apps
Restrict recreational traffic
Location Analytics
Measure visitor capture rate, visit length, and repeat visit rate
Measure visitor trends over time and compare performance across locations
Enable location services through integrated iBeacon functionality
Specifications
Features
| Maximal-Ratio Combining (MRC) | Yes |
|---|---|
| Virtual LAN features | Tagged VLAN |
| VLAN support | Yes |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| 5 GHz | Yes |
| 2.4 GHz | Yes |
Security
| Security algorithms | WPA, WPA2-Enterprise, WPA2-PSK |
|---|
Show all 25 specificationsShow fewer specifications
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
|---|
Power
| Power over Ethernet (PoE) | Yes |
|---|
Design
| International Protection (IP) code | IP67 |
|---|---|
| Product colour | White |
| Placement | Pole, Wall |
Antenna
| Antenna connector type | N-type |
|---|---|
| Antenna type | Internal |
General
| Product family | Meraki |
|---|
Weight & dimensions
| Weight | 1.5 kg |
|---|---|
| Height | 55 mm |
| Depth | 153 mm |
| Width | 300 mm |
Packaging content
| Quantity per pack | 1 pc(s) |
|---|
Operational conditions
| Operating temperature (T-T) | -40 - 55 °C |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
