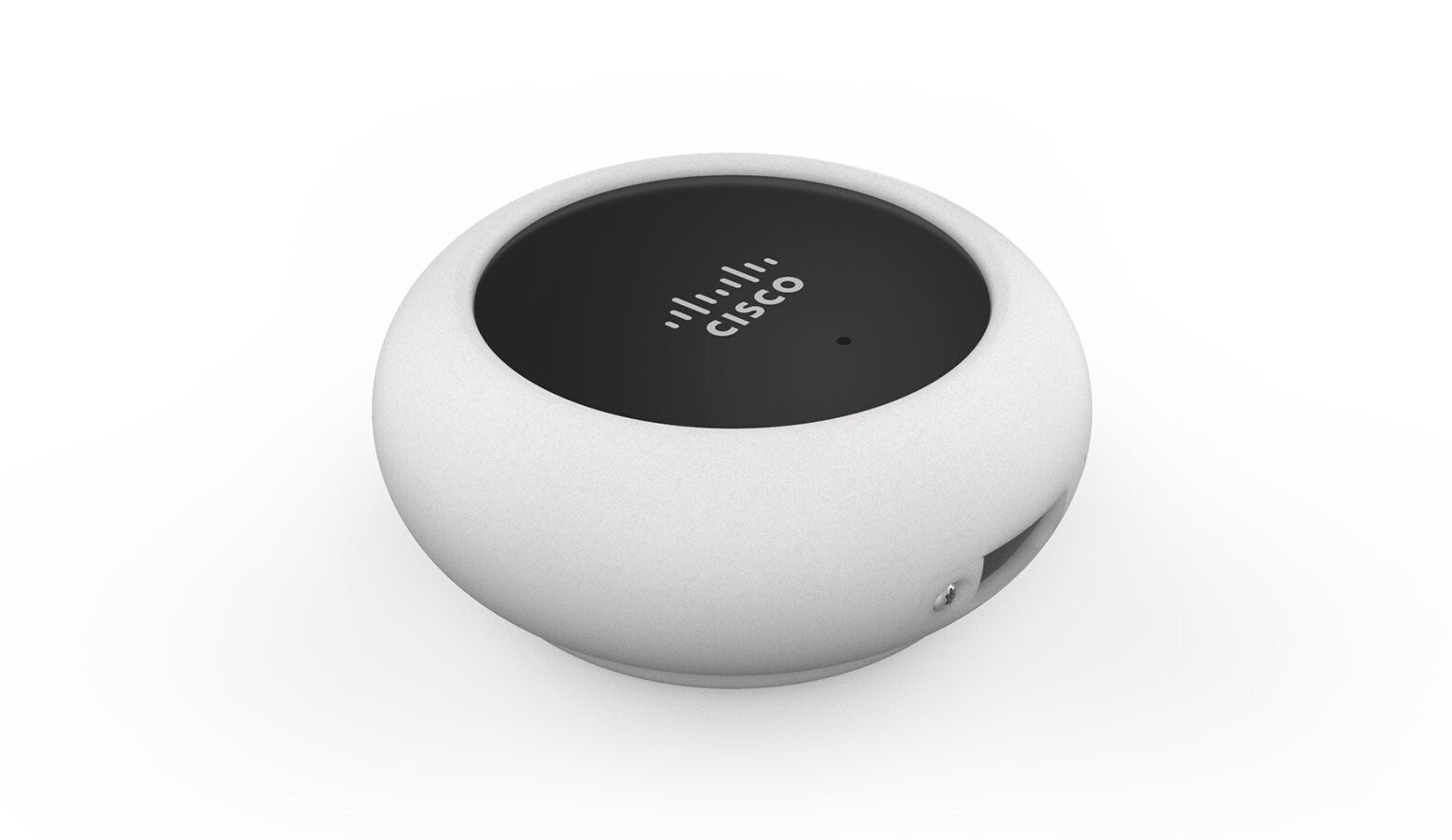

Cisco Meraki MA-PWR-MV-LV PoE adapter 54 V
Spread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £67.66 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
This unique accessory converts existing low voltage (12/24V) power supplies into PoE, allowing users to upgrade from analog to IP in just one installation step. Twin power cables can be disconnected from an analog camera and connected to the two terminals within the accessory in either order. The coaxial cable from the analog camera can simply be left in the wall and will no longer be used. Instead, video data will transmit wirelessly from the camera to the viewing computer (local connection) or through the Meraki cloud (for video proxy to a remote viewing device).
Easy Installation
Quickly convert standard low voltage power supplies (12/24V) to Power over Ethernet. Upgrading to MV cameras (MV12 and later) from analog simply requires a wireless connection and this accessory, which outputs POE. This device will even figure out which cable is connected to each terminal, removing the guesswork.
Specifications
Network
| Power over Ethernet (PoE) | Yes |
|---|
Features
| Safety | CSA / CB / UL / TUV (electrical safety), CAN / CSA-C22.2 No. 60950-1-07), ANSI / UL Std. No. 60950-1, IEC / EN 60950-1, CB, RCM, UL 2043 |
|---|---|
| LED indicators | Yes |
| Easy to install | Yes |
| Wall mountable | Yes |
| Product colour | Black, White |
Show all 18 specificationsShow fewer specifications
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
|---|
Power
| Output current | 0.43 A |
|---|---|
| Input current | 2.2/2.75 A |
| Input voltage | 24/12 V |
| Power over Ethernet (PoE) voltage | 54 V |
Certificates
| Certification | EN 55035, EN 55024, EN 300 386 (Europe)FCC (USA)ICES-330 (Canada)CISPR 32 (Australia / New Zealand)VCCI (Japan) |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 45 °C |
|---|
Weight & dimensions
| Dimensions (WxDxH) | 82 x 82 x 35.5 mm |
|---|---|
| Weight | 190 g |
Packaging content
| Quick installation guide | Yes |
|---|---|
| Number of products included | 1 pc(s) |
General
| Product family | Meraki |
|---|
